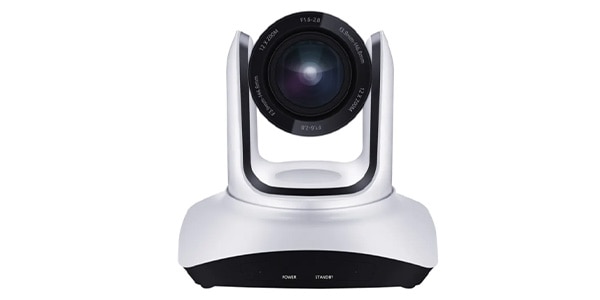

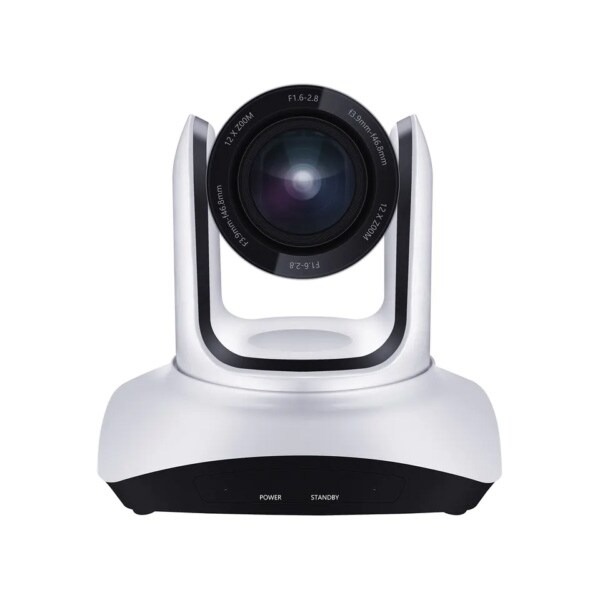

HDKATOV / KT-HD40RS

12x zoom HD remote PTZ camera. Equipped with Sony CMOS sensor.

■12x zoom HD remote PTZ camera
■Image sensor:
SONY 1/2.8’’ Progressive CMOS
■Pixel:
3.10 Megapixels
■Resolution:
1080P60/50, 1080P30/25, 1080i60/50, 720P
Options: 1080p59.94, 1080p29.97, 1080i59.94
■Lens: 12x zoom
f=3.9mm(wide angle end)～46.8mm(far end)
■Horizontal viewing angle:
72.5°(W)~7.4°(T)
■Focus:
auto/manual
■Minimum illuminance:
0.1 Lux
■Shutter speed:
1/1~1/10000S
■White balance:
Auto/Manual/Indoor/Outdoor
■S/N ratio: ?50db

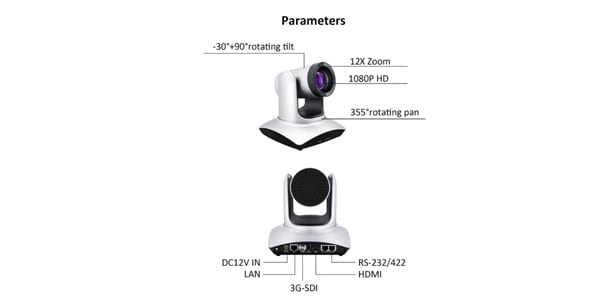

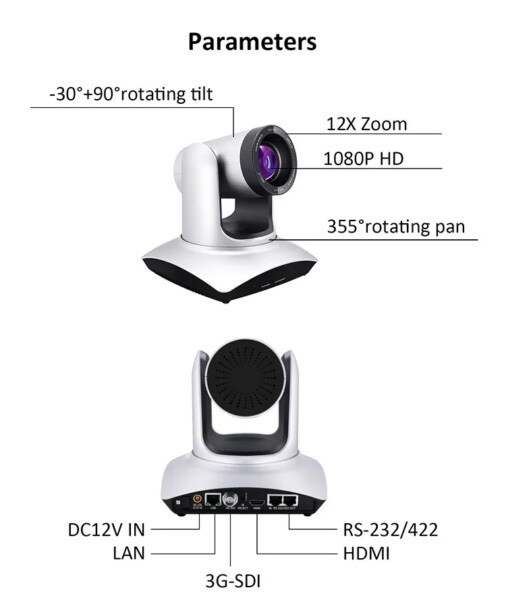

■Pan: 355° (maximum speed: 80°/s)
■Tilt: ?30° to +90° (Maximum speed: 60°/s)
■Preset position:
9 positions: IR remote control
■Video output:
HDMI, 3G/HD-SDI, IP
■Control protocol:
SONY VISCA, PELCO P/D
■Network protocol:
VISCA over IP, RTSP, RTMP, ONVIF
■Control mode:
RS-232C, RS-422/485
■Power supply:
12V DC(10.8~13.0V DC)
■Power consumption:
Max 12W (DC 12V)
■Operating environment:
0℃~40℃
■SIZE: 181(W)×176(H)x181(L)mm
■Weight: 1525g
■Color: Silver
■Accessories: A
DC12V power adapter, IR remote control, manual, RS-232C cable, HDMI cable
