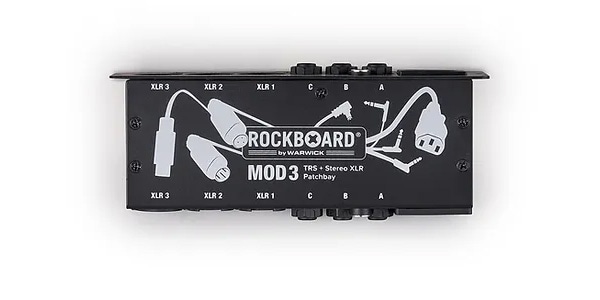

WARWICK / MOD 3 V2 - All-in-One TRS & XLR Patchbay for Vocalists & Aco

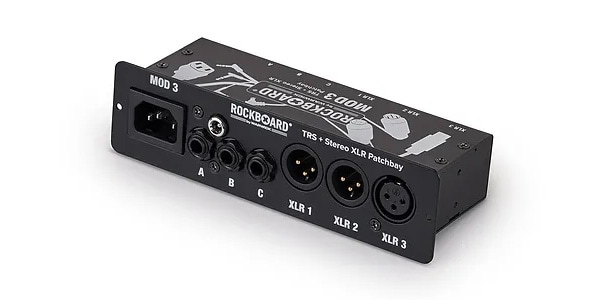

This is a convenient patch bay to which various cables can be connected using the MOD slots provided in all RockBoard except the DUO series.

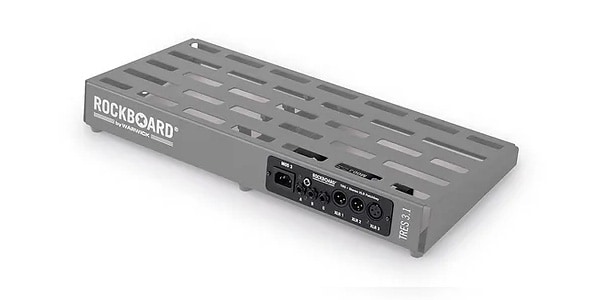

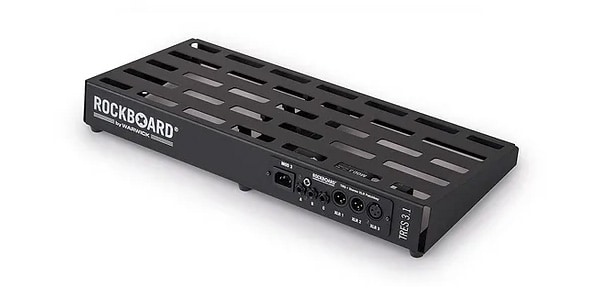

■Compatible with mod slots on RockBoard pedalboards
■Compatible with a variety of other pedalboards.
■Central access point for effects setups, facilitating smooth cable traffic to and from the pedalboard.

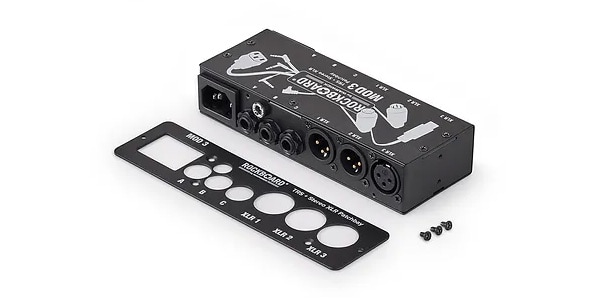

■Removable front plate for installation above or below the pedalboard

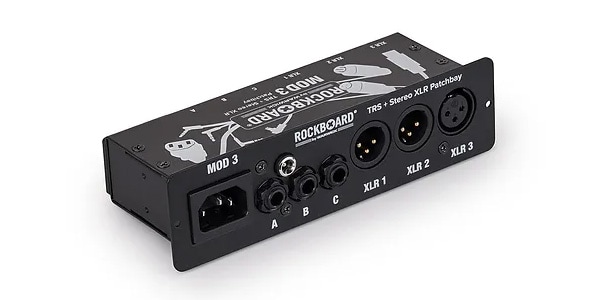

■3 x 6,3 mm / 1/4” TRS thru
2 x XLR thru (front male/rear female)
■1 x XLR thru (front: female, rear: male)
1 x DC 2,1 x 5,5 mm barrel through

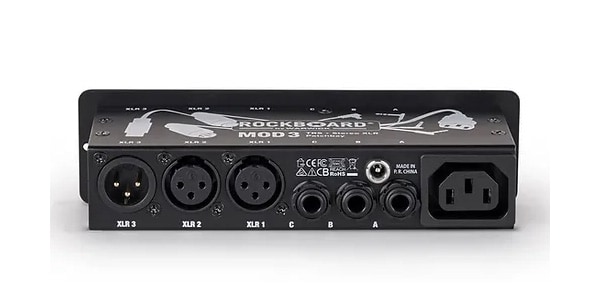

■1 x AC IEC thru (front: male/rear: female) All connections are reflected on the back side
■Dimensions without front plate (W x D x H): 160 x 60 x 33 mm

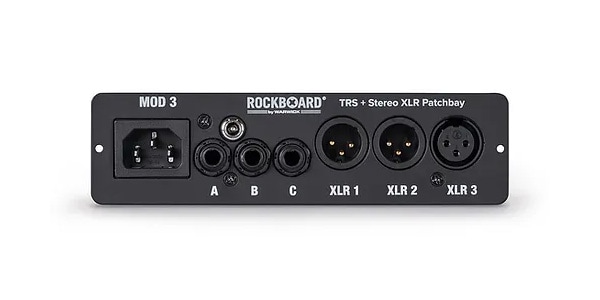

■Dimensions of front plate (W x D x H): 175 x 48 mm
■Weight 450g

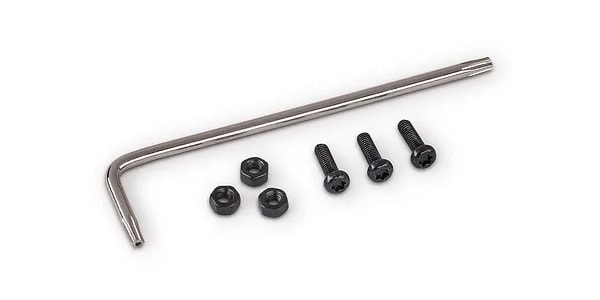

■Mounting screws, counter nuts, and TX wrench included
