AKAI / MPC KEY37

The AKAI / MPC Key 37 is a standalone synthesizer keyboard for music production that inherits the innovative workflow of the MPC. It delivers a powerful workflow with over 100 built-in effects and semi-weighted keys with aftertouch.

■Synthesizer
■37 keys

Product Overview
- Iconic MPC standalone production center in a new form with a 37-key keyboard
- All-in-one beatmaking workflow, sampling engine, sequencer, plug-in synths and built-in effects

Sound
- Includes over 10GB of sounds and instruments from the Xpansion library, including Akai's world-class MPC plug-ins
- Equipped with over 100 high-quality built-in effects of studio quality, and processors ideal for creative production and mixing

Control Surface

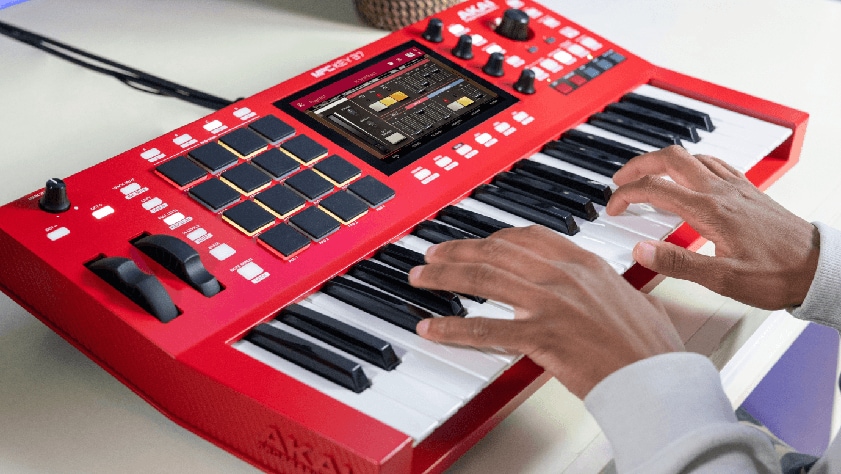

- 37-key synth-action keybed with aftertouch, pitch bender and modulation wheels

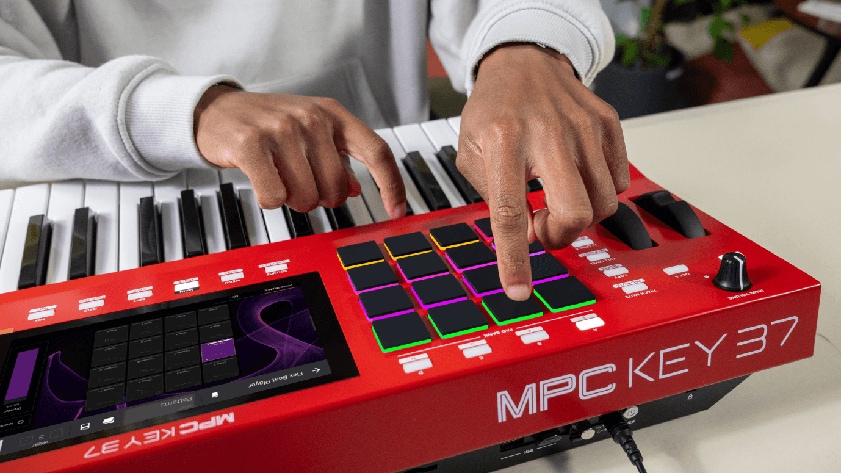

- 16 velocity/pressure-sensitive MPC drum pads with poly aftertouch and 16 levels

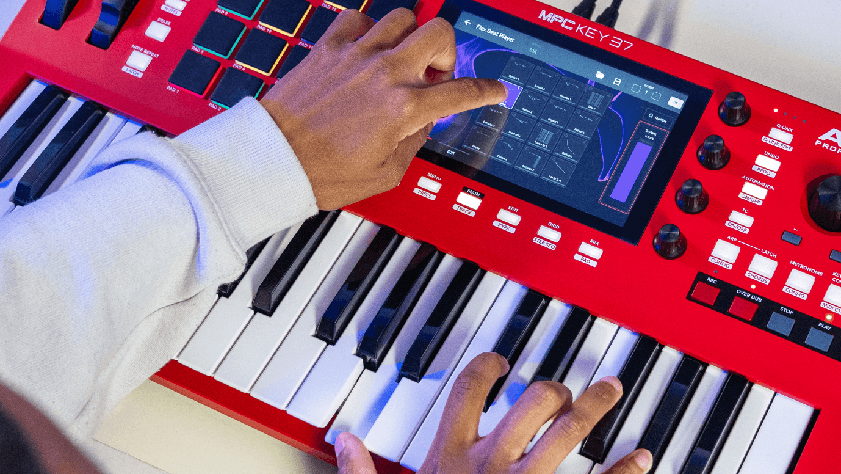

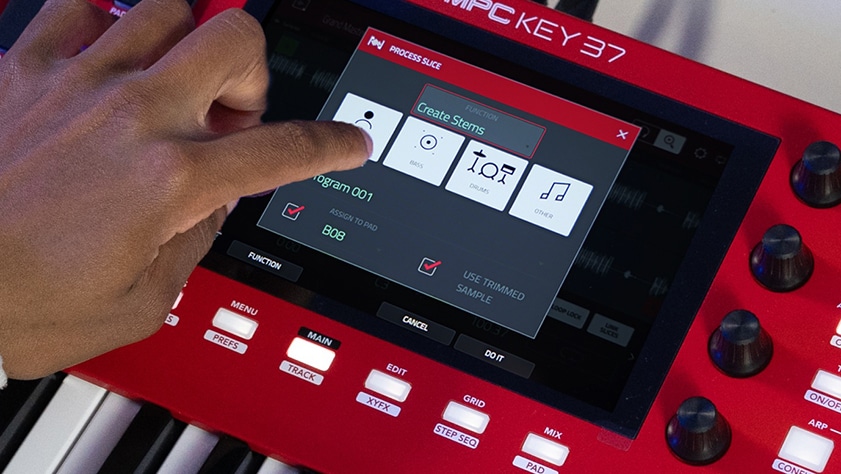

- 7-inch color touchscreen with multi-touch and gesture support, plus 4 assignable Q Link knobs ideal for real-time editing and performance

Connection
- 2 MIDI inputs and outputs for control of studio outboard equipment and 8 x CV/Gate outputs (4 x TRS jacks)

- Sample and capture audio using the built-in line-level input

- On-board Wi-Fi for wireless data transfer and updates for downloads, plugin management, and direct connection to Splice

- SD card reader for importing large files and expanding your workspace

Technical Specifications
Keyboard: 37-key synth-action keybed with aftertouch, pitch bender and modulation wheels
Pads:
16 x RGB backlit velocity and pressure-sensitive pads
4 Pad Bank buttons for bank access
Knobs:
4 x Q-Link knobs for touch-sensitive 360° parameter control
1 x Data Encoder for value adjustment and selection button
31 x dedicated function buttons
Display:
7" / 177 mm (diagonal)
151 x 94 mm (width x height)
Full-color LED with touch interface Backlit display
Memory:
Processor: Quad-core ARMR processor
RAM: 2GB
Storage: 32GB (free user storage 22GB or more)
Power: AC adapter (12V, 3.0A, center positive included)

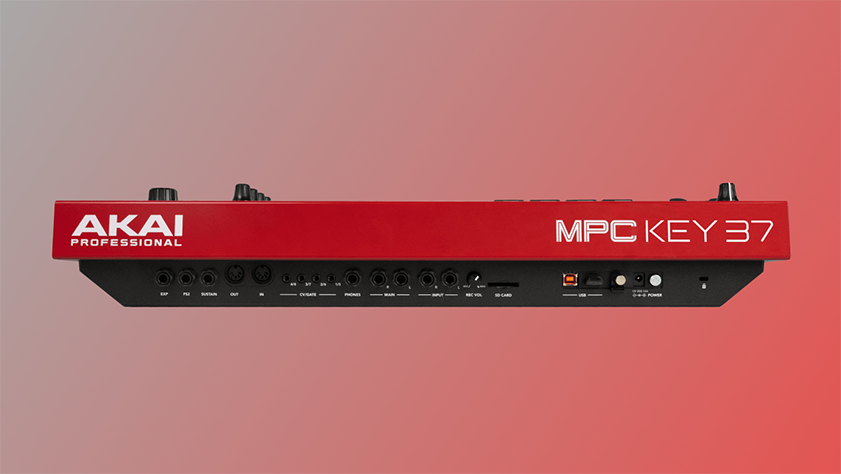

Connections:
2 x 6.35mm TRS inputs (1 x stereo pair)
2 x 6.35mm TRS outputs (1 x stereo pair)
1 x 3.5mm stereo headphone output
1 x 6.35mm sustain pedal
1 x expression pedal
1 x FS2 input
1 x 5-pin MIDI input
1 x 5-pin MIDI output
4 x TRS CV/Gate outputs (total 8 outputs)
1 x USB Type-A port
1 x USB Type-B port
1 x SD card slot
1 x power adapter input
Product dimensions (W x D x H): 58.22cm x 31.39cm x 10.36cm
Weight: 4.0kg
