Dreadbox / Hades Reissue

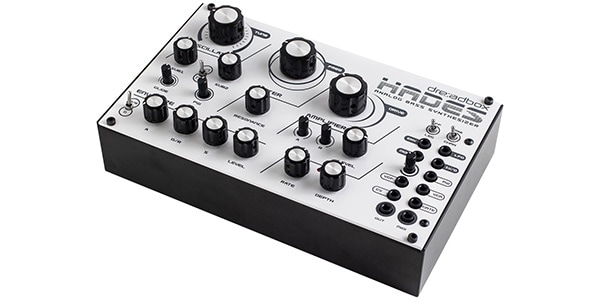

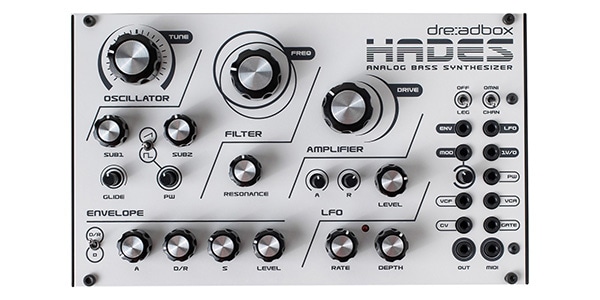

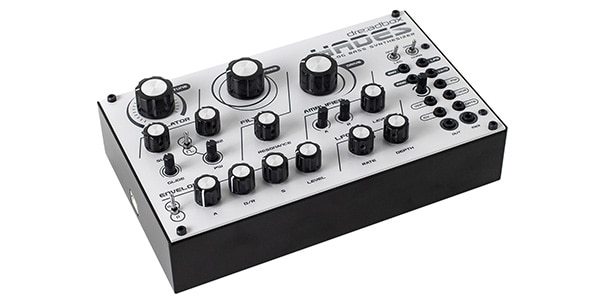

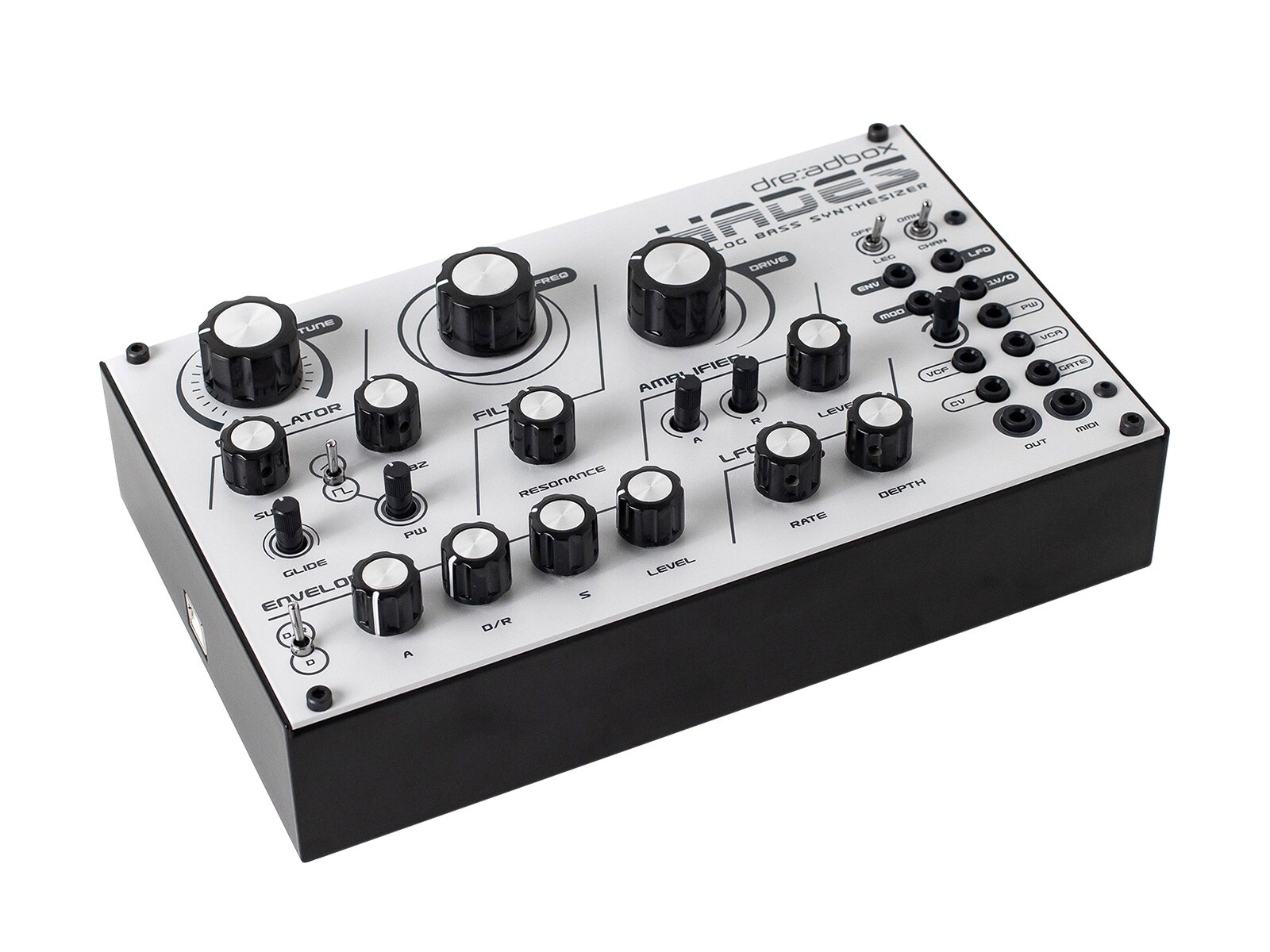

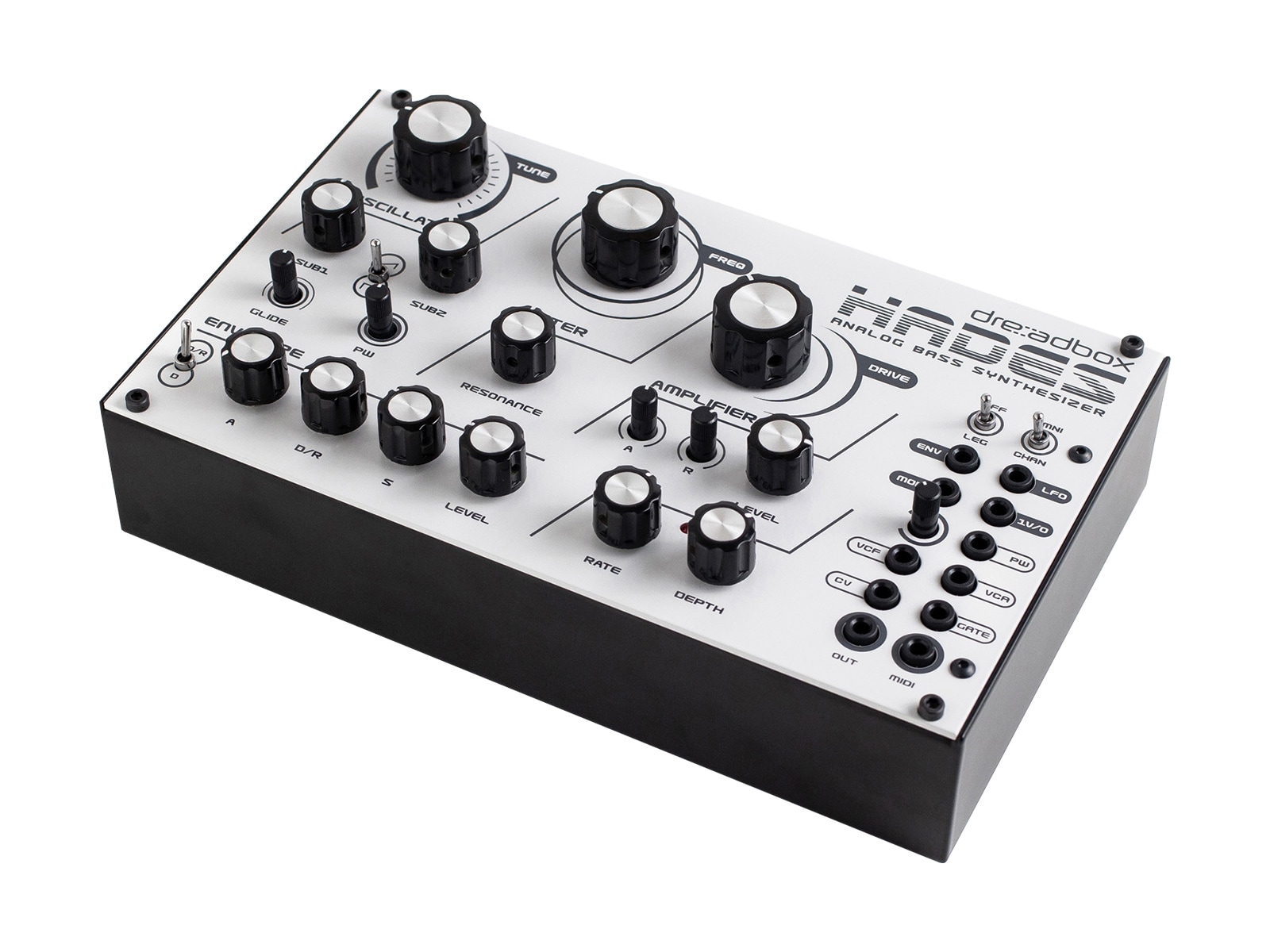

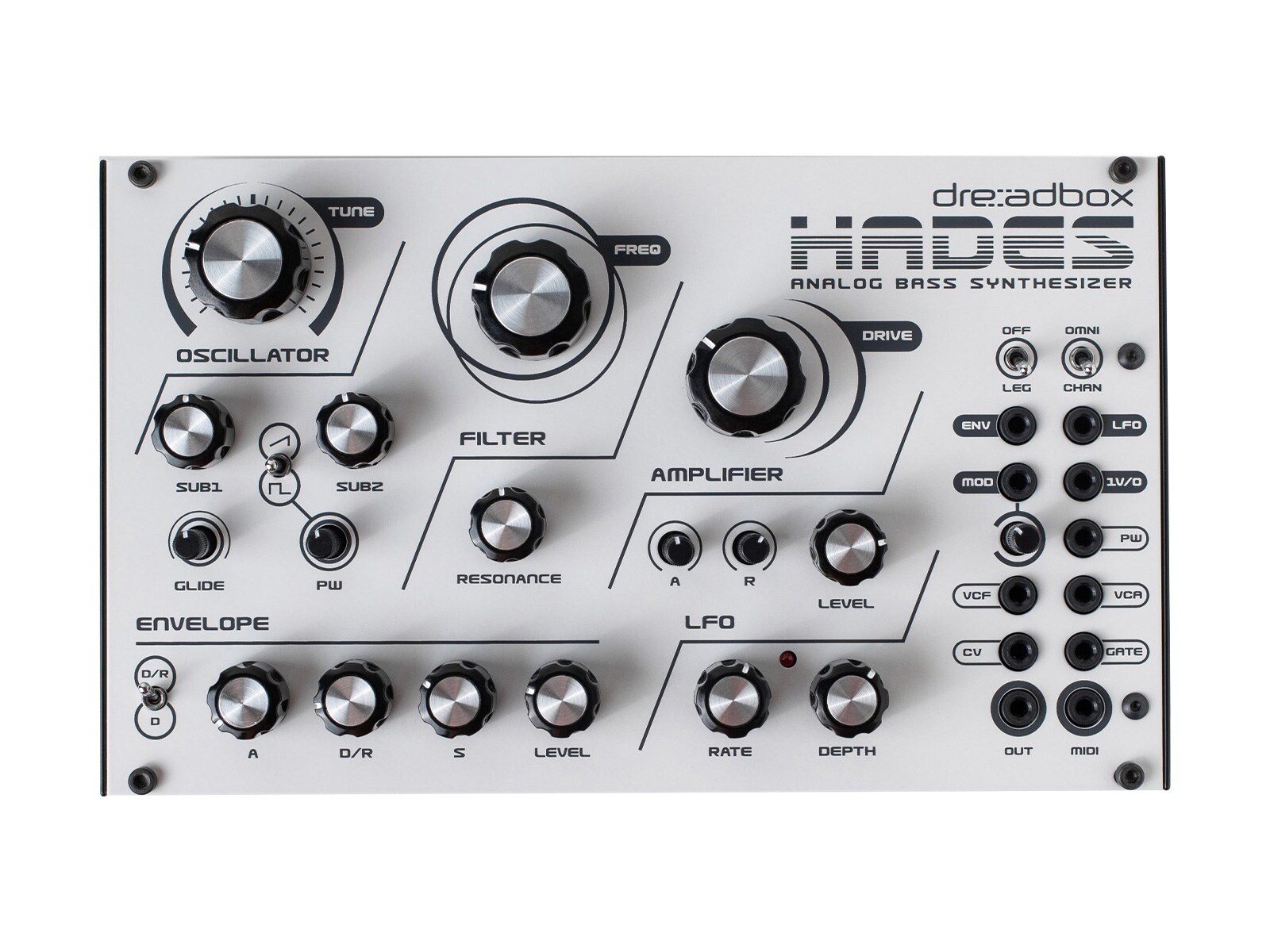

Hades Reissue is a semi-modular analog monophonic synthesizer that can create deep bass sounds with simple operation.

Hades Reissue is a semi-modular analog monophonic synthesizer that lets you create deep bass sounds with simple operation. The warm, deep sound of an analog synthesizer is captured in a newly designed, compact enclosure.

Just plug in your MIDI keyboard and you're ready to go, quickly getting the sound you want with minimal controls. It also features 11 patch points for patching within Hades or connecting to other Eurorack modular synthesizers.

You get a full-fledged sound at an affordable price, and it will bring a rich bass sound to your music.

■ Minimal Controls Dedicated to Creating Bass Sounds
Hades lets you create powerful bass sounds with a minimum of controls.

The oscillator section features one oscillator and two sub-oscillators. The main oscillator has a choice of sawtooth or pulse waves with adjustable pulse width, while the two sub-oscillators can add a pitch one or two octaves lower, respectively, to enhance the low end.

The filter uses a 3-pole 18dB/Oct resonant OTA low-pass filter. An OTA drive circuit is included in the second stage of the filter to add distortion and create aggressive sounds.

An AD/RS (decay and release time common) envelope and AR amp envelope are provided, allowing individual control of filter cutoff and volume. A patching LFO is also provided to add movement to a monotonous sound.

11 patch points to expand your sound creation possibilities.
Hades provides 11 patch points, including a master output and MIDI input. This allows you to control pitch and filter cutoffs with envelopes, LFOs, and the modulation wheel on your MIDI keyboard.

Hades can also be removed from the case and integrated into a Eurorack-format modular system to take full advantage of the patch points.

[Product Specifications
Analog oscillator for fat sound
Two sub-oscillators for enhanced low-end
Resonant OTA low-pass filter with 3-pole 18dB/Oct
OTA drive circuit for aggressive sound
CV outputs: AD/RS envelope, LFO, Mod Wheel, 1V/Oct
CV inputs: PW, Cutoff, VCA, CV, Gate

Connections
USB power supply (1.5 W)
20,000 mA portable battery provides approx. 50 hours of operation
MIDI keyboard connection via DIN MIDI - Mini TRS adapter
Mono TS jack output

Dimensions Width: 21.5 cm
Depth: 13 cm
Height: 6.5 cm
Weight: 0.9Kg
Accessories: Japanese manual, DIN MIDI to Mini TRS adapter (Type-A), ribbon cable
