ROLAND / BRIDGECSTX

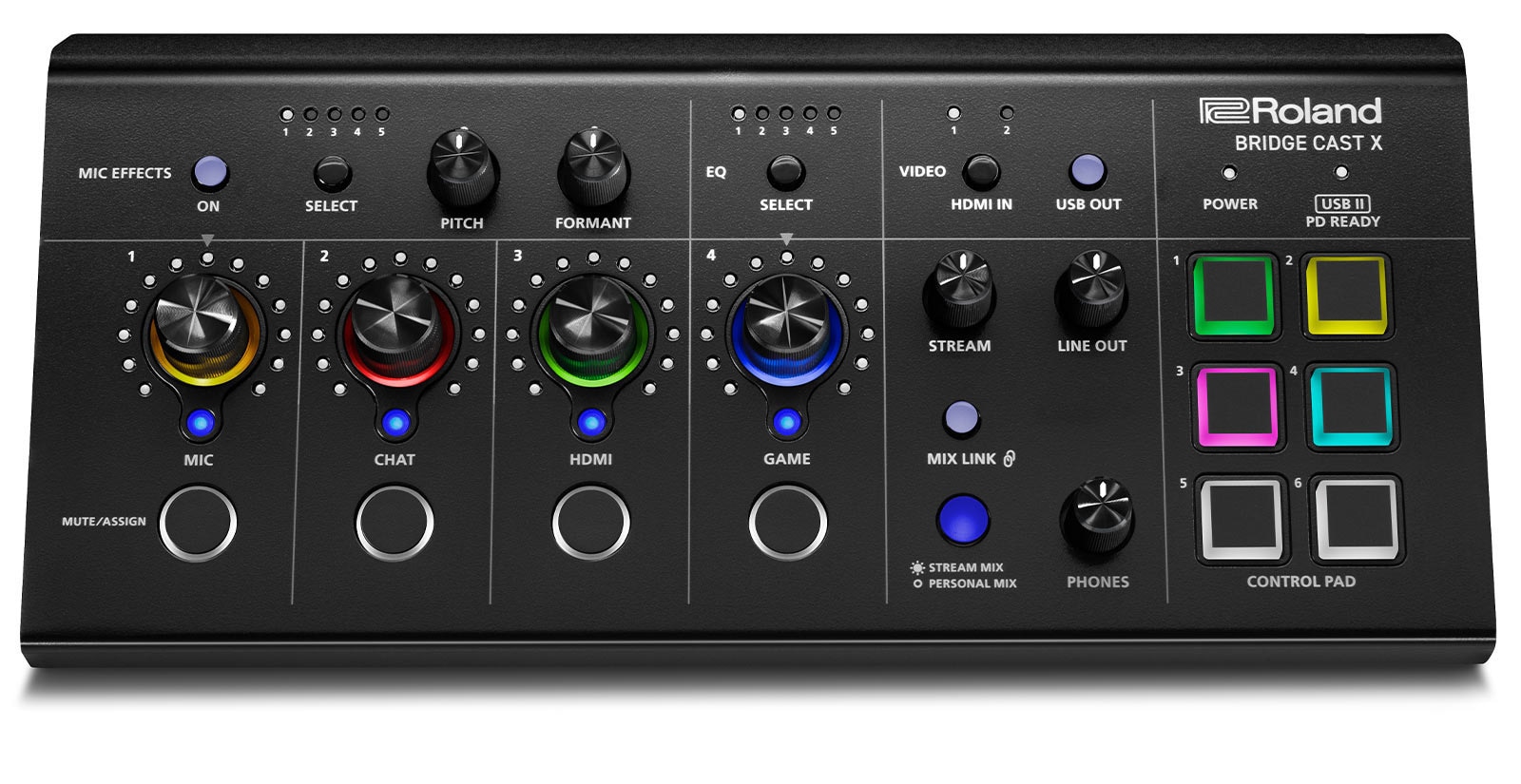

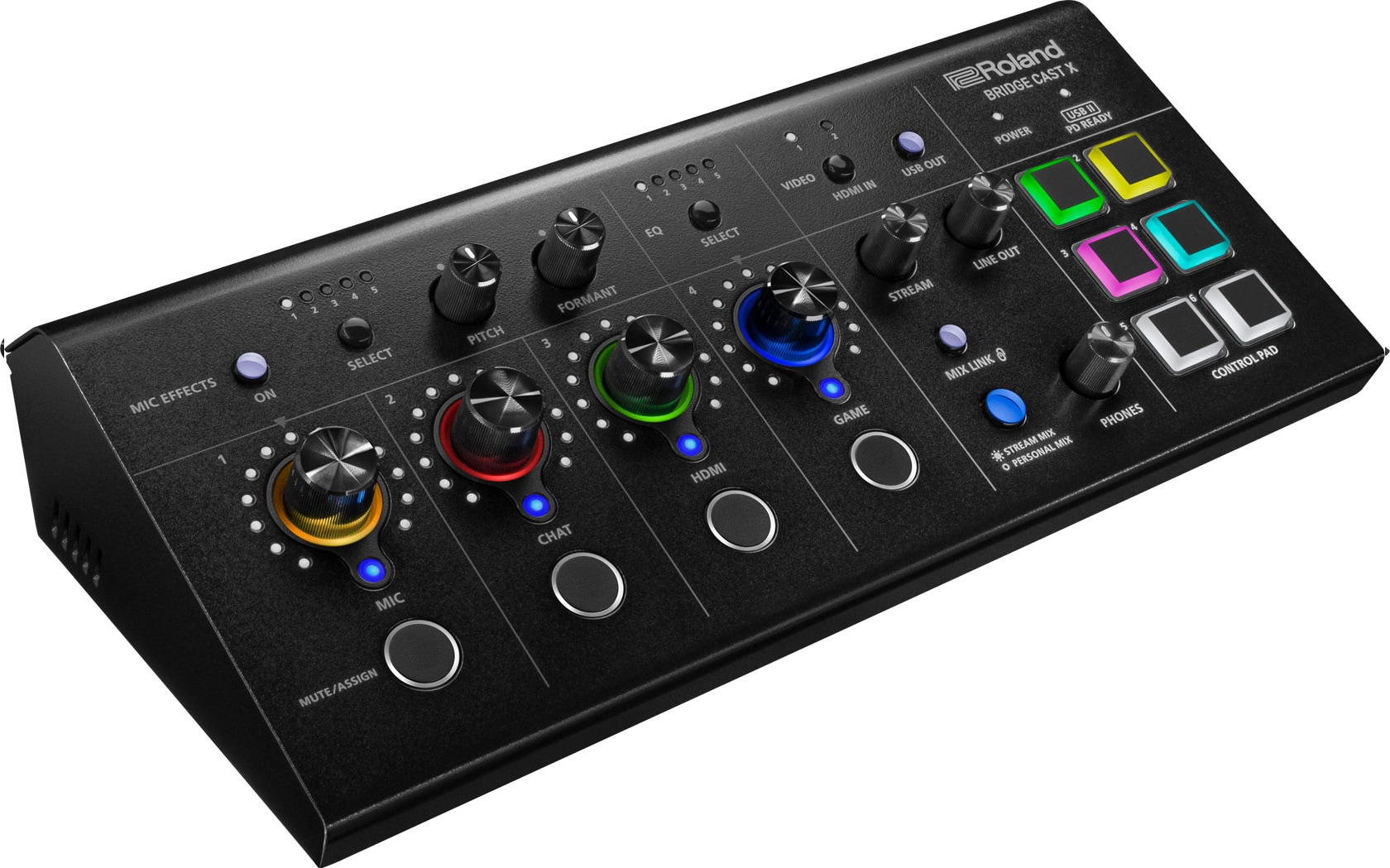

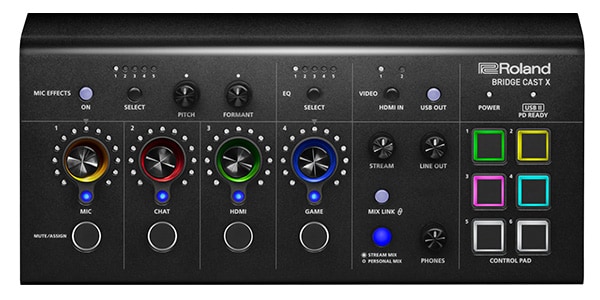

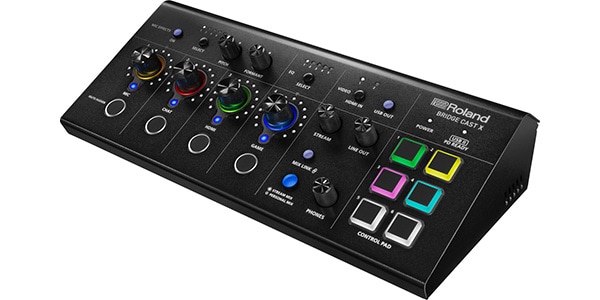

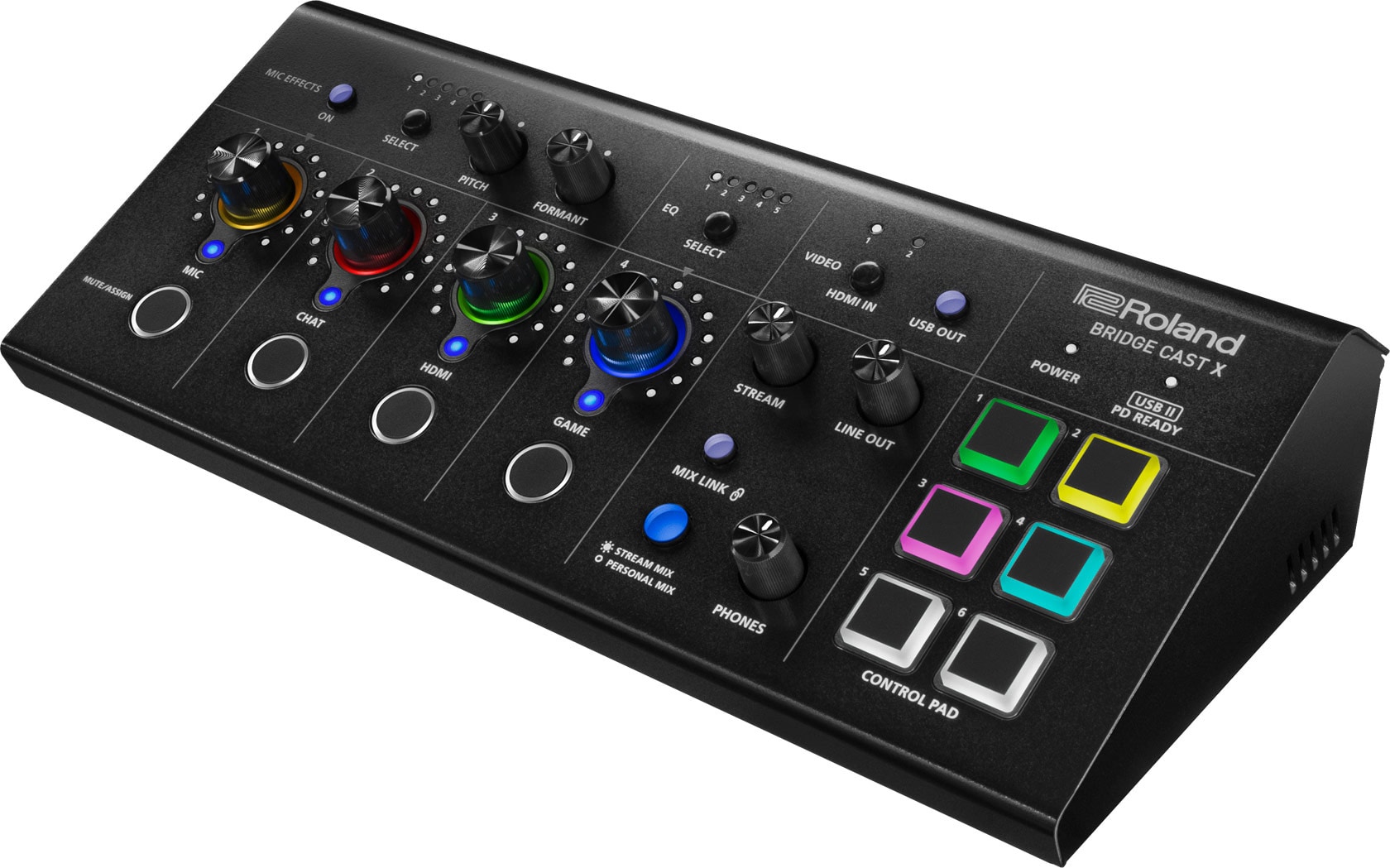

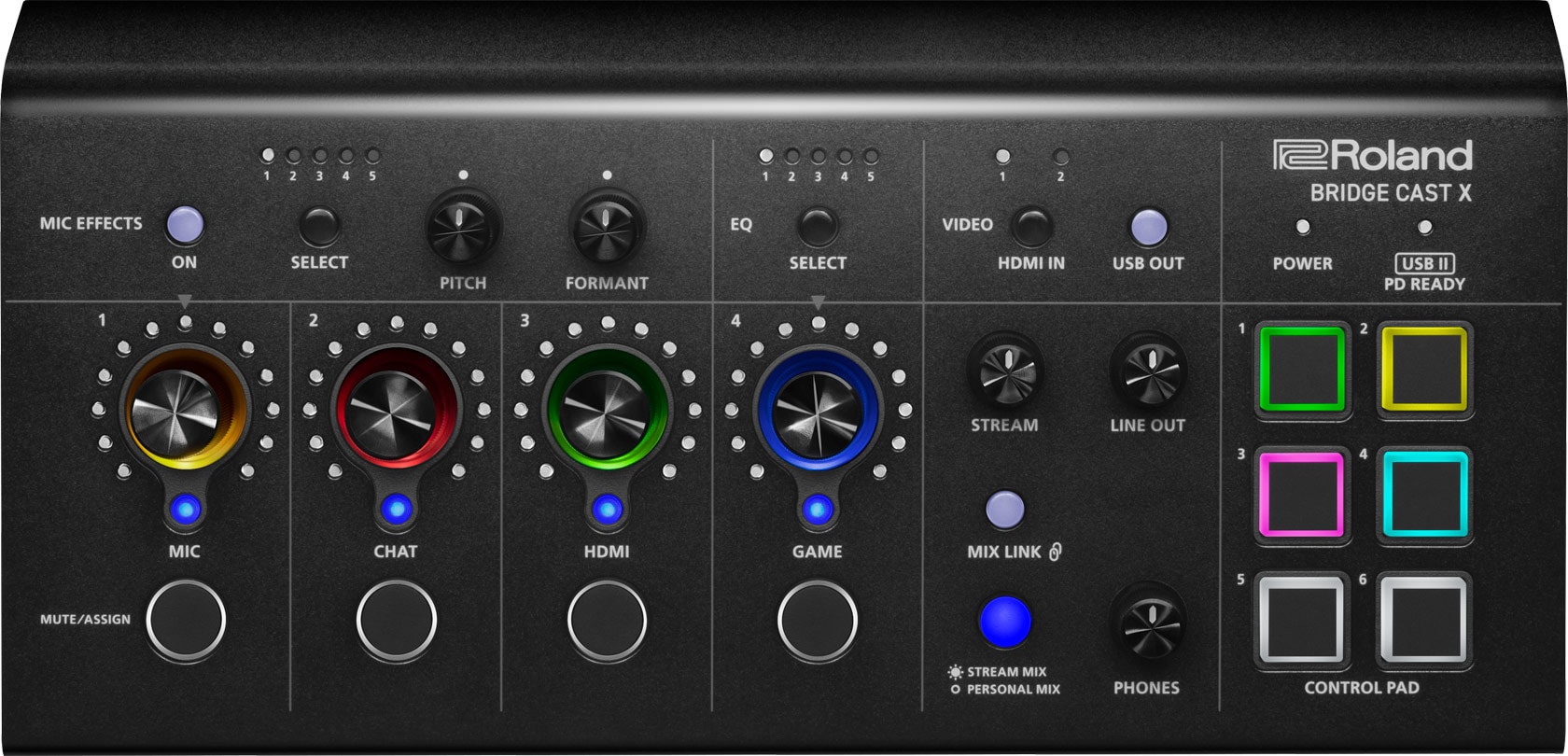

Introducing the top model of BRIDGECAST, which is equipped with a video capture function and supports 2PC distribution!While maintaining the high gain microphone preamplifier, high operability, and sound quality that are unique to the series, it is now equipped with an HDMI input terminal that allows you to import video and audio from game consoles.

【picture】
■ HDMI IN/THRU format:
1280x720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
1920x1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p,
119.88p, 120p(CTA-861-F)
2560x1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p,
119.88p, 120p(CTA-861-F)
3840x2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
1280x720/60Hz(VESADMT)
1920x1080/60Hz(VESADMT)
2560x1440/60Hz(VESACVTReducedBlanking)
2560x1080/60Hz(VESACVTReducedBlanking)
3440x1440/60Hz(VESACVTReducedBlanking)
1920x1080/240Hz
2560x1080/144Hz
2560x1440/144Hz
3440x1440/100Hz
*Refresh rate (Hz) is the maximum value for each resolution.
*HDR (High Dynamic Range) compatible
■ HDMI IN/THRU format (when outputting USB video):
1280x720/50p, 59.94p, 60p(CTA-861-F)
1920x1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
3840x2160/29.97p, 30p, 50p, 59.94p, 60p(CTA-861-F)
■ USB video output format
YUY2 (uncompressed), Motion JPEG (compressed)
■ USB video output resolution (USB II terminal only)
1920x1080, 1280x720, 640x480
*Frame rate is up to 60fps
【audio】
■Input channel
MIC
AUX
HDMI(*1)
USB CHAT(*2)
USB GAME(*2)
USB MUSIC(*2)
USB SYSTEM(*2)
USB CONSOLE/MOBILE (*3, *4)
(*1) Linear PCM 48kHz 2ch, 5.1ch, 7.1ch
(*2) When the connection setting of the USB I/II terminal is ""PC""
(*3) When the USB I terminal connection setting is “CONSOLE/MOBILE”
(*4) When the USB II terminal setting is “MOBILE”
[Output channel]
LINE OUT
PHONES
AUX(*5)
USB MIC(*6)
USB STREAM(*6)
USB PERSONAL(*6)
USB CONSOLE/MOBLE(*7, *8)
(*5) Microphone audio is output from the CTIA MIC terminal.
(*6) When the connection setting of the USB I/II terminal is ""PC""
(*7) When the USB I terminal connection setting is “CONSOLE/MOBILE”
(*8) When the USB II terminal setting is “MOBILE”
■Audio mixing bus
2 (STREAM MIX, PERSONAL MIX)
■Sampling frequency
Windows: 44.1kHz, 48kHz, 96kHz
macOS/iOS/Others: 48kHz
■Signal processing
AD/DA:24 bit
Internal processing: 32-bit floating point
■Effect
MIC: Voice changer, noise suppressor, compressor, equalizer,
De-esser, reverb, low cut
CHAT: De-esser, compressor
HDMI: Equalizer, virtual surround
GAME: Equalizer, virtual surround
STREAM:Delay
■Audio file playback function
Number of tracks: 2
Data format: WAV (linear PCM, 48kHz, 16 bit, stereo/mono)
Maximum playback time: 5 seconds/track
■Specified input level
MIC: -87 ~ -12dBu (Maximum input level: 0dBu)
HEADSET MIC: -56 ~ -12dBu (Maximum input level: 0dBu)
AUX:-10dBu (Maximum input level: +2dBu)

■Input impedance
MIC:8kΩ
HEADSET MIC:1.3kΩ
AUX:10kΩ
■Specified output level
LINE OUT: -4dBu (Maximum output level: +8dBu)
PHONES/HEADSET: +1dBu (Maximum output level: +13dBu)
PHONES/HEADSET:78mW + 78mW (at 32 Ω load)
PHONES/HEADSET: 35mW + 35mW (at 250 Ω load)
■Output impedance
LINE OUT:1.1kΩ
PHONES/HEADSET:10Ω
AUX(MIC):940Ω

【others】

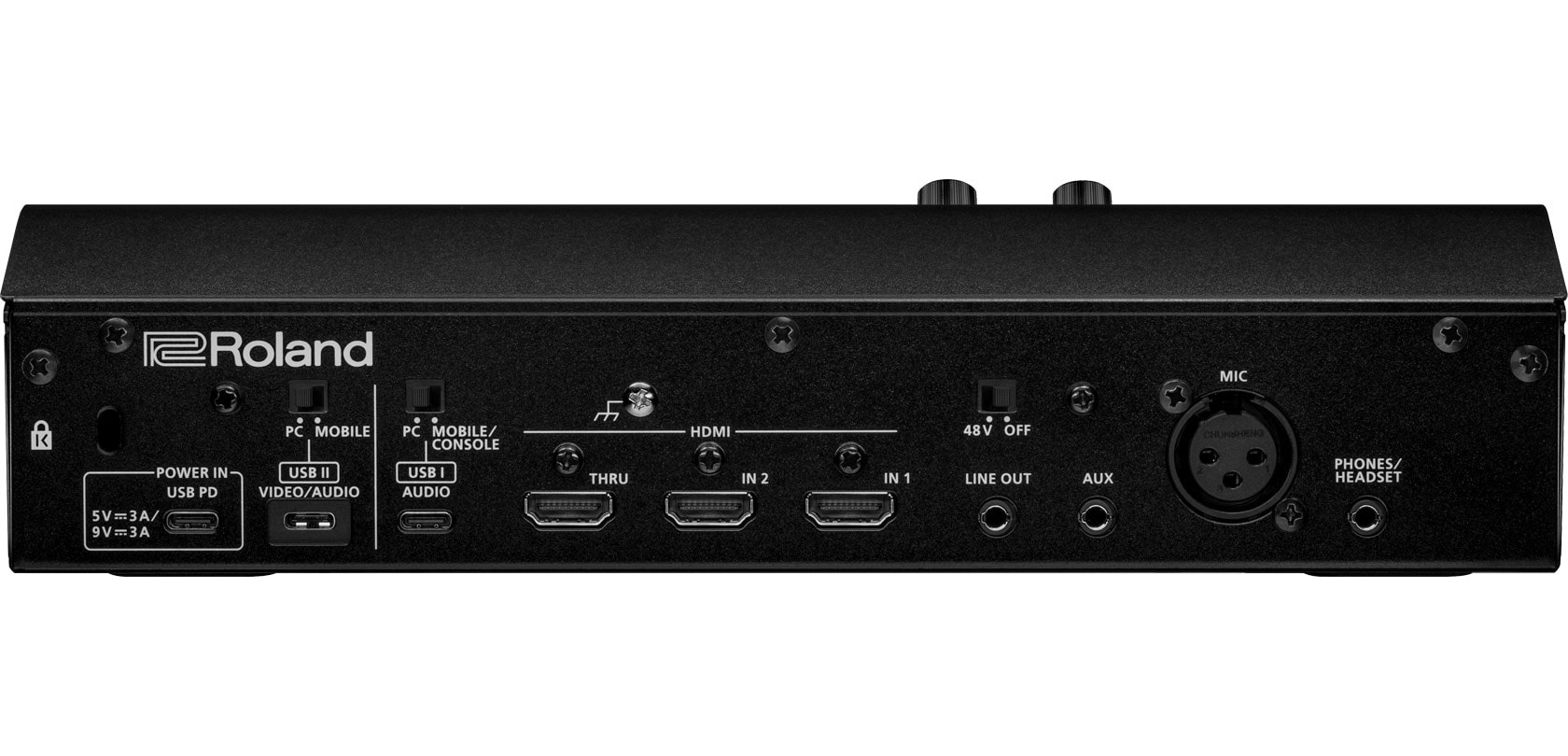

■Terminal
MIC terminal: XLR type (phantom power DC 48V, 6mA Max)
PHONES/HEADSET terminal: Stereo mini type (CTIA, plug-in power compatible)
AUX terminal: Stereo mini type (TRRS)
LINE OUT terminal: Stereo mini type (TRS)
HDMI IN 1 ~ 2, THRU terminal: HDMI type A (*9, *10)
USB I terminal: USB Type-C(R)(*11)
USB II terminal: USB Type-C(R) (*12, *13)
USB POWER IN terminal: USB Type-C(R)(*14)
(*9) HDCP compatible
(*10)Multi-format compatible
(*11)Audio/MIDI/HID compatible
(*12)Video/Audio/MIDI/HID compatible
(*13) Can supply power to USB PD (Power Delivery) compatible smartphones (USB POWER
(When 9V/3A is supplied to IN terminal)
(*14) A USB PD compatible AC adapter that can supply 5V/3A or 9V/3A is required.
■Power supply
USB bus power (*15)
USB PD compatible AC adapter (commercially available)
(*15) If a computer that can supply 5V/3A is connected to the USB II terminal, it will operate on bus power.
I will make
■Current consumption
5V DC, 3A
9V DC, 3A(*16)
(*16) When supplying power to a smartphone connected to the USB II terminal
■Supported OS
Microsoft Windows 10, Windows 11
Apple macOS 12 or higher
Apple iOS 16 or higher
*This product has been confirmed to work on a standard computer that meets these operating conditions.
We do not guarantee all operations under the conditions described in ②. Even under the same conditions, the performance
Please note that processing capacity may vary due to differences in computer-specific design specifications and usage environments.
I'm here.
■SIZE:
269(W)x70(H)x130(D)mm
■Mass
1.35kg
■Included items
Flyer “Please read first” (including warranty)
USB 3.2 Type-C(R) to Type-C(R) cable
USB 2.0 Type-C(R) to Type-C(R) Cable (POWE R)
