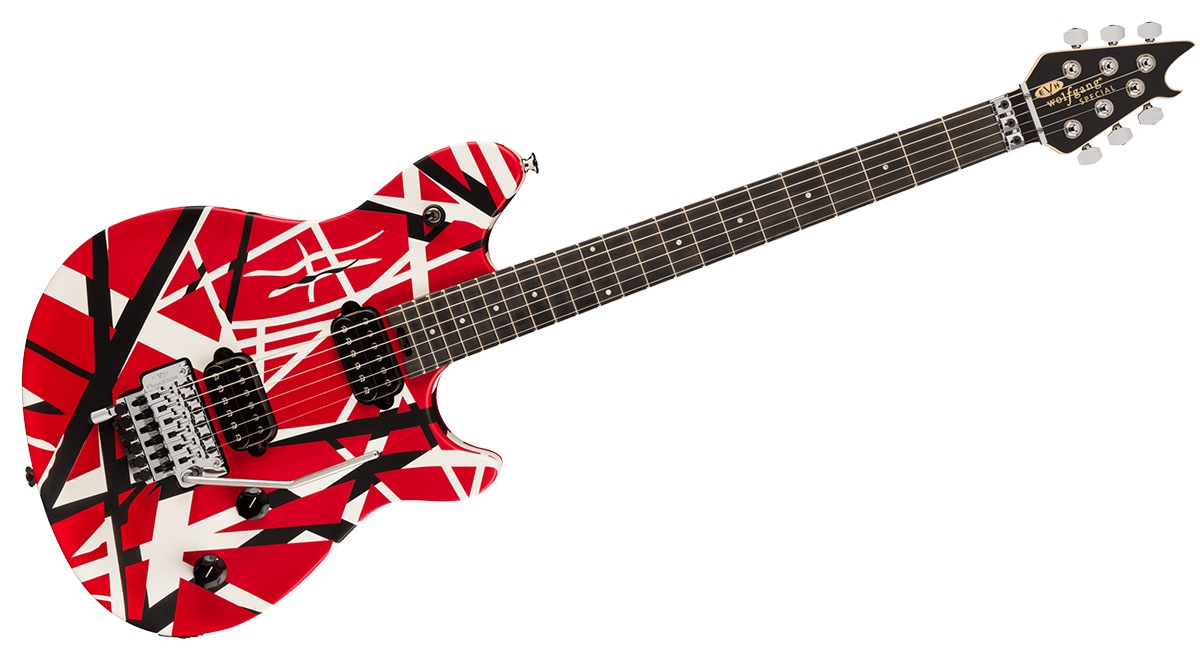

EVH / Wolfgang Special Striped Red with Black and White Stripes

The Wolfgang Special Striped model boasts an intense sound, brought together by player-friendly features and eye-catching specs such as the iconic striped design, black headstock, and chrome hardware, and manufactured to produce countless great rock tunes. The Wolfgang Special Striped model is a guitar with a great response, built to produce countless classic rock tunes.

It features an arched-top basswood body and a quarter-sawn maple neck reinforced by a built-in graphite rod, and is built to Eddie Van Halen's exacting specifications. The neck's 22 jumbo frets and 12-16” compound radius ebony fingerboard support ultra-fast playing. A truss rod adjustment wheel at the neck heel allows for easy neck adjustment.

Two custom-designed EVH Wolfgang Humbucking alnico 2 pickups mounted directly on the body provide dynamic and accurate voicing as well as rich sustain to support powerful chords and solos.

The low-friction volume knob allows for smooth volume playing, while the high-friction tone knob prevents accidental tone changes. A reliable EVH-brand Floyd Rose locking tremolo and Floyd Rose locking nut combine to maintain accurate tuning even during extreme arm playing. The bridge is equipped with an EVH D-Tuna that instantly switches to drop-D tuning.

Neck
Headstock EVH Wolfgang
NeckQuartersawn Maple
Neck FinishHand-Rubbed Satin Urethane
NeckShapeWolfgang Backshape
NeckBolt-On with Graphite Reinforcement
Neck Thickness.805“ at 3rd & .890” at 12th Fret
Fingerboard Radius12“-16” Compound Radius (304.8 mm to 406.4 mm)
Fingerboard MaterialEbony
Position InlaysWhite Dot
Side Dot
Number of frets22
Truss RodEVH-Branded with Wheel
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
NutFloyd Rose R2 Locking
Nut Width1.625” (41.3 mm)
Nut MaterialFloyd Rose R2 Locking

Body
BodyBasswood
Body FinishSatin Urethane
Body ShapeWolfgang
Body MaterialBasswood

HardwareBridgeEVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
BridgeEVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
BRIDGE MOUNTING2-Point Modern
TREMOLO BLOCKBrass
Pickup CoversBlack
Control KnobBlack Knurled with White Indicator
SWITCH TIPBlack
Hardware FinishChrome
Tuning MachineEVH-Branded Gotoh
STRING TREESFloyd Rose Retainer Bar
String EVH Nickel Plated Steel (.009-.042 Gauges)
Tremolo ArmFloyd Rose 1000 Series Locking
Strap Button Oversized

String EVH Nickel Plated Steel (.009-.042 Gauges)
Bridge PickupDirect Mount EVH Wolfgang Humbucking
Neck PickupDirect Mount EVH Wolfgang Humbucking
Pickup Configuration HH
ControlVolume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
Switch 3-Position Toggle: Position 1, Bridge Pickup; Position 2, Bridge and Neck Pickups; Position 3, Neck Pickup
