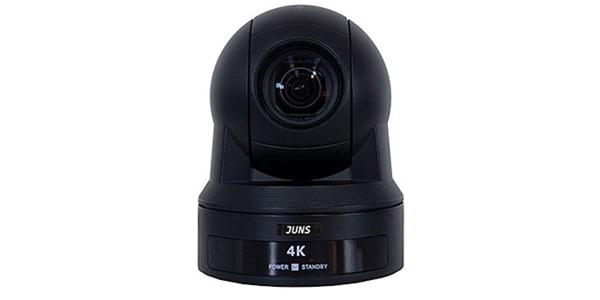

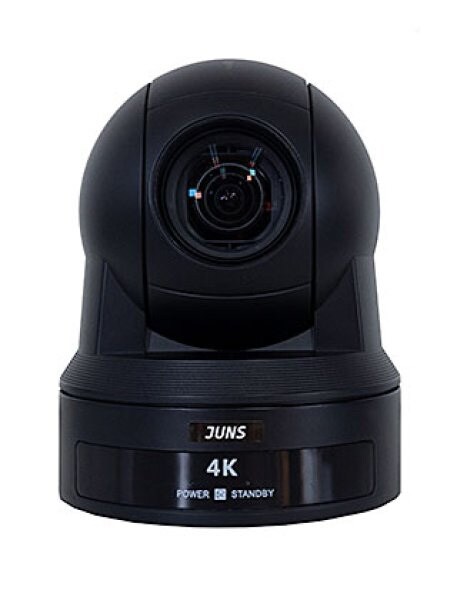

JUNS / JLC-CAM-4KP

LiveCAM, a popular remote camera with overwhelming cost performance, is also a 4K model. In combination with a controller, it can be used like a CCU to control hue, contrast, etc. from a remote location.

■Remote camera “LiveCAM” 4K model

[Basic specifications]
■Video element: 1/2.8 inch 8.50 megapixel SONY 4K CMOS sensor
■Resolution: 2160p30/25,1080p60/59.94/50/30/29.97/25,720p60/50
*SDI (3G-SDI) is not compatible with 4K.
*IP/NDIR does not support 59.94/29.97
■Zoom: 12x optical (16x digital)
■Focal length: F=3.9mm (wide angle) - 46.8mm (telephoto)
■Angle of view: Horizontal angle approximately 72.5-6.5 degrees
■Focus function: auto/manual
*Even in manual mode, if you perform zoom/wide operation, it will change to auto.
■Minimum subject illuminance: 0.5Lux
■Gain: Auto/Manual
■White balance: auto, indoor, outdoor, manual/ATW
■S/N ratio: 50db
■Bread: 355 degrees
■Tilt: -30 degrees?+90 degrees
■Output terminal: HDMI, HD-SDI, RJ45 (4K output is supported by HDMI and RJ45)
■Control: Ethernet
■Power supply/power consumption: 12V DC(10.8-13.0V DC) max 30W
■SIZE: 151(W)x193(H)x170(D) Approx. 1500g
■Color: Black
■OSD menu: English
■Accessories
・Remote control
・AC power supply
・Mounting metal fittings
・HDMI cable
