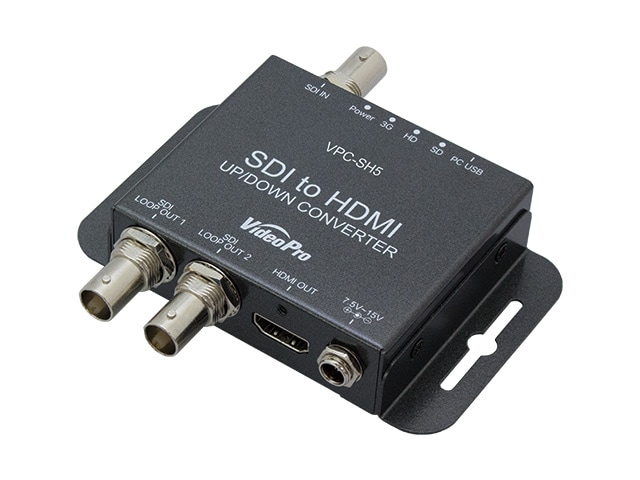

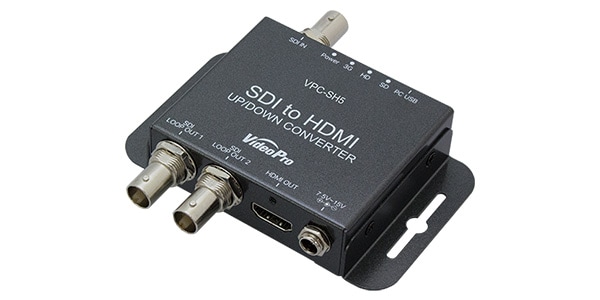

MEDIAEDGE / VideoPro VPC-SH5

SDI to HDMI converter. This model supports up/down conversion and frame rate conversion. Various conversion functions such as resolution up/down/frame rate/aspect, etc.

■SDI to HDMI Converter
■SDI Input Supported Formats
SD-SDI : 720x480i59.94, 720x576i50,
HD-SDI : 1280x720p59.94/p60, 1280x720p59.94/p60, 1280x720p60/p60
HD-SDI : 1280x720p59.94/p60/p50,
1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30,
3G-SDI Level A: 1920x1080p59.94/p60/p50
3G-SDI Level B-DL: 1920x1080p59.94/p60/p5
3G-SDI Level B-DS:1280x720p59.94/p60/p50
1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30,
3G-SDI Level B-DS stream selection is set in BoxCenter.
■HDMI Output Supported Formats
SD: 720x480i59.94, 720x576i50,
SD: 720x480i59.94, 720x576i50, 720x480p59.94/p60, 720x576p50,
HD: 1280x720p59.94/p60/p50,
1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30,
3G: 1920x1080p59.94/p60/p50
1680x1050p60, 1600x1200p60, 1440x1050p60,
1440x900p60, 1400x1050p60, 1366x768p60,
1280x1024p60, 1280x960p60, 1280x800p60,
1280x720p60, 1024x768p60, 800x600p60,
640x480p60
Pass Through mode supported formats
SD: 720x480i59.94, 720x576i50,
HD: 1280x720p59.94/p60/p50,
HD: 1280x720p59.94/p60/p50, 1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30,
3G Level A: 1920x1080p59.94/p60/p50
3G Level B-DL: 1920x1080p59.94/p60/p50
Scaler is bypassed in Pass Through mode.
OSD display is not supported.
Maximum delay is 2 lines.
3G-SDI Level B-DS does not support Pass Through.
■SDI Input:
3G-SDI Level A Direct image format mapping (SMPTE 425M)
3G-SDI Level B-DL SMPTE ST372 Dual Link mapping, (SMPTE 425M)
3G-SDI Level B-DS 2xSMPTE ST292-1 (HD-SDI) dual-stream mapping
(SMPTE 425M)
HD-SDI (SMPTE 292M)
SD-SDI(SMPTE 259M)
■SDI through output:
Active through (equalizer/reclocking always enabled)
HDMI output:
HDMI Ver. 1.3a, HDCP not supported, CEC not supported, DeepColor not supported, Color space
RGB/ YCbCr444/ YCbCr422 switchable
■Audio Input:
SDI embedded audio (LPCM Max. 8ch, 48kHz)
■Input/output delay:
Scaler mode: 2 frames max.
Pass Through mode: 2 lines max.
■Recommended SDI cables:
RG6 (5CFB equivalent) 75Ω
3G: max. 100m/HD: max. 170m/SD: max. 400m
RG59 (3C2V equivalent) 75Ω
3G: max. 86m/HD: max. 120m/SD: max. 280m
Measured with RG6: CANARE L-5CFB, RG59: Belden 9275
*Maximum cable length varies greatly depending on the equipment used, cable performance and quality.

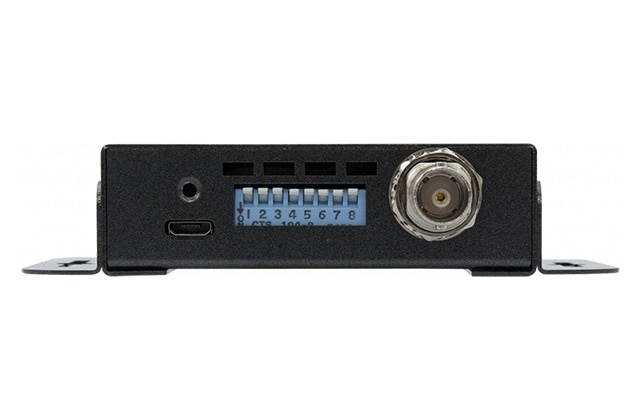

Input terminal: SDI (75Ω BNC) x1

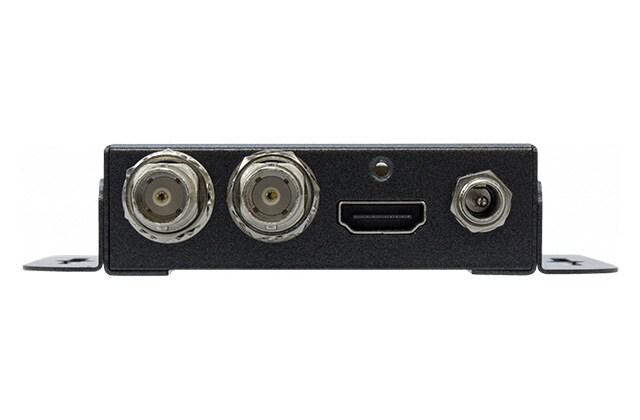

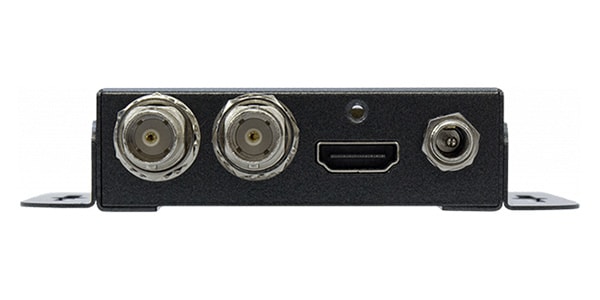

■Output terminal:
HDMI Type Ax1
SDI LOOP THRU (active through output) (75Ω BNC)x2
USB connector: USB Micro-Bx1
■DIP switches:
8bit(Control/Audio Mute/Video Format/Frame rate)
■Case：SECC
■SIZE：63.6(W)x22.5(H)x103.6(D)mm(including bracket)
■Weight: 209g
■Power supply (AC adapter power supply):
AC adapter: AC100-240V/DC12V, 230mA max.
■Power supply (USB power supply):
USB bus power +5V, 480mA max.
■Maximum power consumption:
3.27W (including AC adapter)
■Operating temperature and humidity range:
0 to 50°C, 20 to 80%RH *No condensation
Storage temperature/humidity range: -20 to 60°C, 5 to 90% RH *No condensation
