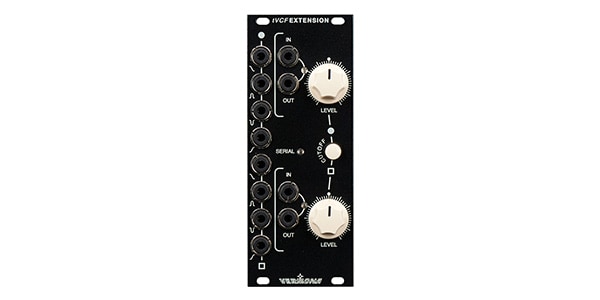

VERMONA / tVCF-Extension

VERMONA/tVCF-Extension is a module that extends the twinVCFilter, a universal filter module, with functions such as notch filtering.

The tVCF-Extension is a module that extends the universally available twinVCFilter filter module with functions such as notch filtering.

Independent filter outputs
The tVCF-Extension extends the outputs of all filter types of the two filters in the twinVCFilter. Low pass, band pass, notch and high pass outputs can all be used simultaneously.

Polariser.
The twinVCFilter already has two CV inputs and one attenuator per filter. tVCF-Extension can be connected to add an additional input to modulate the cut-off frequency. These inputs are connected to a polariser, which opens up new modulation and sound creation possibilities. By patching the polarisers, both cut-off frequencies can be synchronised or controlled in opposite directions at the same time.

The two polarisers output an offset voltage when nothing is connected to the inputs. They can be used for general purposes such as controlling other modules.

Width: 10 HP
Depth: 30 mm
Note: Power is supplied by the twin VC filter.
