VERMONA / fourMulator

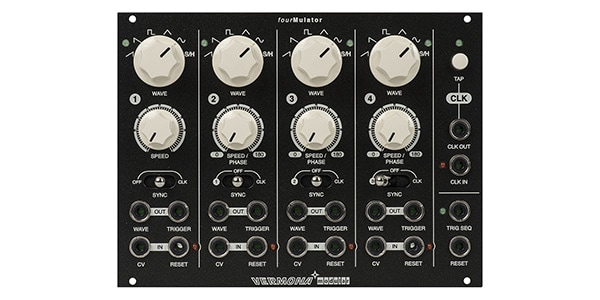

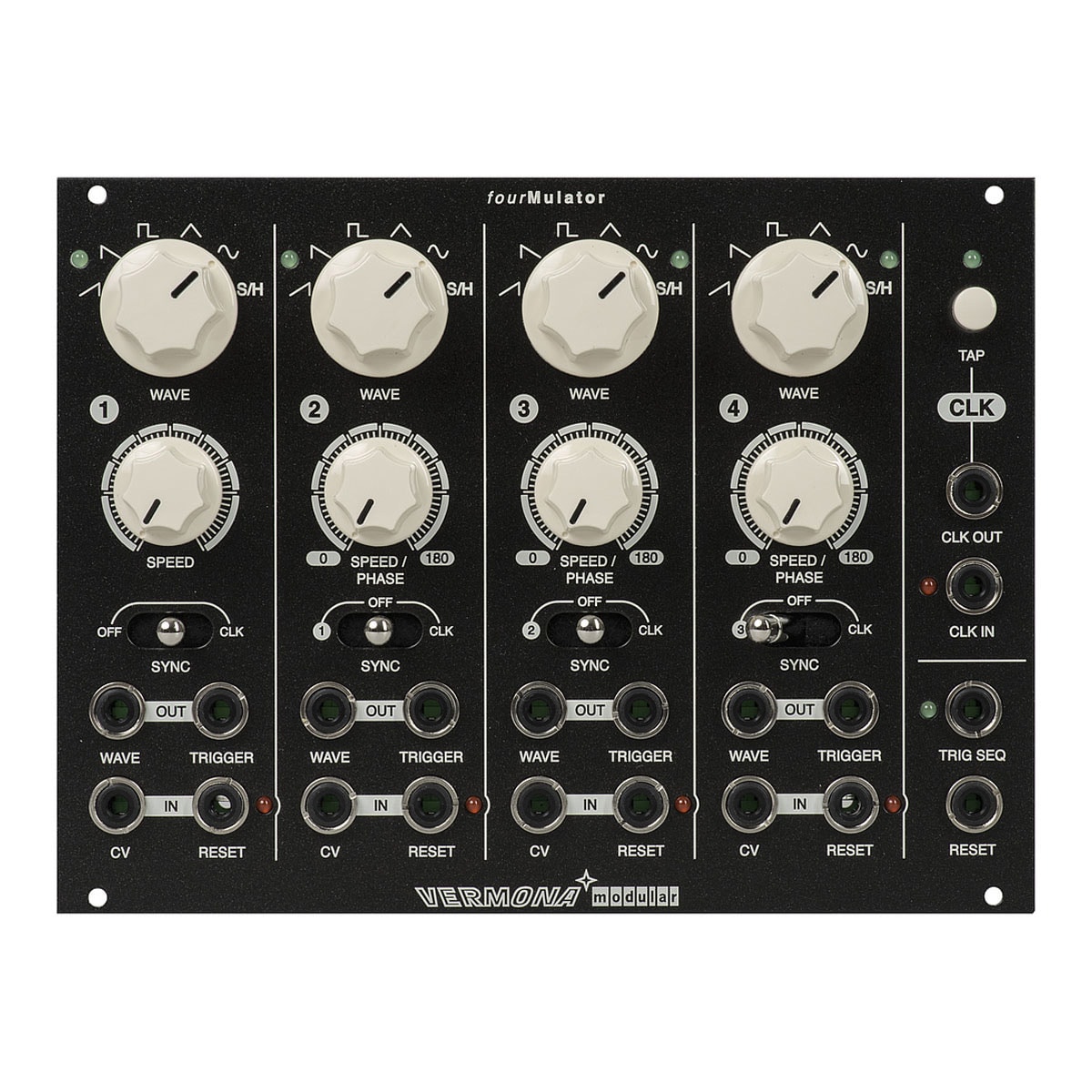

Vermona / fourMulator is a modulation engine module with four digitally controlled LFOs.

The Vermona "fourMulator" is a modulation engine module with four digitally controlled LFOs that can be synchronized with each other or with an input clock to a master, allowing for the creation of complex and rhythmic modulation sources.

Each modulator has 6 waveforms to choose from, with a controllable frequency range from 0.05Hz to 100Hz, a WAVE OUT and a TRIGGER OUT to output the LFO waveforms, and a RESET and CV IN to input and control CV from other modules or another LFO in the fourMulator. Each modulator operates independently. Each modulator can operate independently, or can be synchronized with the modulator to its left, and the phase can be inverted up to 180 degrees when two or more modulators are synchronized.

Width: 34HP
Depth: 25mm
Current consumption:
+12V : 120mA
-12V : 10mA
