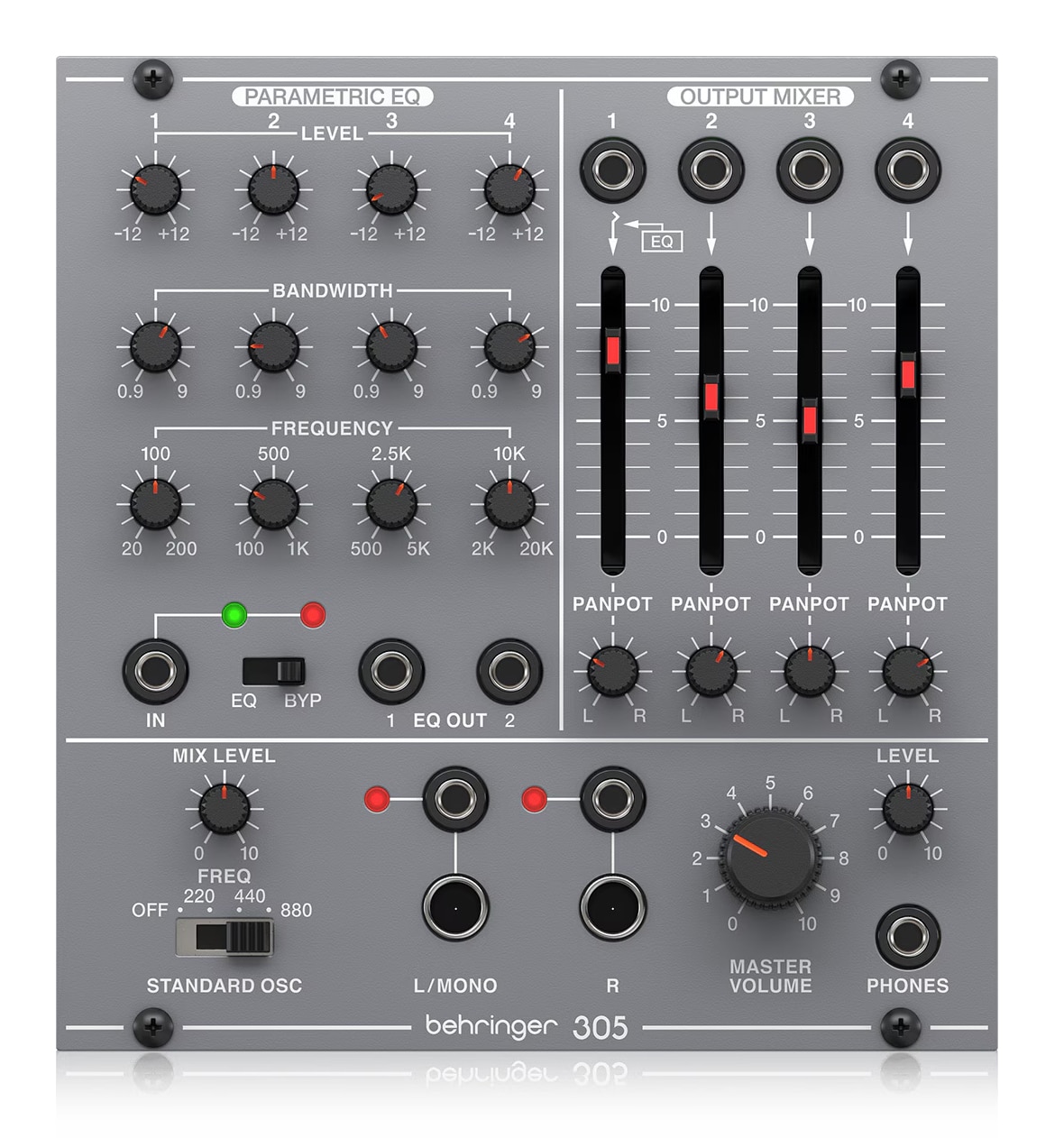

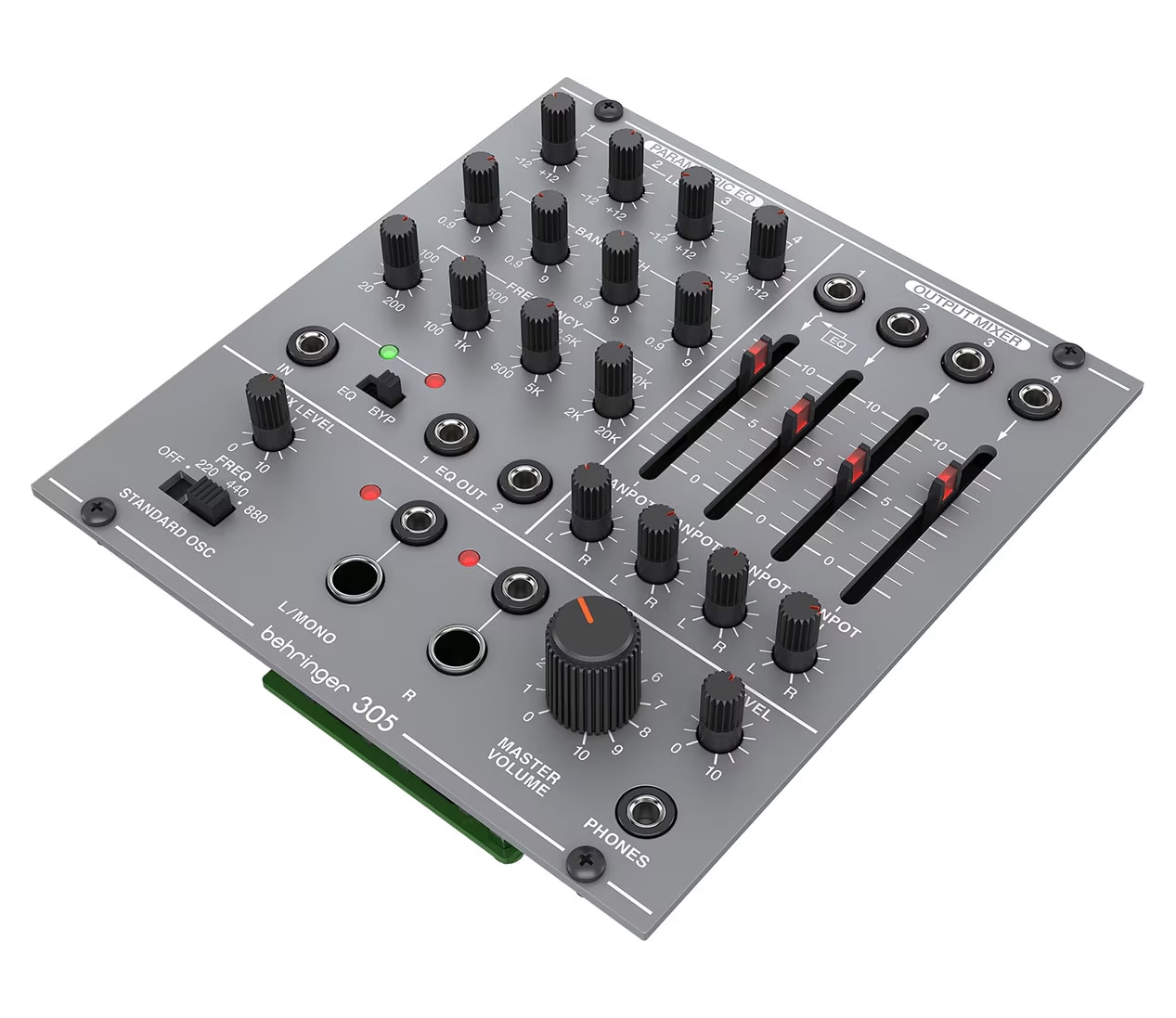

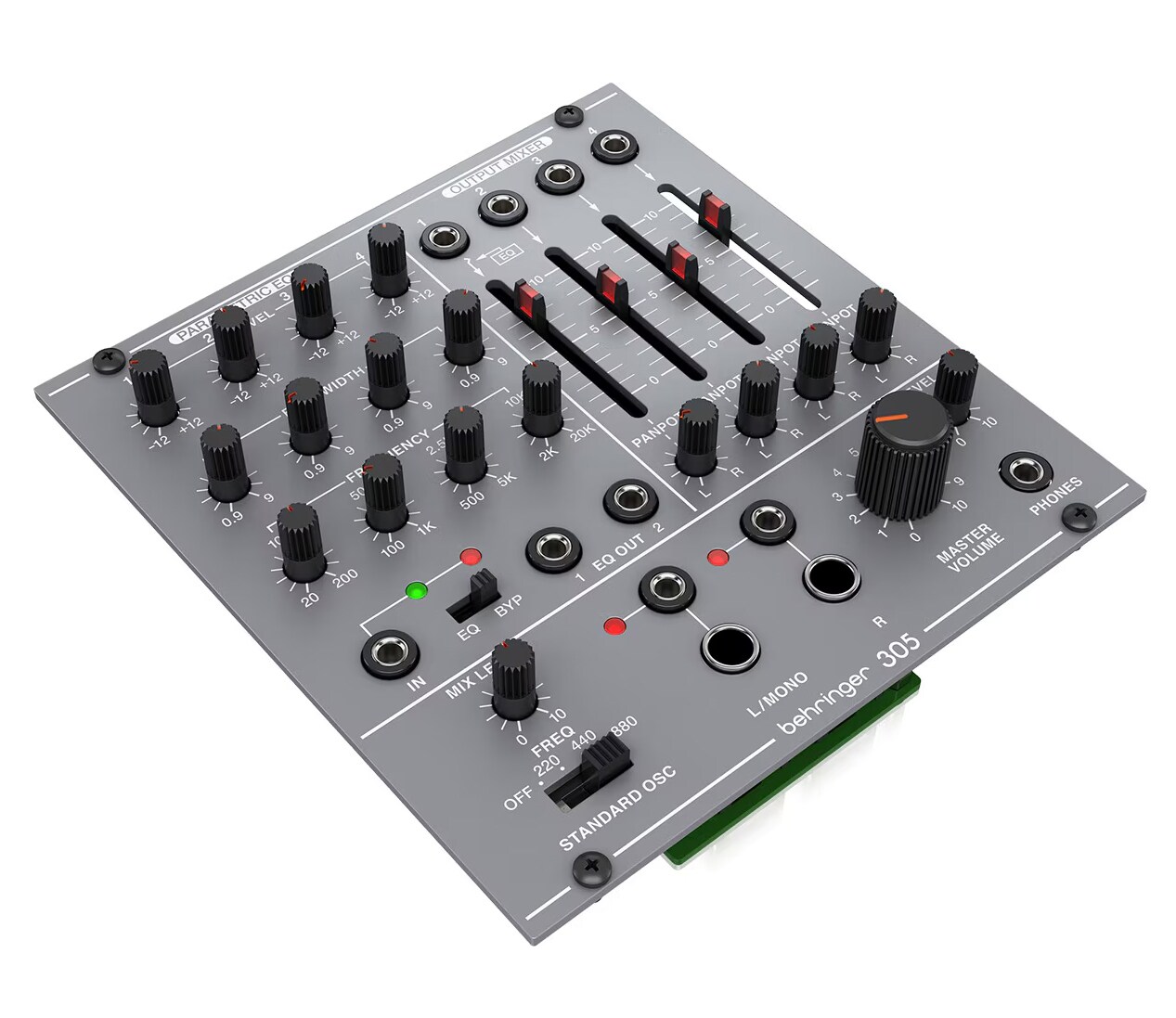

BEHRINGER / 305 EQ/MIXER/OUTPUT

メーカーサイト商品ページ

Variations

Faithfully recreates the sound of the golden age of 80's electronic music at an affordable price, with high quality EQ, 4-input mixer, and headphone output with level control.

・Analog parametric EQ, mixer, and output module for Eurorack

■Input
EQ input: 3.5 mm TS jack, AC coupled
Impedance: 40kΩ, unbalanced
Maximum input level: +18 dBu
Mixer input: 3.5 mm TS jack x 4, AC coupled
Impedance: > 25kΩ, unbalanced
Maximum input level: +21 dBu
■Output
EQ output: 3.5 mm x 2 TS jack, DC coupled
Impedance: 330Ω, unbalanced
Maximum output level: +18 dBu
Noise when EQ is flat: <-90 dBu, 22 Hz-22 kHz
Master output: 3.5 mm x 2 TS jack 1/4 x 2 TS jack AC coupled
Impedance: 700Ω, unbalanced
Maximum output level: +8 dBu
Noise when 1 channel is open: <-100 dBu, 22 Hz-22 kHz
Headphone out: 3.5mm TRS stereo jack, AC coupled
Impedance: 50 Ω, unbalanced
Maximum output level: +18 dBu
Controls: EQ level ±12 dB, 0 dB center
EQ bandwidth Q range: 0.9-9
EQ frequency range 1: 20 Hz to 200 Hz
EQ frequency range 2: 100 Hz to 1 kHz
EQ frequency range 3: 500 Hz to 5 kHz
EQ frequency range 4: 2 kHz to 20 kHz
EQ bypass switch: on/off
OSC frequency switch: off/220 Hz/440 Hz/880 Hz
OSC mix level: -∞ to unity gain
Mixer input fader: -∞ to unity gain
Mixer panpot: -∞ to unity gain, -3 dB, center
Master volume: -∞ to -10 dBu
Phones level: -∞ to +10 dBu
■Power
Power supply: Eurorack
Current: 120 mA (+12 V), 100 mA (-12 V)

Dimensions etc.

Dimensions: 53 x 122 x 129 mm

Rack unit 24 HP

Weight: 0.28 kg
