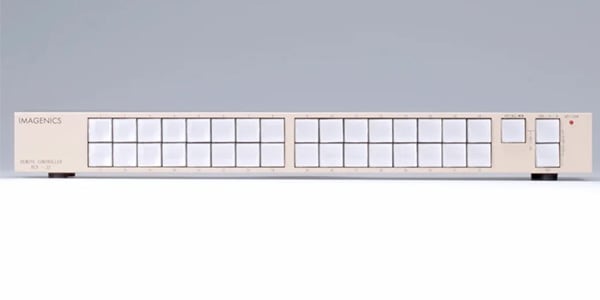

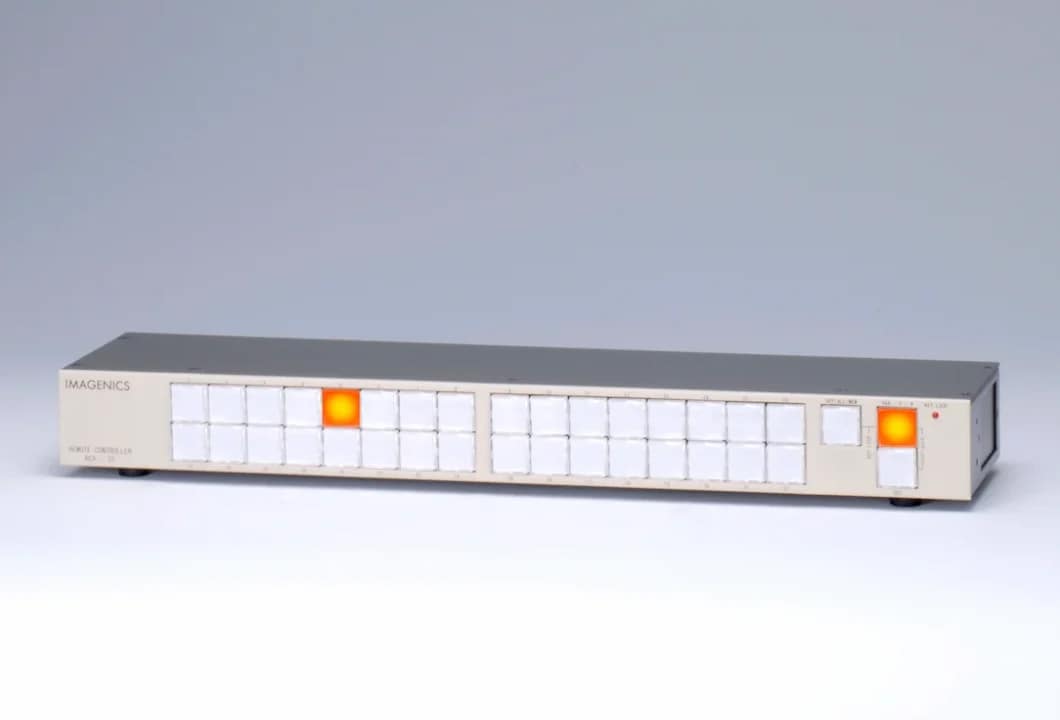

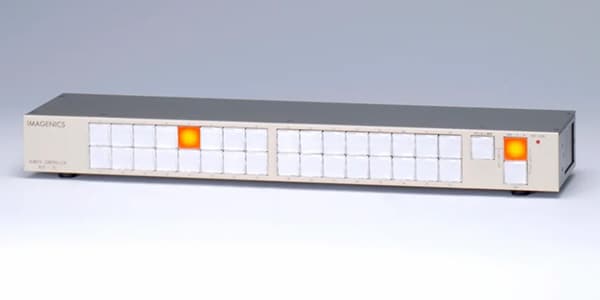

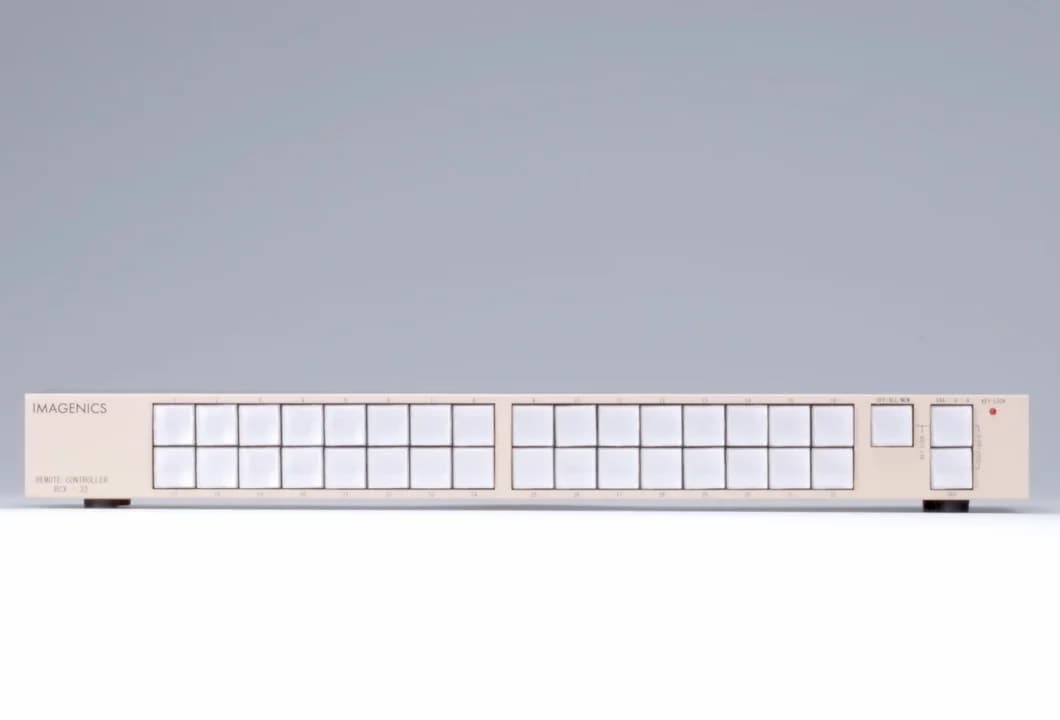

IMAGENICS / RCX-32

This is a remote unit for controlling Imagenics matrix switchers from the outside.

■Remote controller for Imagenics products

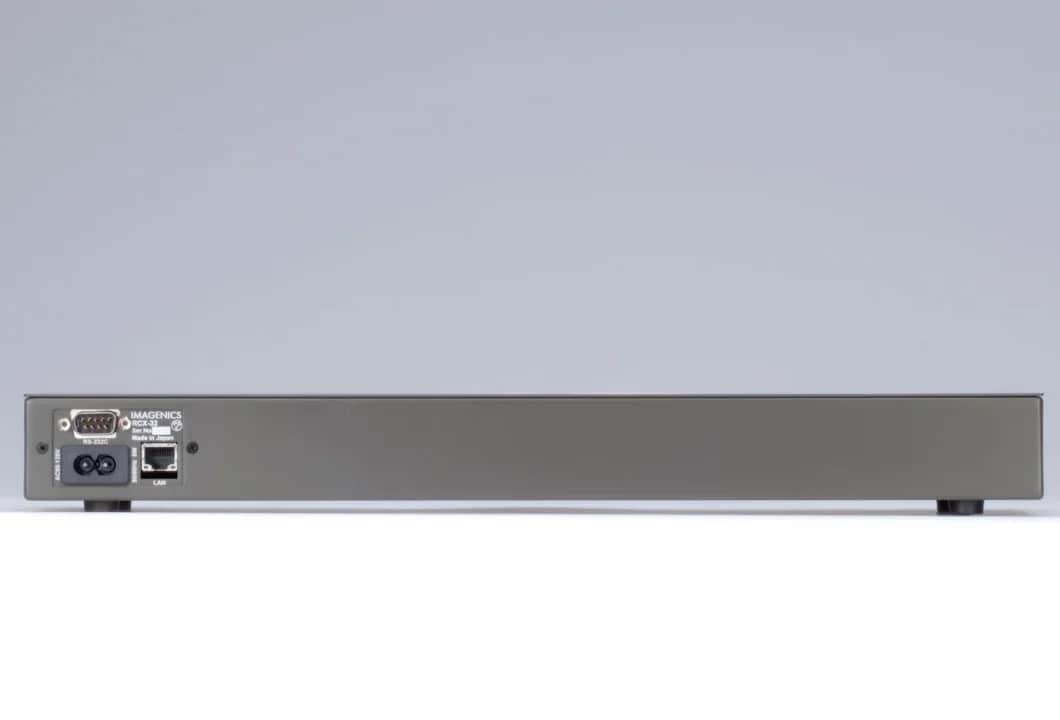

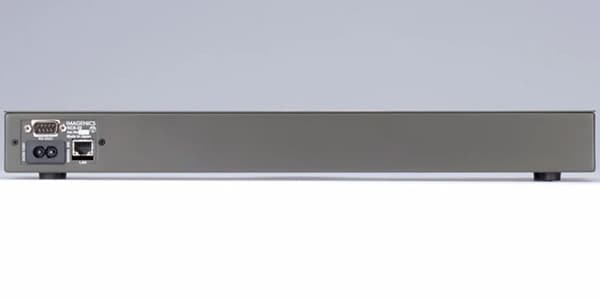

■External control:
RS-232C (Connector: Dsub9 pin male)
1 system of inch screws
■Ethernet: 10BASE-T/100BASE-TX (connector: RJ-45) 1 system
■Compatible switcher:
Imagenics DVX series/HCS series
HEV series/HS series/ILS series/ILV series
ISA series/ISX series/SEV series/SL series
STMS series/SWX series/UHX series/VSX series, etc.
■Power supply voltage:
AC 90V to AC 125V (50 Hz/60 Hz) or PoE power reception (IEEE 802.3af)
■Power consumption: Approximately 5 W
■Mass: Approx. 1.6kg
■ Operating temperature and humidity range:
0 ℃ ~ 40 ℃ 20%RH ~ 90%RH (no condensation)
■Storage temperature and humidity range: -20 ℃ to 70 ℃ 20%RH to 90%RH (no condensation)
■SIZE: 422(W)x44(H)x100(D)mm (excluding protrusions)
■Accessories:
1 power cord (100V system), 1 set of EIA19 type rack mount fittings (1U)
