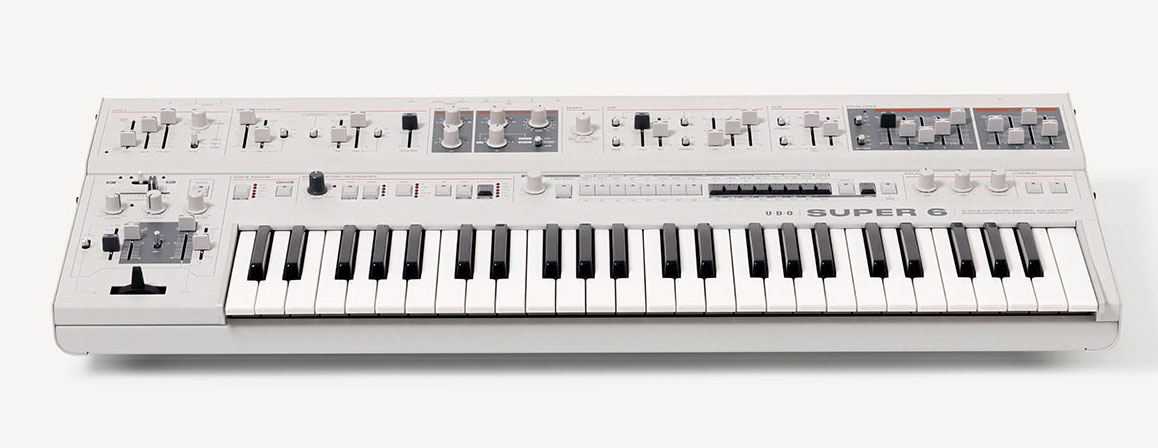

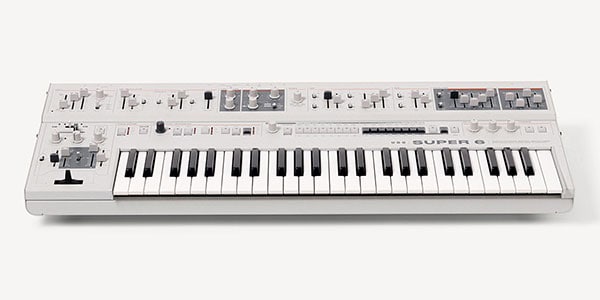

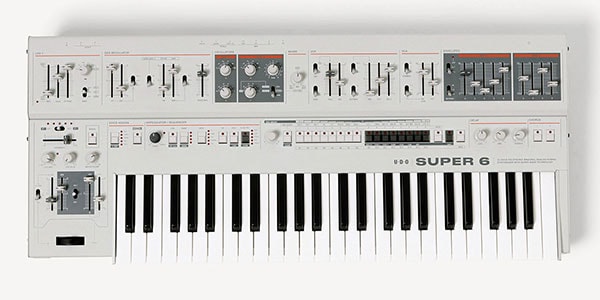

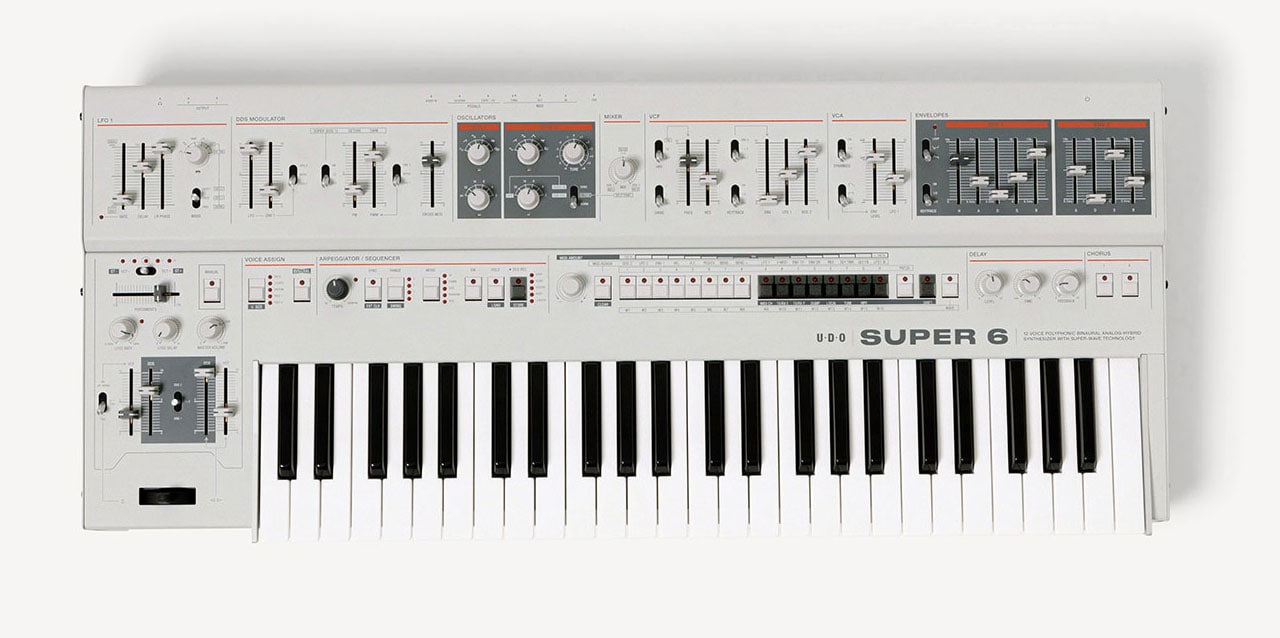

UDO Audio / Super 6 White

Super 6 is a 12-voice polyphonic, binaural analog hybrid synthesizer. It is the result of combining the latest FPGA digital hardware oscillators with the voltage-controlled analog technology used in many vintage pieces of equipment, and it outputs gorgeous analog sounds that can instantly respond to the demands of various players.

Super 6 is a 12-voice polyphonic, binaural analog hybrid synthesizer. It is the result of a harmonious fusion of cutting-edge FPGA digital hardware oscillators and voltage-controlled analog technology, which was often used in vintage equipment, and it outputs gorgeous analog sounds that can instantly respond to the demands of various players. The rich sound quality that combines delicacy and power is formed by a unique super wave table core, binaural analog signal path, and advanced modulation. Using the sophisticated control panel, the player can freely create sounds with overflowing sensitivity.

[Product Specifications]
■DDS 1 (Oscillator 1)
FPGA-based 50MHz sampled superwave oscillator core + centroid oscillator, six sister oscillators can be dynamically phase-shifted in the stereo field
Waveforms: sine, sawtooth, square, triangle, noise, and 16 alternative waveforms that can be downloaded by the user
DDS 1 Alternative waveform format:
Normalized single cycle waveform with 4096 points
16-bit signed integer samples
Bandlimited to 8th of sampling frequency (Nyquist frequency/4), 512Hz is the upper limit of passband when sampling frequency is 4096Hz
Binary file without header data, file extension is .ws6

■DDS 2 (Oscillator 2)
FPGA-based 50MHz sampled algorithm oscillator core
Waveforms: sine, sawtooth, square, triangle, noise, pulse
Can be hard-synced to DDS 1
LFO mode
Sub-oscillator mode (available when in LFO mode)
Pulse wave (variable pulse width, PWM possible)

■DDS Modulator
The pitch of DDS 1 and DDS 2 can be modulated by LFO and envelope.
DDS 1 can be selected between 1/2 super mode and full super mode.
Detune spread control by super waveform sister oscillator
Pulse width control of pulse wave
Detune spread modulation using the super waveform sister oscillator with LFO and/or ENV 1, and modulation of the pulse width of the standard waveform
Deep FM sound through cross modulation from DDS 2 to DDS 1

■Audio Input
Stereo audio input via VCA, VCF, and effect sections
Variable gain input stage allows envelope and LFO 1 gate triggering according to audio input level

■LFO 1
The main LFO can be set to low frequency or high frequency mode, and the rate can be adjusted from 0.05 Hz to 20 kHz
Stereo effect using the binaural sound engine with left/right phase control
Can be reset by free-running or note-on
One-shot mode allows LFO 1 to be used as an additional envelope
High-frequency LFO keyboard tracking mode (useful for FM sounds)
LFO 1 can be mapped to a fixed rate through the DDS 1 or DDS 2 audio path, or in a high-frequency mode that can be tracked, and can also be used as a drone or third oscillator
Sequencer and arpeggiator can be synchronized to an external clock

■Mixer
Adjusts the mix level of the audio signals of DDS 1 and DDS 2
When in X-Fade mode, adjusts the split point on the keyboard for the crossfaded DDS 1 and DDS 2 (or audio input)

■Voltage-Controlled Filter
The SSI2144 is a recreation of the SSM2040 from legacy chip manufacturer Solid State Micro Technology, and many believe it to be the best sounding analog synthesis filter IC ever made. The SSI2144 is based on Dave Rossum's patented modified ladder topology, which allows for rich tonal characteristics that demonstrate the best characteristics of subtractive synthesis.
Analog 4-pole low-pass filter (capable of self-oscillation)
2-stage overdrive
Band-pass response linked to fixed-frequency high-pass or low-pass filter
Accurate keyboard tracking with selectable keyboard tracking modes and filter auto-tuning
Modulation via ENV 1 and/or ENV 2, LFO 1 and DDS 2

■Voltage-Controlled Amplifier
Analog VCA with selectable fixed or variable envelope (ENV 2) modulation
Modulation via LFO 1
Dynamics control with selectable velocity sensitivity

■ENV 1
Reversible hold, attack, decay, sustain, and release stages, which can be mapped in the modulation matrix
LFO and FM source, looping mode with selectable keyboard tracking

■ENV 2
Attack-decay-sustain-release, multiple destinations can be selected

■ Keyboard and Controller Section
49-note Fatar keyboard with velocity and aftertouch
2-axis bender with LFO trigger
Voice modes: Poly 1, Poly 2, Solo, Legato, Variable Size, Variable Type Unison
Dedicated controls next to the keyboard for the bender's DDS 1/2 pitch and VCF cutoff modulation
LFO 2 with rate and delay controls, selectable trigger and always-on modes
Variable portamento
Expression pedal input and sustain pedal input
Spring-lever keyboard octave selector
MPE MIDI compliant: note-on/off velocity, polyphonic aftertouch, polyphonic pitch bend, and polyphonic expression supported

■Modulation Matrix
Intuitive modulation matrix can be mapped to defined destinations and a wide range of front panel controls
Clear LED feedback on mapping and modulation depth
20x audio rate modulation calculation

■Arpeggiator/Sequencer
Multi-mode arpeggiator with MIDI sync, smart hold function
64-step sequencer with MIDI sync, programmable note, rest, slide, accent and track length
LFO 1 and delay control can be synchronized to the arpeggiator/sequencer clock
16 rewritable memory locations for saving sequences

■ Effects
Dual-mode stereo chorus with 24-bit 192 kHz processing
Stereo delay with sync/modulation capability using 24-bit 192 kHz processing

■ Performance
128 rewritable patch memories with 64 factory patches and 64 user patch slots
Excellent build quality, interface with easily accessible buttons, sliders, knobs and menus

■ Input/Output
MIDI In, Out, Thru (DIN connectors)
USB IO for MIDI control, patch, sequence and waveform management
Audio input (stereo 3.5mm jack)
Main Left, Right outputs (unbalanced 3.5mm jacks)
High-quality stereo headphone power amplifier

■ Integration
Patches, sequences, and waveform files can be saved and loaded by connecting directly to a computer with a USB cable. No additional drivers or applications are required.
OS upgrades can be easily performed via USB

External dimensions
Width: 845mm
Depth: 360mm
Height: 105mm
(including knobs)
Weight: 9.2Kg
Accessories: AC cable
