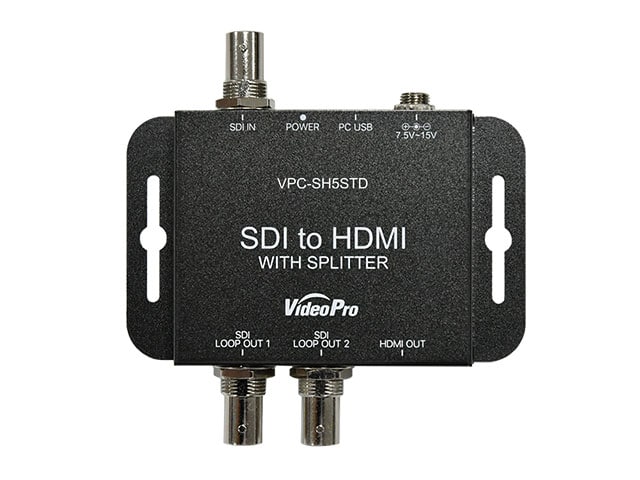

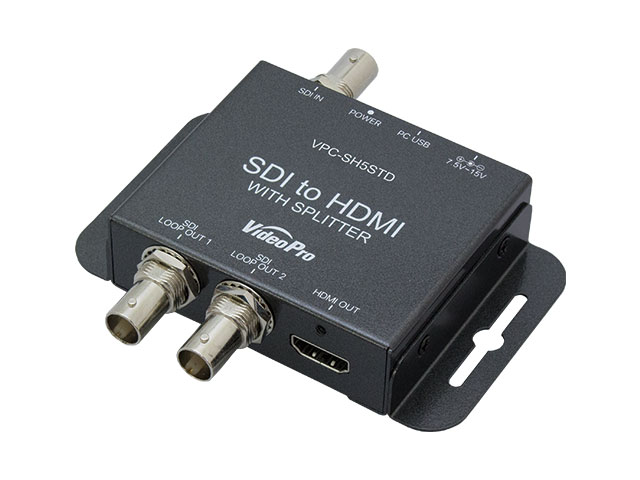

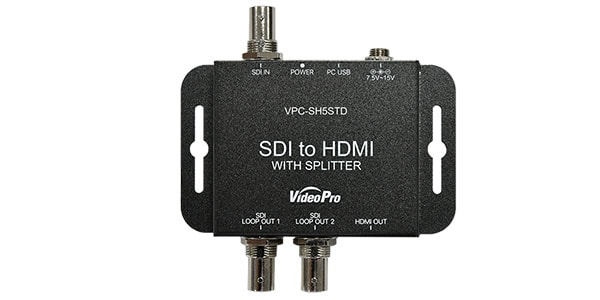

MEDIAEDGE / VPC-SH5STD

This is the successor to the VPC-SH3STD. It outputs the signal input to the SDI terminal at the same resolution from the HDMI terminal. It supports dual power supplies via AC adapter and USB power supply, and the mounting hardware can be removed.

■SDI to HDMI Converter
■SDI Input:
3G-SDI Level A Direct image format mapping (SMPTE 425M)
3G-SDI Level B-DL SMPTE ST372 Dual Link mapping (SMPTE 425M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M)
■SDI through output:
Active through (equalizer/reclocking always enabled)
■SDI input compatible formats:
SD-SDI: 720x480i59.94, 720x576i50,
HD-SDI: 1280x720p59.94/p60/p50, 1920x1080i59.94/i60/i50,
1920x1080p23.98/p24/p25/p29.97/p30
3G-SDI Level A: 1920x1080p59.94/p60/p50
3G-SDI Level B-DL: 1920x1080p59.94/p60/p50
*Not compatible with 3G-SDI Level B-DS
■Audio Input:
SDI embedded audio (LPCM Max. 8ch, 48kHz)
■Audio output:
HDMI embedded audio (LPCM, Max. 8ch, 48kHz)
■Input/output delay: Max. 2 lines
■Recommended SDI cable:
- RG6 (5CFB equivalent) 75Ω
3G: Max. 100m / HD: Max. 170m / SD: Max. 400m
- RG59 (3C2V equivalent) 75Ω
3G: Max. 86m / HD: Max. 120m / SD: Max. 280m
*RG6: CANARE L-5CFB, RG59: Belden 9275
The maximum cable length will vary greatly depending on the performance and quality of the equipment and cables used.

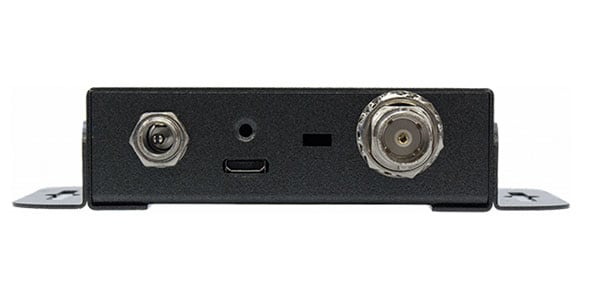

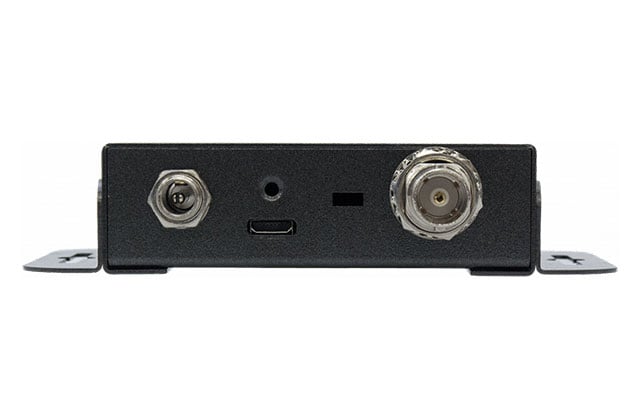

■Input terminal: SDI (75Ω BNC) x1
■Output terminal: HDMI Type A x1 system

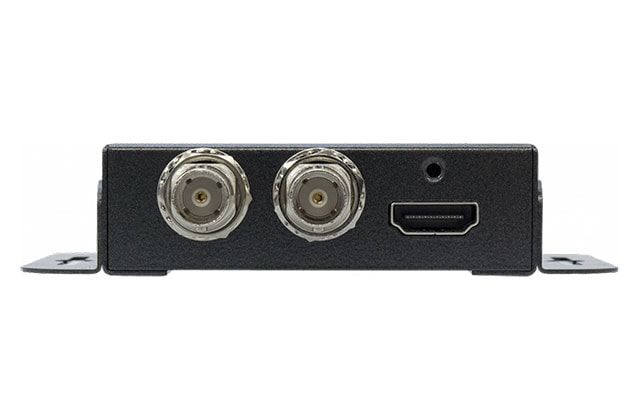

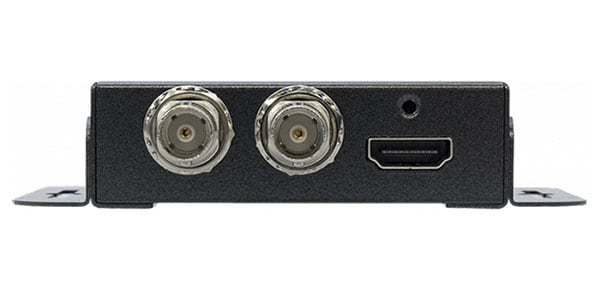

■SDI LOOP THRU (active through output) (75Ω BNC) x2
■USB connector: USB Micro-B x1
■HDMI connector: TYPEA [19-pin female]
■Case: SECC
■Size: 63.6(W)x22.5(H)x103.6(D)mm (including bracket)
■Weight: 204g
■Power supply (AC adapter):
■AC adapter: AC100-240V/DC12V, max. 160mA
■Power supply (USB bus power): USB bus power +5V, max. 330mA
■Power consumption: 2.27W (including AC adapter)
■Operating temperature and humidity range: 0-50℃, 20-80%RH (no condensation)
■Storage temperature and humidity range: -20-60℃, 5-90%RH (no condensation)
