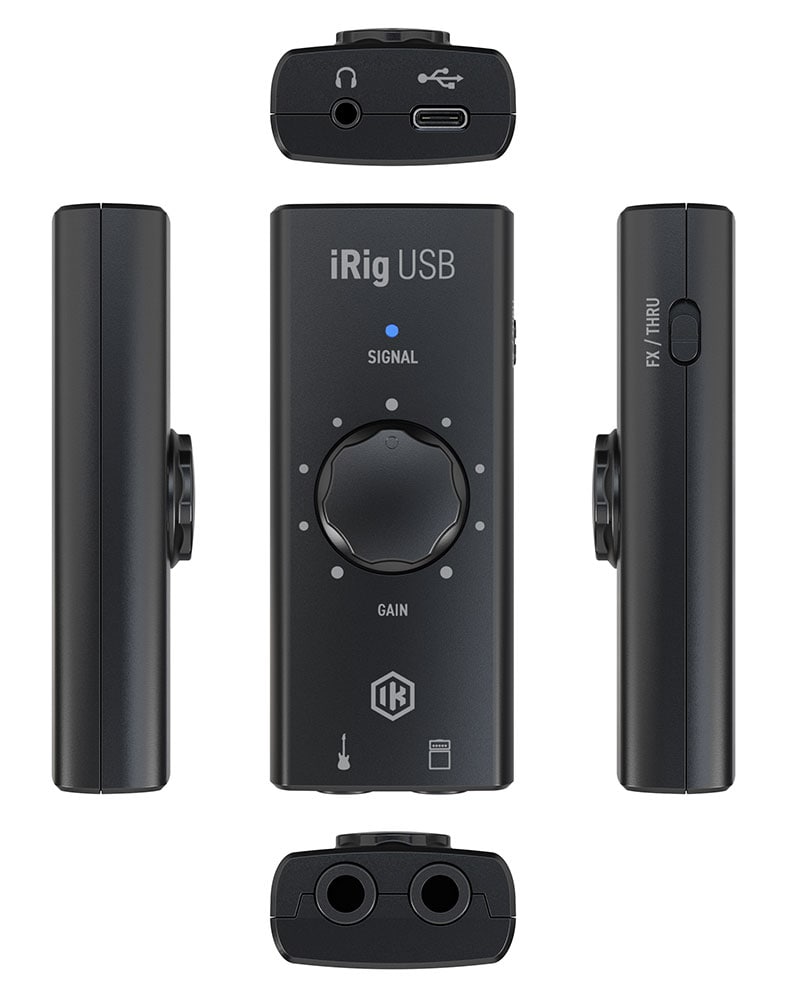

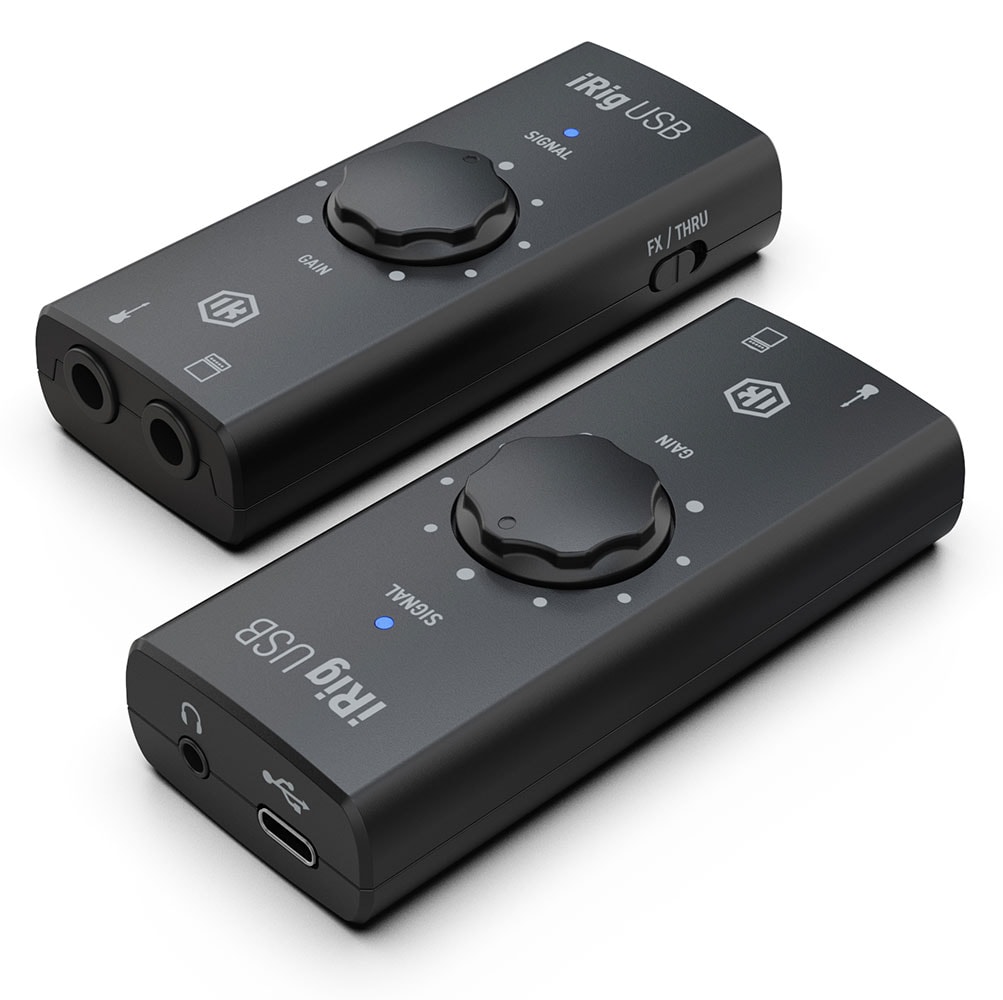

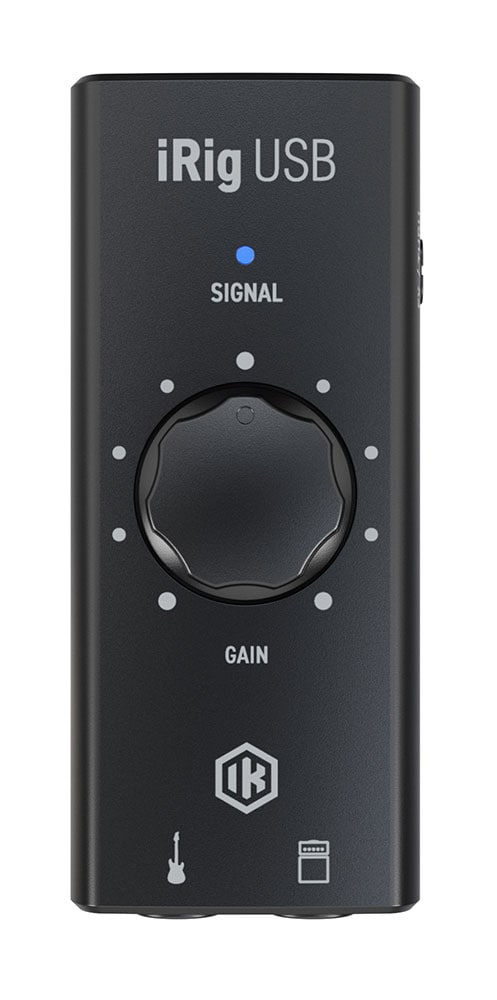

IK MULTIMEDIA / iRig USB

RigUSB is a USB-C-compatible audio interface for guitarists and bassists. It allows you to practice and record with authentic sound sources at any time using the included software sound sources such as AmpliTube and TONE.

iRig USB is the next generation of mobile guitar/bass interfaces. It features a redesigned enclosure with USB-C digital connectivity. It comes bundled with IK's acclaimed amp and effects modeling software, making it the first choice for guitarists and bassists who want to practice, perform, and record at home or on the go easily and affordably.

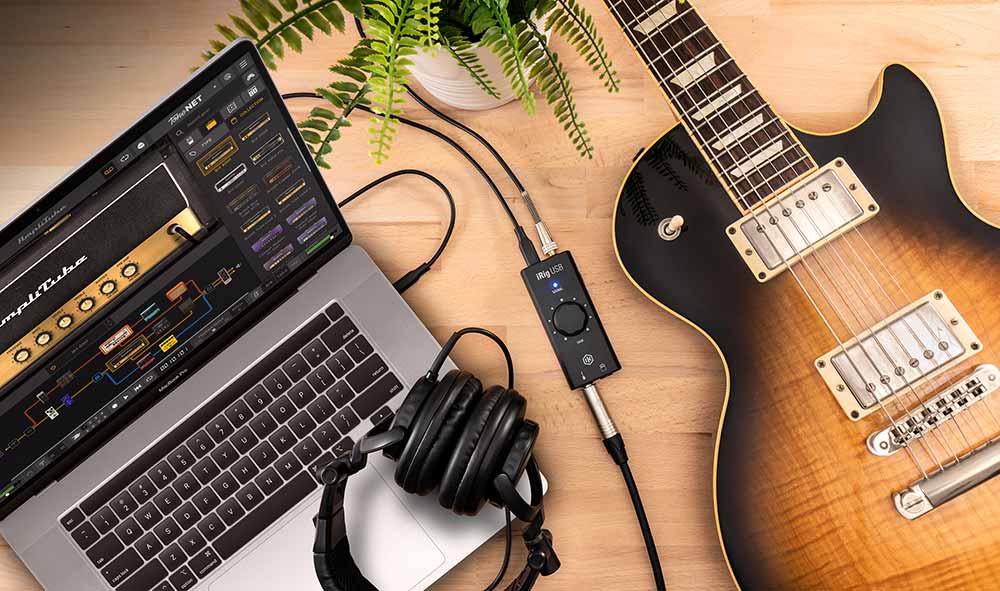

With iRig USB and your iPhone or iPad, you can easily record your ideas or practice along with your favorite backing tracks. It also has a dedicated amp output so that you can combine the tones in your app with a real amp for a big sound.
With iRig USB, you can enjoy the fun of playing whenever and wherever inspiration strikes.

Guitar amp/effects system for iPhone/iPad/Mac
When using this device with an iPhone or iPad with a Lightning connector, you will need an Apple Lightning to USB 3 Camera Adapter (sold separately) and a USB-C to USB-A cable (sold separately).

Main Features
・Compact interface for guitar/bass
・Connect to iPhone 15, iPad, Mac/PC with included USB-C to USB-C cable*
・3.5 mm stereo mini headphone output for practicing
・Standard 1/4-inch amp output for connecting to amps and pedalboards
Compatible with many recording and practice apps
Powered by USB bus power
Bundled with high-quality software
Includes TONEX SE and AmpliTube 5 SE for Mac/PC, as well as AmpliTube CS and TONEX SE for iOS
For details of the bundled software, please see the manufacturer's page below: https://www.ikmultimedia.com/products/irigusb/index.php?p=apps

■Specifications
・Common
Quantization: 24-bit A/D, D/A conversion
Sample rate: 44.1 kHz, 48 kHz
Device connection terminal: USB Type-C

・Instrument input
Input impedance: 500 kΩ
Maximum input level: +13.5 dBu
Frequency response: 20 Hz to 20 kHz ± 0.5 dB @ 48 kHz
Dynamic range: 90 dB(A)

・Amp output
Output jack: Unbalanced
Output impedance: 3.3 kΩ
Frequency response: 10 Hz to 20 kHz ±1 dB (at 48 kHz sample rate)
Dynamic range: 97 dB (A)

Headphone output
Output impedance: 22 Ω
Maximum output level: approx. Six mW @ 50 Ω load
Frequency response: 10 Hz to 20 kHz ±1 dB (at 48 kHz sample rate)
Dynamic range: 94 dB (A)

Contents
iRig USB main unit
USB-C to USB-C cable (60 cm)

Dimensions and weight
99 mm x 42 mm x 25 mm
54 g

■Operating environment and specifications

Please check the latest operating environment on the manufacturer's website below.
https://www.ikmultimedia.com/products/irigusb/index.php?p=specs
