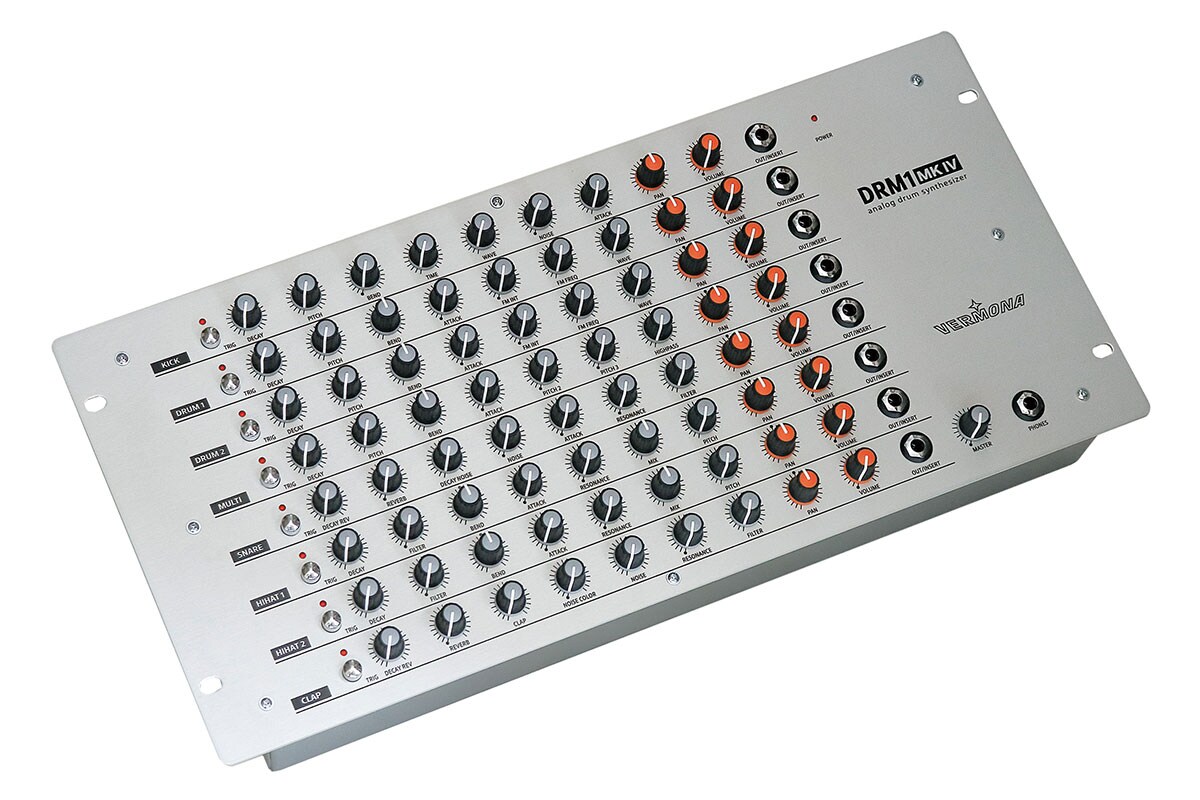

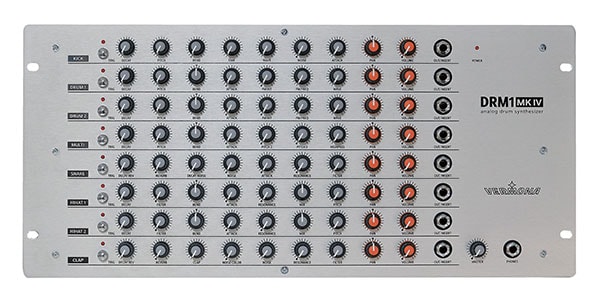

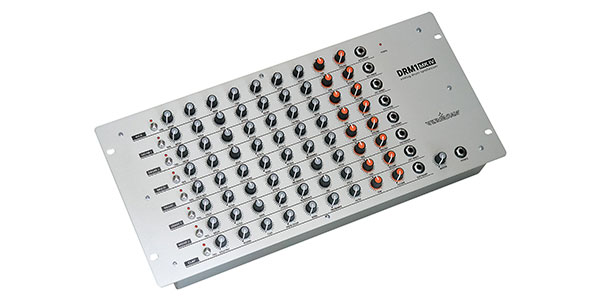

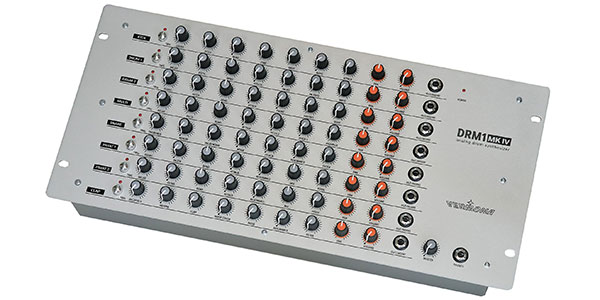

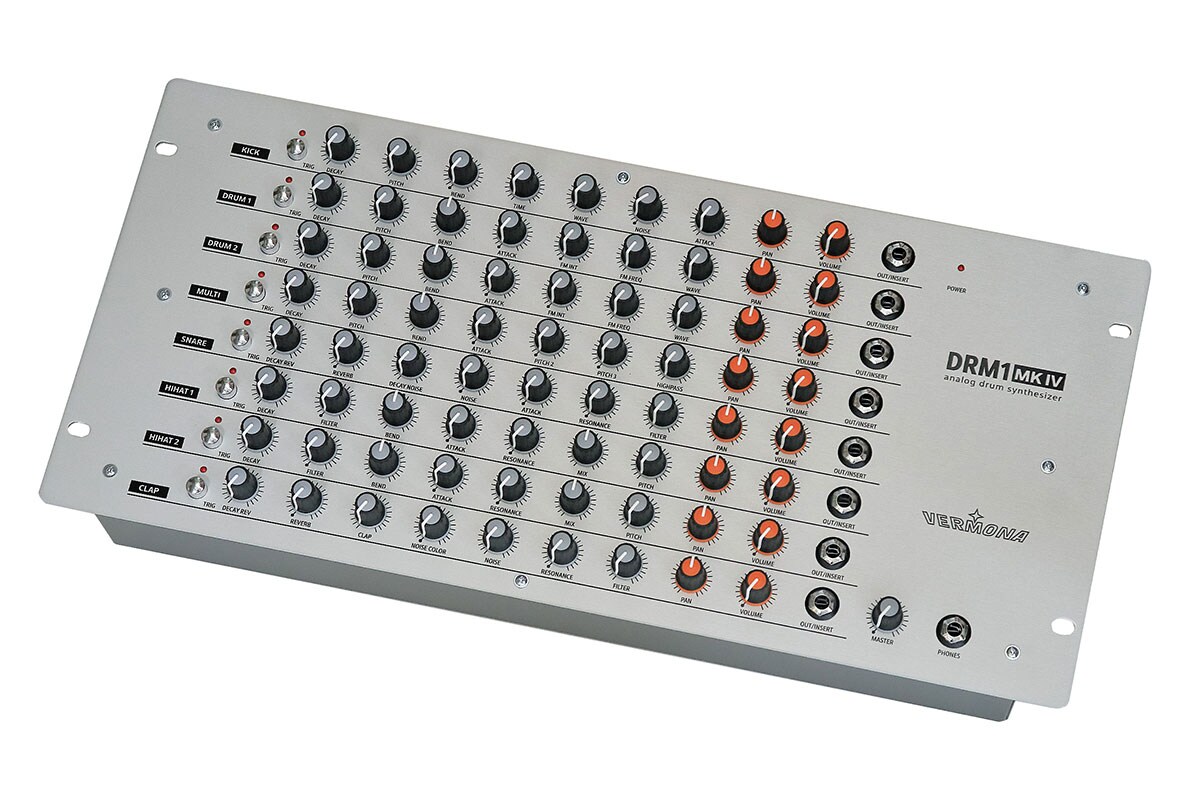

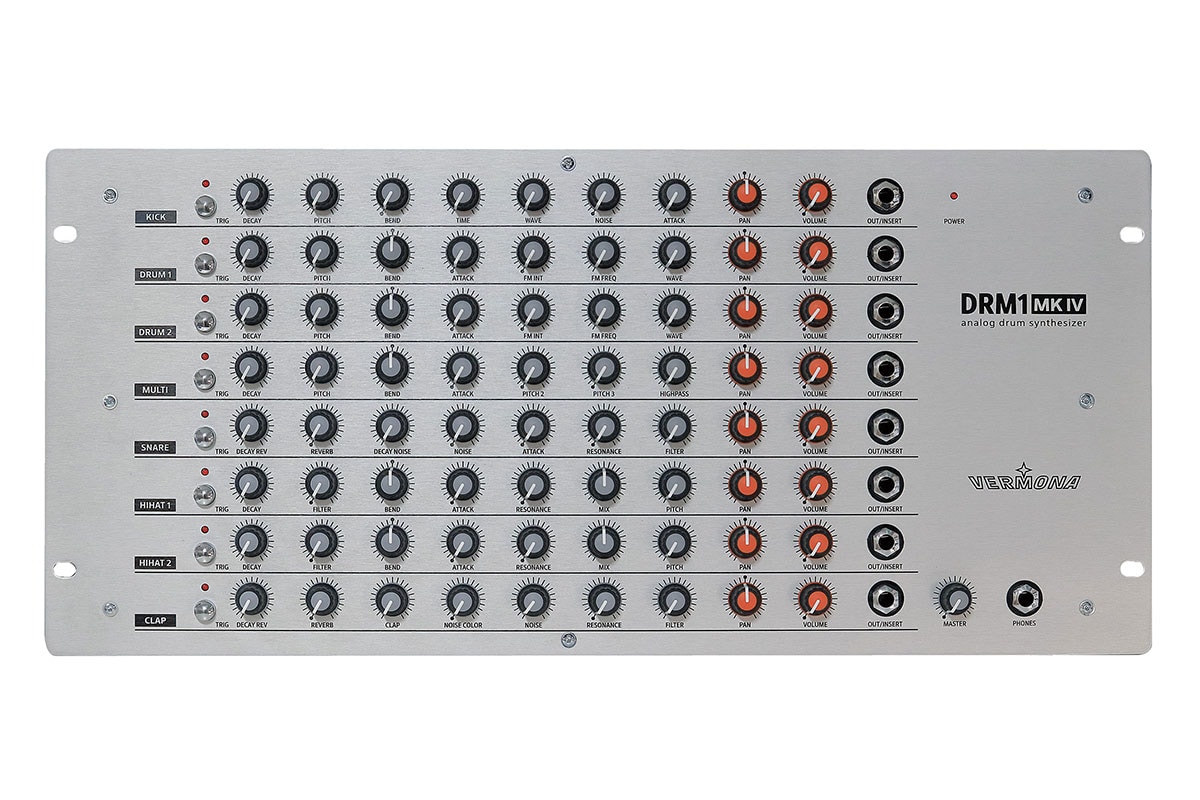

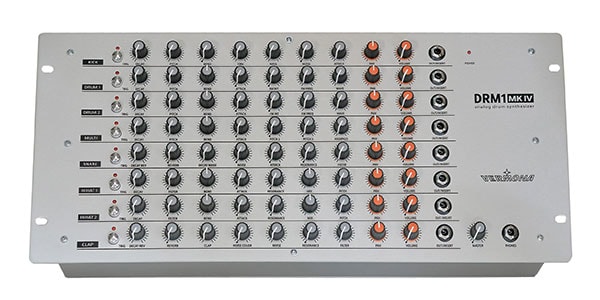

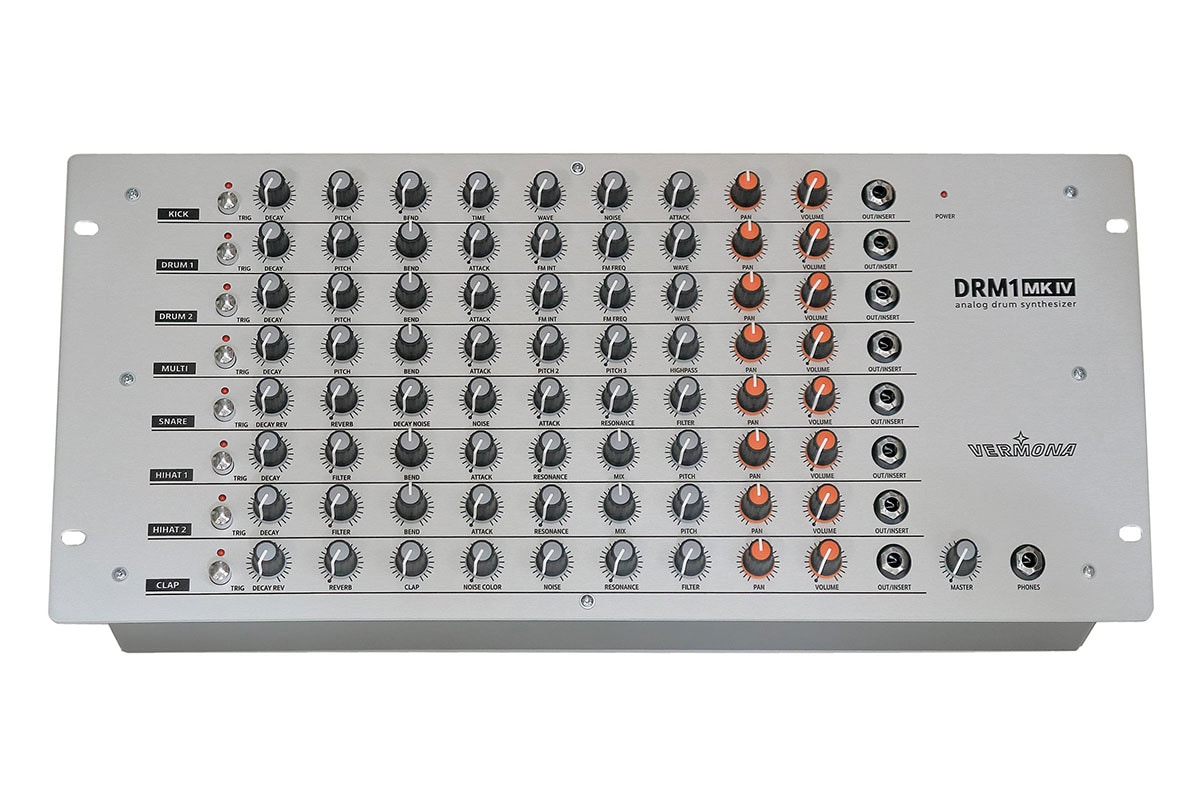

VERMONA / DRM-1 MKIV Standard Trigger

Variations

The DRM1 MKIV is an analog drum synthesizer with a unique and distinctive sound. The DRM1 MKIV has a history of more than 20 years of originality and sound, and has evolved further in this fourth version, with little by little improvements.

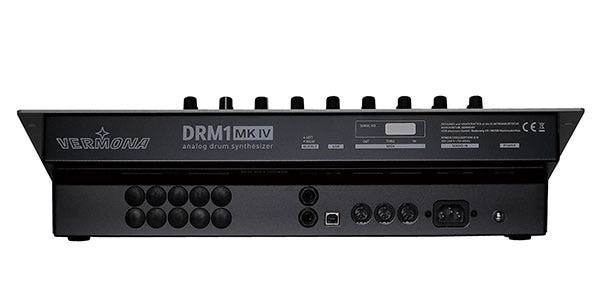

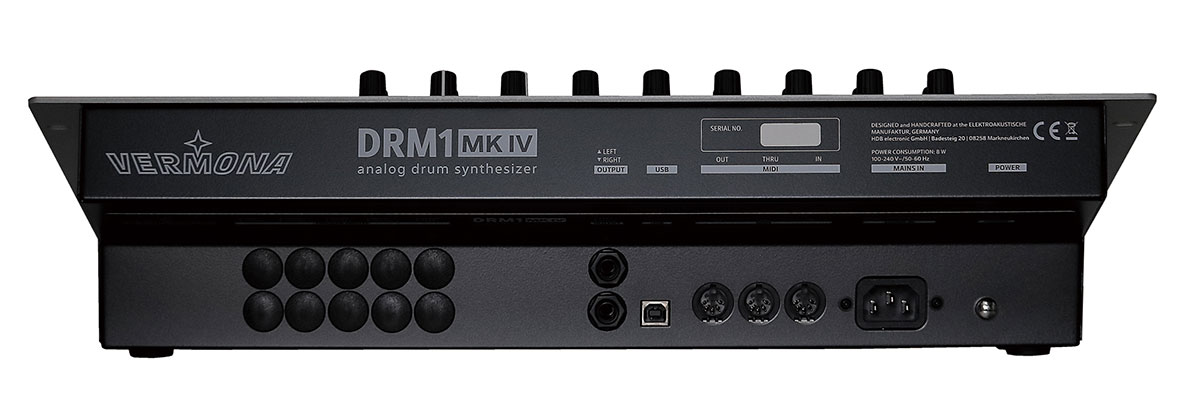

Main Output (Master)
- Connections: 2 x 6.3mm jacks (mono/unbalanced)
- Maximum output level: + 18dBu

Outputs/Inserts provided for each instrument channel (OUT/ INSERT)
- Connections: 6.3mm Jack x 1 (stereo/unbalanced)
- Maximum output level (Tip): + 18dBu
- Maximum input sensitivity (Ring): + 18dBu

Headphone Output
- Connection terminal : 6.3mm jack x 1 (stereo)
- Impedance: 32 to 600 ohms

MIDI
- Connection terminals: 3 DIN sockets (IN / OUT / THRU), USB port (IN / OUT)

Power supply
- Voltage: 100VAC to 240VAC50/60Hz
- Current consumption: 8W

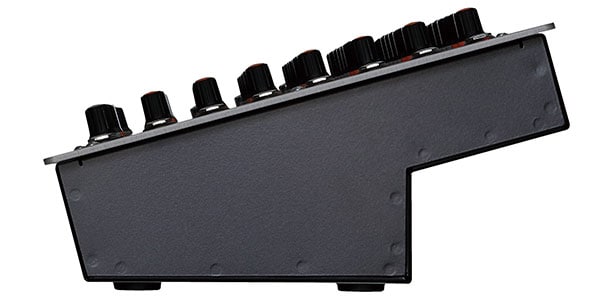

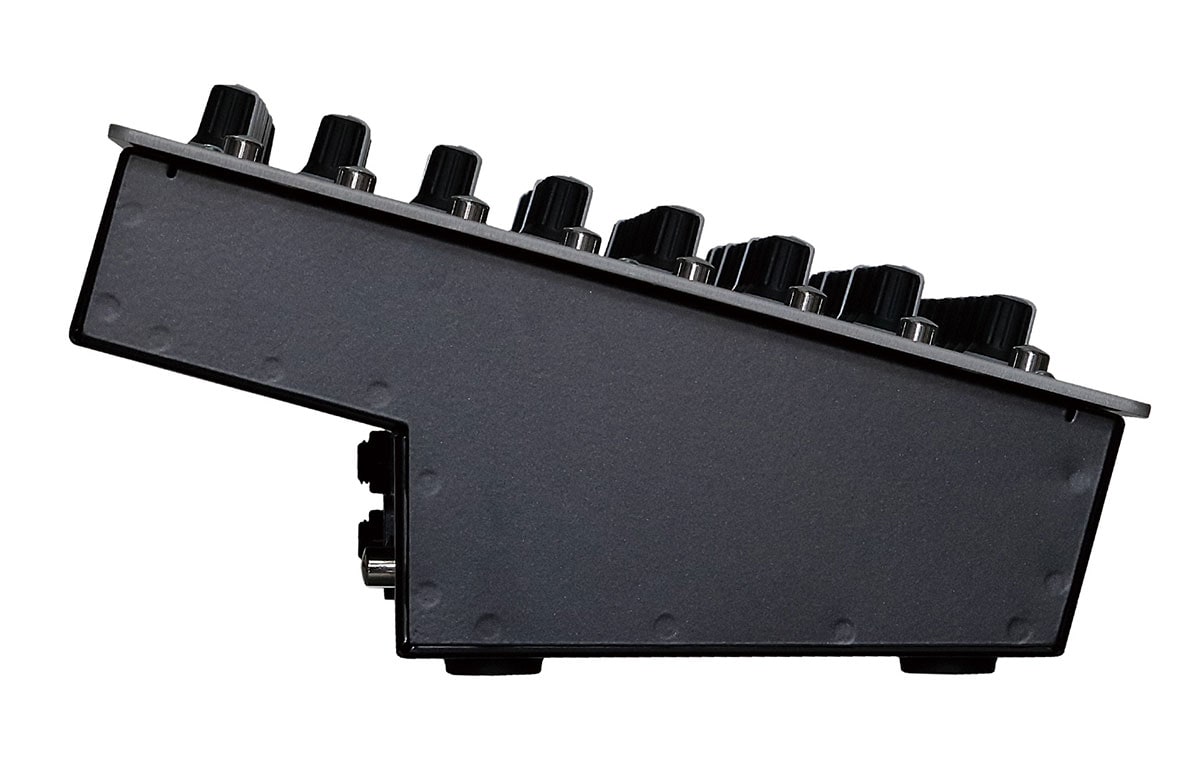

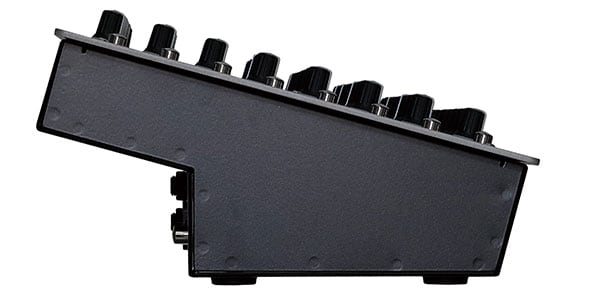

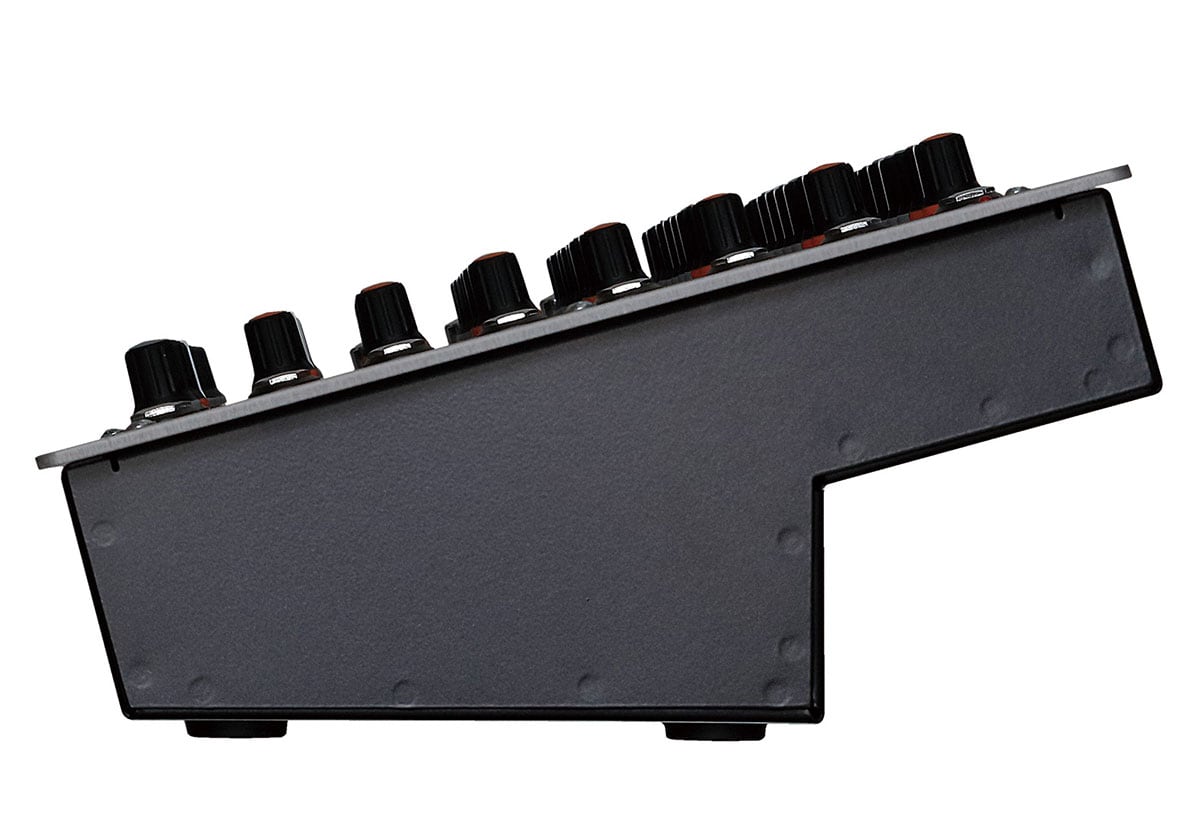

Dimensions and Weight
- Desktop: 483mm x 225mm x 125mm (W x D x H)
- Rack mount : 19” x 5 U x 90 mm (depth when mounted)
- Weight (with trigger option): 3.5 kg

Trigger option
- Connections: 10 x 6.3 mm jacks (mono/unbalanced)
- Input voltage range: 2V - 11V
- Minimum gate signal length: 10ms
- Operation modes: Gate, Gate+Accent, Gate+Dynamic, Dynamic

Accessories sold separately
- Wooden side panel (mahogany)

Dimensions : Width 483mm Depth 225mm Height 125mm
Rack mount : 19” 5U, 90mm deep (not including protrusions)
Weight : 3.5Kg
Accessories : AC cable, Japanese manual
