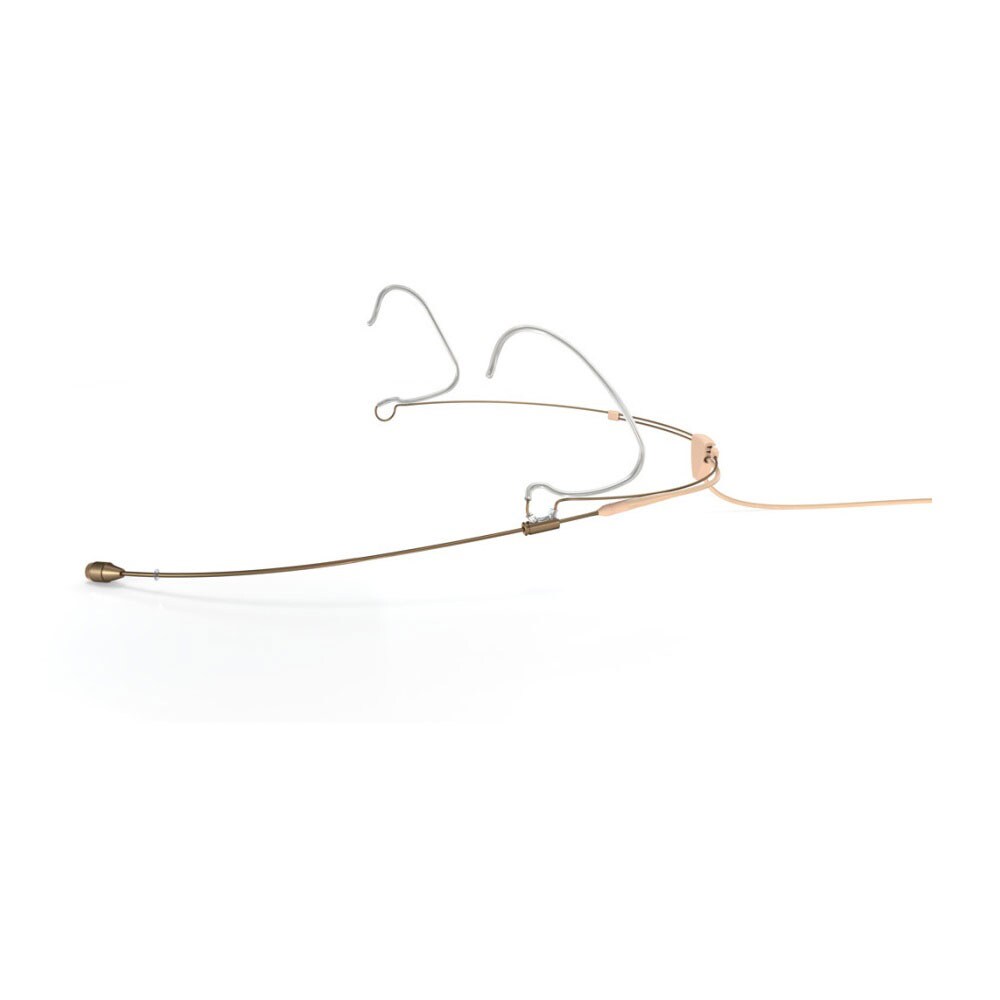

DPA / 4466-OC-R-F10

This is a headset microphone with a high-quality omnidirectional capsule, the same as the CORE 4066 and CORE 4266, and a hybrid-type frame that achieves a flexible and stable fit and high durability that meets IP58 standards.

Product Specifications

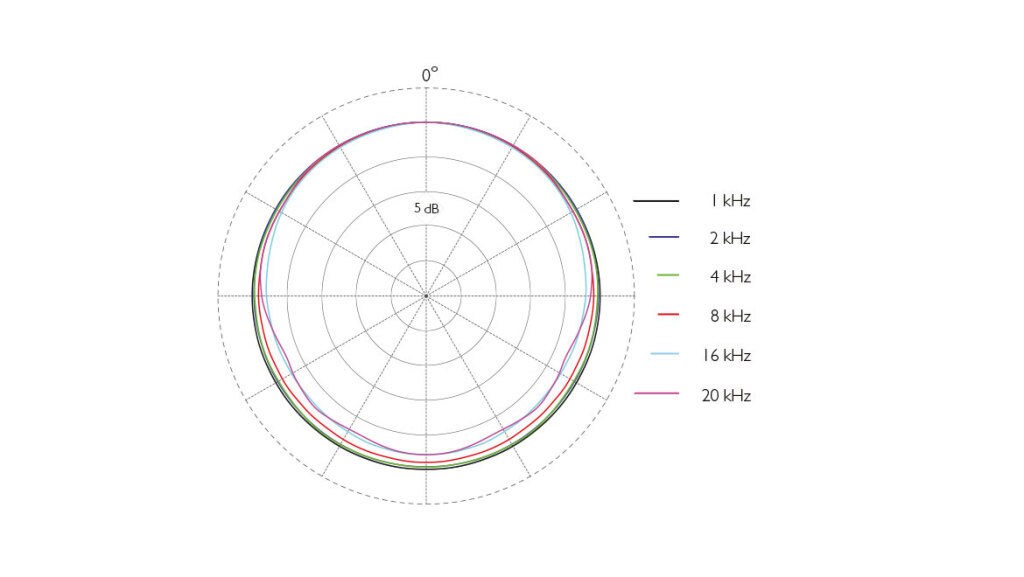

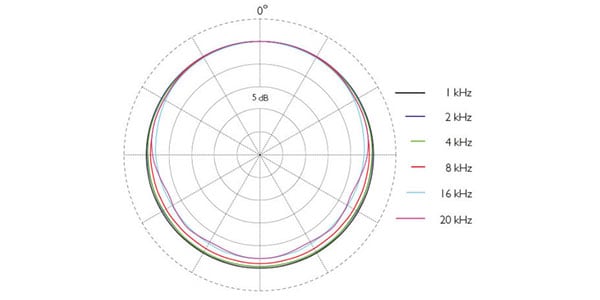

Polar pattern: Omnidirectional
Cartridge: Pre-polarized condenser type

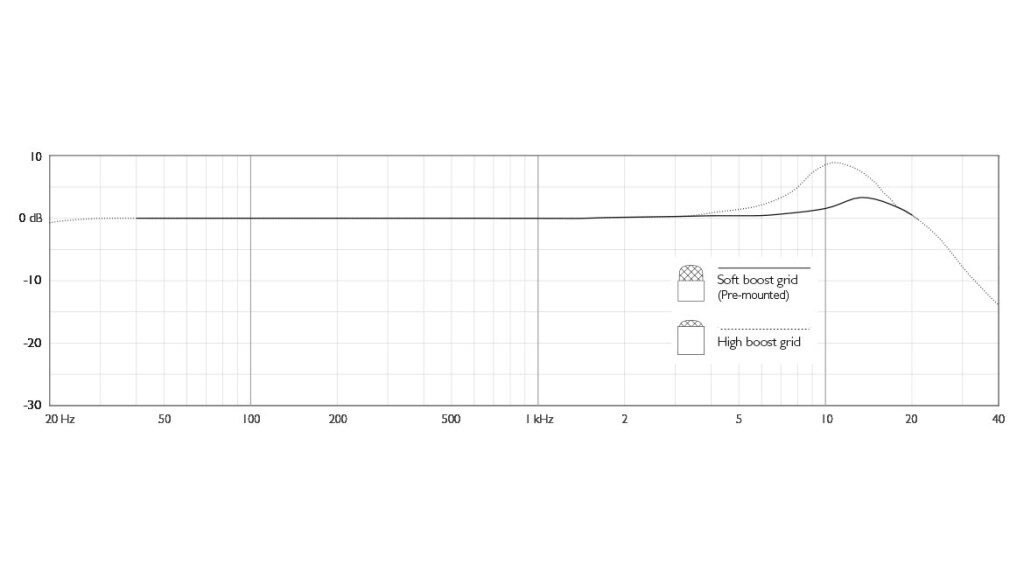

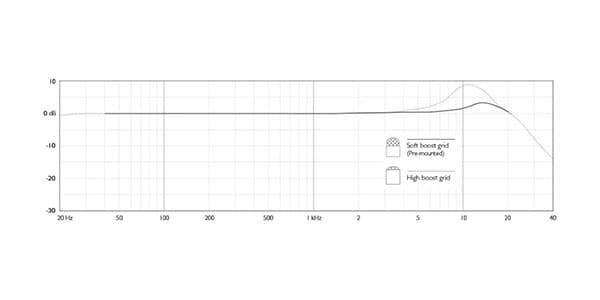

Frequency range (±2dB): 40Hz to 20kHz, 4dB soft boost @8 to 20kHz
Sensitivity (±3dB@1kHz): -44dB re. 1V/Pa
Equivalent noise level (A-weighted) 26dB(A) re. 20μPa
Total harmonic distortion (THD) 1% or less (128dB SPL peak)
Dynamic range 102dB
Maximum sound pressure level 144dB
Output impedance MicroDot: 30-40Ω, DAD6001-BC: 100Ω
Maximum cable extension distance: 300m (when using DAD6001-BC)
Power supply: Wireless: 5V-10V, Wired (DAD6001-BC): Phantom DC48V
Color: Beige
Terminal: TA4F
Microphone diameter: 5.4mm
Cable length: 1.25m

Accessories
・3 windscreens
・1 makeup cover
・Carrying pouch

■This headset microphone has the same microphone capsule as the “CORE 4266/4066” headset microphone, which has been highly rated for many years in professional settings such as musicals, broadcasting stations, and live performances. It has a high sound pressure design with a maximum sound pressure level of 144dB SPL while still maintaining a clear, articulate sound. The CORE technology, which has minimal distortion across the entire frequency range, allows it to handle everything from whispers to screams with ease.
■It has the high-performance hybrid-type frame used in the CORE 6066.
■The boom and frame are both available in one size. They can be fitted quickly and securely to anyone with simple adjustments.
■The boom is adjusted for length by sliding it back and forth and then secured in place by a sliding lock mechanism. Even during intense performances, this prevents the microphone from moving out of position or the boom from rotating, and it maintains a sense of stability even after long periods of use. The boom position can also be adjusted up and down from the starting point of the sliding lock.
The boom can be removed from the frame and attached to either the left or right side.
The cable and boom can be removed, making it easy to replace or maintain individual parts.
The ear grips use a new mechanism that supports the ear at three points: the top, bottom, and behind. This provides a stable fit that resists slipping even during large movements and a comfortable fit that can be used for long periods of time.
It has a 90° cable management mechanism that allows you to move the cable smoothly without straining it.
The boom and grid have a durable PVD coating.
The microphone itself has a water-repellent nano-coating, and the amp section has a hermetic sealing process, giving it high durability that meets IP58 standards*.
*Dust-proof level 5: No dust enters the interior to the extent that it has a harmful effect
*Waterproof level 8: No water enters the interior even if it is submerged continuously
■The microphone capsule and grid are made of metal with a PVD coating that is highly resistant to shock and wear.
■The microphone capsule can be cleaned using pure water
■The boom, cable, and headband can be removed separately.
