RADIUS / RMATZ19R

RADIUS / RM-ATZ19 is an earphone-type microphone that enables high-quality binaural recording with high-performance microphones built into the left and right earphone housings.

■Easy high-quality binaural recording
・Generally, special microphones such as dummy heads that imitate the shape of a human head or ears are used for binaural recording, but the RM-ATZ19 utilizes the know-how cultivated through the development of various earphone products to achieve a stable fit and compact design, just like a listening earphone product.

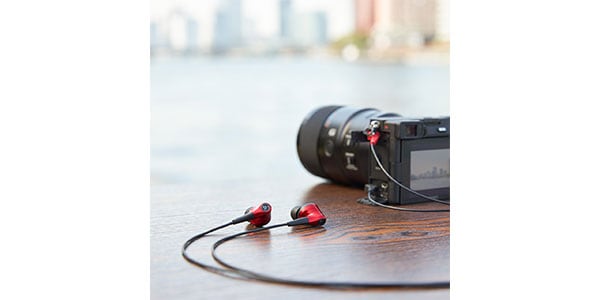

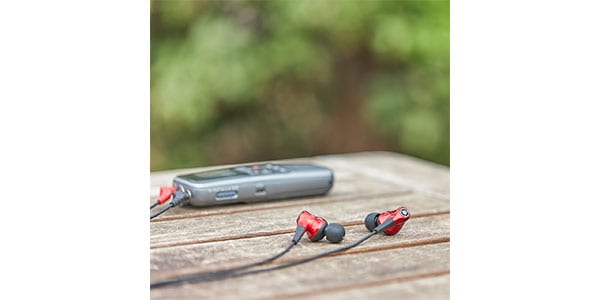

- Simply connect it to your recording device and you can easily make binaural recordings regardless of your location. It is also ideal for those who want to start live streaming or producing videos of outdoor activities, ASMR, etc.

■High resolution compatible
・RM-ATZ19 has acquired the Japan Audio Association's Hi-Res Mark as a microphone product. It can capture a wide range of sound from 30Hz to 40,000Hz, and supports high-resolution recording of binaural audio with higher reproducibility and a more realistic feel.

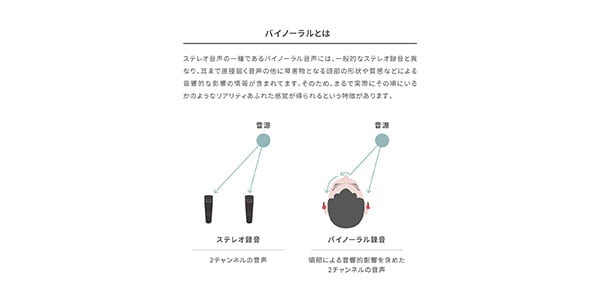

Binaural means ""of both ears"", and monaural means ""of one ear"".
In a broad sense, recorded 2-channel audio is called stereo audio, and 1-channel audio is called monaural audio, but when you play back stereo or monaural audio with earphones, the sound image is localized in your head (you feel like the audio is playing inside your head). On the other hand, binaural audio, which is a type of stereo audio, has the characteristic that the reproduced sound image is localized outside the head (it feels like the audio is playing outside the head), giving a more realistic feeling as if you were actually there.
This is because binaurally recorded audio includes not only the sound that reaches the ear directly, but also information about the acoustic effects of the shape and texture of the head. When a person actually hears sound, there are obstacles such as the nose and cheeks between the left and right ears, and the sound waves that reach the left and right ears from the sound source are not the same. Binaurally recorded audio can realistically reproduce these differences.
Since the experiences of the recorded people can be conveyed as is through audio, they can not only be used to look back on memories for oneself, but also used as materials for live streaming, video, music production, etc.

■Equipped with Primo's compact electret condenser microphone that enables delicate and expressive recordings.
-Equipped with a small electret condenser microphone manufactured by Primo Co., Ltd., which provides high-performance microphone-related products in various fields such as vocal microphones for stages and sound collection microphones for broadcast stations and studios. The extremely flat frequency response and high sensitivity make it possible to record delicately and expressively from low to high frequencies. Utilizing the sound collection technology know-how cultivated through the development of the earphone microphone for Terra International Co., Ltd.'s sound collector (hearing aid) product [ATZ-19], which is equipped with the same microphone, we have achieved binaural recording performance that is more analytical and specialized for reality.

■Ideal for listening to binaural audio, equipped with FLW structure driver
-Equipped with a FLW (Floating Lead Wire) structure driver that allows you to listen to high-quality audio recorded on a monitor or IC recorder during recording. ""Aerial wiring"" connects the voice coil lead wire to the PCB without interfering with the diaphragm, reducing the uneven load on the diaphragm that can occur with dynamic drivers. It features clear sound with little noise across all bands.
Based on the driver for music listening earphones, it is tuned for monitors specialized for listening and analyzing binaural audio.


◇Mic specifications
■Directivity: Omnidirectional
■Microphone sensitivity: -43db
■Recording frequency characteristics: 30Hz to 40,000Hz
■Impedance: 1.1kΩ
■Maximum input sound pressure: 127dB
■S/N ratio: 70dB
■Operating voltage: 2.0V to 5.5V
■Current consumption: 110μA Max

◇Earphone specifications
■Model: Dynamic type
■Driver: 12.5mm
■Output sound pressure level: 116±3dB
■Reproduction frequency characteristics: 10Hz to 20,000Hz
■Impedance: 16Ω±15%
■Maximum input: 100mW

◇Common specifications
■Plug: 3.5mm gold-plated stereo mini plug x 2
■Cable length: Approximately 110cm
■Weight: Approximately 19g (including cable)
■Accessories: Deep mount earpiece (XS, S, M, L), monitor earpiece (XS, S, M, L), windscreen, storage pouch, instruction manual (warranty)
■Warranty period: 1 year from purchase
