PERFECTION / PFT-T3000AF

PERFECTION's ""PFT-T3000AF"" is a power box equipped with an Active Noise Eliminator (ANE), which converts noise energy into voltage.

■Power supply box with active filter

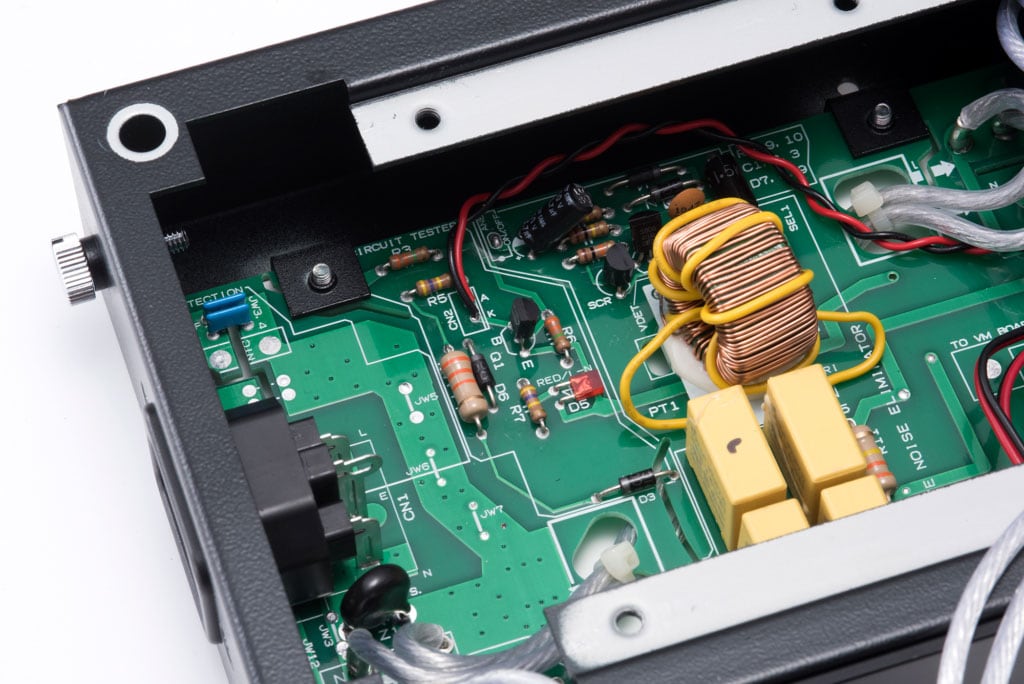

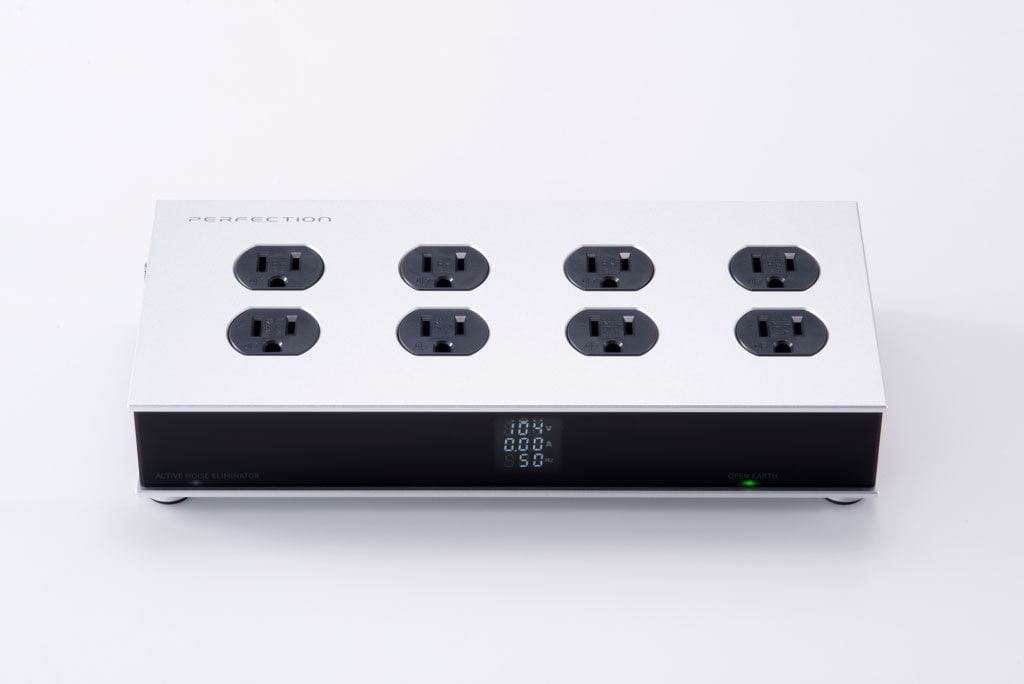

Selectively extracts high-frequency noise from switching power supplies superimposed on the AC line and converts that energy into light energy to reduce power supply noise. By flashing the LED lamp on the front panel with the converted voltage energy, the amount of noise can be visualized by the frequency of flashing. A normal filtered tap is always effective against current from a wall outlet, but the ANE circuit is effective not only against noise from the wall outlet, but also against noise generated by devices connected to this unit. In addition, it is equipped with X, Y capacitors (passive filters) as a countermeasure against noise other than high frequency, and is designed to cover a very wide range of noise, making it a product equipped with functions that are exactly what is required in the current power environment. In addition, it is equipped with surge and thermal protectors and has the function of protecting connected devices in the event of lightning or overcurrent.

■Input

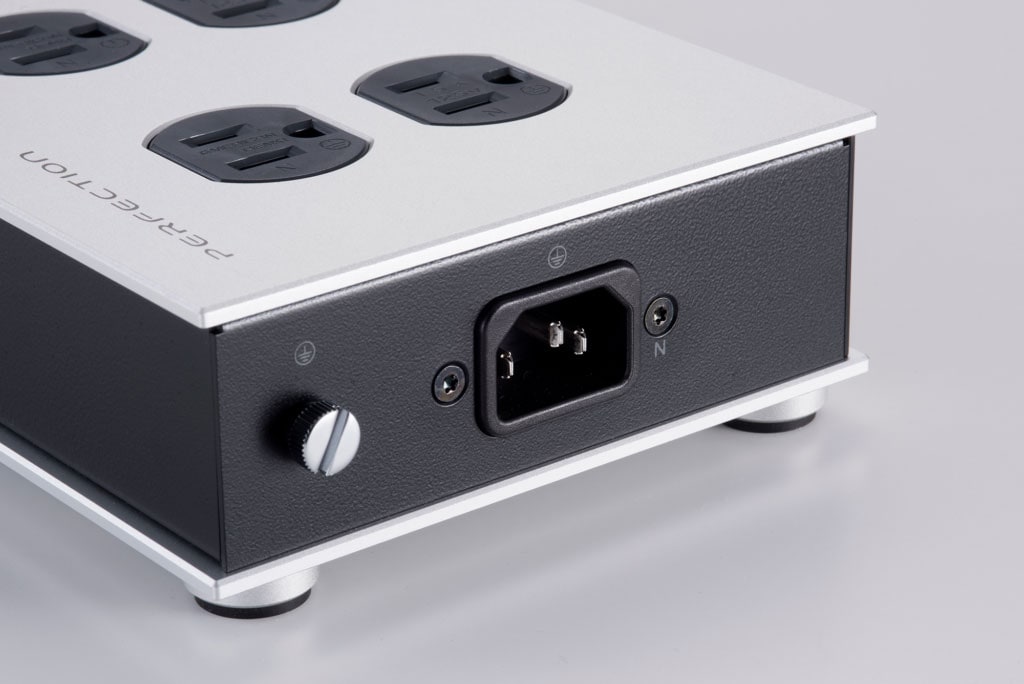

IEC inlet x 1
■Output
Output: 8 outlets + earth terminal
■Rated capacity
AC100V 15A (total 1500W)
■Dimensions
W279.6 x H51.4 x D126 [mm]
*Including earth terminal and foot protrusions
■Weight
Approx. 1.6kg
■Warranty period
1 year
