ATOMOS / SHOGUN ULTRA

This is a 7-inch 2,000nit network-compatible monitor recorder. It supports up to 8Kp30RAW.

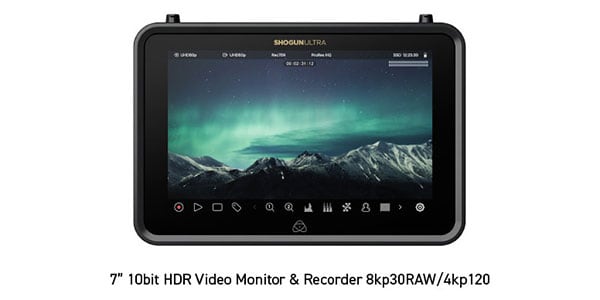

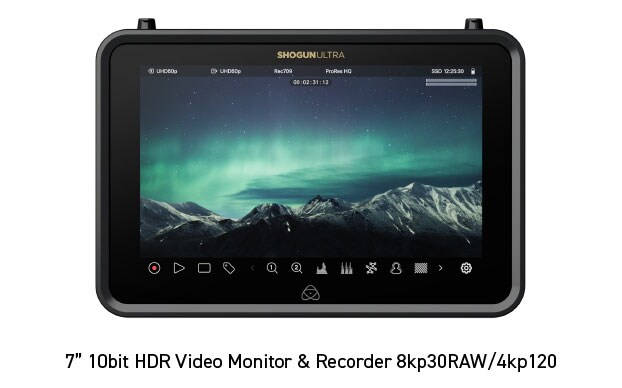

7-inch 2,000nit Network-compatible Monitor Recorder

【Chassis】
■SIZE:198(W)×133(H)×40(D)mm
■Weight (monitor unit):730g
■Mounting screw holes:
Anti-rotation 3/8-16 screw hole
1/4-20 screw mount adapter incorporated, one each on top and bottom

【Operating Environment】
■Operating temperature:
0-40 degrees C (no condensation)

【Structure】
■Chassis material:
Aluminum and ABS plastic
■Cooling:
Dynamically controlled fan and heat sink

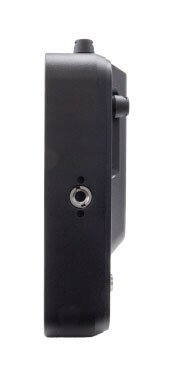

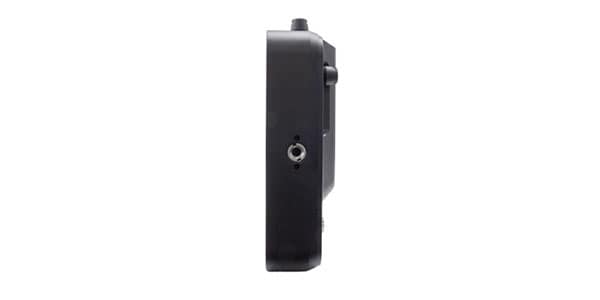

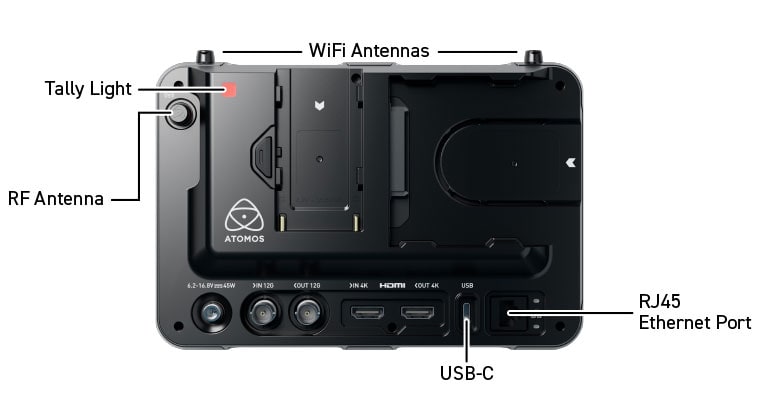

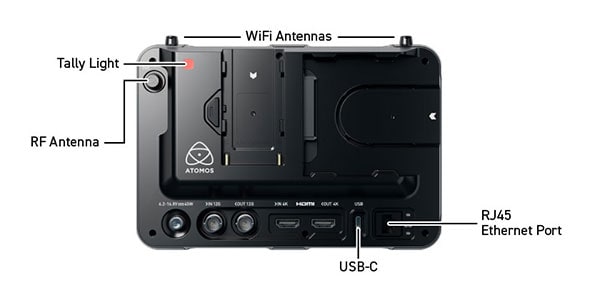

■Tally lamp: Incorporated on the back

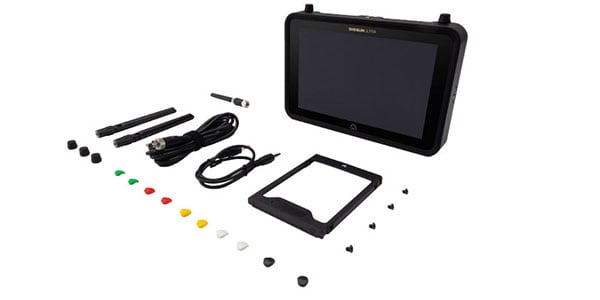

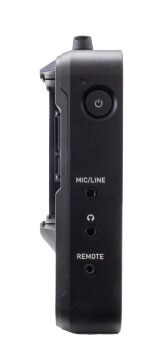

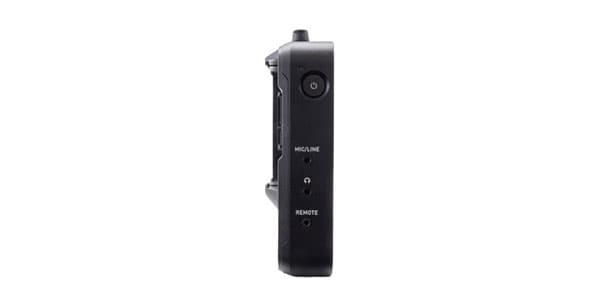

■Power button:
Turns the main power on/off and the screen lock on/off
■USB-C port: For future expansion

【Power supply】
■Supported input voltage: DC 6.2-16.8 V
■Operating power:
5.8V-7.2V (battery) or USB PD charger of 65W or more made by a company other than the manufacturer
(via the included USB-C PD? 2.1mm DC jack power cable)
■Compatible batteries:
ATOMOS NPF L series
■Built-in battery: Not included
■Battery operating time:
5200mAh Up to approx. 1.5 hours (4Kp60 screen display and recording)
7800mAh, up to 2.2 hours (4Kp60 screen display and recording)
■DC input:
Connect the supplied USB-C PD? 2.1mm DC jack power cable, or use the optional AC adapter (sold separately)
■D-Tap:
Connect the optional D-tap to DC cable (sold separately)

【Monitor】
■Touchscreen:
SuperAtom IPS panel (capacitive touch)
■Screen size:
7 inches
■Screen resolution: 1920 x 1200
■Color depth: 10-bit (8+2 FRC)
■Backlight: Edge-lit
■Maximum brightness: 2000 nits (+/-10%)
■Aspect ratio: 16:9
Color temperature: D65
*Other color temperature settings such as D93, etc., and fine color temperature adjustments are not supported.
Color gamut: Rec 709
Calibration support:
Atomos Calibrator supported
*Requires ATOMOS USB serial cable and Calibrate ColorChecker
Display Pro/ColorChecker Display Plus or Xrite i1 Display Pro/Plus

Color Pipeline
Gamma
SonySLog/SLog2/SLog3,CanonCLog/CLog2/Clog3,ArriLogCEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI100 0/LogCEI1280/LogCEI1600,PanasonicVlog,JVCJLog1,RedLogFilm/Log3G10/Log3G12,FujiFilmFlog,PQ(HDR10),HLG,NikonN-Log,ZCAMZ-Log2,OlympusOM-Log400/Flat,LeicaL-Log

■Gamut
T2020, DCIP3, PDCIP365, Sony SGamut/SGamut3/SGamut3.cine/Canon Cinema/DCIP3/DCIP3+/BT2020, Panasonic VGamut, Arri Alexa Wide Gamut Rec709, JVCLS300, Red Dragon Color/Dragon Color2/Red Color2/Red Color3/Red Color4/Red Wide Gamut

■3DLUT display
.Cube format
■3DLUT output: loop out
■3DLUT 50/50: supported
■Monitoring mode:
Native/709/HLG/PQ/3D LUT
■HDR output conversion
HLG/PQ from HDR

Color Management
Display Settings:
Brightness, Lift, Gamma, Gain
AtomHDR Technology: Has it
3DLUT:
Set the display display, monitor output, and recording to apply
(Loads .cube files from SSD and can store 8)
LEGALIZE:
Input brightness range can be converted from full to legal

Video Input
HDMI: 1xhdmi(2.0) to 4K60p
HDMI RAW:
ProRes RAW recording to 8K30p
SDI:
1xSDI to 4K60p
SDI RAW:
8/10-bit video/RAW to 16-bit (ProRes RAW recording to 12-bit)
■ Video chroma sub-sampling:
4:2:2, 4:2:0
■ HDCP copy protection:
Not supported

【File name】
■ Normal: S/S/T & Rolling
■ Via SDI:

【Video Output】
■HDMI: 1xHDMI - up to 4K60p
■SDI: 1xSDI - up to 4K60p

【Network】
■Ethernet: 1GbE RJ45
■Wi-Fi: Wi-Fi 6E
■Wireless RF: AirGlu SYNC Time code Network

Network functions (subscription plans available)
Streaming distribution:
Supported (YouTube, Facebook Live, Twitch, and other custom RTMP)
Frame.io Camera to Cloud:
Supported (Adobe free/paid plans available)
Sony Ci Media Cloud:
Supported (multiple plans available)
■Live production function:
Supported (multiple plans available)
■Remote viewing function:
Supported (multiple plans available)
■NDI HX2 transmission (up to 1080p30):
Supported (paid activation)
*Not supported for recording when transmitting 4K

Video conversion
HDMI to SDI:
Supported when used in conjunction with the optional AtomX SDI module
SDI to HDMI:
Supported: video and RAW inputs supported for video output

Audio input/output
Audio quality: 24bit/48kHz
Audio codec: PCM
■SDI: 12ch 24-bit (dependent on input signal)
■Analog audio input:
3.5mm 2 channels (only compatible with dynamic microphones with power supply)
■Headphone output: 3.5mm 2 channels
■Audio input delay setting:
It can be set from the menu

【Time code/synchronization】
■Compatible with superimposed data: HDMI and SDI
■Time:
Supported Time and date
■Wireless SYNC:
AirGlu SYNC Time code Network Server or Client
■RF network range: 300m
■RF frequency:
Depends on region
■Number of channels: 8 channels
■Number of RF clients: Depends on region
■Bluetooth network range:
10-15m (unobstructed)
■Number of BT clients: 2 clients


【Compatible resolutions/frame rates (recording/monitoring/playback)】
■8K RAW:
Compatible up to 8K30p HDMI RAW input
■6K RAW:
Compatible with up to 6K30p HDMI RAW input
Compatible up to 6K30p SDI RAW input
■4K RAW:
Compatible with up to 4K60p HDMI RAW/SDI RAW input
■3.5K Anamorphic RAW:
Compatible up to 3.5K50p. HDMI RAW input only
■2K RAW: Compatible up to 2K240p. SDI RAW input only
■4K DCI:
23.98/24/25/29.97/30/50/59.94/60p
■4K UHD:
23.98/24/25/29.97/30/50/59.94/60p
■2K DCI 2048x1080:
Supports up to 2K60p. Supports SDI input only.
■FHD 1920x1080 progressive:
23.98/24/25/29.97/30/50/59.94/60/100/120p
■FHD 1920x1080 PsF
Pull down
■FHD 1920x1080 Interlaced:
1080i50/1080i60
■1280x720p: 50/59.94/60p

【Recording codecs】
■ProRes RAW:
ProRes RAW, HQ 12bit - up to 8K30p
■Apple ProRes:
LT, 422, HQ - up to 4K60p
■Avid DNxHD:
DNxHD 220x, 220, 145, 36
■Avid DNxHR:
LB, SQ, HQ, HQX.
■H.265:
LQ, MQ, HQ, XQ in 8/10Bit, 4 2 2 and 4 2 0
※Compatible up to 4K60p, MOV file

[Recording functions]
■Pre-roll function:
Supported (HD 8 seconds, 4K 2 seconds)
*Only supported when recording in ProRes/DNx
■Time-lapse: Supported
■Simultaneous proxy recording:
Supported When using Camera to Cloud:
H.265 proxy (recorded simultaneously with ProRes/DNx/ProRes RAW)

[Playback]
■Playlist:
Supported. You can create custom playlists from full/sub-clips.
■Loop:
Supported. You can also play between in/out points.
■Apple ProRes RAW:
Supported. Recorded clips
■Apple ProRes:
Supported. Uses linear PCM audio.
■Avid DNx:
Supported. Uses linear PCM audio.
■H.265: Supported. Recorded clips

[Monitoring]
■SDR: Native, 709, LUT
■HDR: HLG, PQ Rec2020

【Supported media】
■Master Caddy I:
I am not compatible
■Master Caddy II:
It can be used with 2.5-inch SSD media installed
■Master Caddy III:
It can be used with 2.5-inch SSD media installed
■SSDmini: Compatible
■File name:
Unit name? Scene/Shot/Take
■File system: ExFAT
