ATOMOS / SHOGUN

This is a 7-inch 2,000nit network-compatible monitor recorder that makes the most of DSLR/mirrorless/cinema cameras.

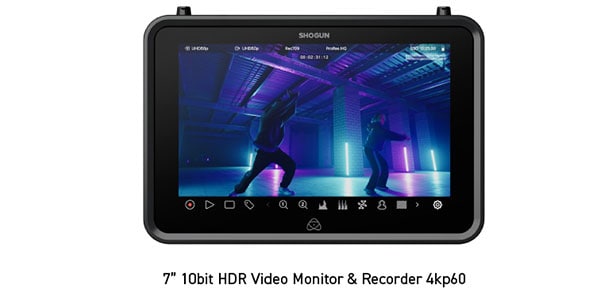

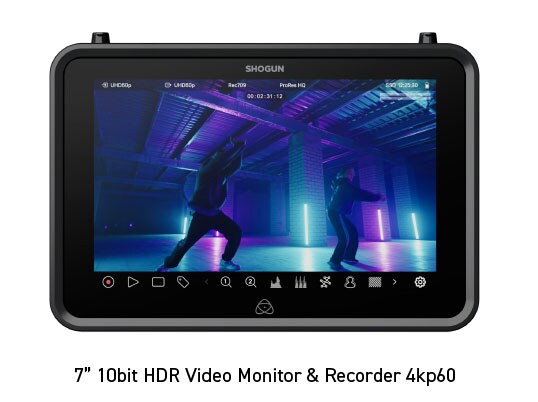

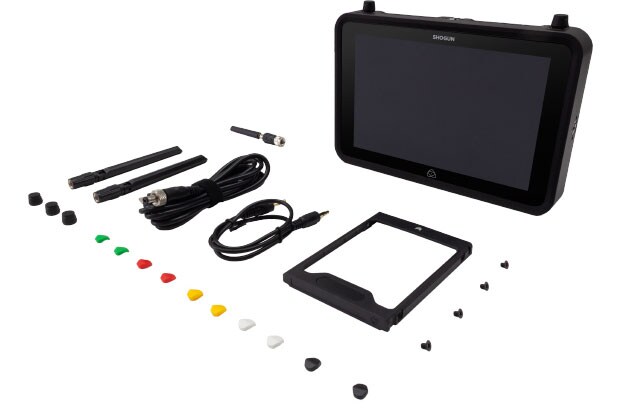

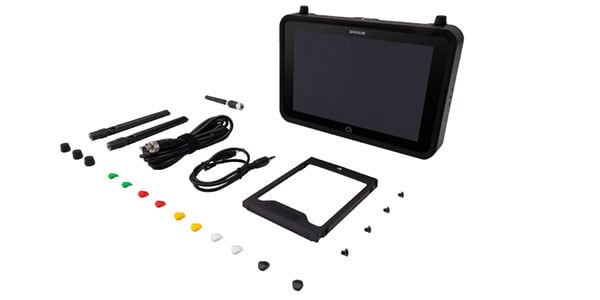

7-inch 2,000nit Network-compatible Monitor Recorder

【Chassis】
■SIZE:198(W)×133(H)×40(D)mm
■Weight (monitor unit):730g

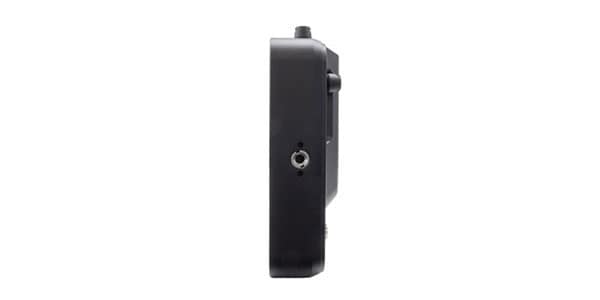

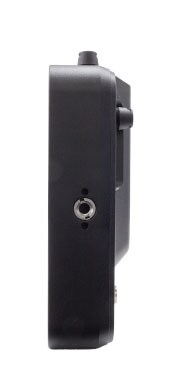

■Mounting screw holes:
Anti-rotation 3/8-16 screw holes
1/4-20 screw mount adapter incorporated, one each on top and bottom

【Operating environment】
■Operating temperature:
0-40 degrees C (no condensation)

【Structure】
■Chassis material:
Aluminum and ABS plastic
■Cooling:
Dynamically controlled fan and heat sink

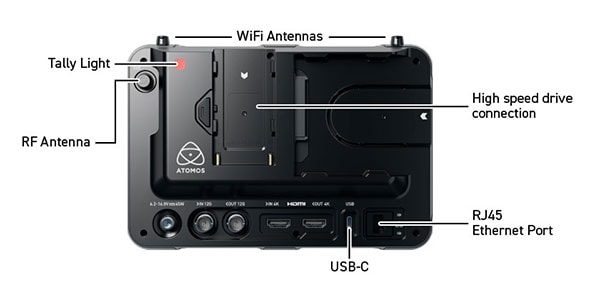

■Tally lamp: Incorporated on the back

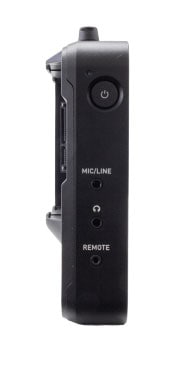

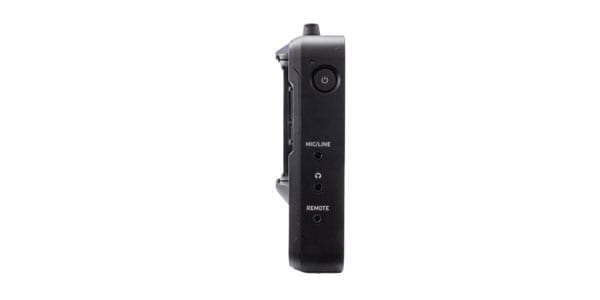

■Power button:
Turns the main power on/off and the screen lock on/off
■USB-C port: For future expansion

Power
■Supported input voltage: DC 6.2-16.8 V
■Operating power:
5.8V-7.2V (battery) or USB PD charger of 65W or more made by a company other than the manufacturer
(via the included USB-C PD 2.1mm DC jack power cable)
■Supported battery:
ATOMOS NPF L series
■Built-in battery: Not included
■Battery life:
5200mAh: Up to approx. 1.5 hours (4Kp60 screen display and recording)
7800mAh: Up to approx. 2.2 hours (4Kp60 screen display and recording)
■DC input:
Connect the supplied USB-C PD? 2.1mm DC jack power cable, or use the optional AC adapter (sold separately)
■D-Tap:
Connect the optional D-tap to DC cable (sold separately)

【Monitor】
■Touchscreen:
SuperAtom IPS panel (capacitive touch)
■Screen size:
7 inches
■Screen resolution: 1920 x 1200
■Color depth: 10-bit (8+2 FRC)
■Backlight: Edge-lit
■ Maximum brightness: 2000 nits (+/-10%)
■ Aspect ratio: 16:9
■ Color temperature: D65
*Other color temperature settings, such as D93, are not supported.
■ Color gamut: Rec 709
■ Calibration support:
Atomos Calibrator supported
*Requires ATOMOS USB serial cable and Calibrate ColorChecker
Display Pro/ColorChecker Display Plus or Xrite i1 Display Pro/Plus is required

【Color Pipeline】
■Gamma
SonySLog/SLog2/SLog3, CanonCLog/CLog2/Clog3, ArriLogCEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/
LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600,PanasonicVlog,JVCJLog1,RedLogFilm/Log3 G10/Log3G12,FujiFilmFlog,PQ(HDR10),HLG,NikonN-Log,ZCAMZ-Log2,OlympusOM-Log400/Flat,LeicaL-Log


■Gamut
BT2020, DCIP3, PDCIP365, Sony SGamut/SGamut3/SGamut3.cine/Canon Cinema/DCIP3/DCIP3+/BT2020, Panasonic VGamut, Arri Alexa Wide Gamut Rec709, JVCLS300, Red Dragon Color/Dragon Color 2/Red Color 2/Red Color 3/Red Color 4/Red Wide Gamut

■3DLUT display
.Cube format
■3DLUT output: loop out
■3DLUT 50/50: supported
■Monitoring mode:
Native/709/HLG/PQ/3D LUT
■HDR output conversion
HLG/PQ from HDR

【Color Management】
■Display Settings:
Brightness, Lift, Gamma, Gain
■AtomHDR Technology: Has it
■3DLUT:
Set the display display, monitor output, and recording to apply
(Load .cube files from SSD and store up to 8 memories)
■LEAGALIZE:
Input brightness range can be converted from full to legal

Video Input
HDMI: 1xhdmi(2.0) to 4K60p
HDMI RAW:
ProRes RAW recording to 6K30p
SDI:
1xSDI to 4K60p
SDI RAW:
8/10-bit video/RAW to 16-bit (ProRes RAW recording up to 12-bit)
■ Video chroma sub-sampling:
4:2:2, 4:2:0
■ HDCP copy protection:
Not supported

【File name】
■ Normal: S/S/T & Rolling

【Video Output】
■HDMI: 1xHDMI - Supports up to 4K60p
■SDI: 1xSDI - Supports up to 4K60p

【Network】
■Ethernet: 1GbE RJ45
■Wi-Fi: Wi-Fi 6
■Wireless RF: AirGlu SYNC Time code Network

Network functions (subscription plans available)
Streaming:
Supported (YouTube, Facebook Live, Twitch, and other custom RTMP)
Frame.io Camera to Cloud:
Supported (Adobe free/paid plans available)
Sony Ci Media Cloud:
Supported (Sony free/paid plans available)
Atomos EDIT upload function:
Supported (multiple plans available)
Live production function:
Supported (multiple plans available)
Remote viewing function:
Supported (multiple plans available)
NDI HX2 transmission (up to 1080p30):
Supported (paid activation)

Video conversion
HDMI to SDI:
Supported when used in conjunction with the optional AtomX SDI module
SDI to HDMI:
Compatible with optional ATOMOS CONNECT or AtomX SDI module: video and RAW input compatible with video output

Audio Input/Output
■ Audio quality: 24bit/48kHz
■ Audio codec: PCM
■ HDMI: 8ch 24-bit (dependent on input signal)
■ SDI: 12ch 24-bit (dependent on input signal)
■ Analog audio input:
3.5mm 2 channels (only compatible with dynamic microphones with power supply)
■Headphone output: 3.5mm 2 channels
■Audio input delay setting:
It can be set from the menu

【Time code/synchronization】
■Compatible with superimposed data: HDMI and SDI
■Time:
Compatible Time and date
■Wireless SYNC:
AirGlu SYNC Time code Network Server or Client
■RF network range: 300m
■RF frequency:
Depends on region
■Number of channels: 8 channels
■Number of RF clients: Depends on region
■Bluetooth network range:
10-15m (in an unobstructed environment)
■Number of BT clients: 2 clients


【Compatible resolutions/frame rates (recording/monitoring/playback)】
■6K RAW:
Up to 6K30p HDMI RAW input
Up to 6K30p SDI RAW input
■4K RAW:
Up to 4K60p HDMI RAW/SDI RAW input
■3.5K anamorphic RAW:
Up to 3.5K50p HDMI RAW input only
■2K RAW: Up to 2K240p SDI RAW input only
■4K DCI:
23.98/24/25/29.97/30/50/59.94/60p
■4K UHD:
23.98/24/25/29.97/30/50/59.94/60p
■2K DCI 2048x1080:
Supports up to 2K60p. Supports SDI input only.
■FHD 1920x1080 progressive:
23.98/24/25/29.97/30/50/59.94/60/100/120p
■FHD 1920x1080 PsF
Pull down
■FHD 1920x1080 Interlaced:
1080i50/1080i60
■1280x720p: 50/59.94/60p

【Recording codecs】
■ProRes RAW:
ProRes RAW, HQ 12bit - up to 6K30p
■Apple ProRes:
LT, 422, HQ - up to 4K60p
■Avid DNxHD:
DNxHD 220x, 220, 145, 36
■Avid DNxHR:
LB, SQ, HQ, HQX.
■H.265:
LQ, MQ, HQ, XQ in 8/10Bit, 4 2 2 and 4 2 0
※Up to 4K60p, MOV file

【Playback】
■Playlist:
Supported. You can create custom playlists from full/sub-clips.
■Loop:
Supported. You can also play between in/out points.
■Apple ProRes RAW:
Supported. Recorded clips
■Apple ProRes:
Supported. Audio uses linear PCM.
■Avid DNx:

[Monitoring]
■SDR: Native, 709, LUT
■HDR: HLG, PQ Rec2020

【Supported media】
■Master Caddy I:
I am not compatible
■Master Caddy II:
It can be used with 2.5-inch SSD media installed
■Master Caddy III:
It can be used with 2.5-inch SSD media installed
■SSDmini: Supported
■File name:
Unit name? Scene / Shot / Take
■File system: ExFAT
