ATOMOS / NINJA

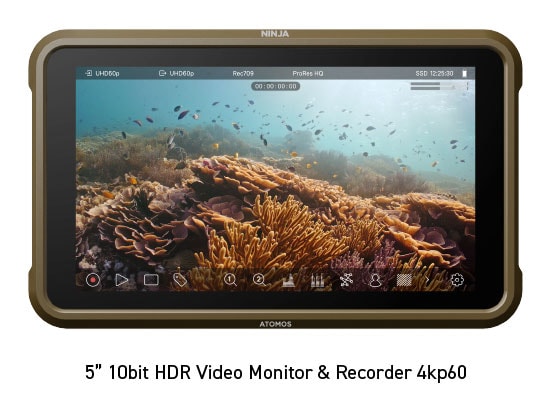

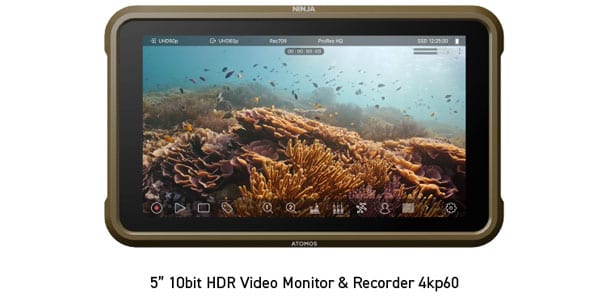

A lightweight, compact 5-inch monitor that can be mounted on a camera. As a 10-bit HDR monitor recorder, it supports up to 4Kp60 in ProRes, Avid DNx, and H.265 codecs.

5-inch 1000nit HDR monitor recorder

【Operating Environment】
■Ambient operating temperature:
0-40 degrees C (no condensation)

【Structure】
■Chassis material:
Aluminum and ABS plastic
■Cooling:
Dynamically controlled fan and heat sink
■Tally lamp: Incorporated into the back

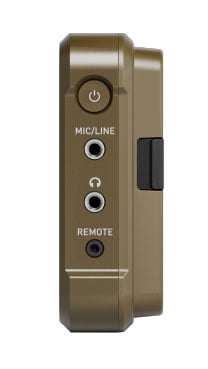

■Power button:
Main power on/off and screen lock on/off

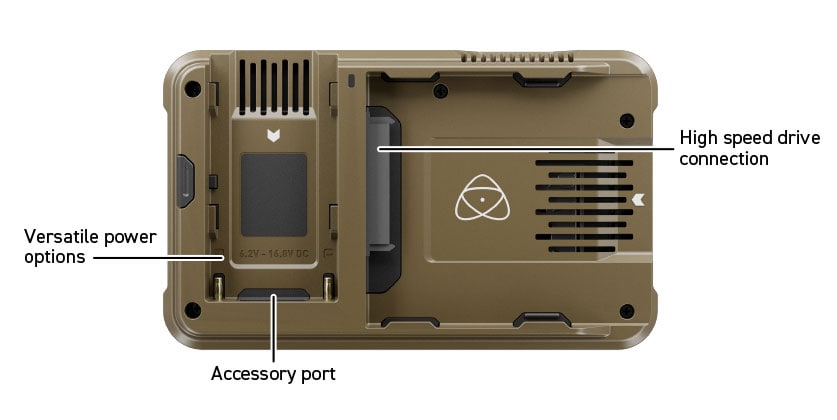

■AtomX expansion slot: Has one

Power
■ Input voltage: DC 6.2-16.8 V
■ Operating power:
5.8V - 7.2V (battery) or USB PD charger of 45W or more (via the included USB-C PD - 2.1mm DC jack power cable)
■ Compatible battery:
ATOMOS NPF L series
■Built-in battery: Not included
■Battery life:
5200mAh: Up to approx. 2 hours (4Kp60 screen display and recording)
7800mAh: Up to approx. 3 hours (4Kp60 screen display and recording)

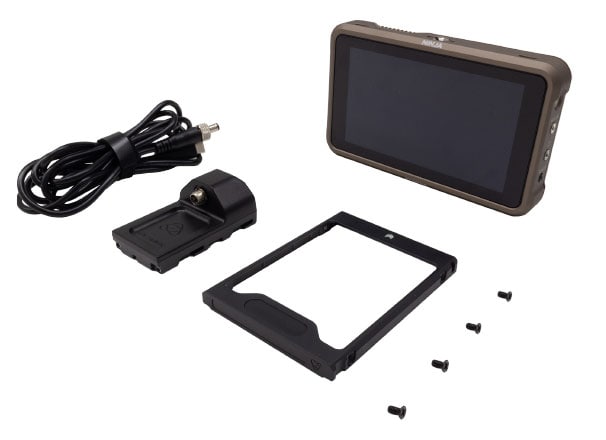

■DC input:
Connect to the DC jack on the included battery eliminator
Optional AC adapter available for purchase
■D-Tap:
Connect the included battery eliminator and optional D-tap to the DC cable

【Monitor】
■Touchscreen:
SuperAtom IPS panel (capacitive touch)
■Screen size:
5.2 inches
■Screen resolution/PPI: 1920 x 1080/427
Color depth: 11092-bit (8+2 FRC)
Backlight: Edge-lit
Maximum brightness: 1000 nits
Aspect ratio: 16:9
Color temperature: D65
*Other changes, such as D93 and fine adjustments to color temperature, are not supported
Color gamut: Rec 709
Calibration support:
Atomos Calibrator compatible
*Requires ATOMOS USB serial cable and Calibrate ColorChecker
Display Pro/ColorChecker Display Plus or Xrite i1 Display Pro/Plus

Color Pipeline]
Gamma
Sony SLog/SLog2/SLog3, Canon CLog/CLog2/Clog3, Arri Log CEI160
LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640
LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic Vlog, JVC
JLog1, Red LogFilm /Log3G10/Log3G12, FujiFilm Flog, PQ (HDR10), HLG,
Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400/Flat, Leica L-Log
■Gamut:
BT2020, DCIP3, PDCIP3 65, Sony SGamut/SGamut3/SGamut3.cine/Canon
Cinema/DCIP3/DCIP3+/BT2020, Panasonic VGamut, Arri Alexa Wide
GamutRec709,JVCLS300,RedDragonColor/DragonColor2/RedColor2
RedColor3/RedColor4/RedWideGamut
■3DLUT display
.Cube format
■3DLUT output: Loop out
■3DLUT 50/50: Supported
■Monitoring mode:
Native/709/HLG/PQ/3DLUT
■HDR output conversion
Log/HDRtoHLG/PQ/DolbyVision

【Video Input】

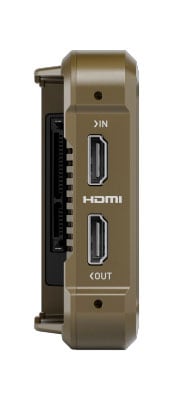

■HDMI: 1xhdmi(2.0) - up to 4K60p
■HDMI RAW:
ProRes RAW recording - up to 6K30p
■SDI:
1xSDI - up to 4K60p Optional ATOMOS CONNECT or AtomX SDI module required
■SDI RAW
support: Requires optional ATOMOS CONNECT or AtomX SDI module
■Color depth:
8/10-bit video/RAW to 16-bit (ProRes RAW recording is up to 12-bit)
■Video chroma sub-sampling:
4:2:2, 4:2:0
■HDCP copy protection:
Not supported

【Metadata】
■HDMI: RAW - White balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, color gamut

【Video Output】

■HDMI: Supports up to 1xHDMI - 4K60p
■RJ45/GigE:
Supports when used with optional ATOMOS CONNECT
■Wi-Fi 6E:
Supports when used with optional ATOMOS CONNECT
■Video Chroma Sub-sampling: 4:2:2
■Color Depth: 10bit

【Web Streaming】
■USB UVC:
Compatible with optional AtomX CAST
■RJ45/GigE:
Compatible with optional ATOMOS CONNECT
■RTMP/S:
Compatible with optional ATOMOS CONNECT

Network functions (subscription plan available)
*Compatible when used with optional ATOMOS CONNECT]
■Streaming distribution:
Compatible (YouTube, Facebook Live, Twitch, other custom RTMP)
■Frame.io Camera to Cloud:
Compatible (Adobe free/paid plans available)
■Sony Ci Media Cloud:
■Atomos EDIT upload function:
Supported (multiple plans available)
■Live production function:
Supported (multiple plans available)
■Remote view function:
Supported (multiple plans available)
■NDI HX2 transmission (up to 1080p30):
Supported (paid activation)

Video conversion
HDMI to SDI:
Compatible when used with the optional AtomX SDI module
SDI to HDMI:
Compatible when used with the optional ATOMOS CONNECT or AtomX SDI module: Video and RAW inputs can be output as video

Audio input/output
Audio quality: 24bit/48kHz
Audio Codec: PCM
HDMI: 8ch 24-bit (depends on input signal)
SDI: 12ch 24-bit (depends on input signal)

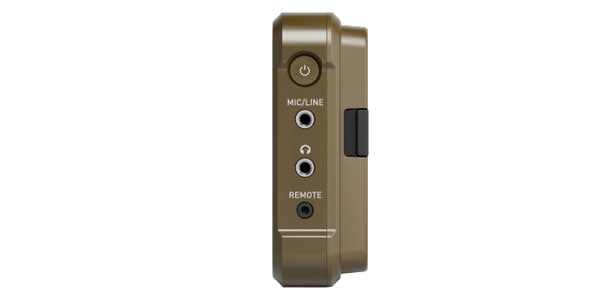

Analog Audio Input:
3.5mm 2 channels (only compatible with dynamic microphones with power supply)
Headphone Output: 3.5mm 2 channels
Audio Input Delay Settings:
It can be set from the menu

Time Code/Sync
■Compatible with superimposed data: HDMI and SDI
■Time:
Compatible Time and date
■LTC (recording mode only):
Optional ATOMOS CONNECT or AtomX Sync module required Wireless RF connection
■Wireless AirGlu RF Server and Client:
Optional ATOMOS CONNECT or AtomX Sync module required
■Wireless AirGlu BT Server:
Optional ATOMOS CONNECT or AtomX Sync module required

【Compatible resolutions/frame rates (recording/monitoring/playback)】
■6K RAW:
Up to 6K30p HDMI RAW input
■4K DCI:
23.98/24/25/29.97/30/50/59.94/60p
■4K UHD:
23.98/24/25/29.97/30/50/59.94/60p
■2K DCI 2048x1080:
Supports up to 2K60p. Only supports SDI input.
■Anamorphic:
RAW to 3.5K50p (compatible cameras only)
■FHD 1920x1080 progressive:
23.98/24/25/29.97/30/50/59.94/60/100/120p
■FHD 1920x1080 PsF
Pull down
■FHD 1920x1080 Interlaced:
1080i50/1080i60
■1280x720p: 50/59.94/60p

[Recording codecs]
■ProRes RAW:
ProRes RAW, HQ 12bit - up to 6K30p
■Apple ProRes:
LT, 422, HQ - up to 4K60p
■Avid DNxHD:
LB, SQ, HQ, HQX.
■H.265:
LQ, MQ, HQ, XQ in 8/10Bit, 4 2 2 and 4 2 0

Playback
Playlist:
Supported. You can create custom playlists from full/sub-clips.
Loop:
Supported. You can also play between in/out points.
Apple ProRes RAW:
Supported. Recorded clips
Apple ProRes:
Supported. Uses linear PCM audio.
Avid DNx:

[Recording functions]
■Pre-roll function:
Supported (HD 8 seconds, 4K 2 seconds)
*Only supported when recording in ProRes/DNx
■Time-lapse: Supported
■Simultaneous proxy recording:
Supported when using Camera to Cloud: H.265 proxy (recorded simultaneously with ProRes/DNx)

(Compatible when used with the optional AtomX CAST multi-input/switching* unit)
■ Multi-HDMI input:
Up to 4 HDMI inputs, up to 1080p60
■ Multi-view display:
4-screen display possible on NINJA monitor
■ Multi-view output:
Compatible via NINJA HDMI output
■ Picture-in-picture (PinP)
Select video to overlay on the background from up to 4 inputs
■ Still Image Overlay Function:
Still, images saved on the NINJA can be used as overlay images in layouts
■ Overlay Still Image File:
PNG format, maximum size 1920 x 1080, maximum 1MB per file
Up to 8 images can be saved on the NINJA
■ Input Transition:
Transition time can be set
