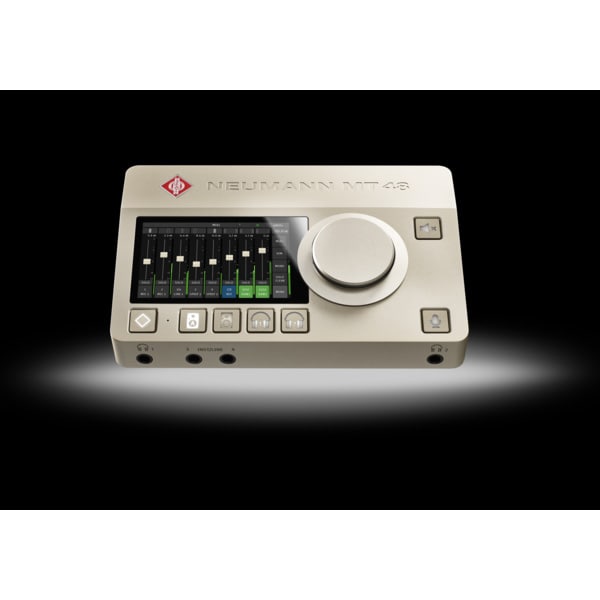

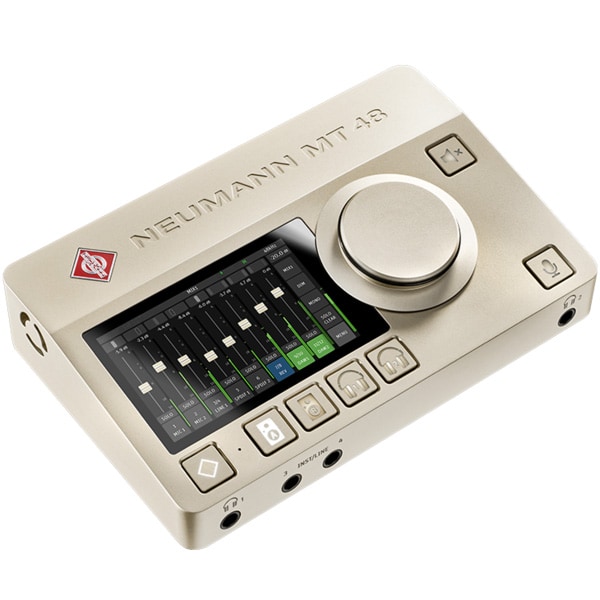

NEUMANN / MT48 オーディオインターフェース

MT48 is an audio interface developed in close collaboration with Swiss manufacturer Merging Technologies. Its vast dynamic range, excellent converters, preamplifier, and headphone amplifier are all designed to the highest standards.

■Audio Interface
■USB-C

■Key Features
Best-in-class AD converter resolution with 136 dB dynamic range
2 high-quality mic/line preamps and 2 high-quality line/instrument inputs
Four line/monitor outputs

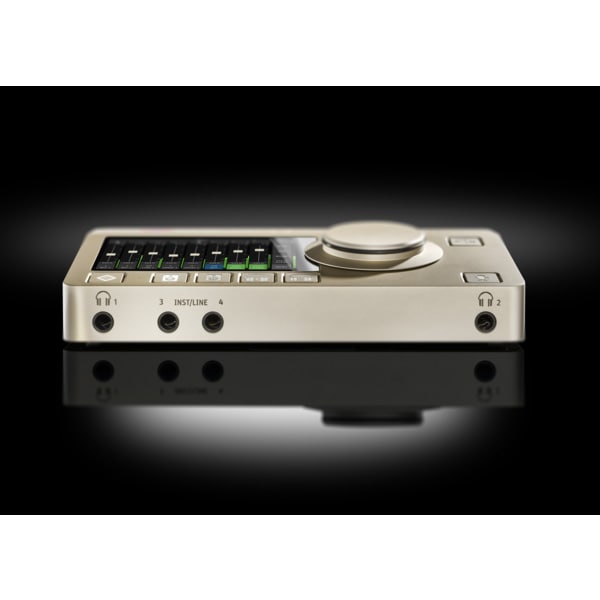

2 ultra-low impedance headphone outputs with adjustable crossfeed
ADAT/S/PDIF optical in/out, AES67, MIDI/GPIO
Two driver outputs per input channel for pre-FX and post-FX recording

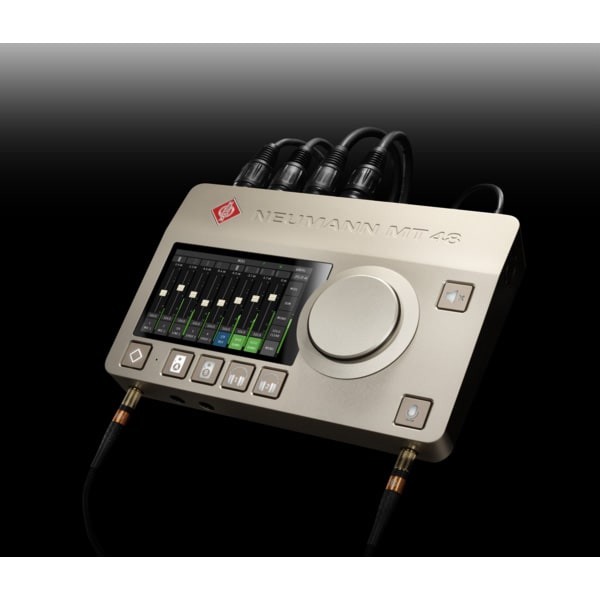

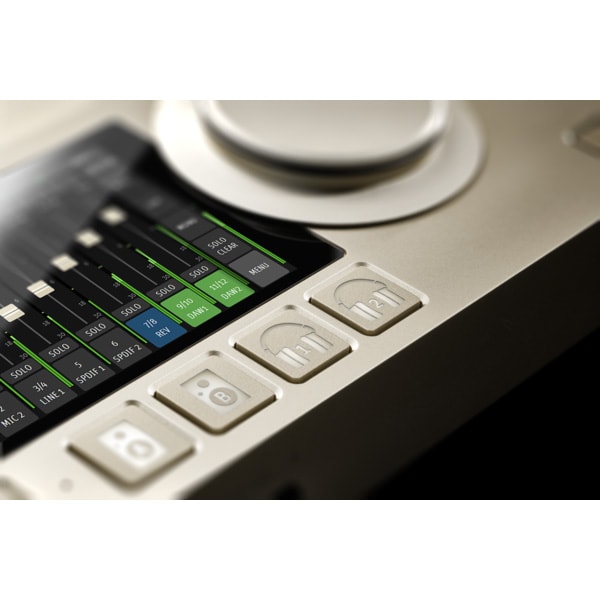

Intuitive touchscreen user interface
Can also operate stand-alone as a kissing console

High-precision AD converters operate with an astounding 136 dB dynamic range. This gives the MT 48 four times the resolution of comparable audio interfaces.
MT48 features two ultra-low noise mic/line preamps with up to 78 dB gain, two line/instrument inputs, four monitor/line outputs, and two excellent headphone outputs, all with state-of-the-art AD/DA converters.
Expansion is possible via ADAT/S/PDIF and AES67, and a MIDI interface is integrated. 4 independent monitor mixes can be controlled directly on the unit via the touchscreen. Onboard processing includes a 4-band full parametric EQ, per-channel 3-way dynamics processor (gate/compressor/limiter), and high-quality reverb.

MT48 combines an audio interface and digital mixing desk in one product, allowing DSP processing to be used for monitoring only, for effects while recording, or both simultaneously. The unique Dual Output Technology allows wet and dry signals to be recorded simultaneously via separate driver channels. Thus, you can also revert to an unprocessed backup if necessary.

■Microphone Inputs 1-2
Dynamic Range 136 dB-A
Input Impedance 10 kΩ
Gain Range 12...+78 dB in 0.5 dB steps or 0.1 dB (fine)
Pad 12 dB/24 dB
Maximum input level 0 /+12/+24 dBu (without Pad/with Pad)
THD + N Preamp + ADC @ 1 kHz, 0 dBFS < -110 dB (0.0003%)

■Line Input 1-2
Dynamic range 138.5 dB-A
Input impedance 10 kΩ
Gain range ...+66 dB
Sensitivity +24 dBu...-42 dBu
Maximum input level +24 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS < -105 dB (0.0006%)

■Line Input 3 - 4
Dynamic range 135 dB-A
Input impedance 2 MΩ (balanced) / 1 MΩ (unbalanced)
Gain range 0...+66 dB
Sensitivity +18 dBu ... -48 dBu
Maximum input +18 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS < -112 dB (0.0003%)

■Line/monitor out
Output impedance < 70 Ω
THD+N @ 1 kHz, 0 dBFS < -110 dB (0.0003%)
Dynamic range 123 dB-A
Maximum output level +24 dBu

■Headphone Out
Output impedance 0.035 Ω
Dynamic range 122 dB-A (high) / 117 dB (low)
Maximum output level +16 dBu (high) / +8 dBu (low)
AES67/Ravenna Standard RJ-45 Gigabit-Ethernet-Anschluss

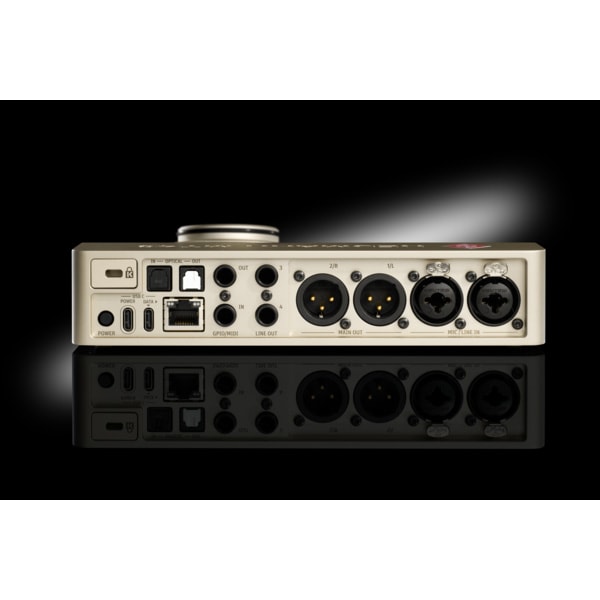

Expansion Connectivity ADAT/S/PDIF optical I/O, MIDI I/O via 1/4 jack, (DIN5 adapter set available from Neumann: Cat. No. 700261)”
Computer interface USB-C, 2.0 (480 MB/sec) or better
Power consumption 25 W
