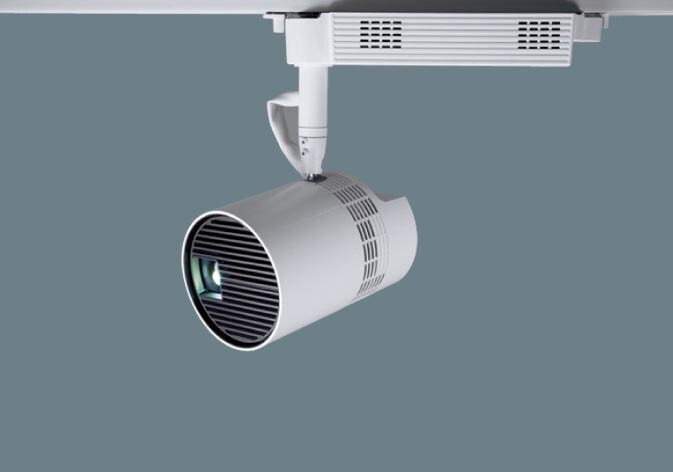

PANASONIC / スポットライト型プロジェクター Space　Player 【NTN91000W】

Wiring duct mounted laser diode, spotlight type projector.

■Spotlight type projector
■Wiring duct mounting type laser Diode
■Life: 20,000 hours (50% of initial brightness)
■Wireless remote control/panel display system:
DLP (R) chip 1 piece, DLP (R) system
■Panel pixels: 1,039,680 pixels (WXGA equivalent)
*Recommended video resolution: 1,280 x 800 (16:10)
■Lens: Electric Zoom (1~2.2 x)
*electric focus
■Slow ratio: 1.5~3.3:1 (projection distance: screen length)
■Trapezoidal compensation: Horizontal, vertical, 4 point compensation (maximum ±40° of supported angle)
*Limited by conditions
■Connection terminals < HDMI IN > terminal:
1 HDMI19 pin
HDCP audio signal: Linear PCM (sampling frequency: 48 kHz/44.1 kHz/32 kHz)
■Jacks < AUDIO OUT >:
1 M3 stereo mini jack (Monitor output, stereo compatible)
0 V [rms] to 2.0 V [rms] (Variable), Output Impedance 2.2 kΩ or Less
■Connection terminal : 1 terminal
10Base-T/100Base-TX for RJ-45 network connection with PJLink
■Connection Terminal < DC OUT >
USB connector (Type A) x1
Power supply only (5 VDC, 900 mA max)
■Memory card slot:
1 SD card slot (supports SDHC memory cards up to 32 GB)
Still images and movies can be played only on the unit.
■Wireless LAN — IEEE802.11a/b/g/n
Mirroring: Not supported
■Audio output jack: M3 stereo mini jack
■Bluetooth (R): Not supported
*A Bluetooth (R) transmitter is required for audio output.
■Lighting Interlock Function: Not Supported
■Noise level: 36Db (when "Light source power" is set to "Normal")
■SD Card Supported File Formats:
[Still image] jpg/jpeg, bmp
mov, avi, mp4, mpg/mpeg, wmv
■Wiring Duct Mounting Type, 1000 lm Type
■Mounting Method: For 100 V Wiring Duct Mounting
*Please be sure to use the safety wire when attaching the body.
■Mass: 3 kg
◆Please inquire about the delivery date before ordering.

*Note: Cannot be used with dimmer circuits.
*Note: This product is a Class 2 laser product conforming to JIS C 6802:2011 or IEC60825-1:2007.
Do not look into the lens during use.
*Note: DLP (R) is a registered trademark of Texas Instruments Inc.
*NOTE: HDMI and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
