Electro-Voice / EVID-S5.2TB

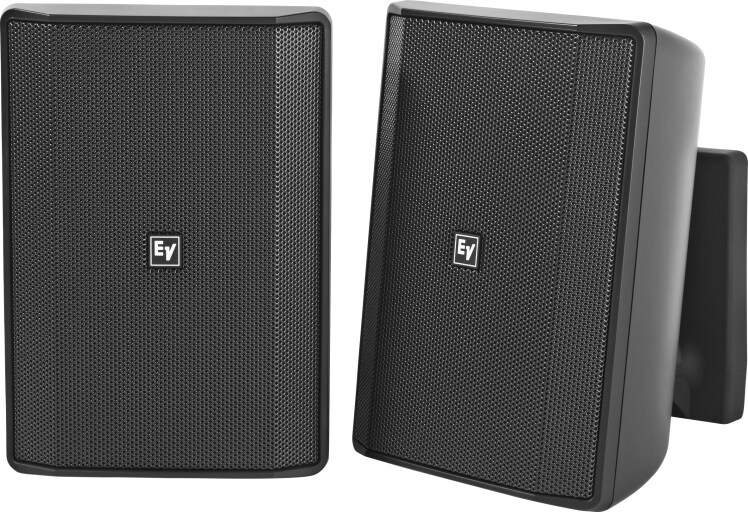

The Electro-Voice EVID-S5.2T is a high-performance 2-way full-range 5.25-inch (133 mm) wall-mount speaker. It provides uniform coverage across a wide range and delivers superior performance. Designed for foreground, background, call, and voice reinforcement applications, it is ideal for a variety of indoor and outdoor applications, including restaurants, bars, retail stores, fitness clubs, hospitals, theme parks, and leisure facilities.

Frequency Response (-3 dB): 85 Hz - 20 kHz

Frequency Response (-10 dB): 60 Hz - 20 kHz

Output Sound Pressure Level (SPL): 90 dB

Maximum Sound Pressure Level (SPL) (Calculated): 109 dB (115 dB peak)

Nominal Directivity: Horizontal 90°, Vertical 90°

Power Handling: 75 W (300 W peak) Continuous Pink Noise (100 hours)

Low Impedance: Yes

Nominal Impedance: 8 Ω

Minimum Impedance: 6 Ω

Recommended High-Pass Filter: 60 Hz (24 dB/octave)

Input Transformer (70 V/100 V): 30 W

Transformer Taps: 70 V: 3.7 W, 7.5 W, 15 W, 30 W, 8 Ω

100 V: 7.5 W, 15 30 W, 8 Ω

LF Transducer: 5.25 inches (133 mm)

HF Transducer: 0.75 inches (20 mm)

Input Connector: Wall bracket mounting screws. Removable locking 4-pin connector (Euroblock) - (2) For connecting to additional speakers in the distribution line.

Maximum core wire diameter: 12AWG (2.5 mm)

Environmental rating: IP54 (compliant with IEC-60529)

Color: Black

Dimensions (Height x Width x Depth): 255 mm x 180 mm x 151 mm

Unit weight: 3.2 kg

Package weight (1 set): 7.9 kg

Included hardware: Mounting bracket, 5mm hex wrench

Package quantity: 2
