SHURE / DH5T/O-MTQG

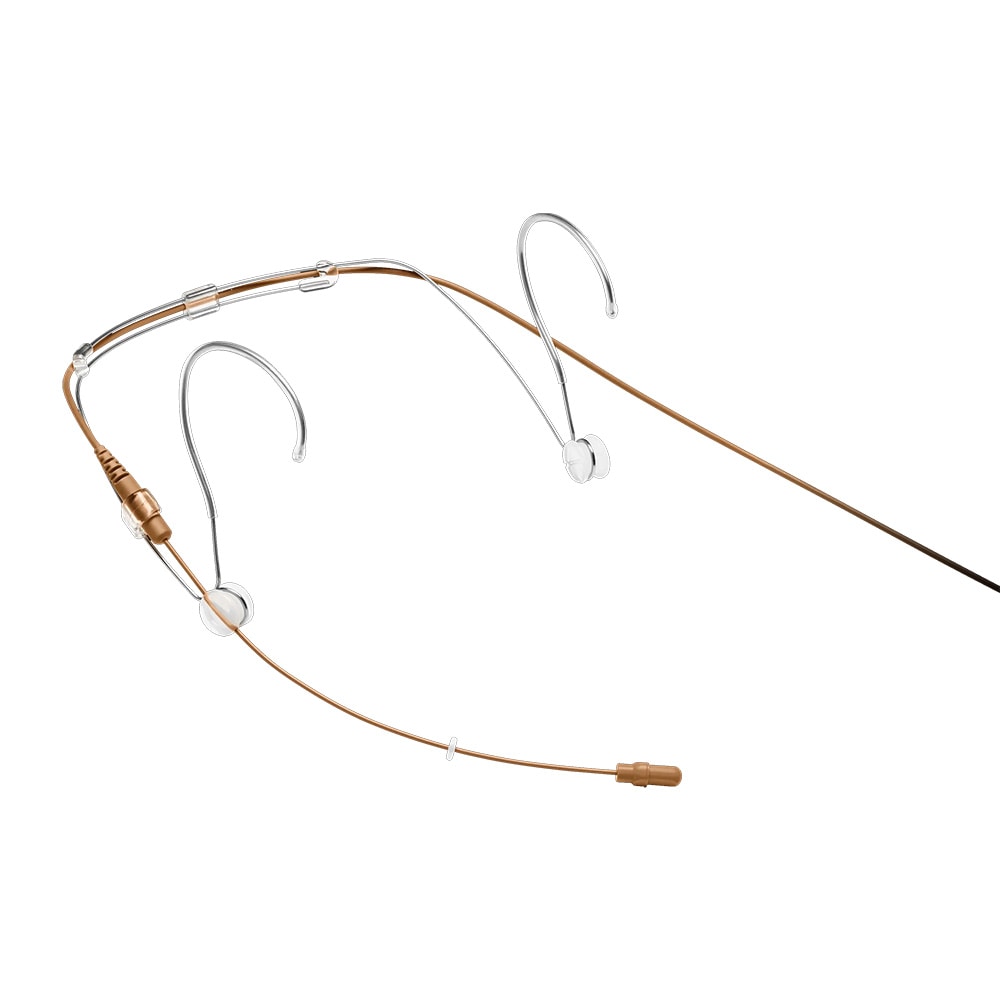

This headset microphone features excellent durability and discreet appearance. The microphone position can be swapped between left and right, making this unit useful in a variety of situations such as theaters and events.

■Specifications
DuraPlex Series/Headset Condenser Microphone
Directional Characteristics: Omni-directional
Frequency response：20Hz-20kHz
Recommended operating voltage: DC5V, DC2.6V minimum
Microphone current consumption: 220?A, max
Open Circuit Sensitivity: -42.5dBV/Pa (7.5mV), at 1kHz 1Pa=94 dB SPL
Equivalent noise level: 31 dB SPL-A, A-weighted, typical
S/N ratio: 63.0 dB, 94 dB SPL at 1 kHz
Maximum input sound pressure level: 132.0 dB SPL, 1 kHz at 1% THD, typical
Dynamic Range: 101.0dB, typical
Polarity: Positive voltage is generated on pin 3 with respect to ground pin 1 for positive pressure against the diaphragm
Cable diameter: 1.6 mm
Cable length: 1.67m
Size: Φ5.2 x 14.5mm (microphone section), boom length 136mm
Weight: 20g
Connector: MTQG
Color: TAN

■Packing Contents
Snap-fit windscreen x1
Presence cap x1
1 foam windscreen
1 single tie clip
1 adapter with TQG locking mechanism
1 headset case
