HAMMOND / M-solo ドローバーキーボード

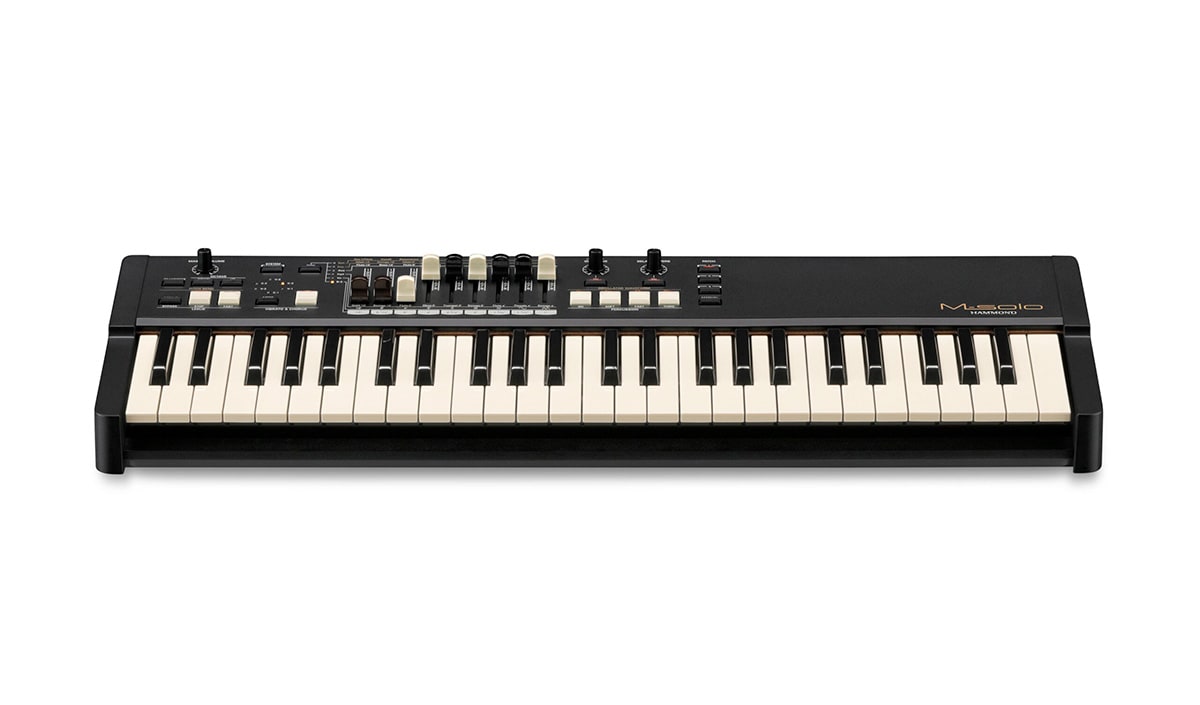

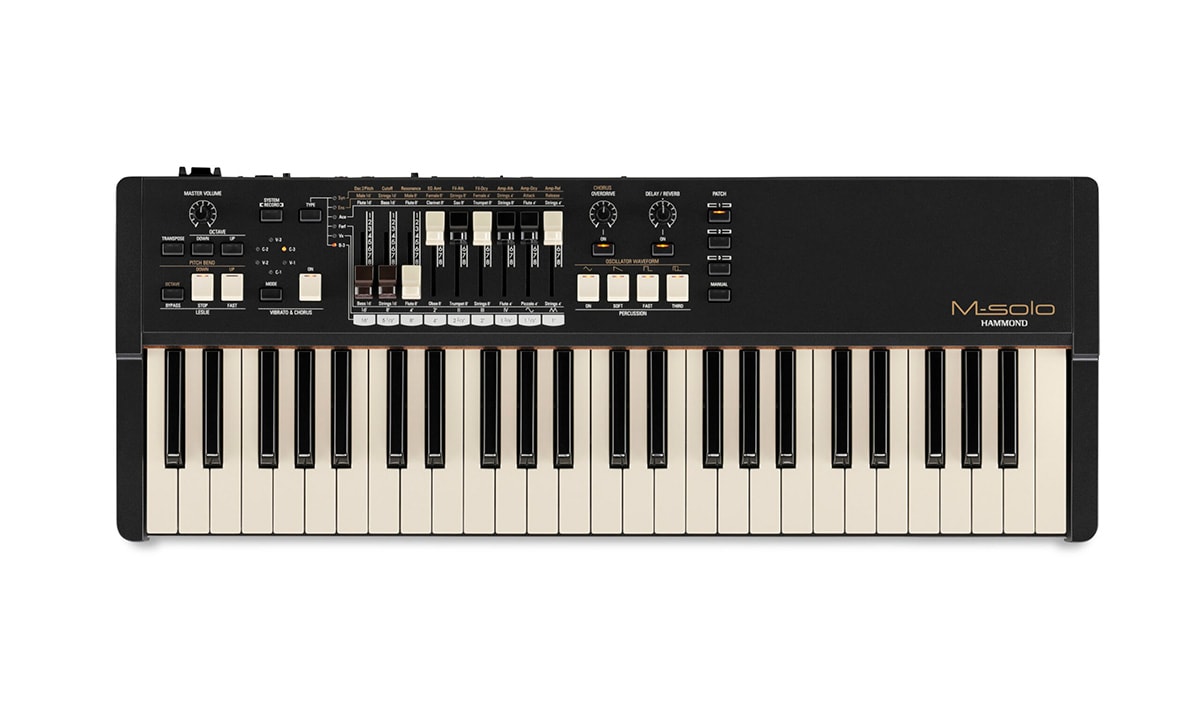

The smallest and lightest 49-key model in Hammond's history, it features a total of six instrument types, including four different organs, a string ensemble, and a polyphonic synthesizer, covering the full range of vintage '70s sounds that stick in today's music scene.

■Keyboard
49 keys, lightweight (velocity supported)
■sound source
[Tone Wheel Organ (B -3)]
MTW2 (Modelled Tone Wheel 2), 61 polyphony
[Transistor Organ (Vx, Farf, Ace)]
Sampling Tone Generator, 96 polyphony
[Strings Ensemble (Ens)]
Sampling Tone Generator, 96 polyphony
Polyphonic Synthesizer (Syn)
Analog Modeling Tone Generator, Simultaneous polyphony 8
■Organ
[Drawbar]
9 columns per pair
[Organ Type]
4(B-3, Vx, Farf, Ace)
[PERCUSSION]
Button (On, Soft, First, Third)
■strings ensemble
[Stop]
7(Male 16 ', Strings 16', Male 8 ', Female 8', Strings 8 ', Female 4', Strings 4 ')
[Envelope]
Attack, Release
■polyphonic synthesizer
[Oscillator]
Waveform (Triangle wave, sawtooth wave, short form wave, pulse wave), Sub-Oscillator
[Filter]
LPF 24dB/oct
[Modulator]
LFO1 (Delay Vibrato & Wah/PWM), EG2 (filters, volume)
■Effects
[Tone Wheel Organ (B -3)]
Leslie, Vibrato & Chorus, Overdrive
[Transistor Organ (Vx, Farf, Ace)]
Leslie, vibrato, overdrive.
[Strings Ensemble (Ens)]
Vibrato, Chorus
Polyphonic Synthesizer (Syn)
Delay Vibrato & Wah/PWM, Chorus
[Master]
Delay/Reverb
■Key Map
Octave, Transpose
■Controller
[Leslie]
Bypass, Stop, Fast
[Pitch Bend]
Octave, Down, Up

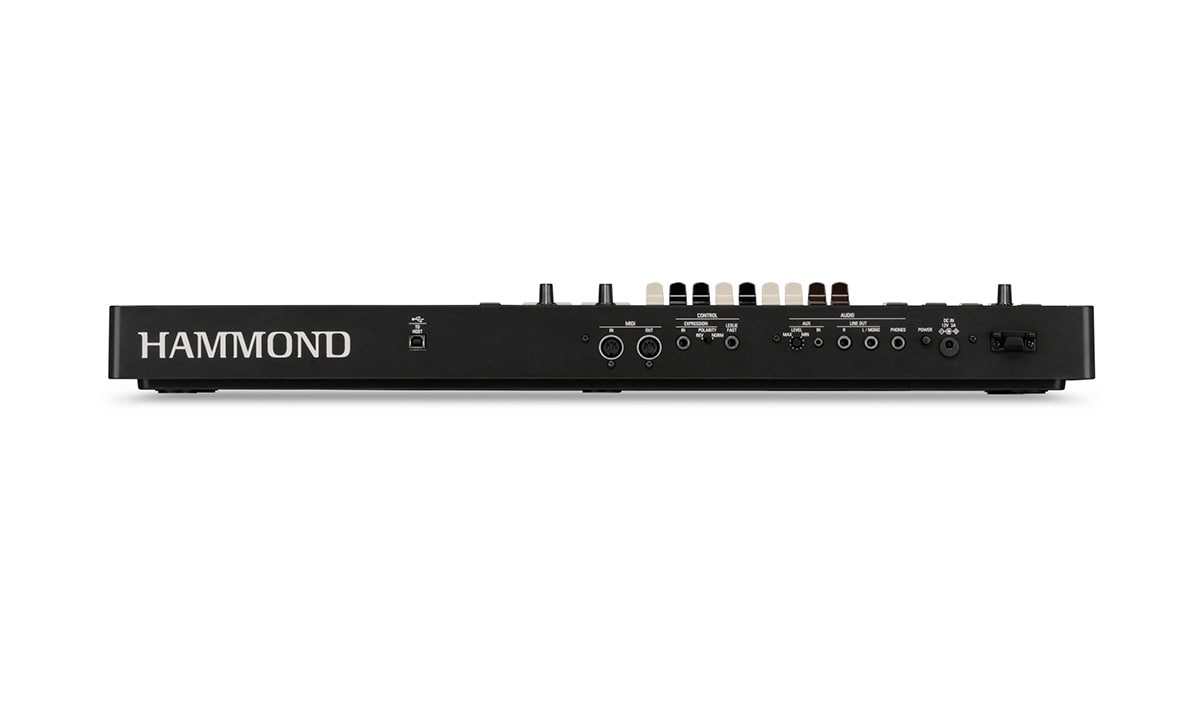

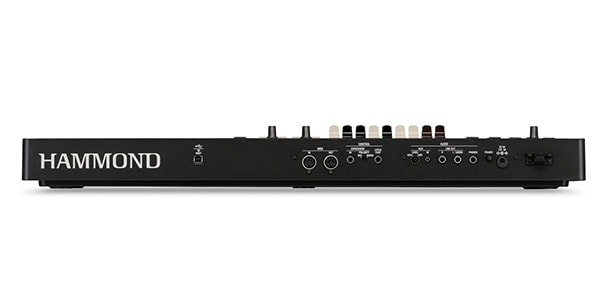

■external terminal
[MIDI] MIDI IN, MIDI OUT
【USB】TO HOST
[AUDIO] LINE OUT (L/R), PHONES, AUX IN(? Force level adjustable)
[CONTROL] EXPRESSION IN (with polarity switch), LESLIE FAST
■Dimension
W731×D274×H85mm
Weight 3.6 kg
■Accessories
AC Adaptor (AD3-1230-2P) x 1, Power Cable x1
