FLAME / Mirror

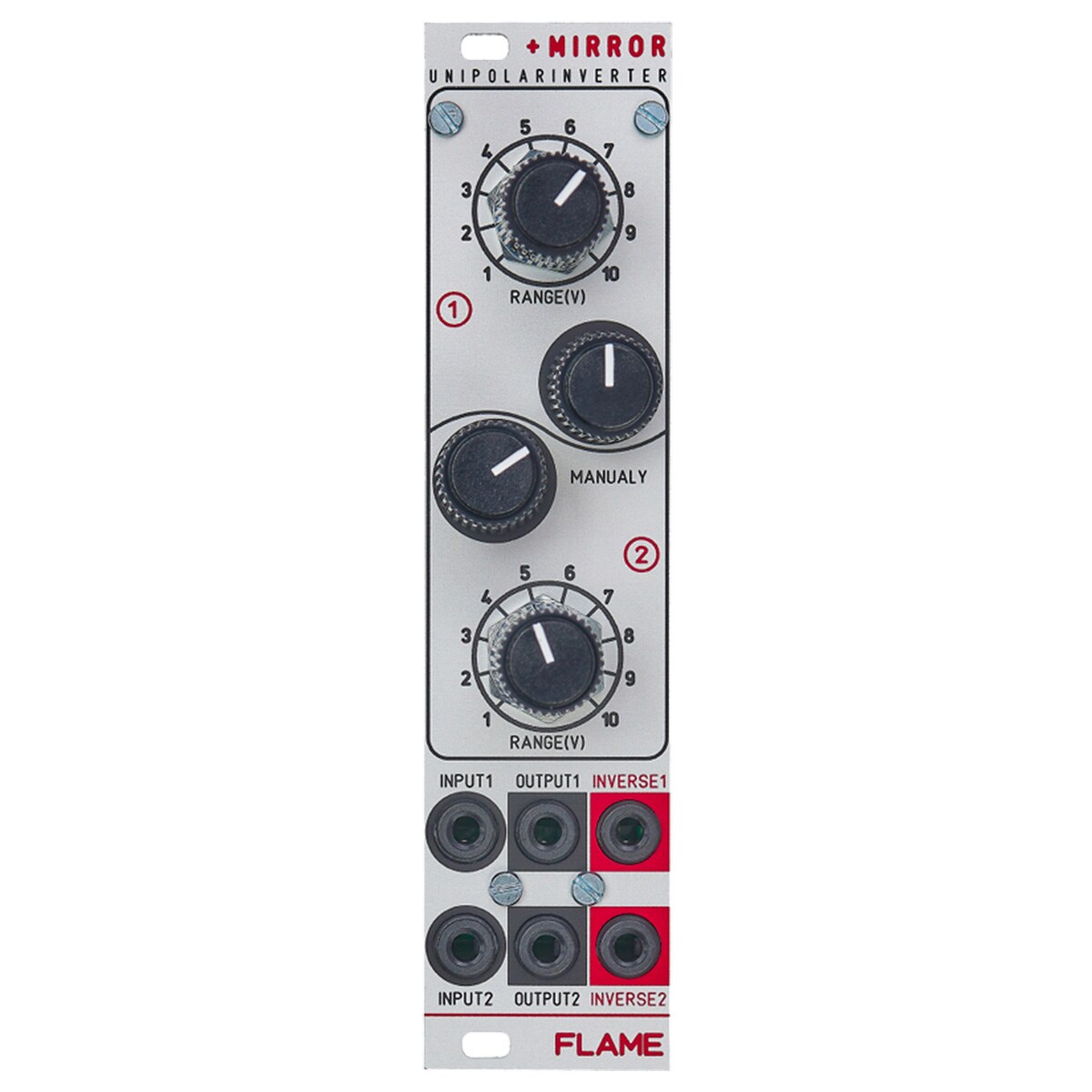

FLAME/MIRROR is a positive voltage-only inverter. It inverts the maximum input positive voltage to 0V.

MIRROR is a positive voltage-only inverter. It inverts the input positive voltage so that the maximum value of the input positive voltage is 0 V. Therefore, the input voltage will not invert into the negative voltage range (Miller axis 0 V). Therefore, the input voltage will not invert in the negative voltage range (mirror axis 0V). set a fixed positive voltage range from 0V and invert in the positive voltage range. There are 10 voltage range settings, adjustable in 1V increments. The central axis of inversion is always at half of the set range. This module cannot invert negative voltages, so the minimum input voltage allowed is limited to 0V.

This module has the same functionality at the top and bottom. Specific uses include inverting within the positive voltage range, inverting the GATE signal (0/+5v to +5v/0v), and generating relative melody lines (connection with a quantizer is recommended).

Width: 6HP
Depth: 40mm
Current consumption:
+12V : 4mA
-12V : 30mA
