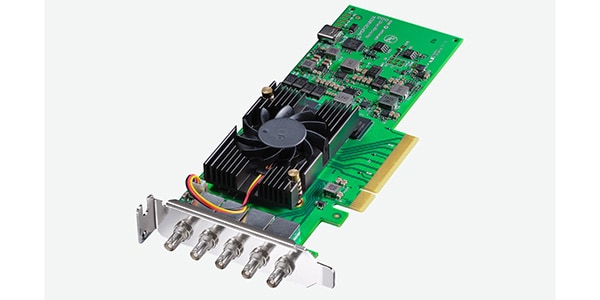

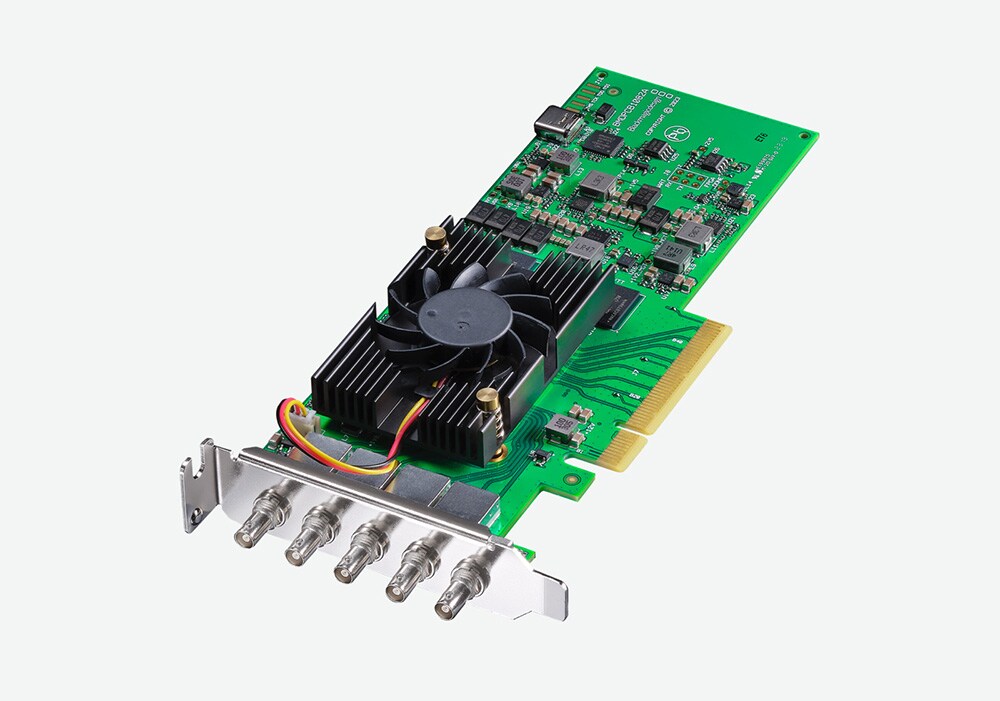

Blackmagic Design / DeckLink 8K Pro Mini

The ultimate low-profile 8K digital cinema-ready? Capture and Playback Card.

■Capture & Playback Card

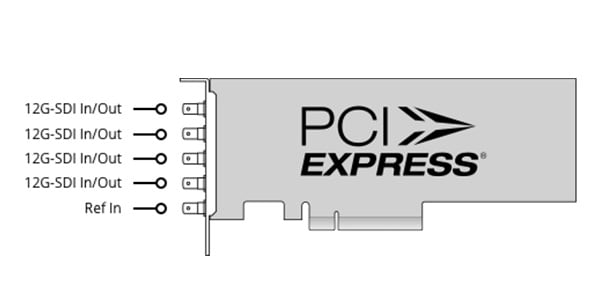

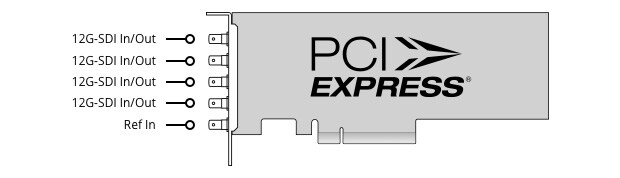

Connections
■SDI video inputs:
4xbi-directional 12G-SDI Micro BNC connectors.
■Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
■SDI video output:
4xbi-directional 12G-SDI Micro BNC connectors.
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
■SDI audio inputs:
16 Channels embedded in SD/HD/2K.
■SDI Audio Input: 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K.
■SDI audio output:
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
■Sync input:
Tri-Sync or Black Burst.
■Computer interface:
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
■Codecs supported:

DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy
Uncompressed 8?bit 4:2:2, Uncompressed 10?bit 4:2:2, Uncompressed 10?bit 4:4:4.
■Software
Included software
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey,
Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows
Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
■SIZE：180(D)mm 120g
