ELATION / KLPROFILEFC/B

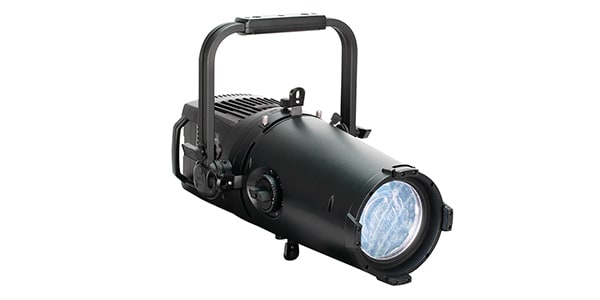

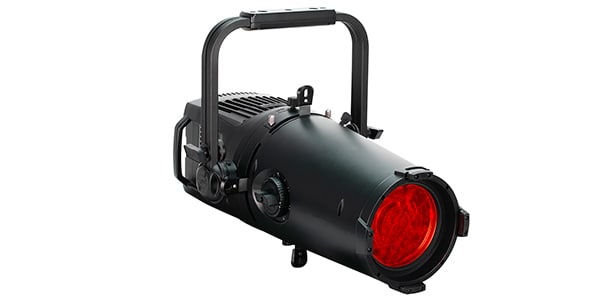

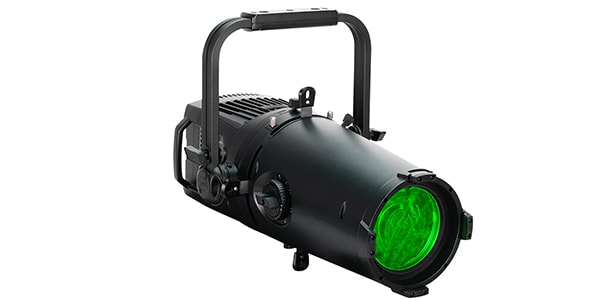

Profile spotlight equipped with ELATION's 305W 6500K RGBMA LED engine.

■ Light source
- 305W 6,500K RGBMA LED engine
- Average LED lifespan 30,000 hours (Note 1)

■ Photometry data
- Total output 10,600 lumens
- CRI 93.5
- Zoom range 6° - 50°
- Beam angle 5.9° - 45.6°
- Field angle 6.6° - 50°

■ Effect
- Manual lock zoom, focus
- 4 manual rotating full blackout framing blades
- Manual barrel rotation
- Integrated manual iris
- Variable 16-bit dimming curve

■ Color
- RGBMA color array
- CMY and RGB emulation modes
- Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual gel swatch book

■ Gobo
- One 16-bit rotatable/indexable replaceable glass gobo

■ Control/Connection
- 8 DMX channel modes (1/5/12/21) CMY (10/17) RGB (10/17)
- LED frequency adjustable
- Supports DMX and RDM protocols
- 4 button touch control panel
- Encoder for standalone operation
- Full color LCD menu display
- 5 pin DMX input/output
- IP65 locking power input/output

■ Size/weight
- Length: 637.6mm
- Length (yoke 0°): 701.0mm
- Width: 390mm
- Height: 345.0mm
- Height (equipment body): 279.0mm
- Height (Yoke 90°): 466.5mm
- Weight: 15.9kg (35.2lbs)
- 7.5 inch front accessory slot

■ Electrical/thermal management
- AC 100V 50/60Hz
- Maximum power consumption: 358W
- Power through capacity: 10A
- Operating temperature range: -10°C to 45°C (14°F to 113°F)
- BTU/hr (±10%) 1124.1

■ Approval/Evaluation
- CE | cETLus | IP20

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.

*Box damaged, outlet special item
