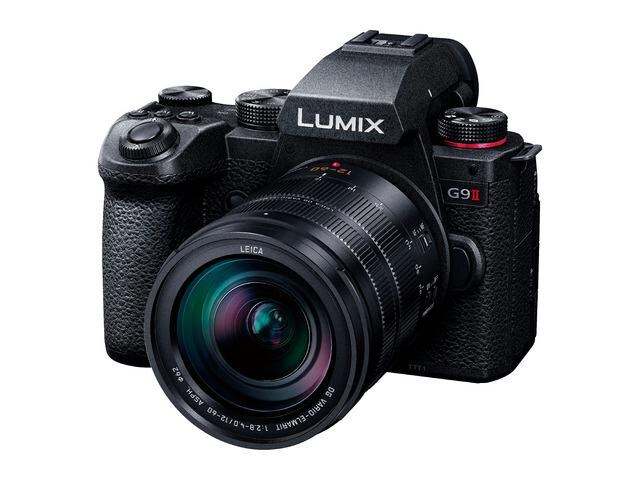

PANASONIC / DCG9M2L

This is the first digital single-lens camera in the LUMIX G series to feature phase-detection AF on the image plane, offering both high descriptive performance and high-speed performance.

■Digital single-lens camera/lens kit
■Camera effective pixels: 25.21 million pixels
■Lens mount: Micro Four Thirds mount
■Image sensor:
4/3 type Live MOS sensor (17.3mmx13.0mm)
Total pixels: 26.52 million pixels, primary color filter
■Dustproof: sensor shift method, manual
■Focus
Focus mode:
AFS/AFC*/MF
*: Supports AFC during zoom (only compatible with Panasonic G lenses and requires FWUP)
AF mode:
Tracking/Full area/Zone (horizontal/vertical)/Zone/1 point + auxiliary/1 point/Pinpoint
*: Automatic recognition can be turned on/off except for pinpoint.
*: When automatic recognition is ON, you can switch between people/animals/cars/motorcycles in the automatic recognition target menu.
・With AF assist light
■EX Teleconv.: TELE CONV./OFF
Maximum magnification:
When selecting image size (M): 1.4x
When selecting image size (S): 2.0x
https://panasonic.jp/dc/p-db/DC-G9M2_spec.html
DC-G9M2 LUMIX G9PROⅡ Digital single-lens camera body

[ISO sensitivity]
■Still image
Normal: AUTO/50*/100 to 25600 (1/3, 1EV step switchable)
*：Extended ISO sensitivity
V-Log: AUTO/125*/500 to 12800 (1/3, 1EV step switchable)
*:Extended minimum ISO125 (-2 steps)
■When video:
(Normal)?60p:AUTO/50*/100-12800
>60p (including S&Q): AUTO/50*/100~3200/4000*~12800*
Base sensitivity ISO100 (1/3, 1EV step switchable), *: Expanded ISO sensitivity
(V-Log)?60p: AUTO/125*～400*/500～12800
Base sensitivity ISO500 (1/3, 1EV step switchable), *: Expanded ISO sensitivity
>60p (including S&Q): AUTO/125*~200*/250~3200/4000*~12800*
Base sensitivity ISO250 (1/3, 1EV step switchable), *: Expanded ISO sensitivity
(HLG)?60p:AUTO/250~12800
>60p (including S&Q): AUTO/250~3200/4000*~12800*
Base sensitivity ISO250 (1/3, 1EV step switchable), *: Expanded ISO sensitivity
■Dual Native ISO: None

[Shutter speed]
■Still image
Mechanical shutter: B (bulb) (maximum approximately 30 minutes), 60 to 1/8,000 seconds
Electronic first curtain: B (bulb) (maximum approximately 30 minutes), 60 to 1/2,000 seconds
Electronic shutter: B (bulb) (maximum approximately 60 seconds), 60 to 1/32,000 seconds
■When video:
1/25*~1/25,000 seconds
*:Creative video mode Video exposure setting: M selection and MF can be set up to 1/8 second

■White balance
WB/AWBc/AWBw/Sunny/Cloudy/Shade/Incandescent/Flash/Set 1/Set 2/Set 3/Set 4/Color Temperature 1/Color Temperature 2/Color Temperature 3/Color Temperature 4
Color temperature specification (2500K-10000K in 100K increments), white balance fine adjustment (2-axis fine adjustment possible for each WB setting)
White balance bracket (3 shots taken in the color [A/B] or [G/Mg] direction around the white balance adjustment setting position)/Color temperature bracket
■Exposure: Program AE (P)/Aperture priority AE (A)/Shutter priority AE (S)/Manual exposure (M)
■Exposure compensation: 1/3EV step ±5EV
■Exposure bracketing: 1/3 or 2/3 or 1EV steps (maximum ±3EV), number of shots: 3/5/7
■Photometric method:
1728-segment metering, multi metering/center-weighted metering/spot metering/highlight-weighted metering

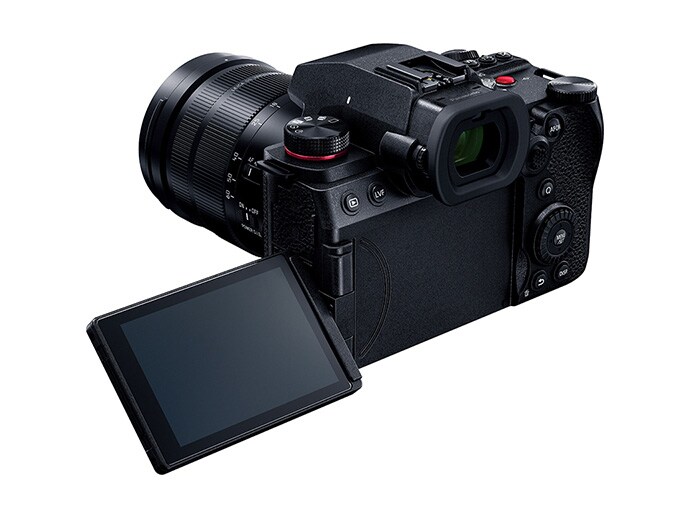

■LCD monitor:
3:2 aspect 3.0 type approximately 1.84 million dots LCD monitor with capacitive touch panel
■Image format:
JPEG (DCF compliant, Exif2.31 compliant), RAW
■Interface:
USB Type-C, SuperSpeed ​​USB 10Gbps (USB 3.2 Gen 2)

[Wireless transmission section]
■Compliant standards
Wi-Fi section:
2.4GHz (STA/AP) IEEE 802.11b/g/n, 5GHz (STA) IEEE 802.11a/n/ac (wireless LAN standard protocol)
Bluetooth section:
Bluetooth v5.0 (Bluetooth Low Energy(BLE))
■Use frequency range (center frequency)
Wi-Fi section
2.4GHz band: 2,412MHz to 2,472MHz (1 to 13ch)
5GHz band:
5,180MHz - 5,320MHz (36/40/44/48/52/56/60/64ch),
5,500MHz～5,720MHz(100/104/108/112/116/120/124/128/132/136/140/144ch)
Bluetooth section
2.4GHz band: 2402MHz to 2480MHz
■Security
Wi-Fi section:
Wi-Fi compliant WPATM/WPA2TM/WPA3TM
■Access method
Wi-Fi part: Infrastructure mode
■Power source: Lithium ion battery
7.2V/2200mAh 16Wh

[Charging time (included battery pack)]
■When charging inside the main unit
When using DMW-BLK22: Approximately 220 minutes (when using the included AC adapter)
When using DMW-BLK22: Approximately 170 minutes (when using the AC adapter included with DMW-BTC15)
■When using the separately sold charger DMW-BTC15
When using DMW-BLK22: Approximately 175 minutes

[Number of photos that can be taken]
■When using SD card
Monitor: Approx. 370 images (when using DMW-BLK22)
LVF: Approximately 370 sheets (when using DMW-BLK22)
■When setting power-saving viewfinder shooting: Approximately 1300 photos* (when using DMW-BLK22)
(LCD/LVF ON, 1 shot/30 seconds shooting, power OFF/10 shots), when H-ES12060 is installed, using Panasonic SDXC memory card
*: When [Power saving viewfinder shooting] is set to [1 second] (according to our measurement conditions based on CIPA standards)
■When using external SSD
Monitor: Approx. 310 images (when using DMW-BLK22)
LVF: Approximately 310 sheets (when using DMW-BLK22)
(LCD/LVF ON, 1 shot/30 seconds shooting, power OFF/10 shots), When H-ES12060 is installed, using Samsung SSD (T7 shield 2TB)

[Size, weight, accessories, etc.]
■SIZE: Approximately 134.3(W)x102.3(H)x90.1(D)mm
■Weight: Approx. 658g (including main unit, battery, and one SD memory card)
*With SHOE COVER, without body cap
■Included software (download compatible)
LUMIX Sync
LUMIX Tether
SILKYPIX Developer Studio SE

[Included lens]
■Lens name:
LEICA DG VARIO-ELMARIT 12-60mm/F2.8-4.0 ASPH./POWER O.I.S
■Lens composition: 14 elements in 12 groups (4 aspherical lenses, 2 ED lenses)
■Mount: Micro Four Thirds standard compliant
■O.I.S: Yes (POWER O.I.S)
■Focal length: f=12-60mm (35mm film camera equivalent: 24-120mm)
■Aperture type: 9-blade circular iris diaphragm
■Open aperture: F2.8~F4.0
■Minimum aperture: F22
■Shortest shooting distance: 0.20m (from the imaging surface)
■Filter diameter: 62mm
■SIZE: Maximum diameter approximately φ68.4mm, total length approximately 86mm (from the lens tip to the mount reference plane)
■Weight: Approximately 320g (excluding front and rear caps and hood)
