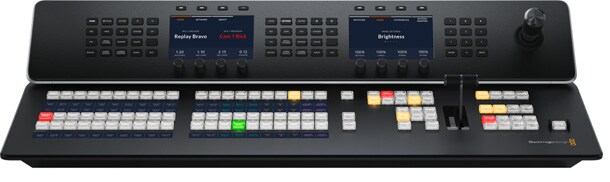

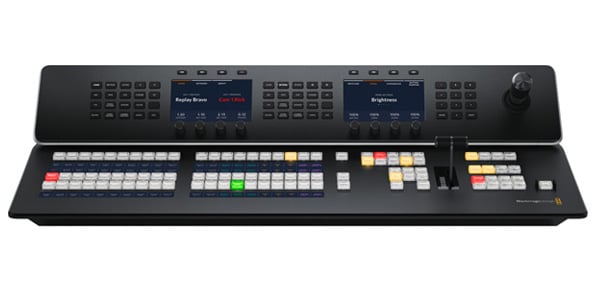

Blackmagic Design / SWPANELADV1ME20

1 M/E switching panel with 20 input buttons.

■1 M/E switching panel

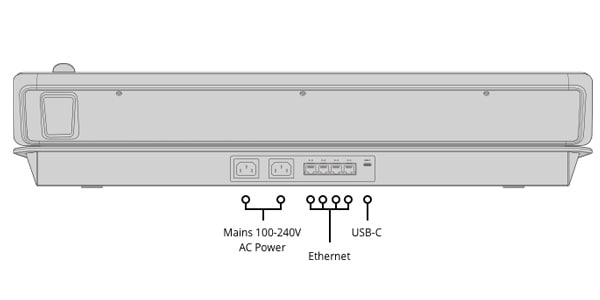

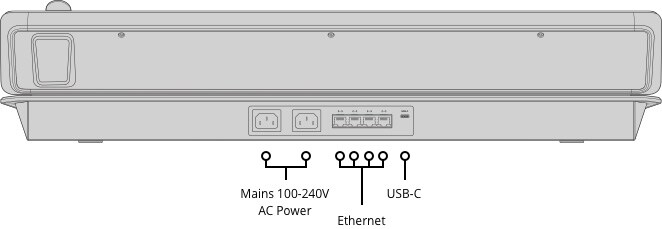

【connection】
■Ethernet:
0/100/1000BASE-Tx4
*Supports loop output for additional control panel/computer
■Software update:
USB-C x1 for firmware update

[Product specifications]
■Number of mix effect rows: 1
■Direct cross points: 20
■Shift cross point: 40
■Crosspoint button type: 3-color LED
■Preview transition: 1
■Transition rate display:
Via main menu
■LCD menu display: 2
■Menu control:
20 buttons x2
■Macro dedicated button: 1x20
■Transport control buttons: 8
■Destination bus: 1
■Source selection bus: 1
■Fader bar: 1
■3-axis joystick: 1
■Numeric keypad: 1

【software】
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later
Windows 10, 11.

[Power conditions]
■Input voltage: Built-in 100-240V AC x2
■Redundant power supply: Supported
■Power consumption: 75W

[Size, weight, included items, etc.]
■SIZE: 721(W)x158(including H lever switch part)x317(D)mm
■Weight: 8.7kg
■Included items:
ATEM 1 M/E Advanced Panel 20
Welcome wallet (with QR code for software download)
■JAN code: 9338716008593

*The warranty period for this product is one year of the manufacturer's warranty.
