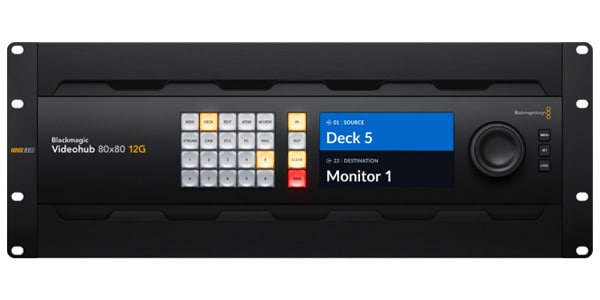

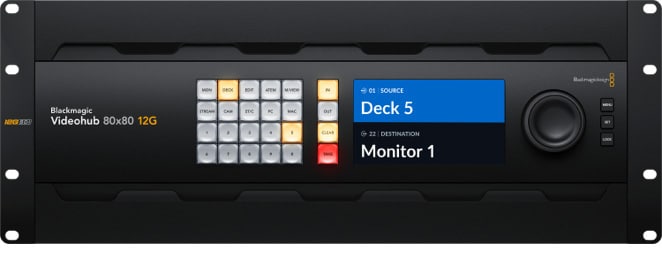

Blackmagic Design / VHUBSMAS12G8080

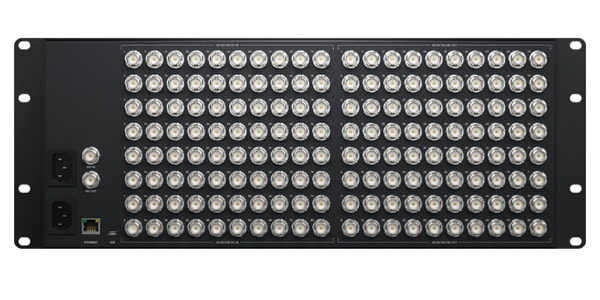

An advanced video router with zero latency. The 80 12G-SDI inputs each have an LED on each BNC to indicate the status of the SDI signal.

■Video router

【connection】
■SDI video input: 80
■SDI video output: 80
■SDI rate:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
■Video input resynchronization: Not supported
■SDI reclocking:
On all SDI outputs
■Reference input:
Tri-Sync or Black Burst
■Reference output:
Reference terminating loop output.
■Ethernet:
Supports 10/100/1000 BASE?T.
■Computer interface: USB-C

[Size, weight, included items, etc.]
■SIZE: 482(W)x177(H)x238(D)mm
■Weight: 10.9 (main body only)
■Included items: 9338716008616
Blackmagic Videohub 80x80 12G
Welcome wallet (with QR code for software download)
■JAN code:
*The warranty period for this product is 1 year manufacturer's warranty on the front panel.
