Blackmagic Design / CINECAM60KLFL

This is a studio camera specialized for live production. Although compact, it has the same functions as a large studio camera in a small body. The next generation handheld 6K digital film camera with high resolution 6048 x 4032 full frame.

digital camera

[Camera functions]
■Effective sensor size
36mmx24mm (full frame)

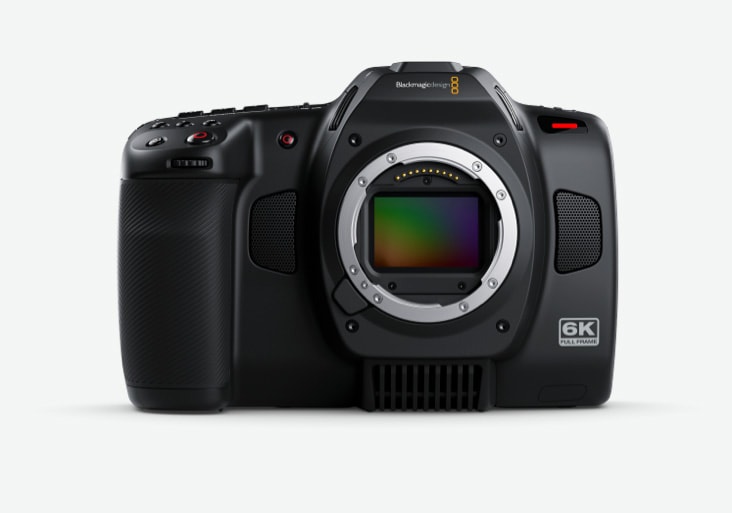

■Lens mount:
active L mount
■Lens control:
Iris and focus (when using compatible lenses)
■Dynamic range: 13 stops
■Dual native ISO: 400 and 3200
■Photography resolution:
6048x4032 (Open Gate 3:2) up to 36fps,
4838x4032 (Anamorphic 6:5) up to 36fps,
6048x3200 (6K DCI 17:9) up to 48fps,
6048x2520 (6K 2.4:1) up to 60fps,
4096x3072 (Super 35 4:3) up to 50fps,
4096x2160 (4K DCI 17:9) up to 60fps,
2112x1184 (Super 16 16:9) up to 100fps,
1920x1080 (1080 HD 16:9) up to 120fps,
■Frame rate:
Maximum sensor frame rate depends on selected resolution and codec
Supports project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps
Up to 60fps at 6K 2.4:1 and 4K DCI 17:9
Super 16 16:9 up to 100fps
Off-speed frame rate of 120fps in 1080HD
■Focus:
Autofocus possible with compatible lenses
■Iris control:
Manual iris adjustment on electronically controllable lenses with iris wheel and touchscreen slider
Automatic iris setting for compatible lenses with iris button

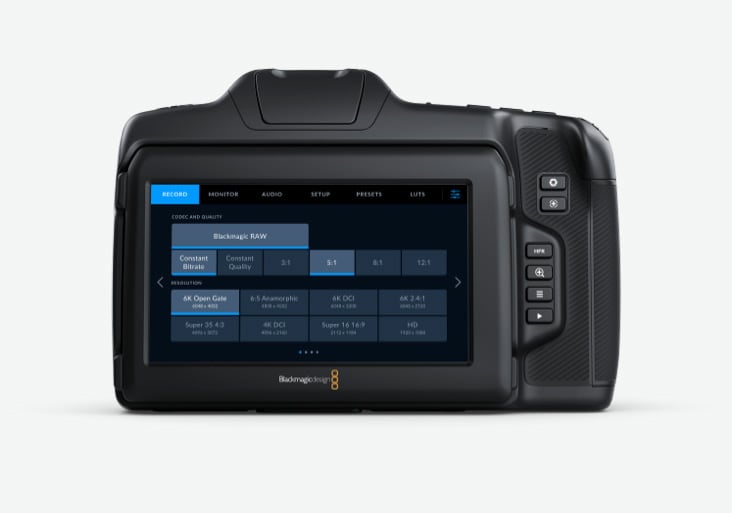

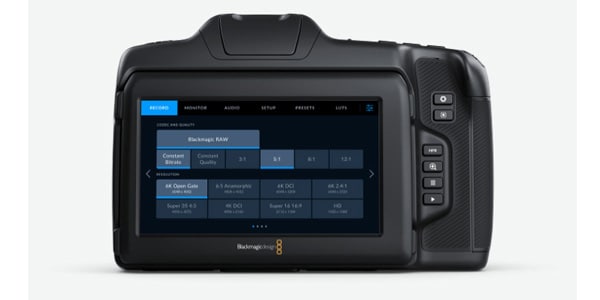

■Screen size:
5” 1920x1080
■Screen brightness: 1500nits
■Screen type:
capacitive lcd touch screen
■Metadata support:
Automatically add lens data from L-mount electronic lenses
Automatically record camera settings and slate data (project, scene number, takes, notes, etc.)
3D LUTs can also be embedded into Blackmagic RAW file metadata
■Control
5 inch screen touch screen menu
Power switch x1, record button x1, still button x1
Pushable scroll wheel x1 on hand grip
ISO button x1, white balance x1, shutter button x1
3x software configurable Fn buttons
Focus button x1, Iris button x1, High frame rate (HFR) button x1
Zoom button x1, menu button x1, play button x1
■Time code clock:
High precision timecode clock
Less than 1 frame error every 8 hours
■Time code clock:
High precision timecode clock. Less than 1 frame error every 8 hours

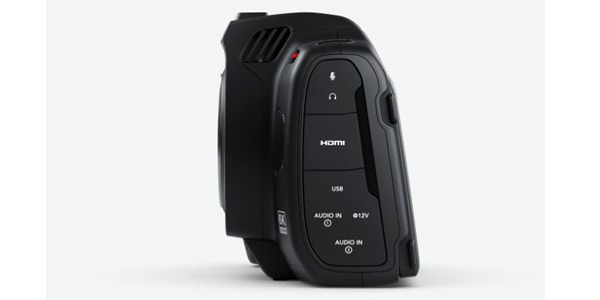

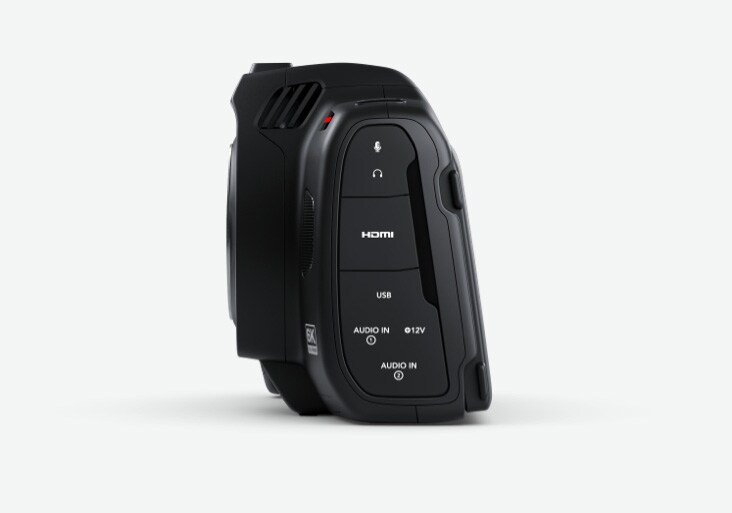

【connection】
■Video input total: Not supported
■Total video output:
HDMI (up to 1080p60) x1
■Analog audio input:
2x mini XLR analog (switchable with mic with phantom power and line up to +14dBu)
3.5mm stereo input x1,
All audio inputs can be used for timecode input
■Analog audio output:
3.5mm headphone jack x1
■Computer interface:
USB Type C (for recording to external drive, PTP camera control, software updates)

【audio】
■Media:
CFexpress Type B card slot x1
1 x USB-C 3.1 Gen 1 expansion port (for Blackmagic RAW and H.264 proxy recording to external media)
Media format
Can be formatted to ExFAT (Windows/Mac) or HFS+ (Mac)

[Size, weight, included items, etc.]
■SIZE：SIZE：180(W)x122(H)x94(D)mm
■Weight: 1135g
■Included items
Blackmagic Cinema Camera 6K
Dust-proof lens turret cap
camera strap
30W power supply (fixed connector, international adapter)
NP-F570 battery
USB charger for NP-F series batteries
Welcome booklet
DaVinci Resolve Studio activation key
■JAN code: 9338716008586
*The warranty period for this product is one year of the manufacturer's warranty.
*Black Friday 2023 purchase benefits are not included.
