SHURE / SM7BMVX2UHMX020

Variations

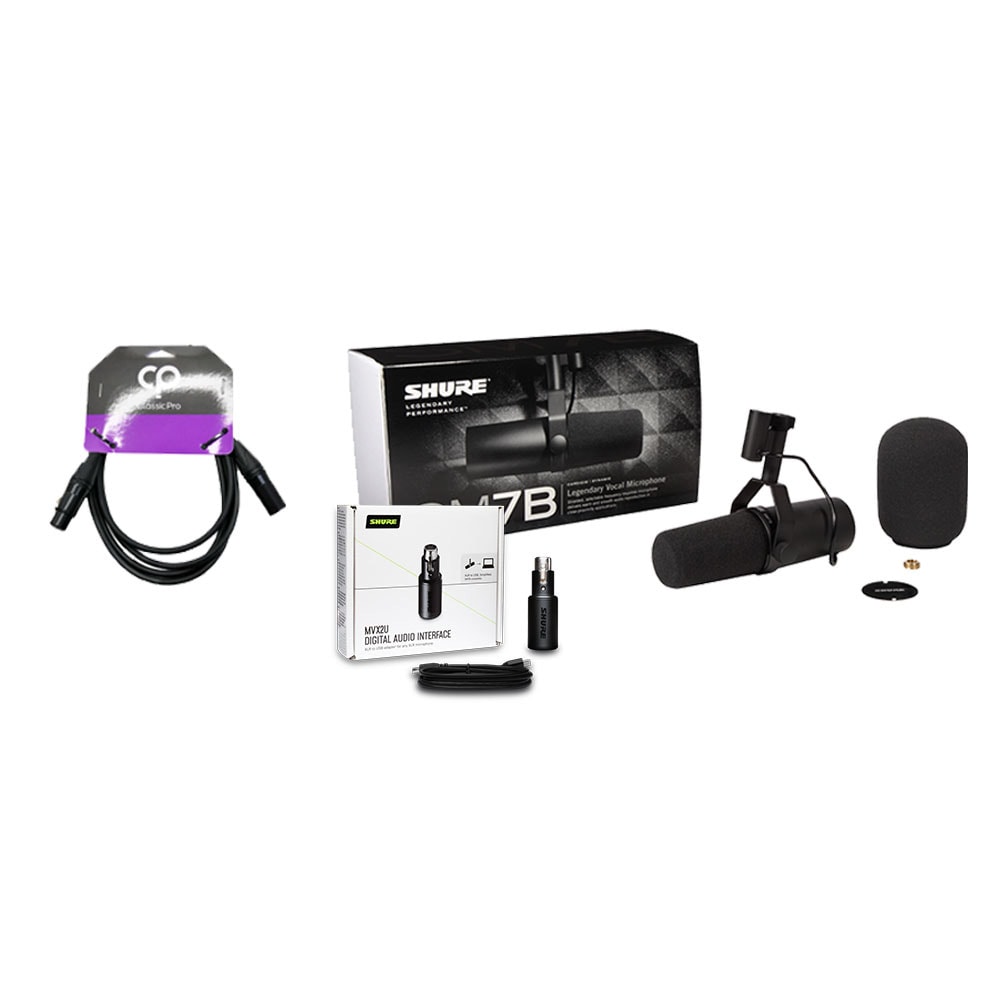

This is a special set consisting of the dynamic microphone ""SM7B"", which is ideal for streaming and recording, the compact XLR-USB audio interface ""MVX2U"", and the high-end microphone cable ""HMX020"".

～SM7B～
■Dynamic microphone
■Ideal for vocals and narration microphones
■Unidirectionality
■Frequency characteristics: 50Hz to 20kHz
■Impedance: 150Ω
■Open circuit sensitivity: -59dB re 1V/Pa
■Connector: XLR3 pin, male
■Dimensions/Weight: Maximum width 96 x height 149 x depth 190mm, 765g
■Accessories: Switch cover plate, proximity windscreen
*Please purchase an optional conversion adapter that is compatible with 3/8 inch and other screw sizes.

～MVX2U～
■Input: XLR
■Input impedance: 5.8kΩ
■Bit depth: 16 bit/24 bit
■Sampling rate: 48kHz
■Frequency characteristics: 20Hz - 20,000Hz
■Adjustable gain range: 0 to +60dB
■Maximum input level: 7dBV
■Power supply: Powered by USB-C
■Phantom power: +48VDC
■Digital noise floor (20 Hz ? 20 kHz, A weight): -117dBFS
■LED indicator
- Green = Ready
- Amber = Error
- (Tricolor color) Red = Mute
■Exterior: All metal
■Mass: 100 g (3.5 Oz.)
■Dimensions: Height 44 x Width 140 x Depth 158mm
■Headphone output: 3.5 mm (1/8 inch) 20 mW @ 32Ω

～HMX020～
■Microphone cable
■2m
■6NOCC cable
■XLR-XLR
■Cable outer diameter: approx. 6.2mm
