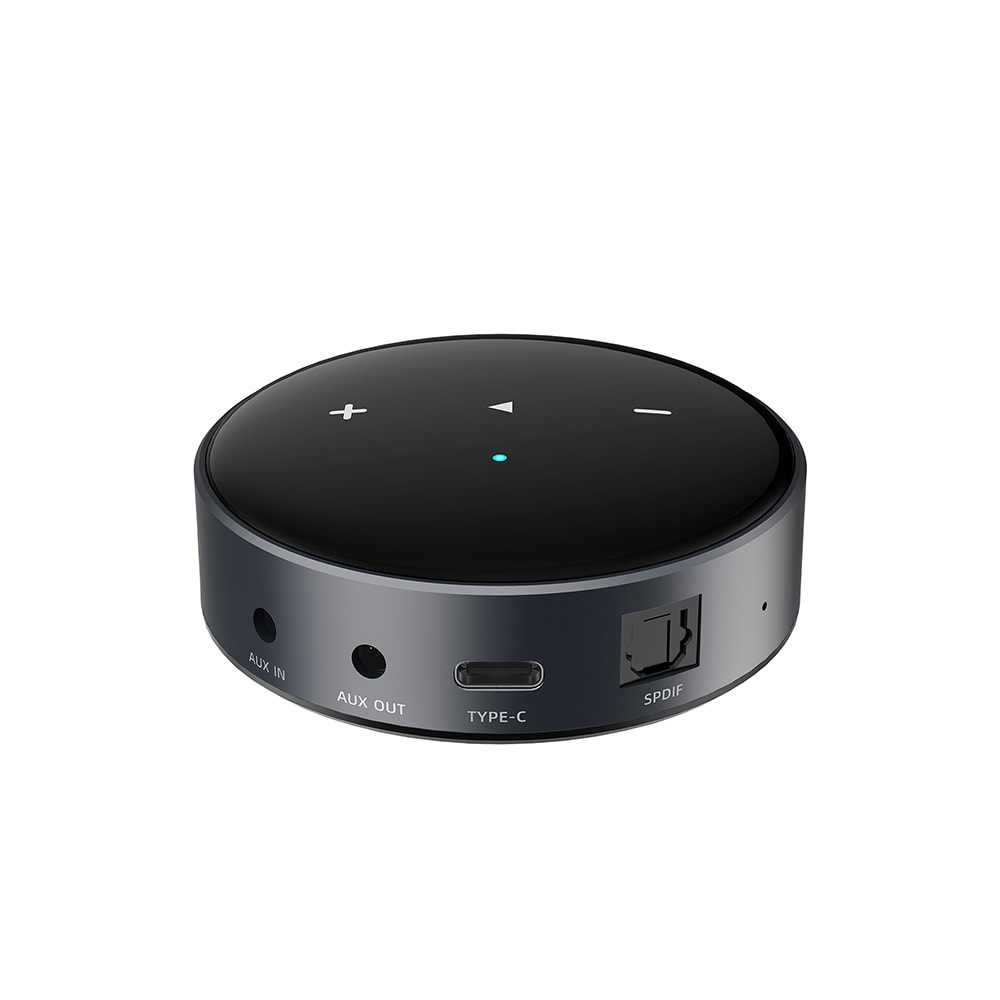

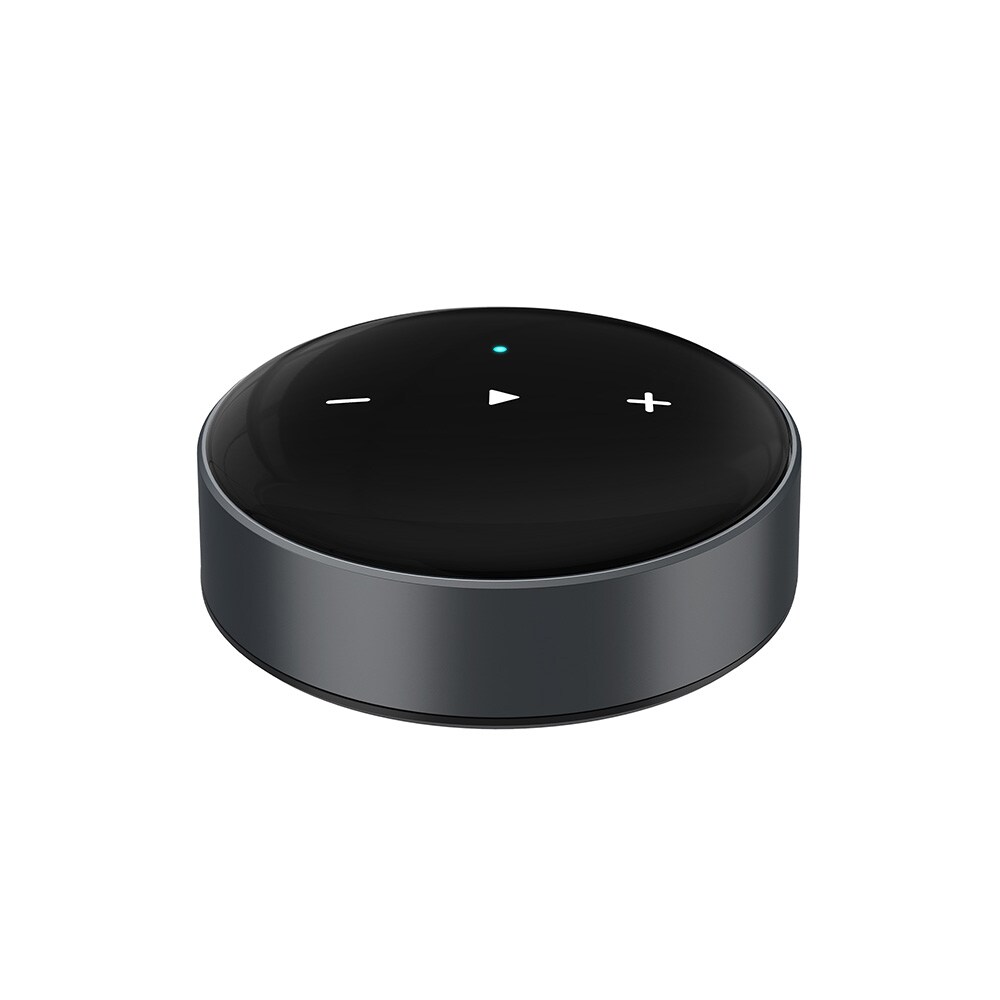

WiiM / WIIMMINI

A compact audio streamer with features such as AirPlay2, Spotify Connect, TIDAL Connect, lossless audio, and wireless multi-room audio connectivity. You can play your favorite music using the WiiMHome app or Alexa/Siri voice functions.

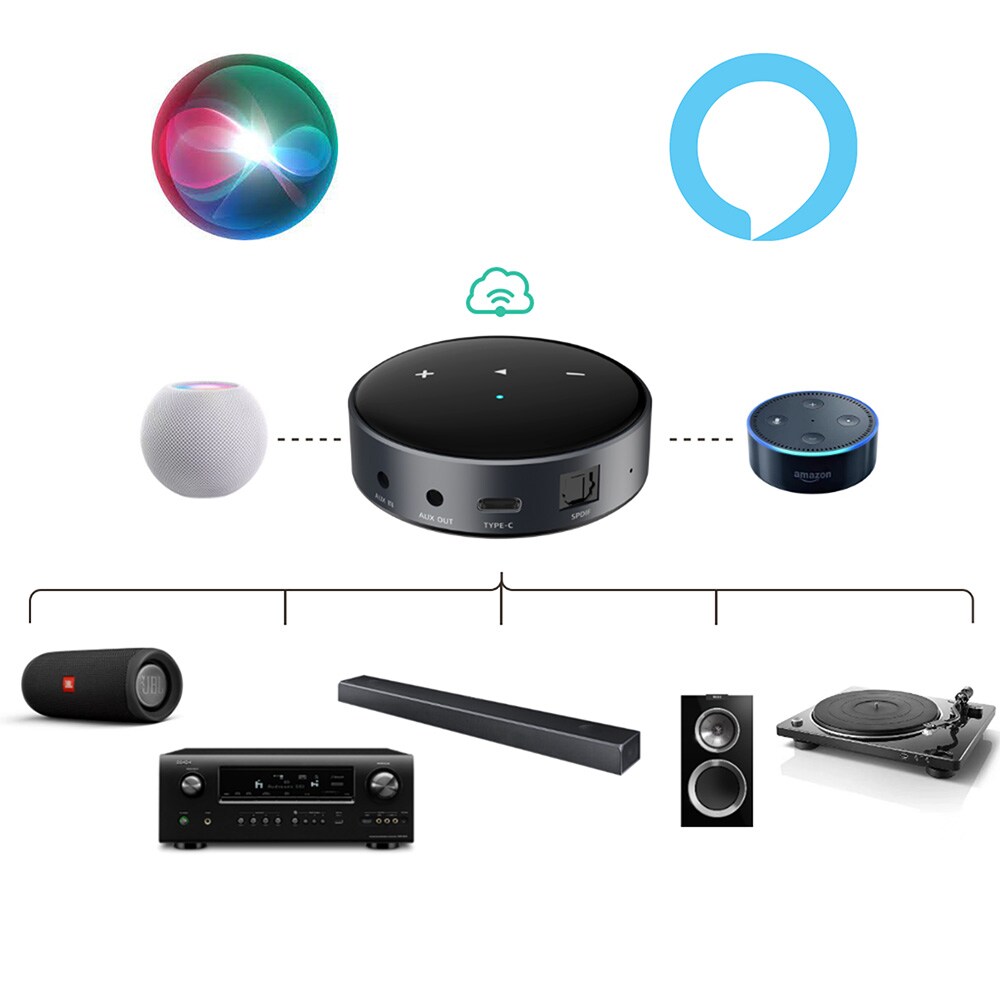

■Smartly control all audio equipment
WiiMMini is a small music streamer with AirPlay2, DLNA, Spotify Connect, TIDAL Connect, streaming applications, Alexa, and multi-room audio capabilities.

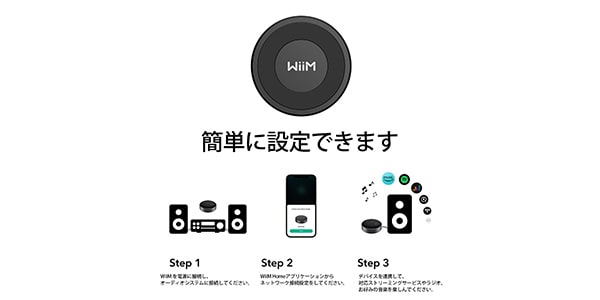

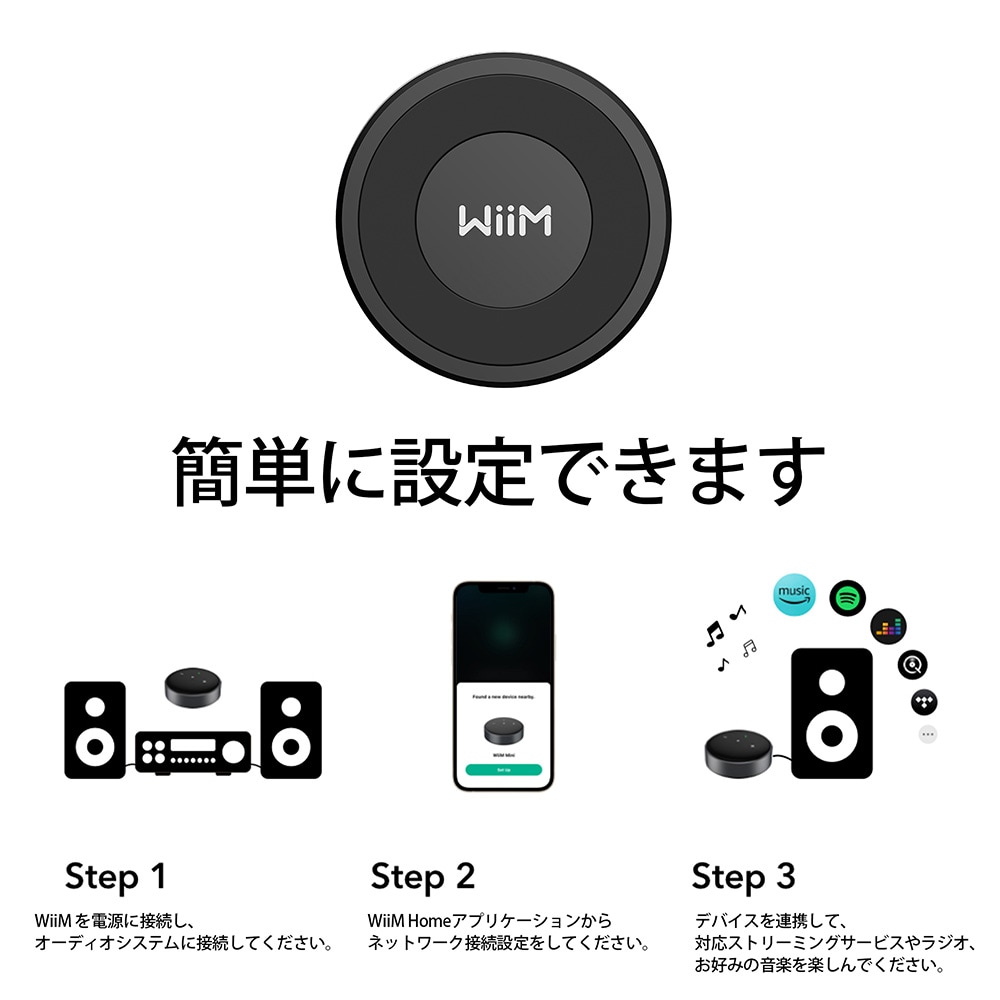

■Simple setup
Setting up the WiiM is completed by simply connecting it to the power source, audio system, and speaker system, downloading the dedicated application ""WiiMHome,"" and following the instructions.

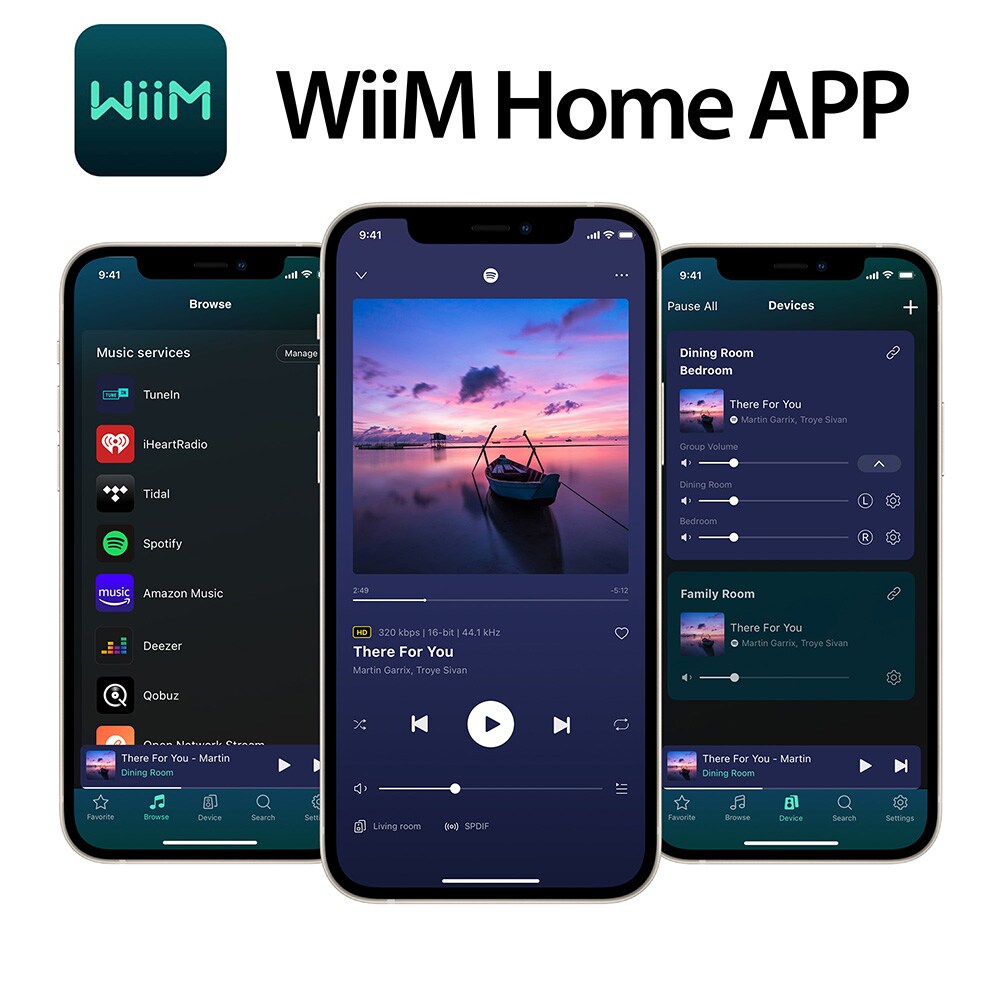

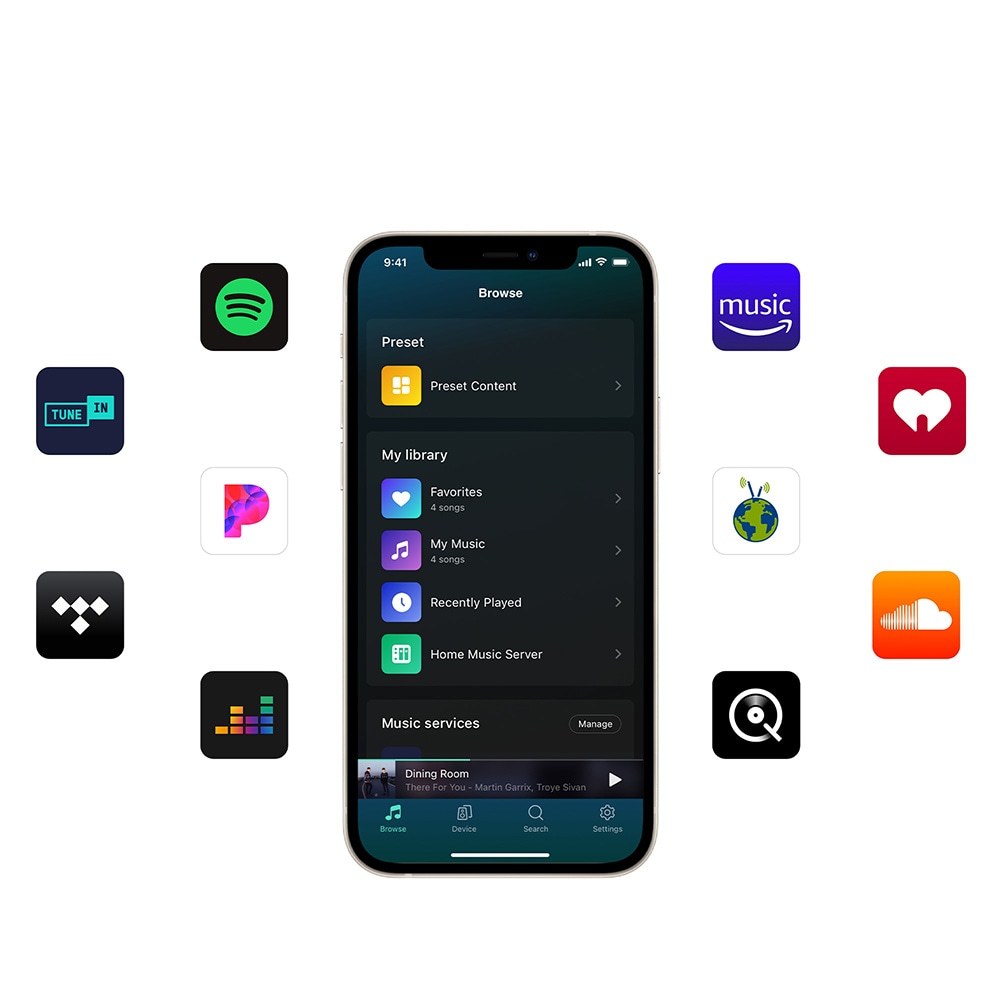

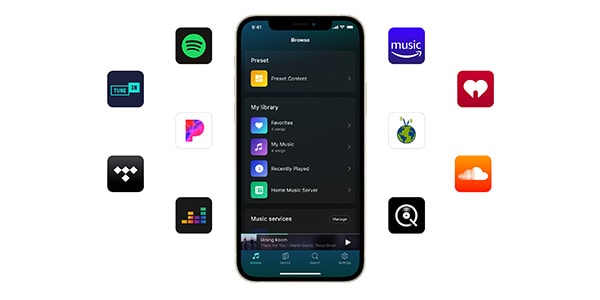

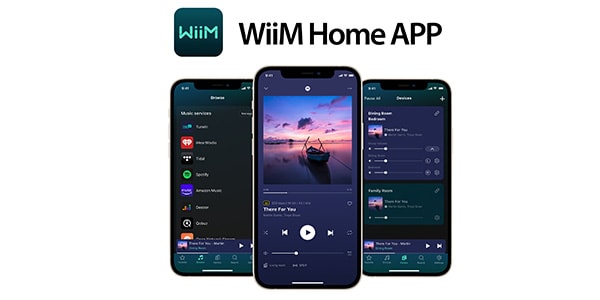

■Manage all functions at once with WiiMHome application
・It is possible to control sound sources, devices, and streaming applications all at once using the WiiMHome app. With the WiiMHome app, you can access and play your favorite services and sound sources without having to go through the trouble of starting a music playback or streaming app.

■192kHz / 24bit lossless streaming compatible
・Stream up to 192kHz/24-bit music with optical digital and analog output. Supports 192 kHz / 24 bit bitrate for compatible streaming services or songs in your own library. TIDAL Master supports up to 96kHz/24bit with TIDAL Connect's MQA core decoder.

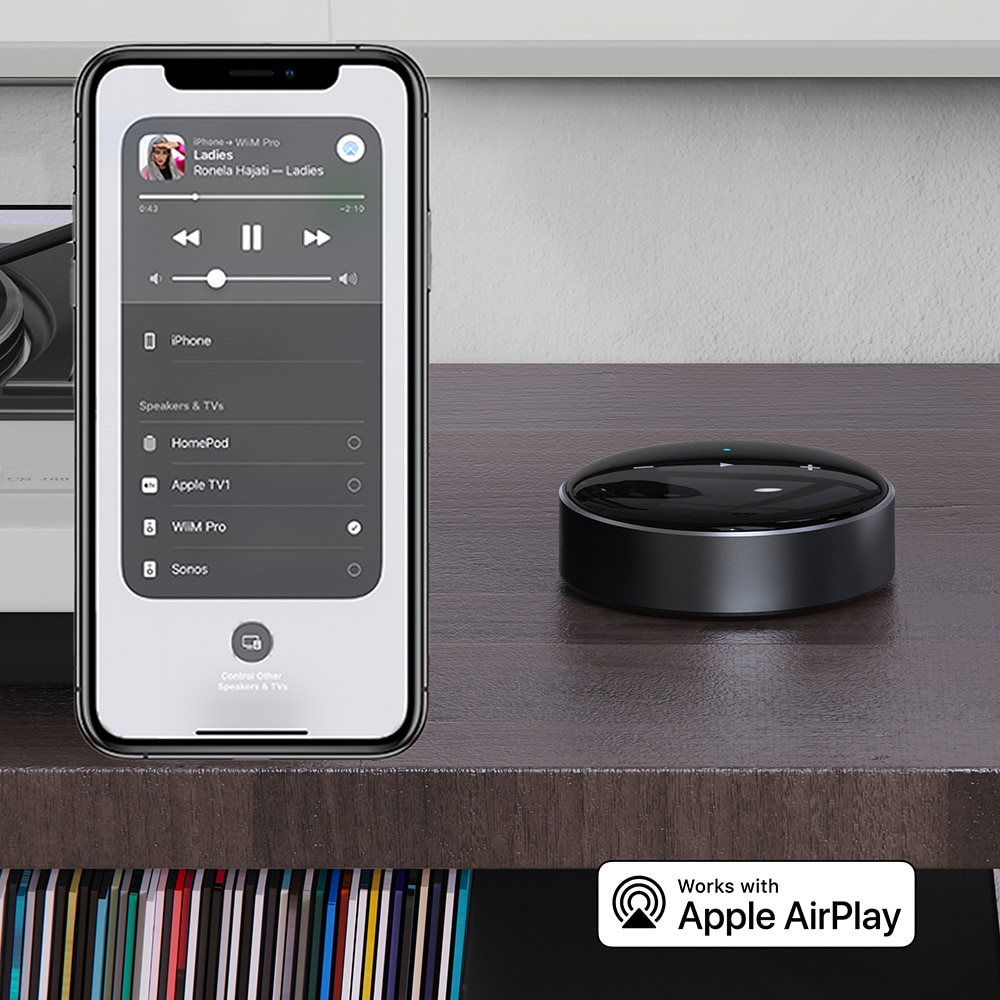

■Airplay2 receiver compatible
・Speakers and audio systems connected to WiiMMini will be transformed into audio devices that are compatible with AirPlay2 receivers. You can use the AirPlay function from your iPhone/iPad/Mac device to stream your favorite music from compatible applications by specifying WiiMMini as the output destination, or stream TV audio from Apple TV by selecting WiiMMini as an AirPlay2 compatible device.
*For AirPlay receiver only, does not support AirPlay2 transmission function.

■Equipped with collaboration function with Alexa and Siri
- By setting WiiMMini as your preferred speaker in the Alexa app, you can have Alexa control WiiMMini to play music, listen to news, or listen to your favorite podcasts. Connect your WiiMMini by creating canned actions in the Alexa app or by having Alexa cast Amazon Music Ultra HD directly from the Amazon Music app to your WiiMMini.

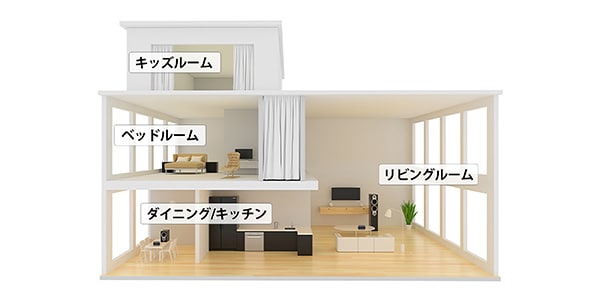

■Build multi-room audio with a high degree of freedom and versatility
-By introducing multiple WiiMs under your home network, you can easily create a multi-room audio system using your existing audio system or speaker system using WiiM's unique multi-room function. The input system is WiFi (network/streaming) and 3.5mm AUX-IN, and the output system is Bluetooth transmission, 3.5mm AUX-OUT, and optical digital (square type).

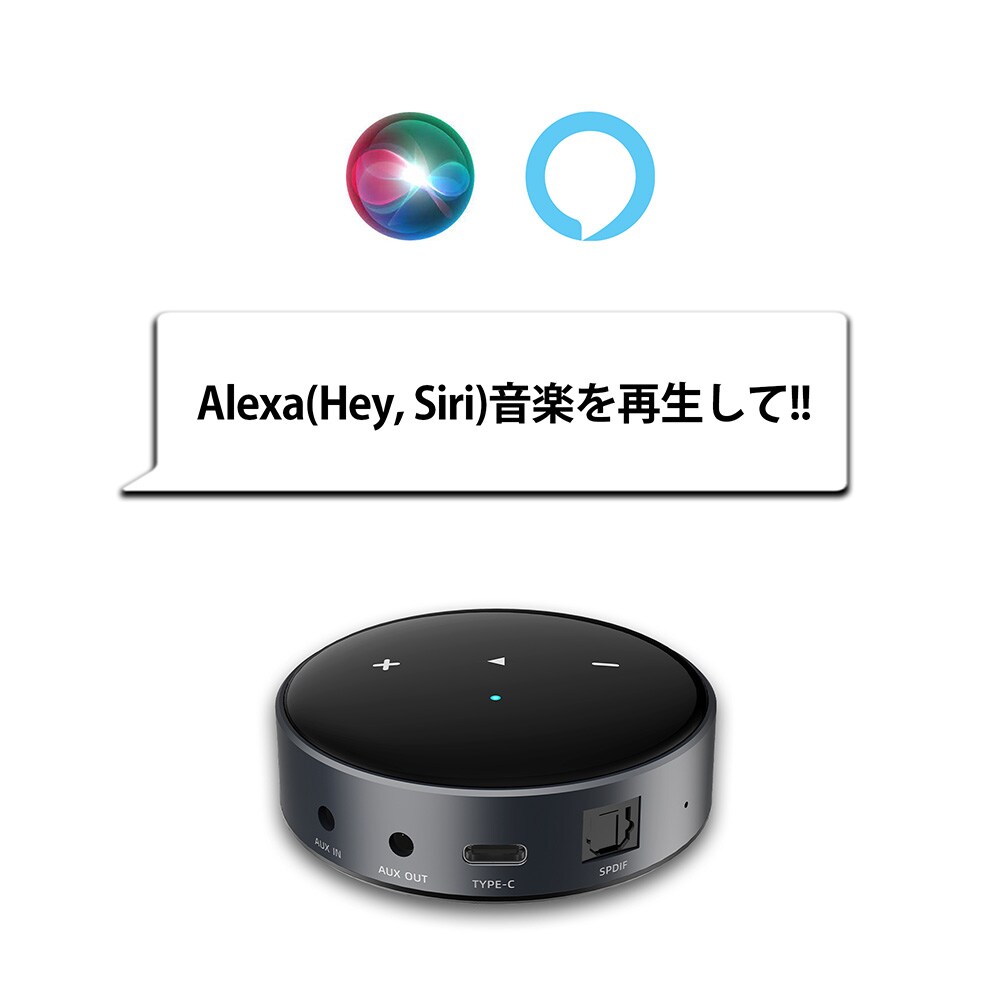

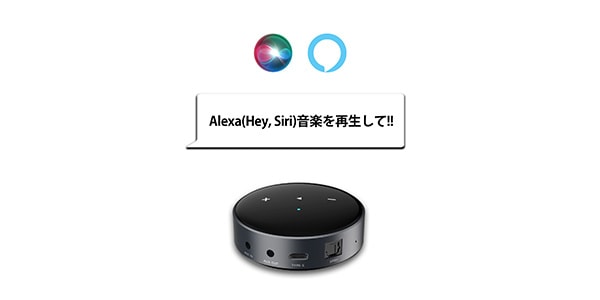

■Supports voice assistant function
WiiMMini supports operation with Alexa, Siri, and Google Voice using the voice assistants of HomePod, Amazon Echo, and Google Home devices.
When using voice control, settings in various applications are required.

■Compatible with Spotify Connect and TIDAL Connect
・WiiMMini supports Spotify Connect and TIDAL Connect. It is possible to manage WiiMMini as an output device and perform streaming playback from the Spotify/TIDAL application.
・Spotify: Free/Premium compatible
・TIDAL: Compatible with HiFi / Master Quality

■Equipped with music alarm and sleep timer functions
・You can set alarm and sleep timer sounds from songs registered as presets, compatible applications and input sources from WiiMHome playback screen options.

■Equipped with 10 band graphic equalizer
- Equipped with a 10-band graphic equalizer with 24 preset EQs.

■Compatible with gapless playback
・WiiM supports gapless playback function, which is essential for a comfortable listening experience.

【accessories】
User guide x 1
USB Type-C cable x 1
3.5mm to RCA cable x 1
3.5mm to 3.5mm cable x 1
Optical digital cable x 1

[Product specifications]
・Size: 69×69×24mm
・Weight: 40g
・Wi-Fi: IEEE 802.11 a/b/g/n/ac dual band Wi-Fi (2.4G/5G)
・Bluetooth:Ver5.0
・Power input: USB Type-C

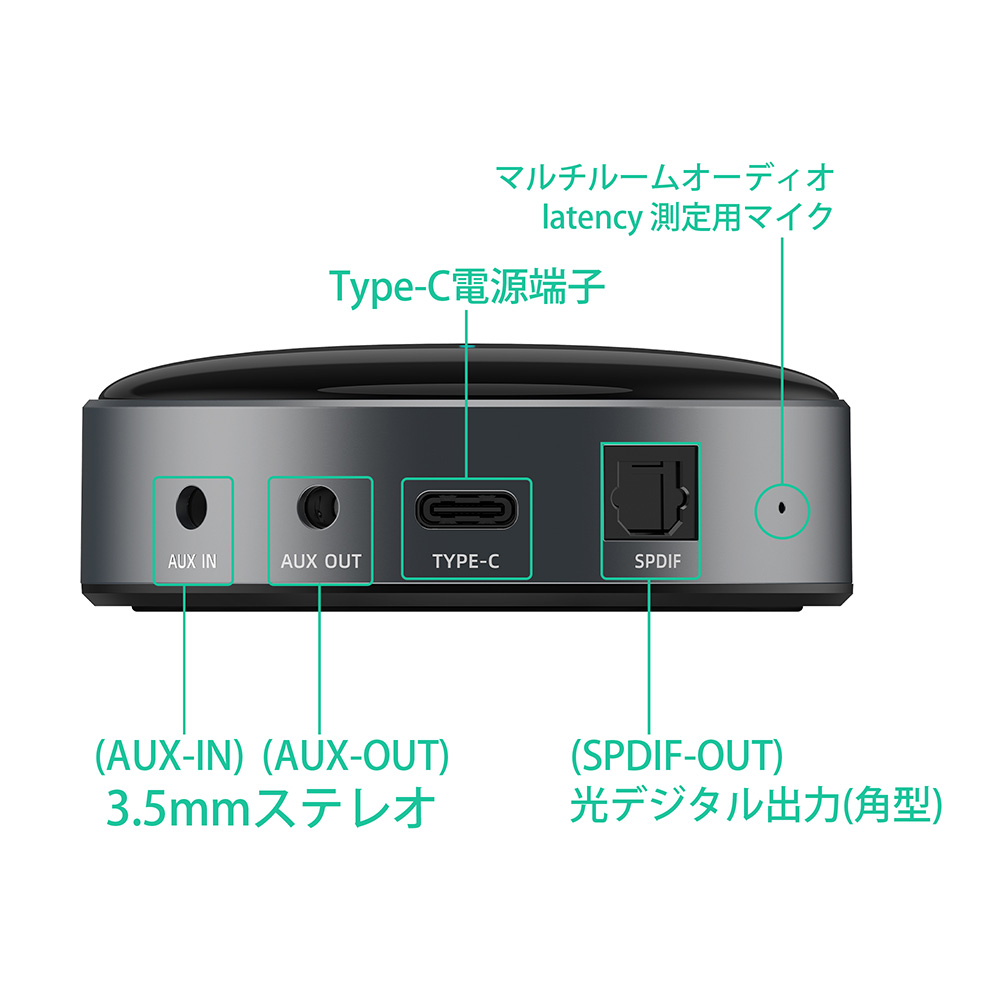

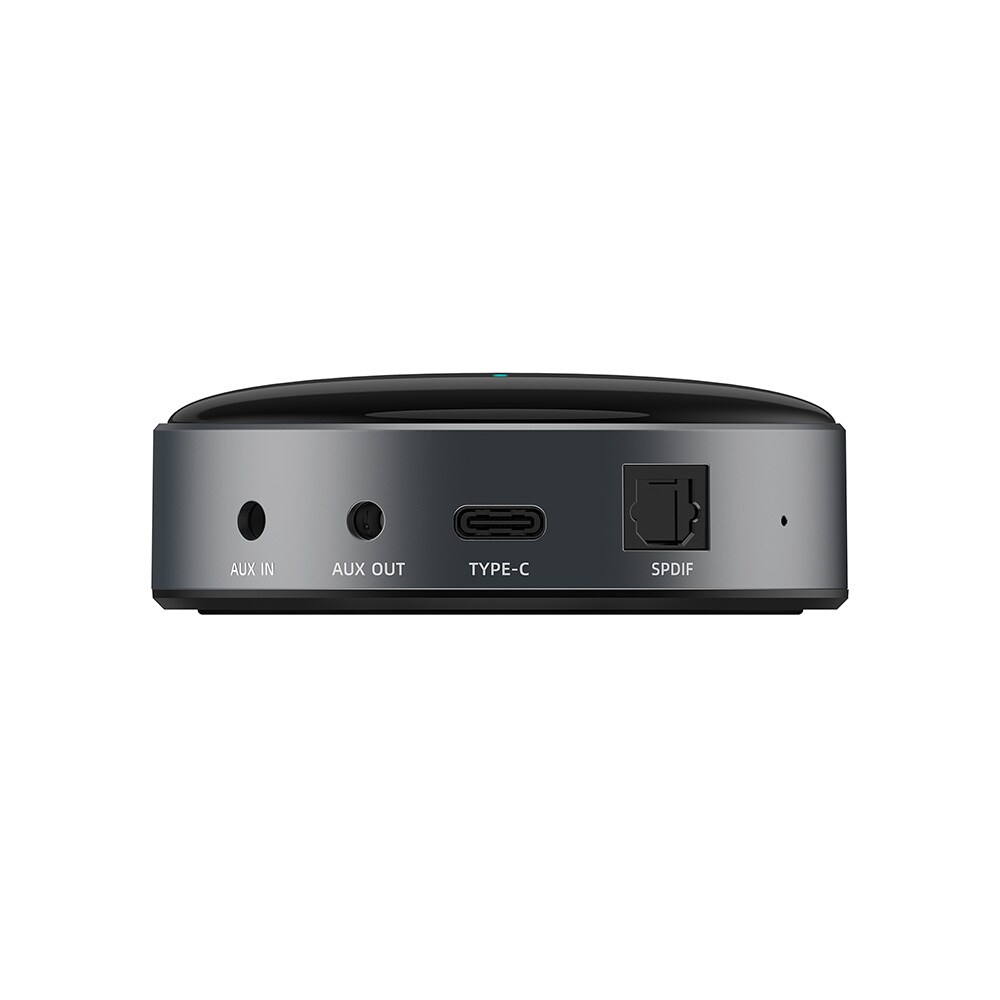

・Audio output: 3.5mm AUX-OUT / Optical digital (square type)
・Audio input: 3.5mm AUX-IN
・SNR: 102 dB
・THD+N (LINE-OUT): 0.005%
・Input sampling rate: up to 192kHz/24bit
・Output sampling rate: up to 192kHz/24bit (bit perfect (depends on source)
・Supported formats: MP3 / AAC / ALAC / APE / FLAC / WAV / WMA / OGG
・Network function: AirPlay2 / DLNA / Spotify Connect / TIDAL Connect / Alexa Cast
・Main streaming sources: Spotify / Amazon Music / Deezer / TuneIn / TIDAL / Qobuz / iHeartRadio / Napster / Sound Cloud / VTuner / Calm Radio, etc.
・Control device: iOS smartphone/tablet / Android smartphone/tablet / PC / Alexa speaker / HomePodetc

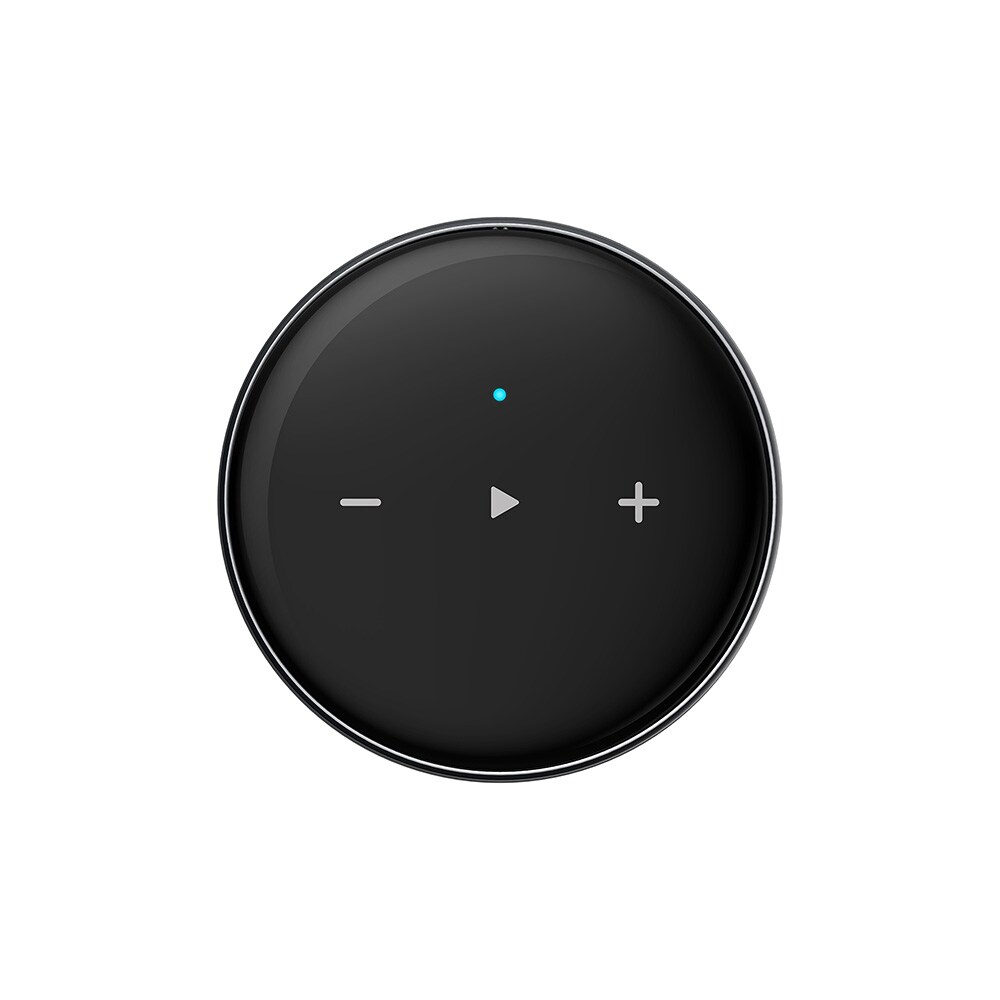

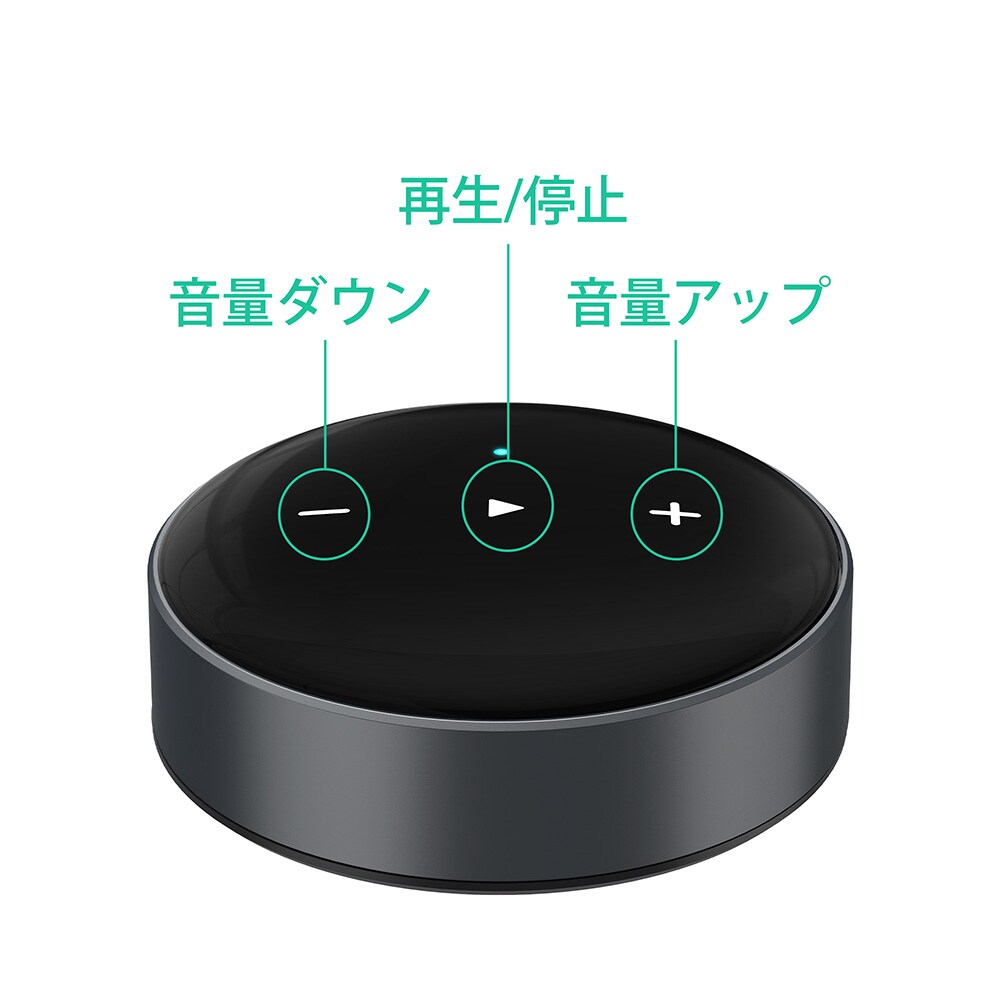

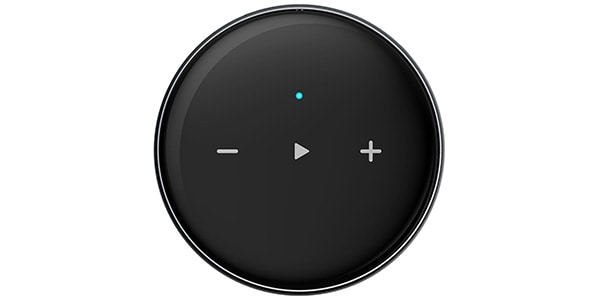

・Touch sensor control: Play/Pause | Volume +/-
