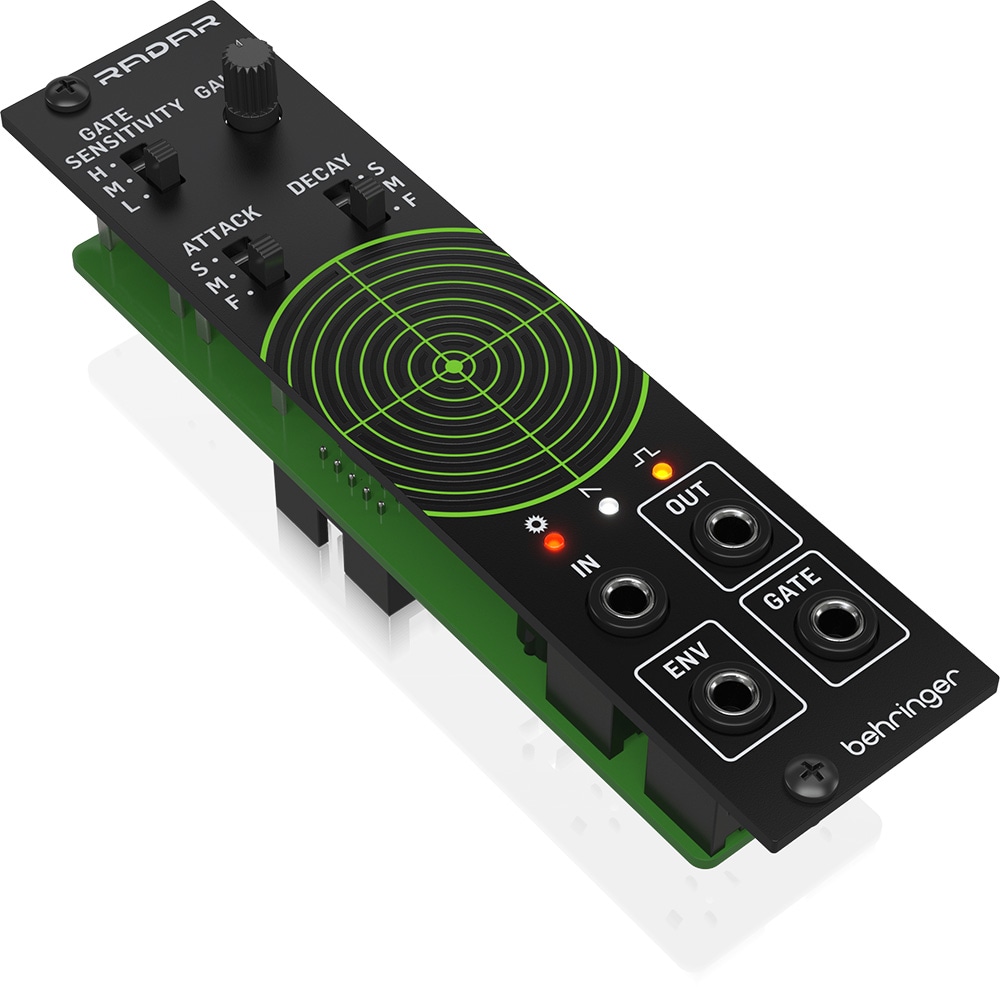

BEHRINGER/RADAR is a contact and pickup microphone module for Eurorack.

■RADAR
Scratch and tap your way to unique and amazing sounds with Behringer RADAR! Contact and pickup microphones make it easy to achieve beats, ambient noise, and otherworldly sound effects, plus RADAR can be easily integrated into any synth setup.

■Tap That!
RADAR features a pickup microphone positioned just below the surface of the module. Simply tap or scratch the textured surfaces and they are converted into signals that can be patched into selected modules to create ambient, echo-like sound effects, eerie impact sounds, and anything else you can imagine.

■Sonic Wave Detection
RADAR's pickups are sensitive enough to capture any acoustic wave in the surroundings, whether it is a modular case banging, a drummer hitting a snare, or a sound coming out of a speaker. These sounds are converted to gate or envelope signals, each of which can be fine-tuned with gate sensitivity or attack and decay controls.

Input
Type 3.5 mm TS jack, DC coupling
Impedance: 1 MΩ
Maximum input level Maximum input level: +19 dBu

・Output
Type 3.5 mm TS jack, DC-coupled
Impedance: 470 Ω
Maximum Output Level Maximum output level: +19 dBu
Output noise at unity gain Power supply dependent

・Envelope Output
Type 3.5 mm TS jack, DC-coupled
Impedance 470 Ω
Maximum output voltage: -10 / +10 V

・Gate Out
Type 3.5 mm TS jack, DC coupled
Impedance 470 Ω
Maximum output voltage: 0 /+10 V

・Controls
Gain: 0 / +50 dB
Sensitivity switch: 3 positions - L = 1 volt / M = 2 volts / H = 4 volts
Attack switch: 3 positions - S / M / F
Decay switch: 3 positions - S / M / F
Mic LED: Red - Signal clipping
Envelope LED: White - envelope generation
Gate LED: Amber - gate generation

・Power Supply
Power supply: Eurorack
Current consumption: 5 mA (+12 V)
5 mA (+12 V),
5 mA (-12 V)

・Dimensions 30.2 x 128.5 x 35.6 mm
(1.2 x 5.1 x 1.4")
Rack unit 6 HP
Weight 0.06 kg (2.1 oz)
