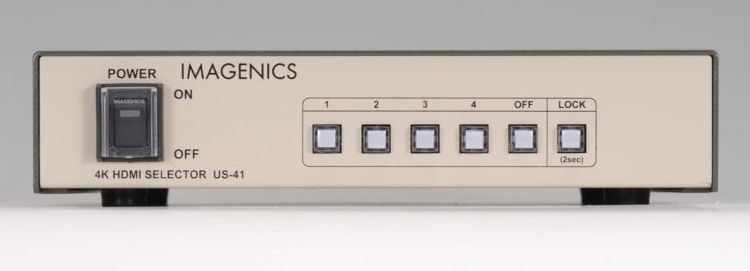

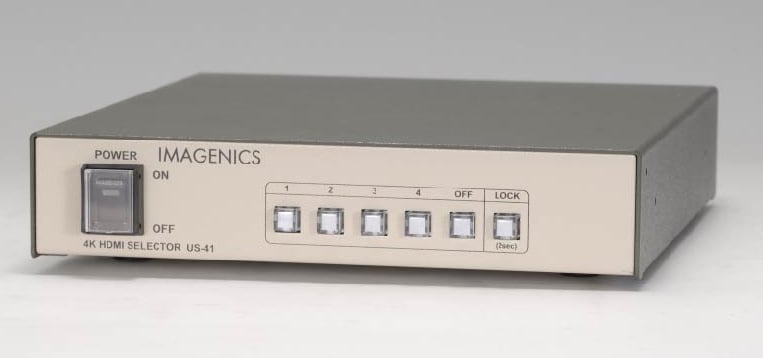

IMAGENICS / US-41

A selector with 4 inputs, 1 system, and 2 distributions of 4K HDMI signals. Compatible with HDMI 2.0/1.4 standard and HDCP 2.2/1.4 standard.

■4K full spec compatible HDMI switcher
■Video signal method:
TMDS signal (digital RGB/YPbPr)
Pixel clock 25MHz to 600MHz (TMDS clock 25MHz to 340MHz)
Automatically supports 4K, HDMI signals equivalent to D1 to D5, and PC signals from 640x480 to 4,096x2,160
For HDMI signals, up to 36-bit deep color signals (4K60@422) with data rates up to 18Gbps
Or supports standard compliant signals of 24-bit full color (4K60@444)

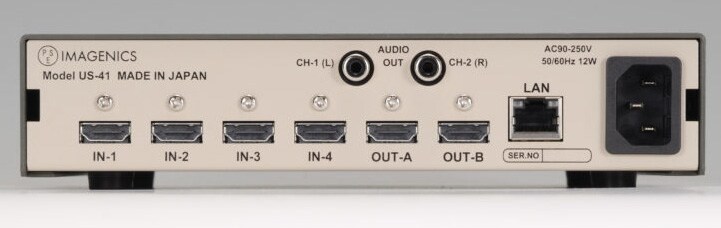

■HDMI input:
HDMI-A 19-pin connector 4 systems (HDCP 1.4, 2.2 compatible, DVI signal input possible)
■HDMI output: HDMI-A 19 pin connector 1 system 2 distribution output
(HDCP 1.4, 2.2 compatible, color space conversion and DVI signal output possible)
■Input cable compensation range
Video up to 6Gbps such as PC (VESA), D5:
～30m　With IMAGENICS HDP-HDP 30m HDMI cable
Video up to 10.2Gbps such as 4K30,60(420):
~20m IMAGENICS HDP-HDP 20m HDMI cable
Video up to 18Gbps such as 4K60 (422, 444):
~10m IMAGENICS HDP-HDP 10m HDMI cable
■Output cable length range (HDMI output)
Video up to 6Gbps such as PC (VESA), D5:
~10m IMAGENICS HDP-HDP 10m HDMI cable
Video up to 10.2Gbps such as 4K30, 60(420):
~5m with IMAGENICS UHP-5 HDMI cable
Video up to 18Gbps such as 4K60, 422,444:
~3m with IMAGENICS UHP-3 HDMI cable
■Built-in EDID:
Emulation function
*Plug and play function
Select and use the main resolutions of CEA and VESA using commands from external LAN control.
Or you can copy and back up the EDID data from the OUT-A and OUT-B terminals.
Ver1.8/1740 (double press IN-2, OFF to start) D5/1920×1080 shortcut added.
■Analog audio function
Audio output terminal: -10 dBu (when loaded with 10 kΩ or more), low impedance unbalanced 2 channels 1 system (RCA pin jack x 2)
Audio frequency response: -1 dB to +1 dB at 20Hz to 20kHz
Audio SN ratio: 80dB or more (1kHz A-weighting, standard -10 dBu output)
Audio crosstalk: 80dB or more
Audio distortion rate: 0.03% or less (when loaded with 10kΩ or more)
Maximum audio output level: +10dBu (at 0dBFS of HDMI embedded audio)
■External control function:
LAN 10BASE-T, 100BASE-TX 1 system
RJ45 1 system 100BASE-TX, 10BASE-T automatic judgment
*Various operations can be set for this machine
*The factory default IP address is 192.168.2.254 Port number 1300
■Other functions:
Automatic color format conversion and down-conversion operation for each HDMI output terminal,
EDID settings for each HDMI input terminal, reading the internal status list (text string from LAN),
Batch backup and reload of operation settings, operation settings that do not support input HDCP, sequential switcher operation, notification display function with push button switches, various setting functions using shortcuts, etc.
■Power supply: AC90V to AC 250V 12W (maximum)
■SIZE: 210(W)x44(H)x230(D)mm *Excluding protrusions
■Mass: Approx. 2.1kg
