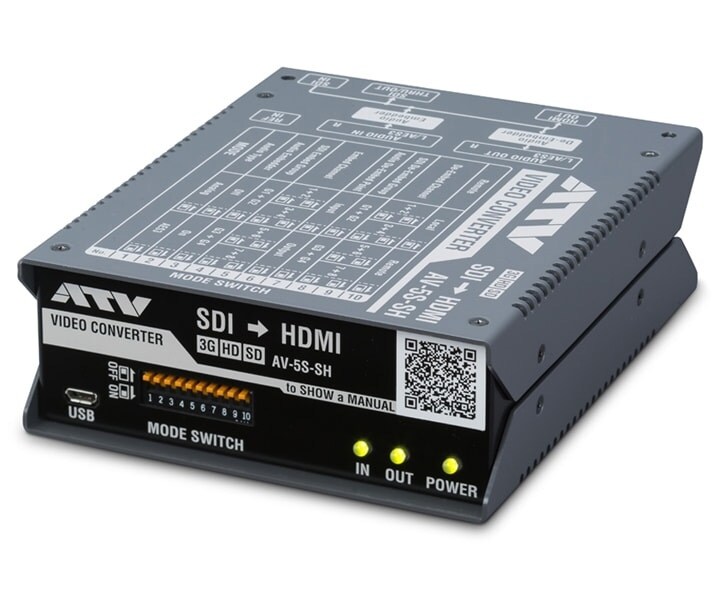

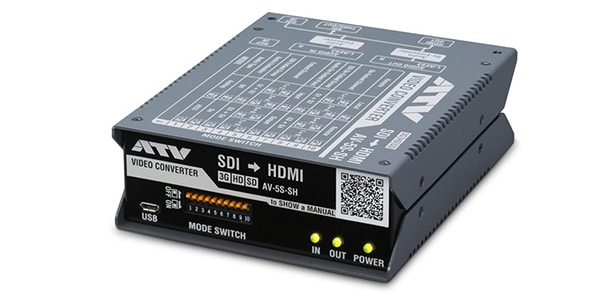

ATV / AV-5S-SH 2K Video Converter

A converter that converts SDI to HDMI. You can also embed external audio and put it on HDMI, or extract the audio embedded in SDI!

■Video Converter (SDI to HDMI)

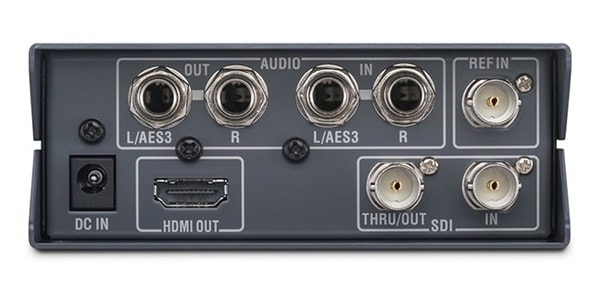

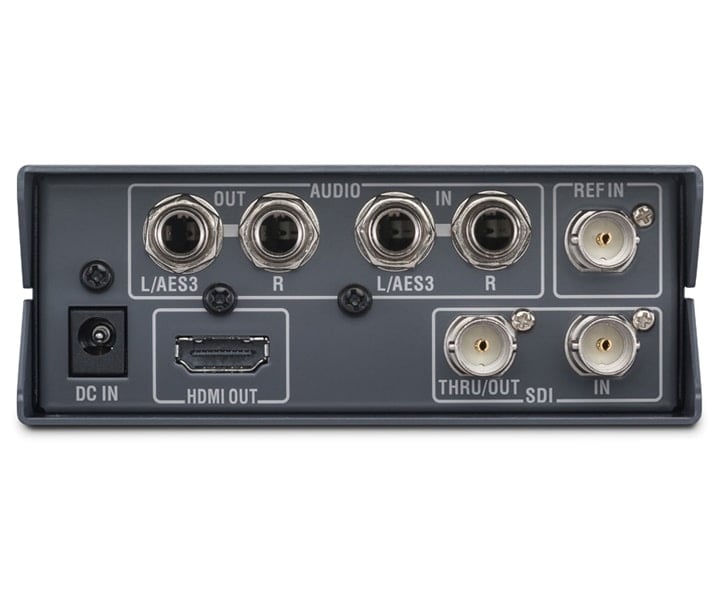

【Input terminal】
■SDI
Terminal: BNC type x1
Signal standard: SMPTE ST424 (SMPTE ST425-AB), SMPTE ST292, SMPTE ST259-C
Video format: 2048x1080/60p/59.94p/50p/48p/47.95p/30p/29.97p/25p/ 24p/23.98p/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (SMPTE ST2048 compliant),
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i /59.94i/50i/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (SMPTE ST274 compliant),
1280x720/60p/59.94p/50p (SMPTE ST296 compliant),
720x487/59.94i, 720x576/50i (ITU-R BT.601-5 compliant)
Color format: 10-bit YCC4:2:2, 12-bit RGB4:4:4, 12-bit YCC4:4:4 (effective bit depth is 10-bit)
Audio format: Linear PCM, 24/20bit, 48kHz, 16ch (compliant with SMPTE ST299, ST272-C)
Analog audio
Terminal: TRS standard type (balanced) x 1 pair (L/R)
Signal level: +4dBu
Maximum input level: +24dBu
Impedance: 22k/600Ω switchable
■Digital audio
Terminal: TRS standard type (balanced) x 1 (shared with analog audio input terminal L)
Signal standard AES3: 16-24bit, 32-48kHz, 2ch
Impedance: 110Ω
■REF IN
Terminal: BNC type x 1
Standards:
B.B. (SMPTE ST318), 2-value (ITU-R BT.1358-1), HD 3-value (SMPTE ST274, ST296)
■Compatible formats:
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i/24PsF/23.98PsF (SMPTE ST274 compliant),
1280x720/60p/59.94p/50p (SMPTE ST296 compliant),
720x480/59.94p, 720x576/50p (ITU-R BT.1358-1 compliant),
720x480/59.94i, 720x576/50i (SMPTE ST318 compliant)

【Output terminal】
■SDI
terminal: BNC type x1
Signal standard:
SMPTE ST424 (SMPTE ST425-AB), SMPTE ST292, SMPTE ST259-C
Video format:
2048x1080/60p/59.94p/50p/48p/47.95p/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (SMPTE ST2048 compliant),
1920x1080/60p/59.94p/50p/60i/59.94i/50i/30PsF/29.97PsF/25PsF/24PsF/ 3.98PsF (SMPTE ST274 compliant),
1280x720/60p/59.94p/50p (SMPTE ST296 compliant),
720x487/59.94i, 720x576/50i (ITU-R BT.601-5 compliant)
Color format:
10-bit YCC4:2:2, 12-bit RGB4:4:4, 12-bit YCC4:4:4 (effective bit is 10-bit)
Audio format:
Linear PCM, 24/20-bit, 48kHz, 16ch (SMPTE ST299, ST272-C compliant)
HDMI
terminal: Type A (19-pin) x 1
signal standard: HDMI 1.4b
video format:
2048x1080/60p/59.94p/50p/48p/47.95p/30p/29.97p/25p/24p/23.98p (SMPTE ST2048 timing),
1920x1080/60p/59.94p/50p/60i/59.94i/50i/30p/29.97p/25p/24p/23.98p,
1280x720/60p/59.94p/50p,
720x480/59.94p, 720x576/50p, 720(1440)x480/59.94i, 720(1440)x576/ 50i (in compliance with CEA-861-F)
Color format:
10-bit YCC4:2:2, 8-bit RGB4:4:4, 8-bit YCC4:4:4
Audio format:
Linear PCM, 24-bit, 48kHz, 2-8ch
Analog audio
terminals: TRS standard type (balanced) x 1 pair (L/R)
Signal level: +4dBu
Maximum output level: +24dBu
Impedance: 600Ω
Output load impedance: 20kΩ or more
■Digital audio
Terminal: TRS standard type (balanced) x1 (shared with analog audio output terminal L)
Signal standard: AES3, 24bit, 48kHz, 2ch
Impedance: 110Ω

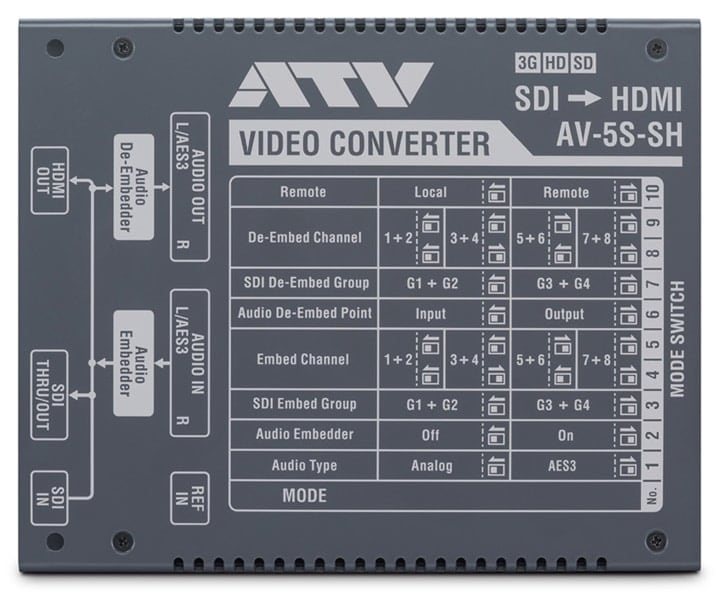

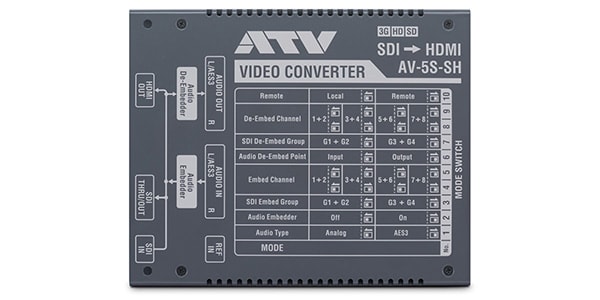

[Signal Processing]
■Audio Embedding: 2ch
■Audio De-Embedding: 2ch
■Frame Synchronizer: Off/On (can be set using remote software)
Phase adjustment: H=-0.5H to +0.5H, V=-0.5frame to +0.5frame
Frame buffer: Off/On (can be set using remote software)
Minimum delay: as described in the operation and settings manual
Frame rate conversion function: frame skip/repeat method
■Glitch reduction function: Audio software mute linked
■Audio delay: 0 to 100 msec (can be set using remote software)
■3G-SDI Level conversion: Two-way conversion possible (can be set using remote software)
Color format conversion: Can be set using remote software

【Other】

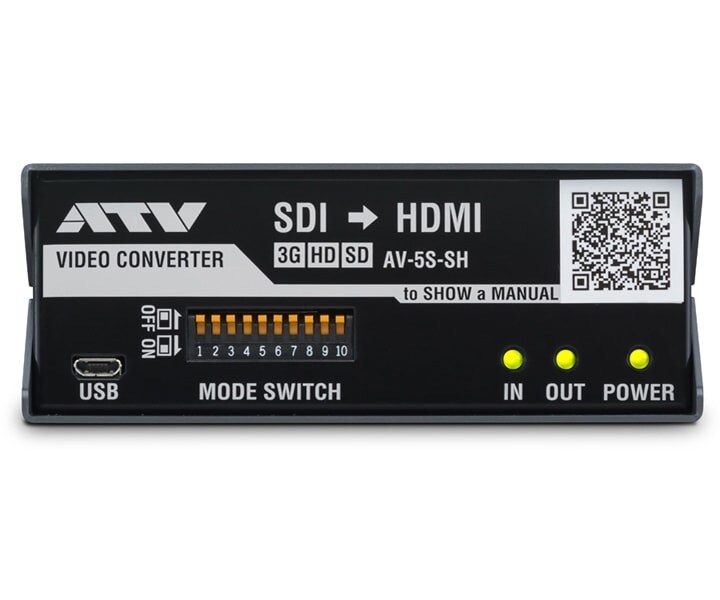

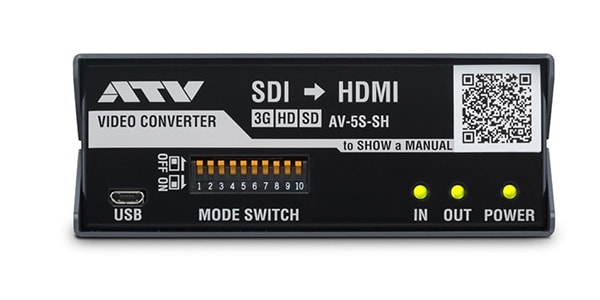

■USB terminal: Micro USB Type B (Hi-Speed USB) x1
Power supply: DC 12V (AC adapter)
Power consumption: 12W
Size: 110(W)x42(H)x136(D)
Weight: 450g (excluding AC adapter)
Operating temperature: +0 to +40°C
Accessories:
AC adapter
Startup guide
