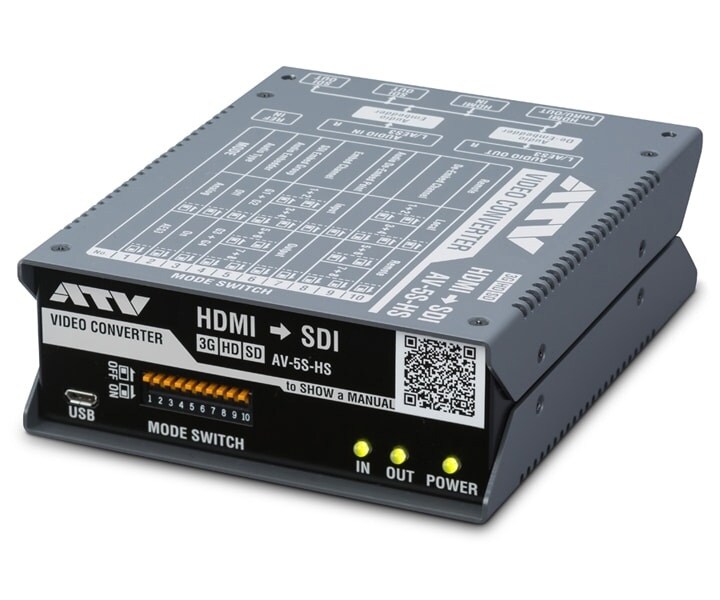

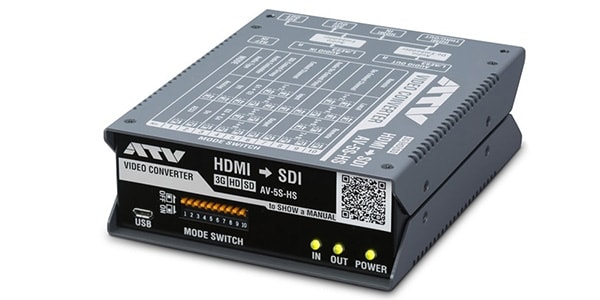

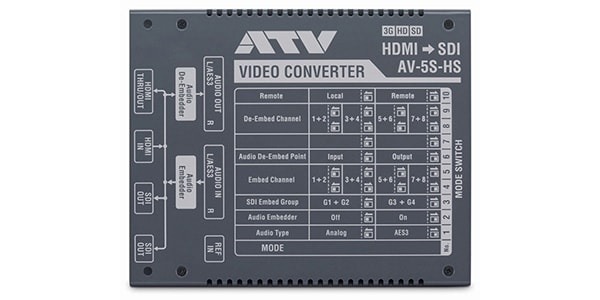

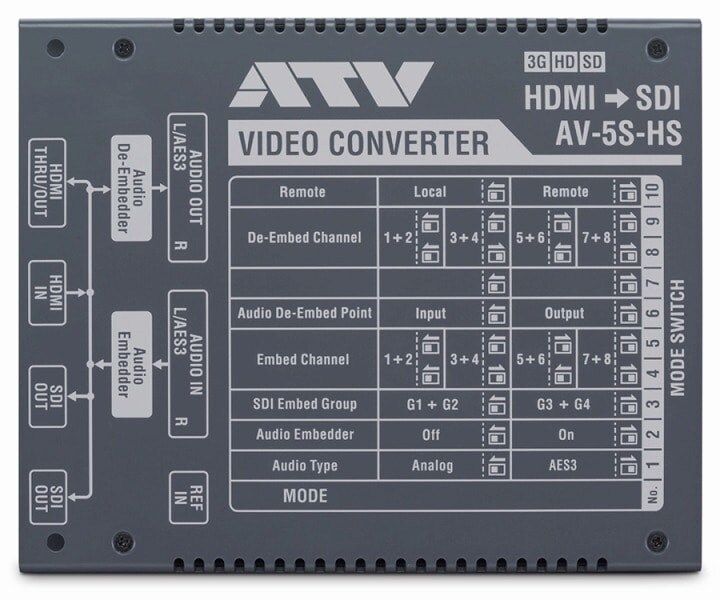

ATV / AV-5S-HS 2K Video Converter

A converter that converts HDMI to SDI. You can also embed external audio and send it over SDI, or extract the audio signal sent over HDMI!

■Video Converter (SDI to HDMI)

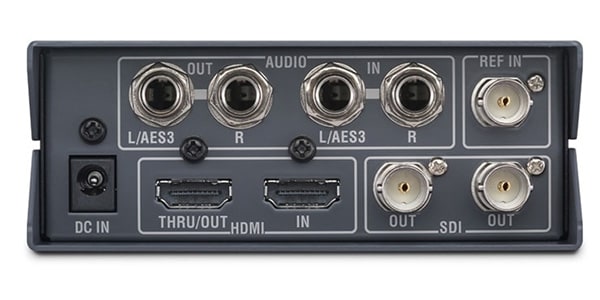

【Input terminal】
■HDMI
Terminal: Type A (19-pin) x 1
Signal standard: HDMI 1.4b
Video format:
2048x1080/60p/59.94p/50p/48p/47.95p/30p/29.97p/25p/24p/23.98p (SMPTE ST2048 timing),
1920x1080/60p/59.94p/50p/60i/59.94i/50i/30p/29.97p/25p/24p/23.98p,
1280x720/60p/59.94p/50p,
720x480/59.94p, 720x576/50p, 720(1440)x480/59.94i, 720(1440)x576/ 50i (in compliance with CEA-861-F)
Color format:
10-bit YCC4:2:2, 8-bit RGB4:4:4, 8-bit YCC4:4:4
Audio format:
Linear PCM, 24-bit, 48kHz, 2-8ch
Analog audio
terminals: TRS standard type (balanced) x 1 pair (L/R)
Signal level: +4dBu
Maximum output level: +24dBu
Impedance: switchable between 22k/600Ω
■Digital audio
Terminal: TRS standard type (balanced) x1 (shared with analog audio output terminal L)
Signal standard: AES3, 24bit, 48kHz, 2ch
Impedance: 110Ω
Analog audio
terminals: TRS standard type (balanced) x 1 pair (L/R)
Signal level: +4dBu
Maximum input level: +24dBu
Impedance: 22k/600Ω switchable
Digital audio
terminals: TRS standard type (balanced) x 1 (shared with analog audio input terminal L)
Signal standard: AES3: 16 to 24 bit, 32 to 48 kHz, 2 channels
Impedance: 110 Ω
■REF IN
terminal: BNC type x 1
Standard:
B.B. (SMPTE ST318), 2-value (ITU-R BT.1358-1), HD 3-value (SMPTE ST274, ST296)
■Compatible formats:
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i/24PsF/23.98PsF (SMPTE ST274 compliant),
1280x720/60p/59.94p/50p (SMPTE ST296 compliant),
720x480/59.94p, 720x576/50p (ITU-R BT.1358-1 compliant),
720x480/59.94i, 720x576/50i (SMPTE ST318 compliant)

【Output terminal】
■SDI
terminal: BNC type x2
Signal standard: SMPTE ST424 (SMPTE ST425-AB), SMPTE ST292, SMPTE ST259-C
Video format: 2048x1080/60p/59.94p/50p/48p/47.95p/30psF/29.97psF/25psF/24psF/23.98psF (SMPTE ST2048 compliant)
1920x1080/60p/59.94p/50p/60i/59.94i/50i/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (SMPTE ST274 compliant)
1280x720/60p/59.94p/50p (SMPTE ST296 compliant),
720x487/59.94i, 720x576/50i (ITU-R BT.601-5 compliant)
Color format: 10-bit YCC4:2:2, 12-bit RGB4:4:4, 12-bit YCC4:4:4 (10-bit effective bits)
Audio format: Linear PCM, 24/20-bit, 48kHz, 16ch (SMPTE ST299, ST272-C compliant)

HDMI
terminal: Type A (19-pin) x 1
Signal standard: HDMI 1.4b
Video format:
2048x1080/60p/59.94p/50p/48p/47.95p/30p/29.97p/25p/24p/23.98p (SMPTE ST2048 timing),
1920x1080/60p/59.94p/50p/60i/59.94i/50i/30p/29.97p/25p/24p/23.98p,
1280x720/60p/59.94p/50p,
720x480/59.94p, 720x576/50p, 720(1440)x480/59.94i, 720(1440)x576/ 50i (in compliance with CEA-861-F)
Color format:
10-bit YCC4:2:2, 8-bit RGB4:4:4, 8-bit YCC4:4:4
Audio format:
Linear PCM, 24-bit, 48kHz, 2-8ch
Color format:
10-bit YCC4:2:2, 12-bit RGB4:4:4, 12-bit YCC4:4:4
Audio format:
Linear PCM, 24-bit, 48 kHz, 2 to 8 channels
Analog audio
terminals: TRS standard type (balanced) x 1 pair (L/R)
Signal level: +4 dBu
Maximum input level: +24 dBu
Impedance: 22 k/600 Ω switchable
Digital audio
terminal: TRS standard type (balanced) x 1 (shared with analog audio output terminal L)
Signal standard: AES3, 24bit, 48kHz, 2ch
Impedance: 110Ω
Signal processing
Audio embedded: 2ch
Audio de-embedded: 2ch
■Frame synchronizer: Off/On (can be set using remote software)
■Phase adjustment: H=-0.5H to +0.5H, V=-0.5frame to +0.5frame
■Frame buffer: Off/On (can be set using remote software)
■Minimum delay: as described in the operation and settings manual
■Frame rate conversion function: frame skip/repeat method
■Glitch reduction function: Audio software mute linked
■Audio delay: 0 to 100 msec (can be set using remote software)
■3G-SDI Level conversion: Two-way conversion possible (can be set using remote software)
■Color format conversion: Can be set using remote software

【Other】

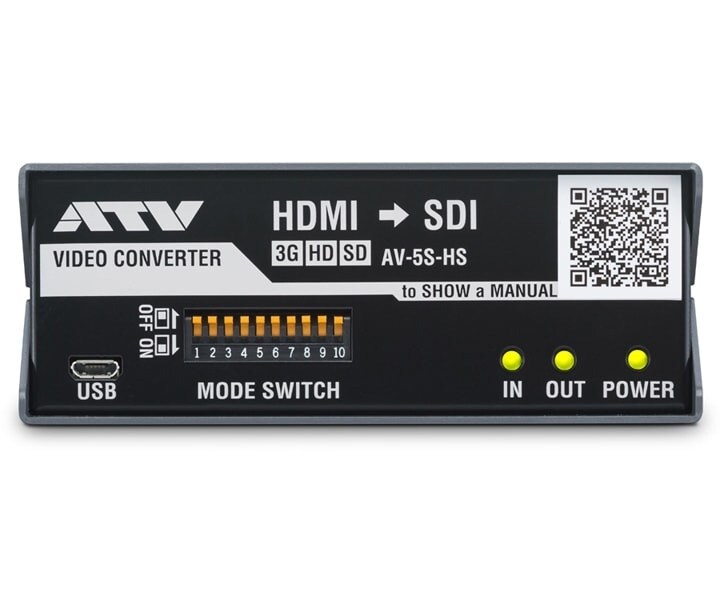

■USB terminal: Micro USB Type B (Hi-Speed USB) x1
Power supply: DC 12V (AC adapter)
Power consumption: 12W
Size: 110(W)x42(H)x136(D)
Weight: 450g (excluding AC adapter)
Operating temperature: +0 to +40°C
Accessories:
AC adapter
Startup guide
