GRACE DESIGN / m905 Black

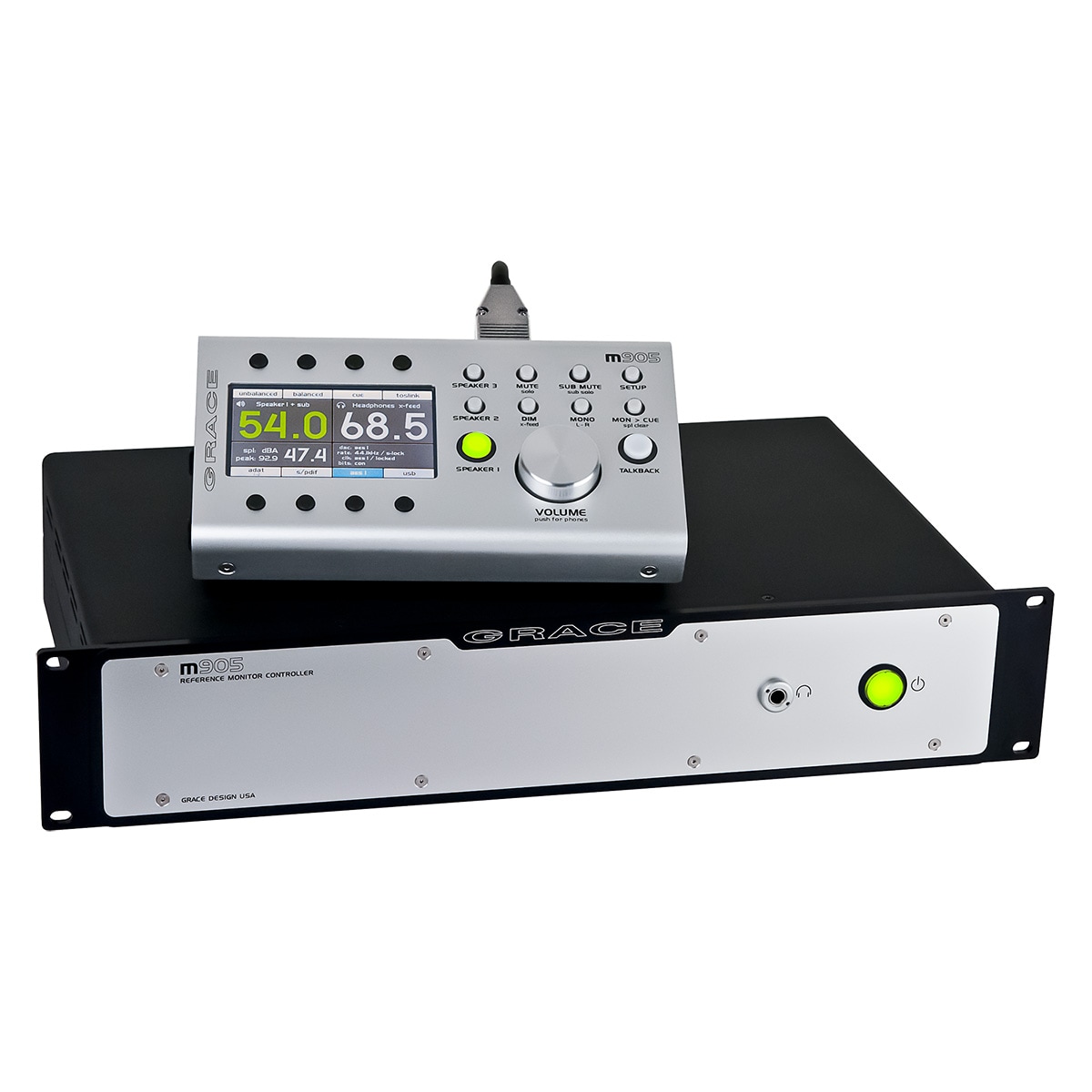

This is a stereo reference monitor system manufactured by GRACE DESIGN.

■Stereo Reference Monitor System

■Includes Dedicated RCU

~From the Manufacturer's Website~

■Features

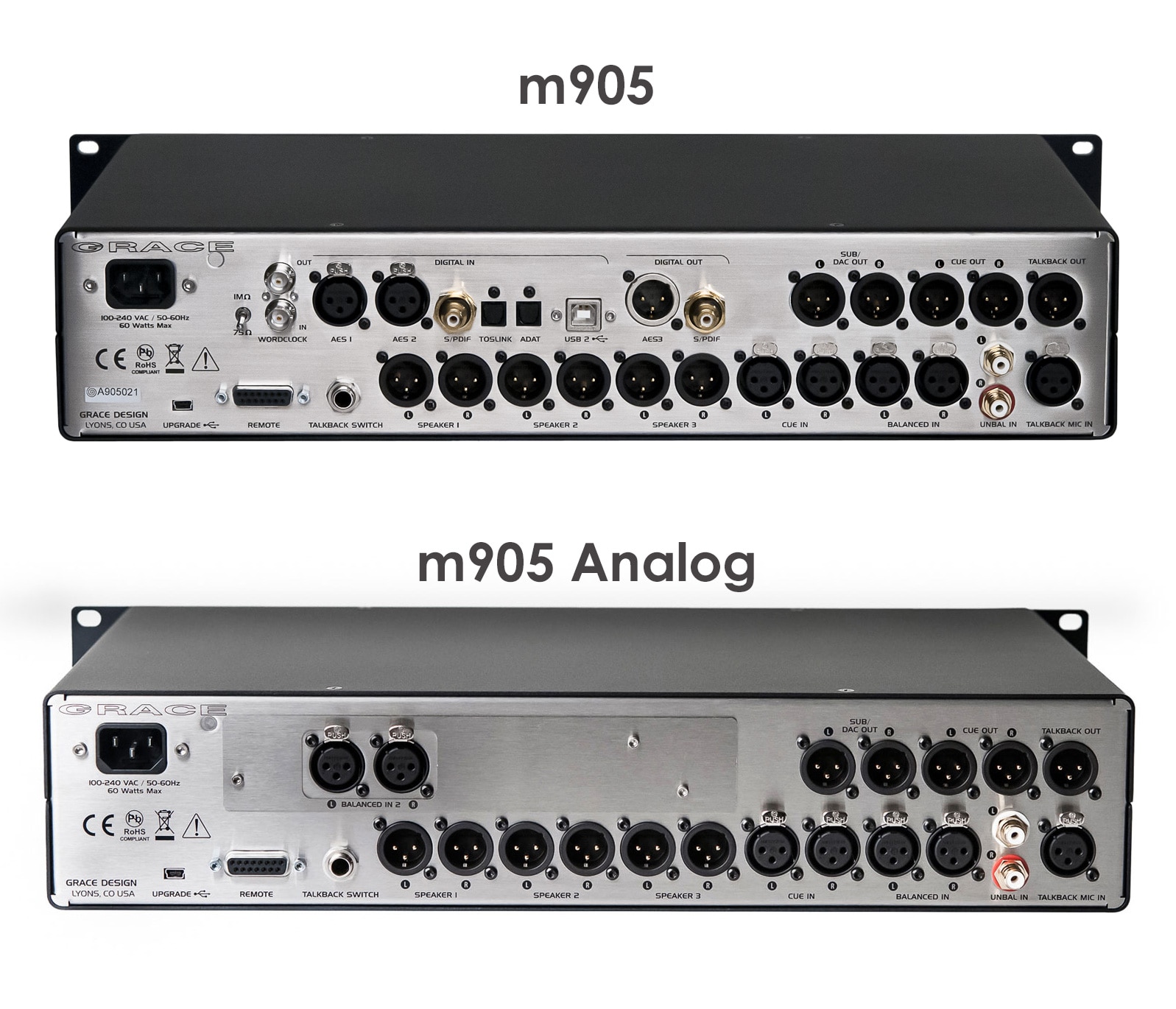

・Analog Inputs - Unbalanced (RCA), Balanced (XLR), CUE (XLR), Talkback Microphone (XLR)

・Digital Inputs - 2 x AES3 (Dual Wire Compatible), S/PDIF, TOSLINK, ADAT (sMUX Compatible), USB 2.0, DSD64x (2.8224MHz) DoP (v1.1) Playback Compatible

・High-Quality Audio Design for Completely Transparent Sound Quality

・Class 2 USB Connection via Asynchronous Transfer Mode (24-bit/192 kHz, DSD Native Playback Compatible). It can also send 10 channels of digital signals to a PC (can also be used as a USB audio interface).

* Mastering-quality DAC circuit and de-emphasis filtering

* New s-Lock dual-stage PLL that achieves incredibly low jitter through re-clocking (a method that regenerates the clock signal into a high-quality clock; can be disabled in settings)

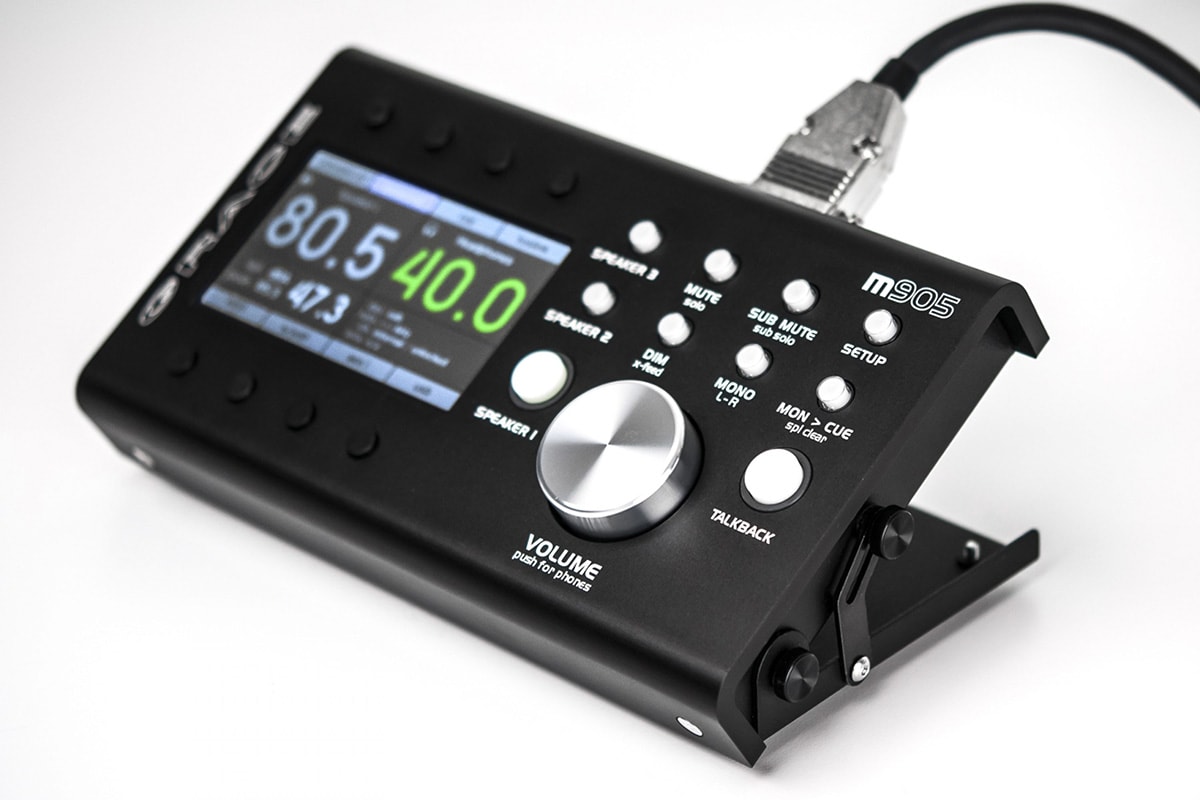

* Remote controller with large encoders and a highly visible LCD display

* The LCD display shows input, output levels, SPL, and DAC status (name editable). It also includes a powerful calibration menu.

* Real-time SPL meter (built-in omnidirectional microphone). Level, Peak, Fast & Slow Modes (A&C Weighting)

* Precise 0.5 dB step level control (speakers & headphones), customizable level display

* Built-in reference headphone amplifier (outputs on remote controller RCU and main unit ACU), CUE signal can be sent to the headphone line with setting changes (can also be used as a headphone monitor for performers)

* Mono, Dim, Mute switches, and Sub Mute switch

* Mono mode allows selection of L+R, L only, or R only

* Variations of L or R solo, L-R solo, and SUB solo are available

* Three stereo speaker outputs and two assignable MONO sub outputs (or Stereo sub outputs)

* Multi-mode SUB/DAC/METER output

* SUB output mode supporting STEREO or multiple MONO outputs

* Digital audio thru output (AES, S/PDIF output)

? Features a fixed-level DAC output mode for selected digital inputs.

? Meter output with selectable fixed or variable monitor levels for selected input signals (digital/analog).

? Removable legs for tilted mounting of the RCU.
