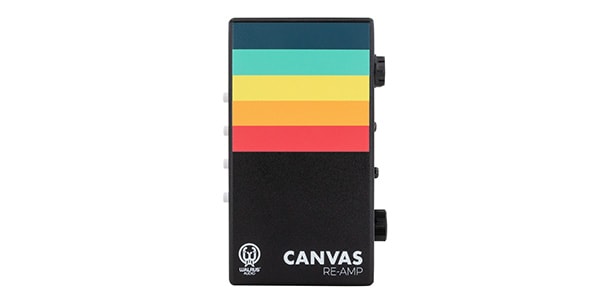

Walrus Audio / CANVRE

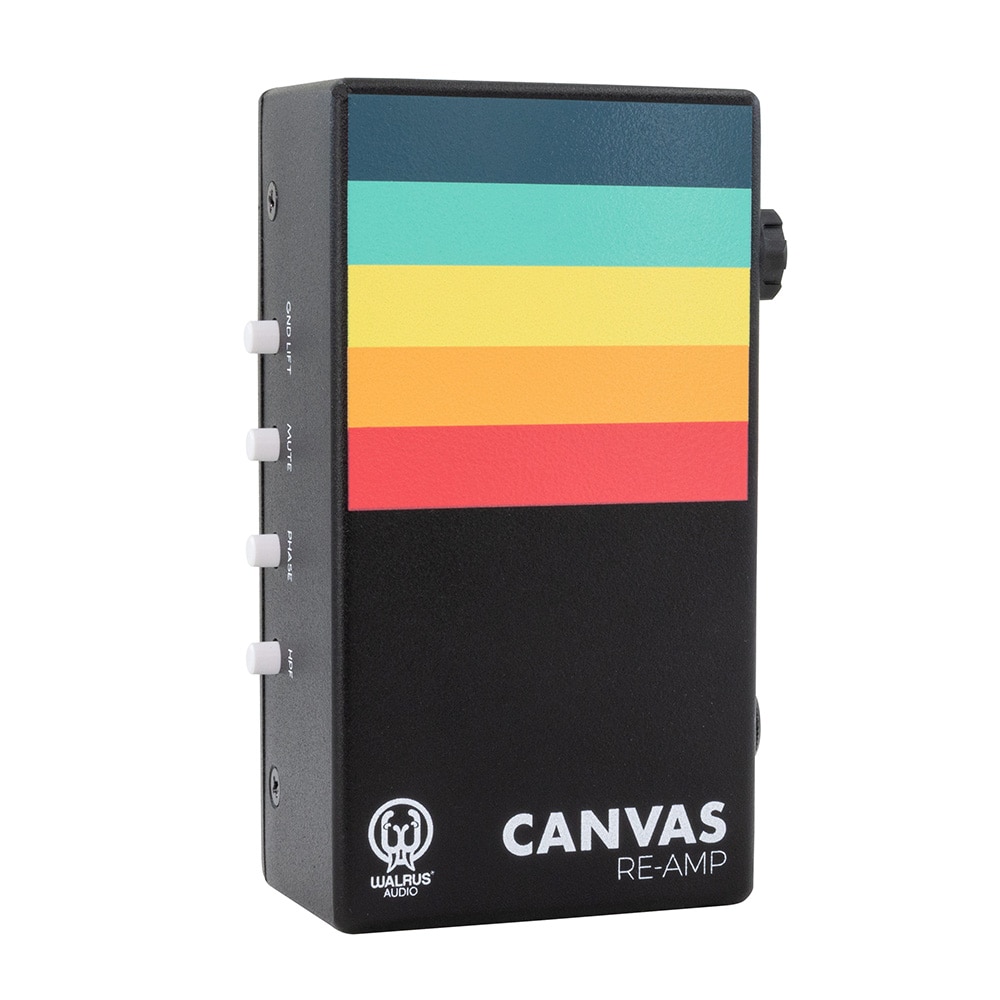

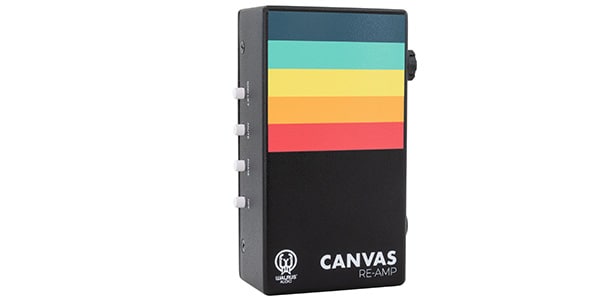

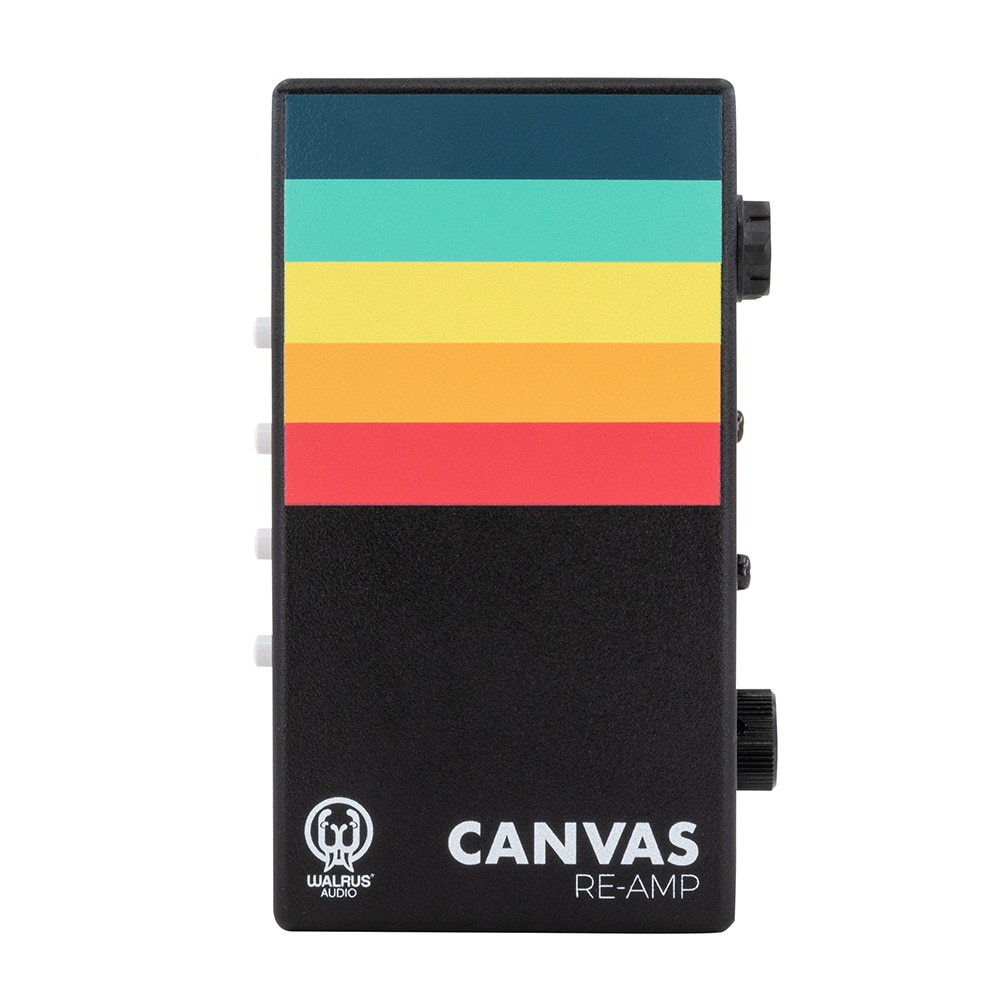

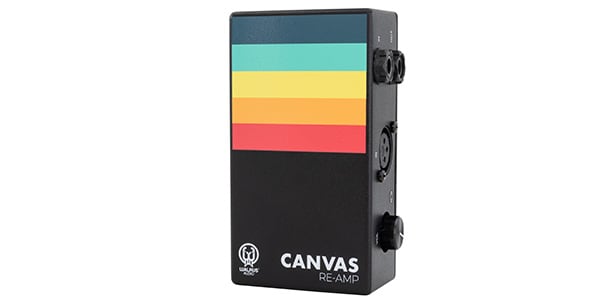

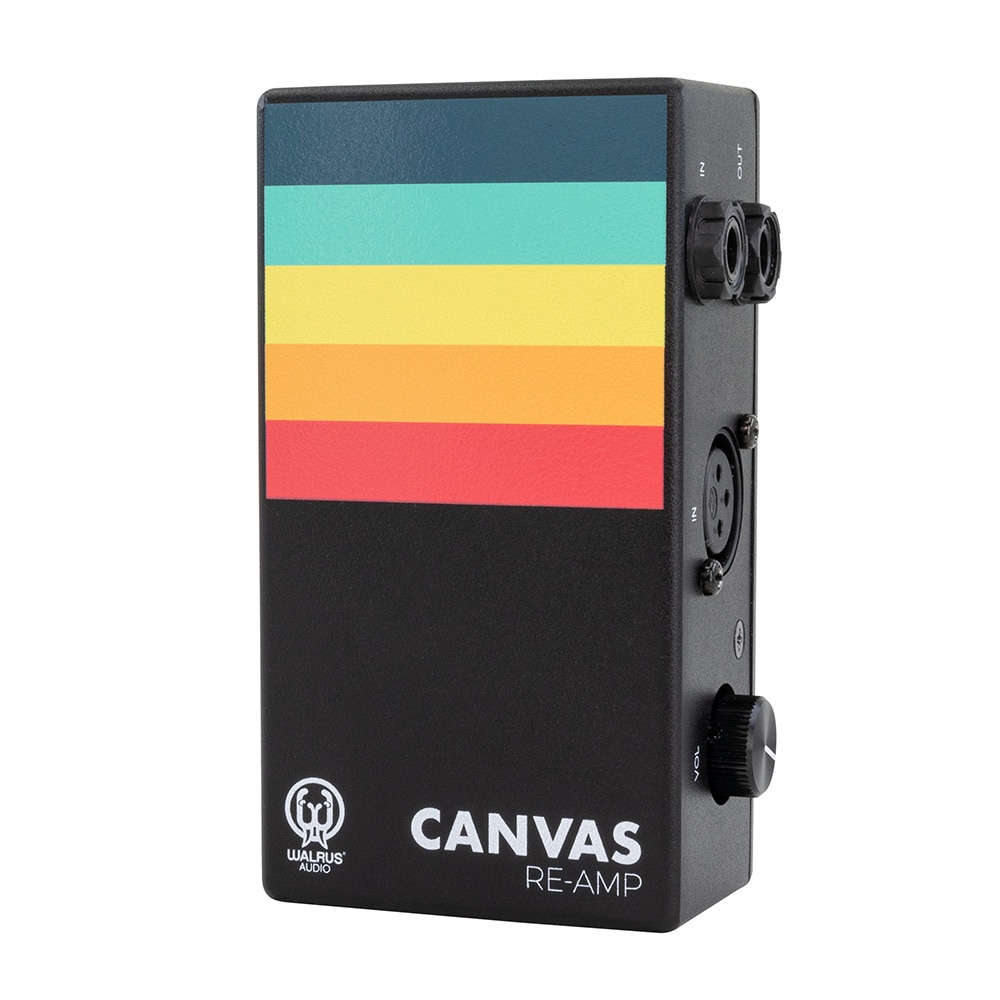

Canvas Re-Amp is a passive studio tool designed to re-amp tracks such as guitar, drums, and vocals recorded during a session, using pedals, effects, or combinations of different amplifiers.

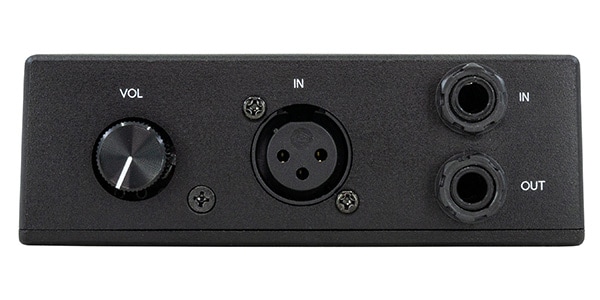

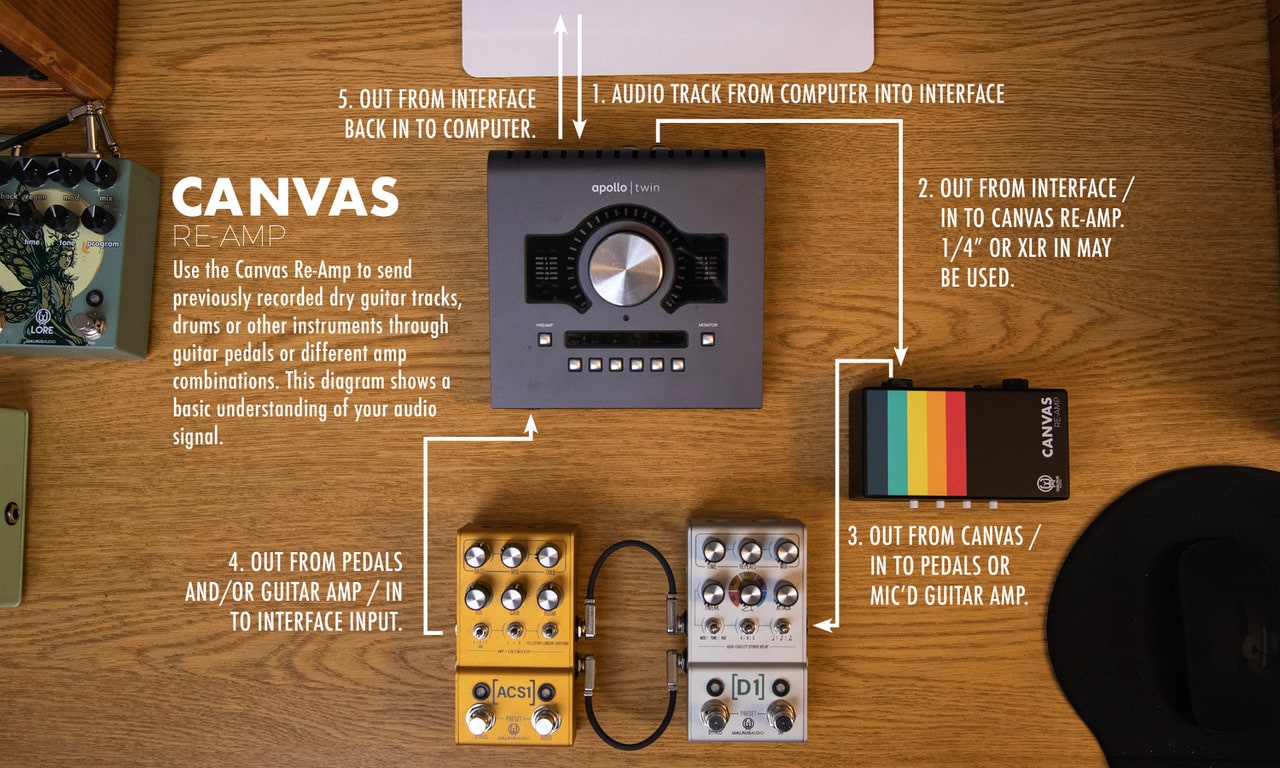

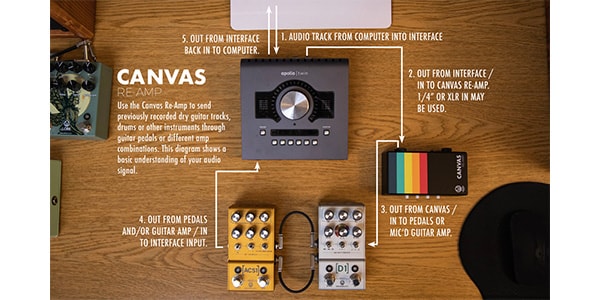

1. The audio track signal is sent from the DAW to the Canvas ReAmp via an XLR or 1/4-inch plug jack.

2. The signal is output through the ReAmp to an amp simulator or a microphone-recorded guitar amp.

3. The signal returns to the DAW via a pedal amp.

* SIZE: 7.8cm (W) × 4.1cm (H) × 12.4cm (D)

* WEIGHT: 256g

●FEATURE

Frequency Response: 20Hz ? 20kHz

THD+N: 0.07% @ 20Hz / +4dBu Input

0.001% @ 1kHz / +4dBu Input

Maximum Input Level: +21dBu @ 20Hz

Noise Floor: 116dBu

Signal-to-Noise Ratio (SNR): 114dB @ 1kHz

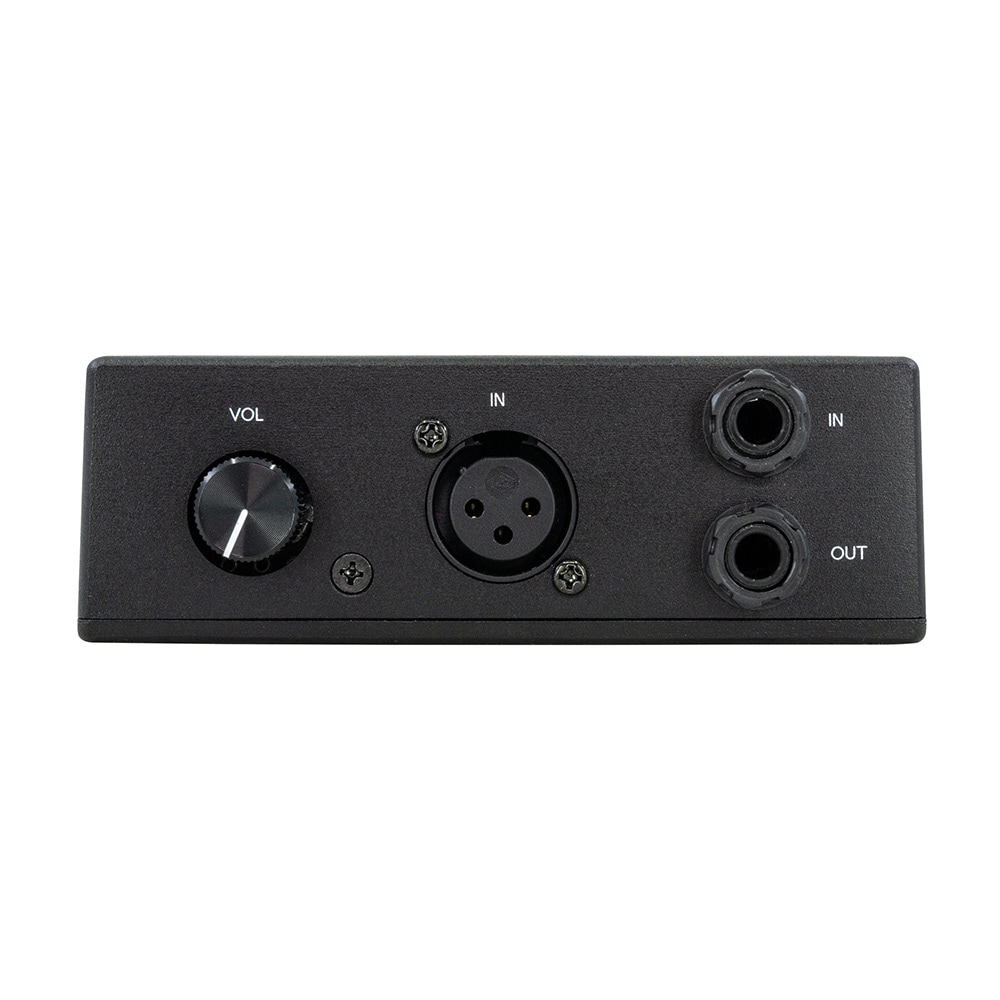

Input: Balanced Line Level

Input Impedance: 3k Ohms

Output: Unbalanced Instrumental Level

Output Impedance: 2.5k Ohms

Common Mode Rejection Ratio (CMRR): 79dB @ 20Hz / +4dBu Input

Power Requirements: None - Passive

Audio Circuit: Isolation Transformer
