SE ELECTRONICS / BL8

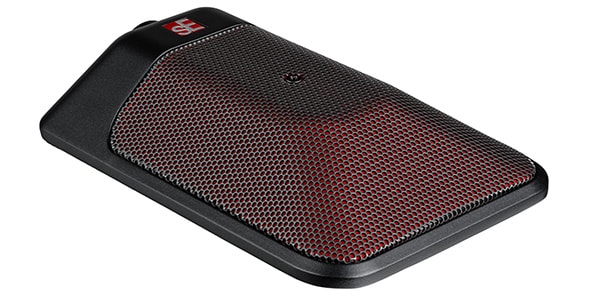

This is the latest boundary microphone that uses the same capsule as the SE8. This microphone is useful not only for kick drums and pianos, but also for speeches, meetings, and other situations.

■Product specifications
Capsule: Small Diaphragm True Condenser

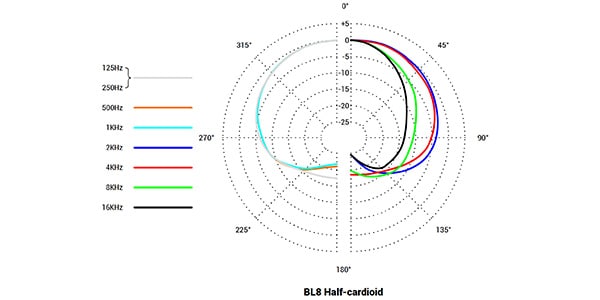

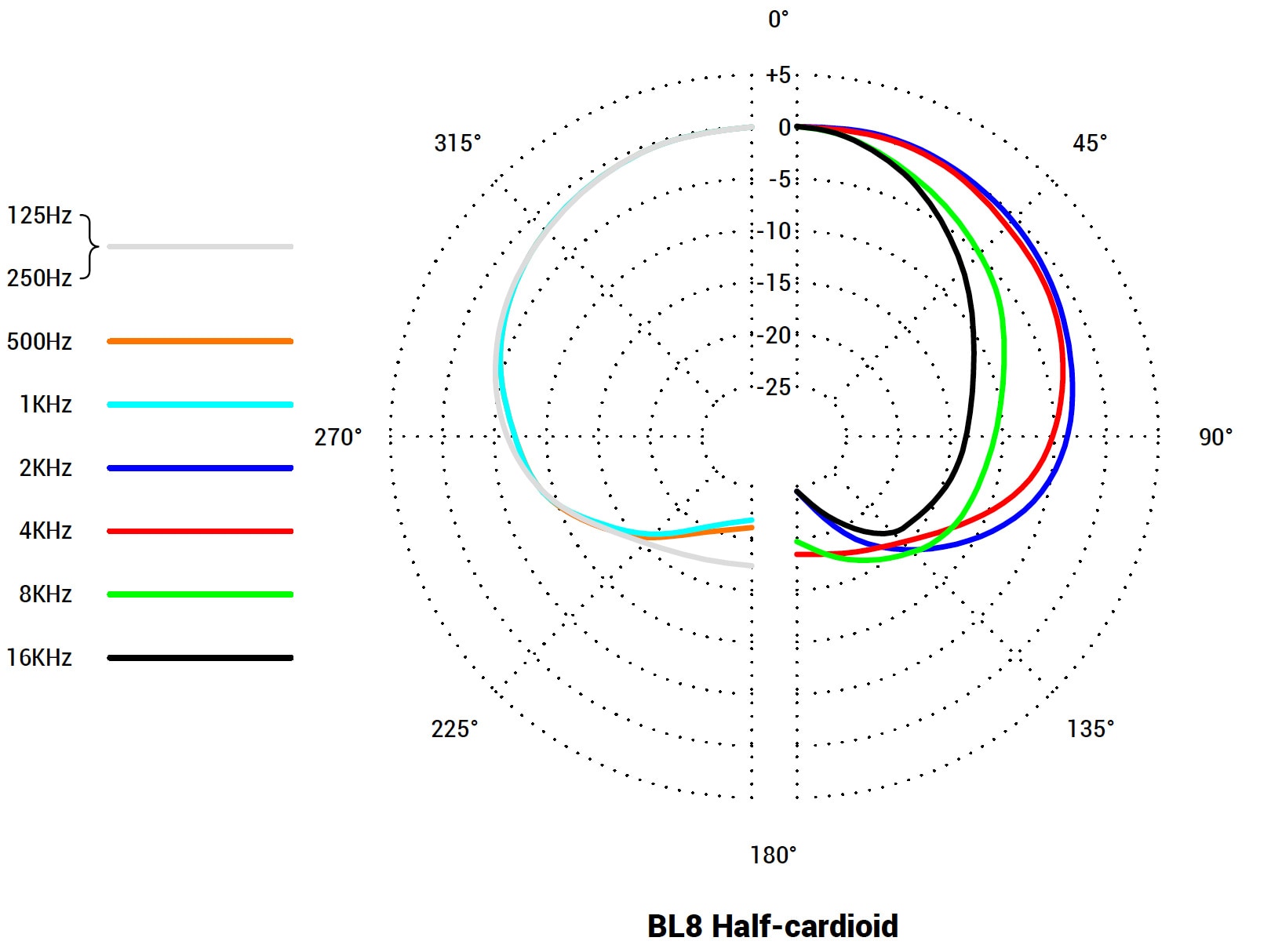

Directivity: Half cardioid

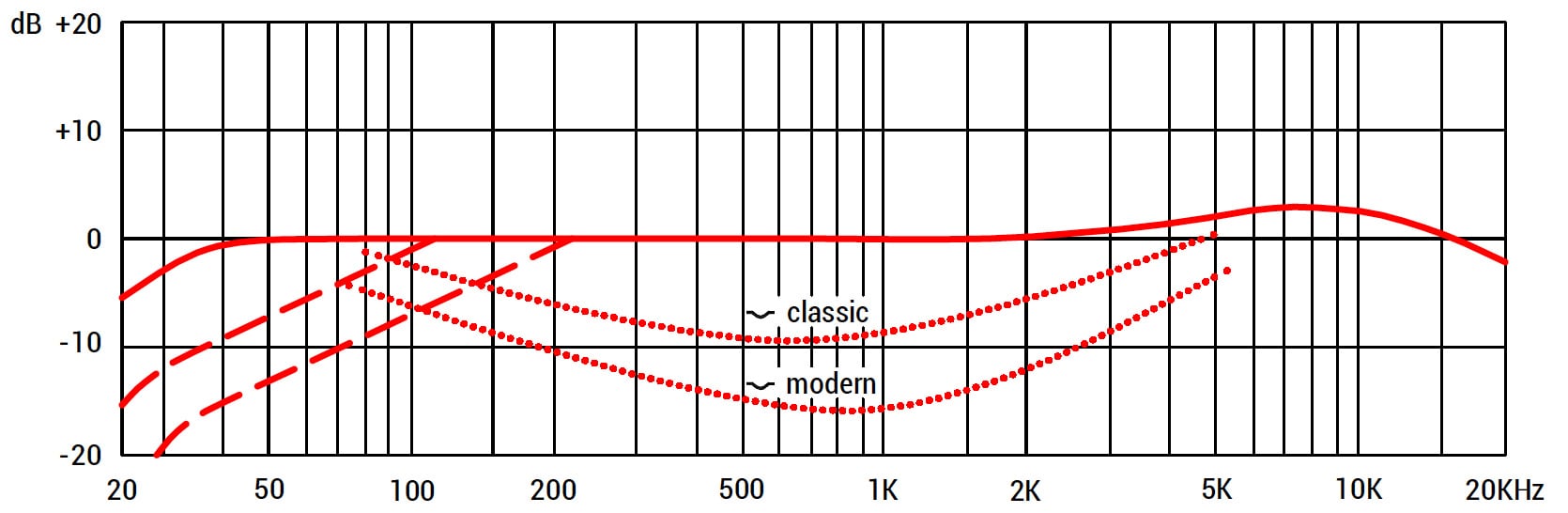

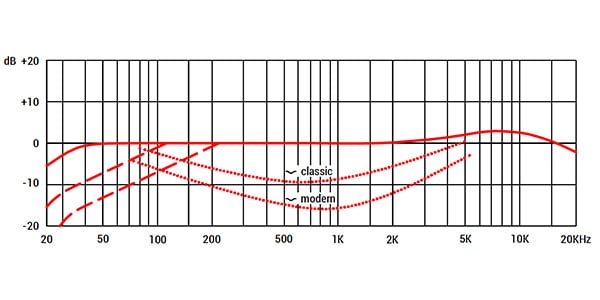

Frequency characteristics: 20Hz - 20kHz
Sensitivity: 25 mV/Pa (-32 dBV)
Maximum permissible sound pressure level: 143 / 153 / 163 dB SPL (0 / 10 / 20 dB pad)
Equivalent noise level: 14 dB(A)
Dynamic range: 129 / 139 / 149 dB (0 / 10 / 20 dB pad)
S/N ratio: 80 dB

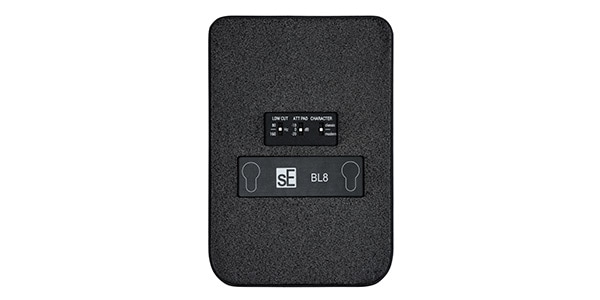

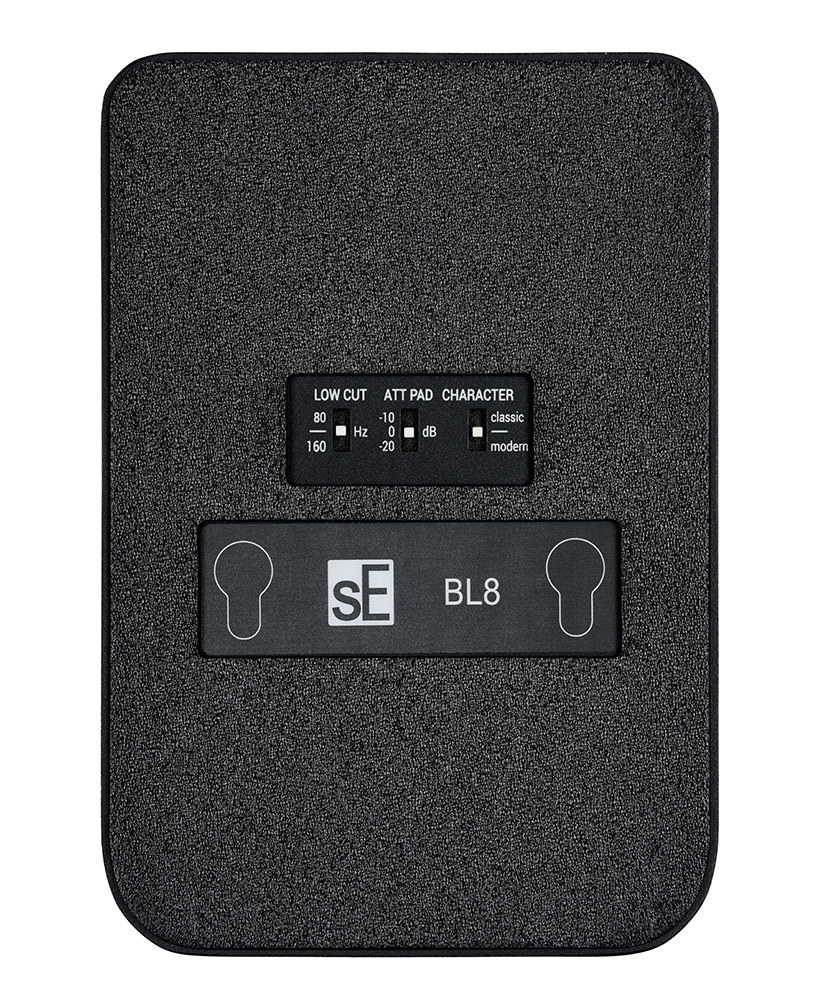

Low-cut filter: 80/160 Hz, 6 dB/Oct (selectable)
Pad: 10/20dB (selectable)
Recommended load impedance: 1kΩ or more
Operating power: Phantom power 48V (IEC 61938 compliant)
Impedance: 60Ω
Current consumption: 5.0 mA

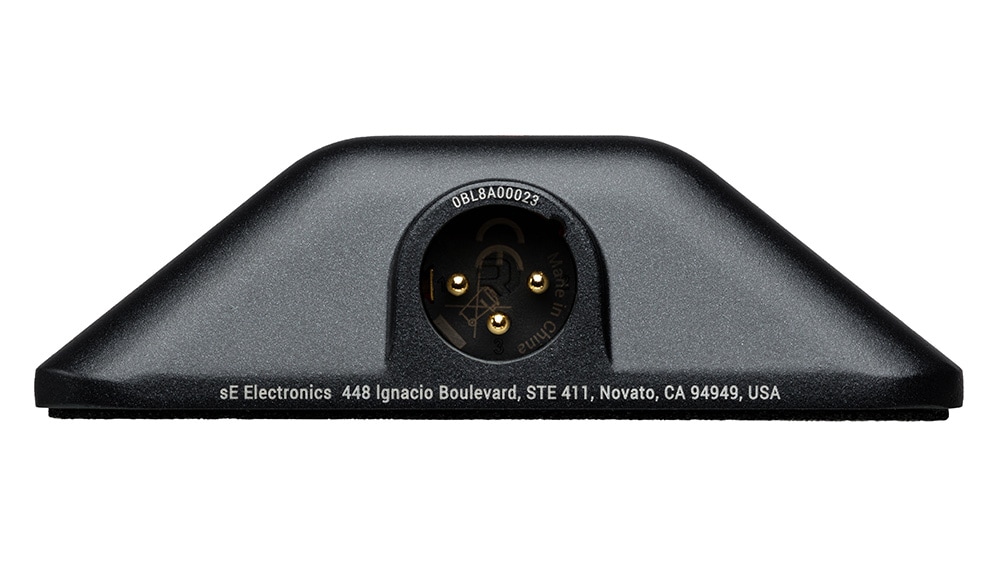

Connector: 3-pin XLR connector (male)
External dimensions: 139 mm (length) x 95 mm (width) x 28.5 mm (height)
Body weight: 538 g
Accessories: Pouch
