BOSS / GKC-AD GK Converter

BOSS/Roland guitar synthesisers, which bring guitarists an innovative playing experience, have replaced the traditional analogue 13-pin system with a new digital serial GK system to enter the next generation.

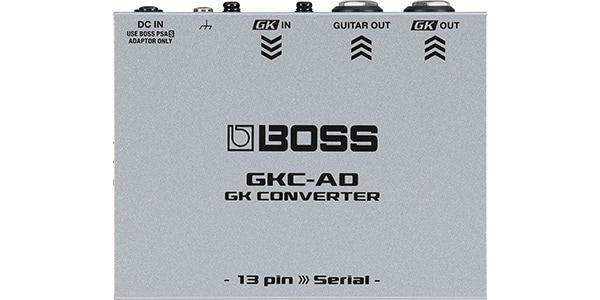

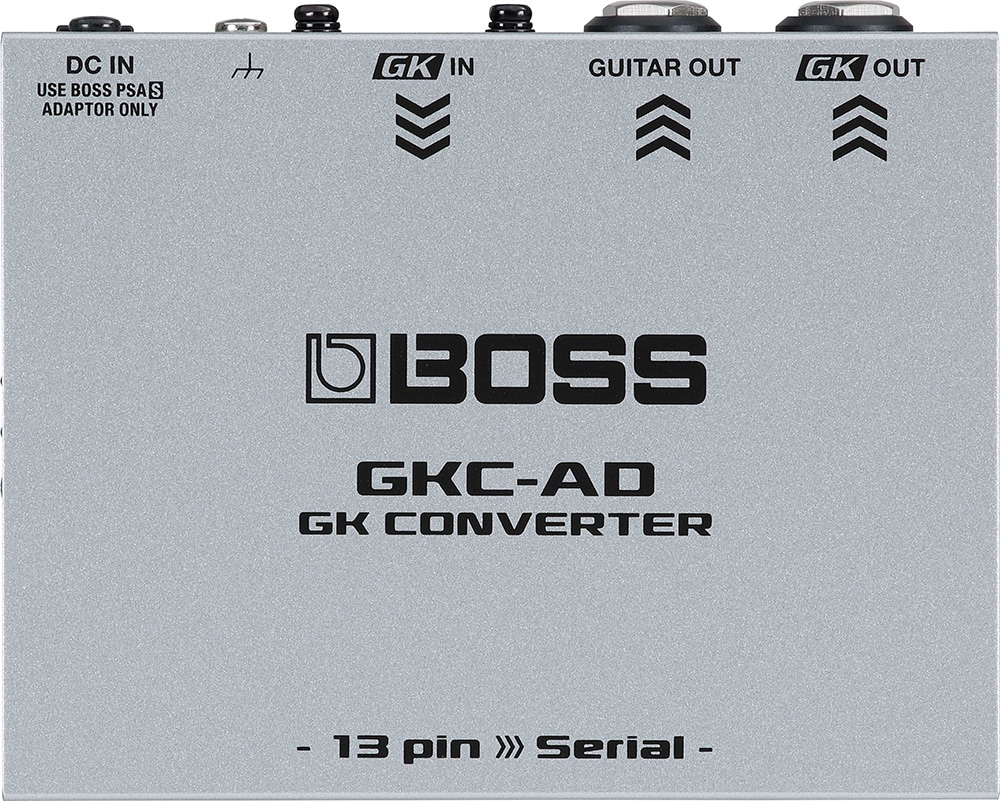

The GKC-AD is a GK converter that converts the analogue 13-pin GK input signal to a digital serial output signal. The GKC-AD allows you to use the latest guitar synthesiser products that support digital serialisation with guitars/basses equipped with the GK-3, GK-3B or analogue 13-pin GK jacks.

1. a converter that outputs the signal input to the main unit in digital serial GK format.
2. equipped with a GUITAR OUTPUT that outputs a normal guitar signal
Compact and robust design.

Compatible products.
The GKC-AD can be used with the GK-3, GK-3B and other guitars/basses with analogue 13-pin GK jacks.
The following products can be used with the GKC-AD.
GM-800

Main specifications

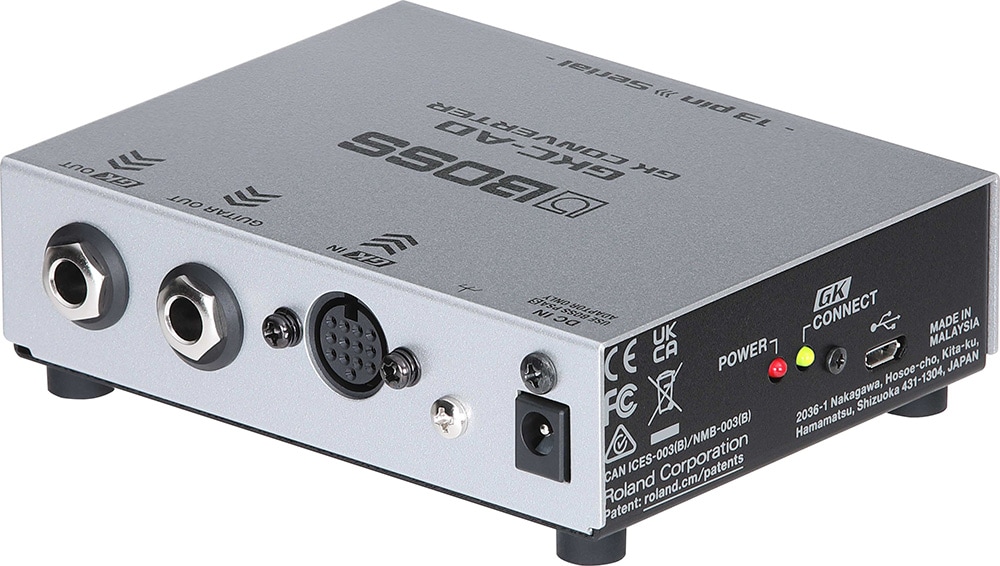

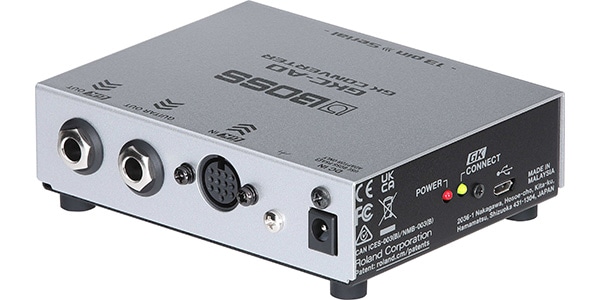

GK IN jack: 13-pin DIN type, GK OUT jack: TRS standard type (for BGK cable only), GUITAR OUT jack: standard type, DC IN jack, USB jack: USB micro B (for programme update only).
Recommended output level: GUITAR OUT = -10dBu.
Recommended load impedance: GUITAR OUT = 10k Ω or more.
Indicators: POWER indicator, GK CONNECT indicator
Current consumption: 240mA
Power supply: AC adaptor
External dimensions: 115 (W) x 92 (D) x 36 (H) mm
Weight (excluding AC adaptor): 340 g
Accessories: AC adaptor, operating instructions, "Safety Precautions" leaflet, warranty card.
Optional accessories: Serial GK cable: BGK-15 (4.5 m), BGK-30 (9 m)
0dBu = 0.775Vrms
