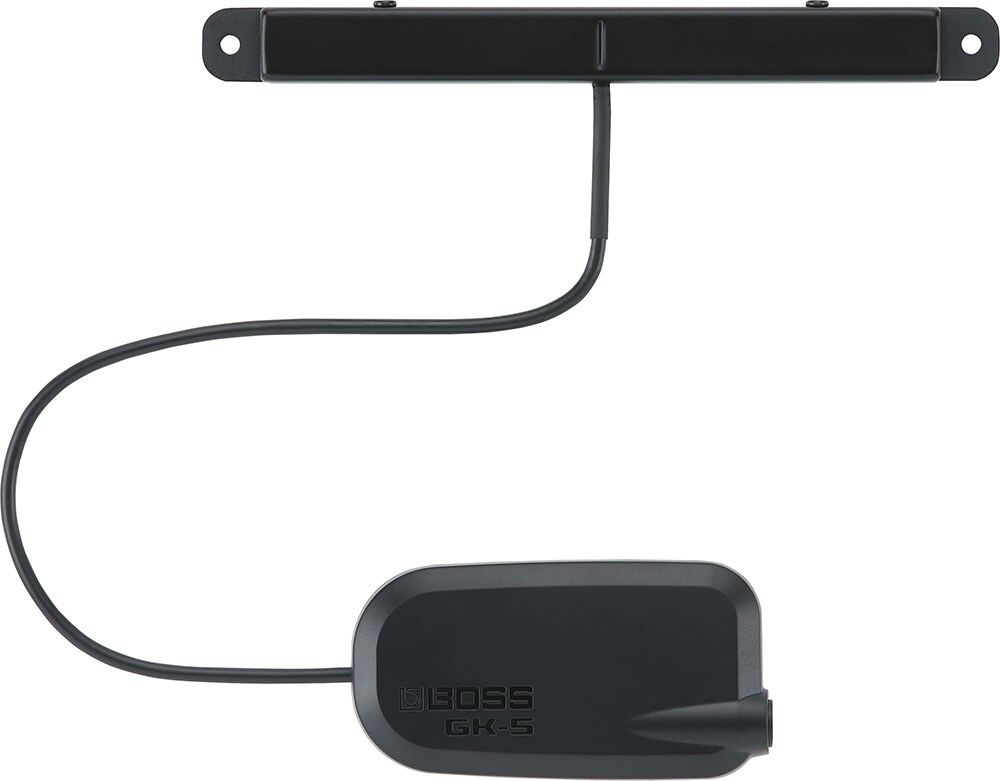

BOSS / GK5B

The GK-5B is a divided pickup designed specifically for bass. By combining a bass equipped with the GK-5B with a compatible BOSS/Roland guitar/bass synthesizer product, the range of musical expression can be greatly expanded.

The GK-5B uses a new digital serial GK system instead of the analog 13-pin GK system used in previous models. By realizing high-speed and stable communication, it opens up new possibilities for bass performance.

1. Output the divided pickup signal using a new digital serial GK method
2. Lightweight and minimalist design
3. Achieving stable communication through high-speed digital transmission
4. Compatible with 4-6 string basses
5. Can be used with the specially designed cable BGK-15/BGK-30 with excellent durability and easy handling.

■Next-generation digital serial GK system
The GK-5B uses a new digital serial GK system instead of the conventional analog 13-pin GK system. By significantly downsizing the connection terminals, a minimalist design has been achieved. It has been downsized to about half the size of the previous model. To connect the GK-5B and serial GK compatible products, you can use the specially designed cable BGK-15/30, which is more durable and easier to handle than conventional cables.

■Can be mounted on various bases
The spacing between each string will vary depending on the bass you use. The GK-5B's pickup has string spacing adjustment, so you can set it up to suit the bass you're installing. Furthermore, it can be installed not only on 4-string basses, but also on 5-string and 6-string basses.

■Main specifications
●Connection terminal GK OUT terminal: TRS standard type (BGK cable only)
●External dimensions (body): 38 (width) x 73 (depth) x 16 (height) mm
●External dimensions (pickup): 138 (width) x 15 (depth) x 9 (height) mm
●Mass (body): 30g
●Mass (pickup): 20g

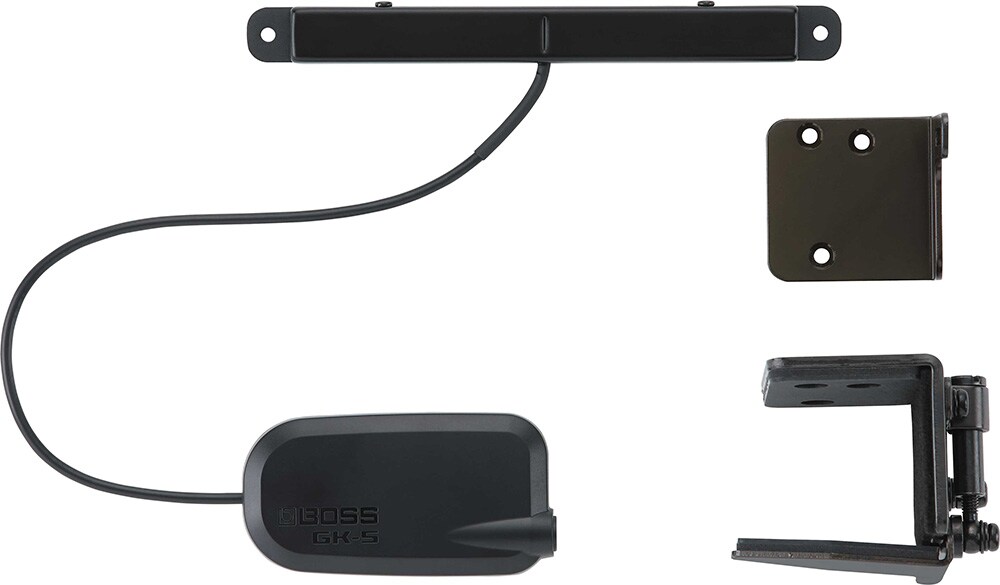

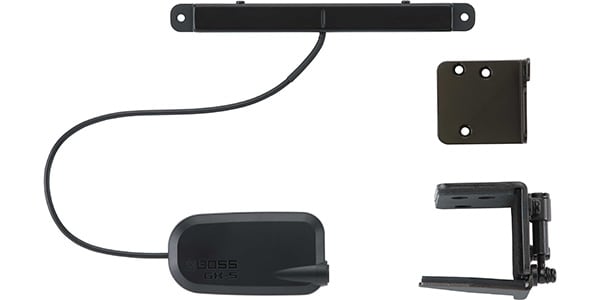

●Accessories: Complete set of installation parts, instruction manual, leaflet with illustrations, warranty card
●Sold separately: Serial GK cable: BGK-15 (4.5m), BGK-30 (9m)
