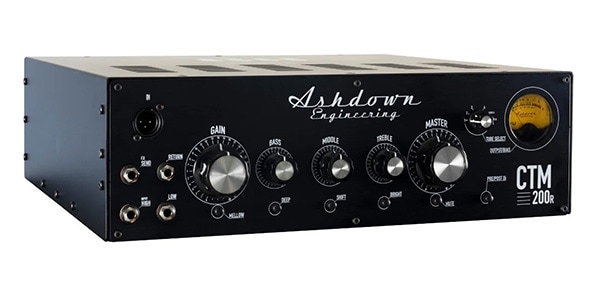

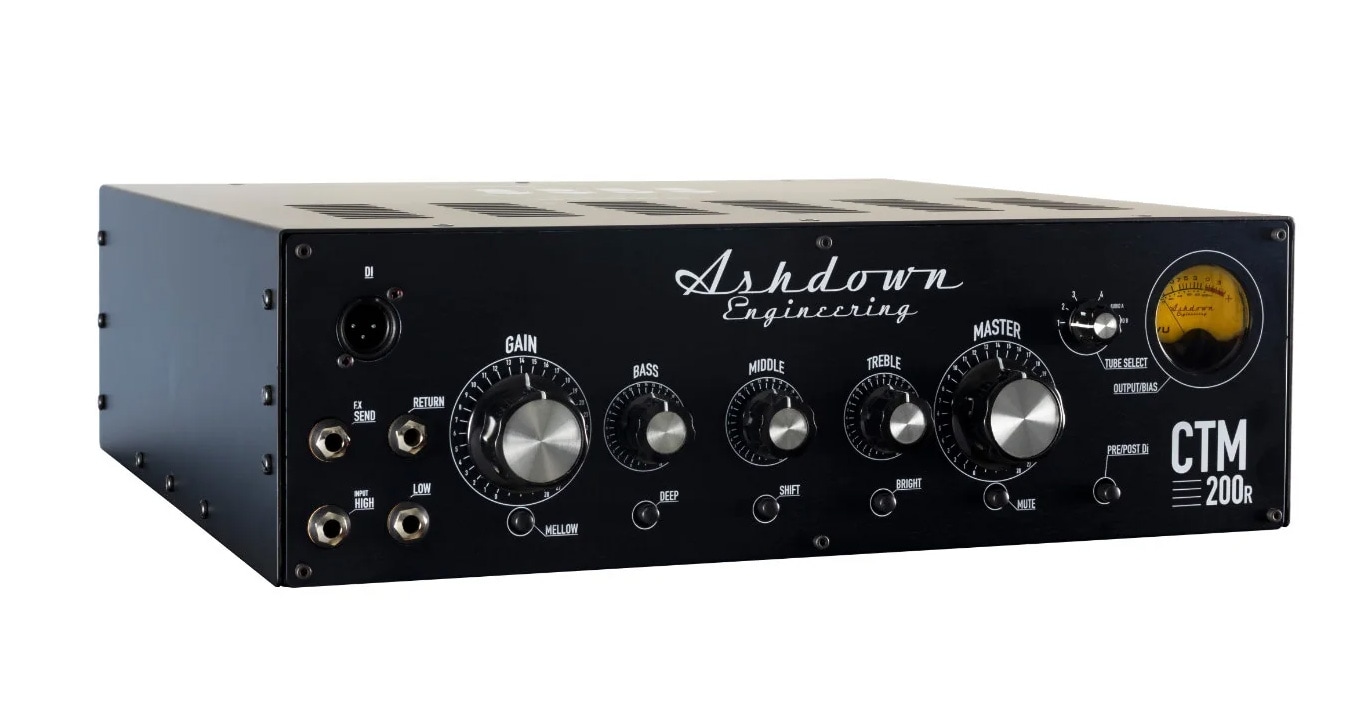

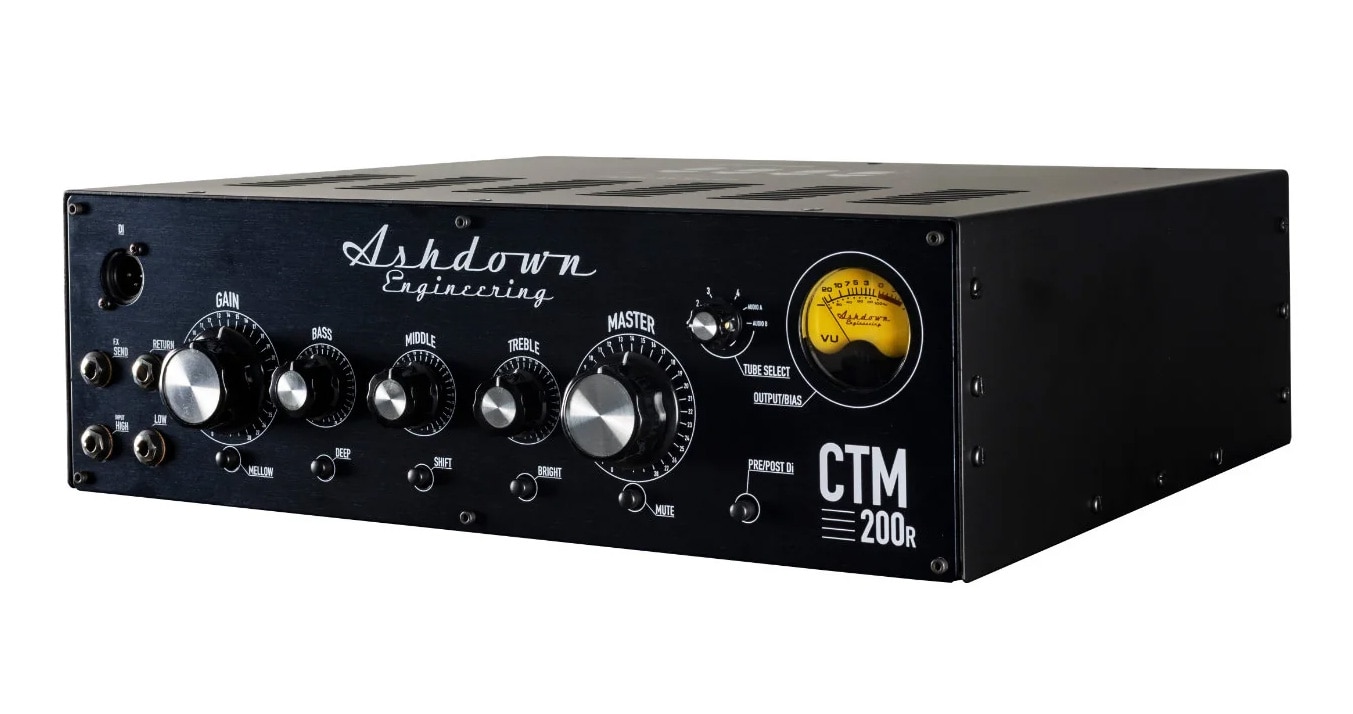

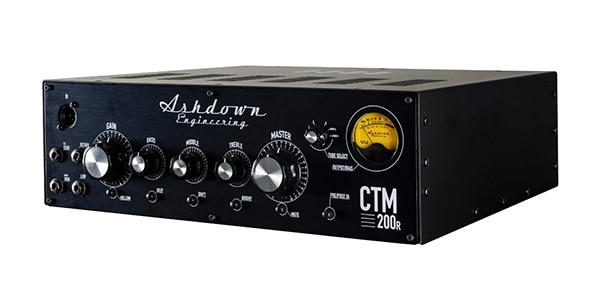

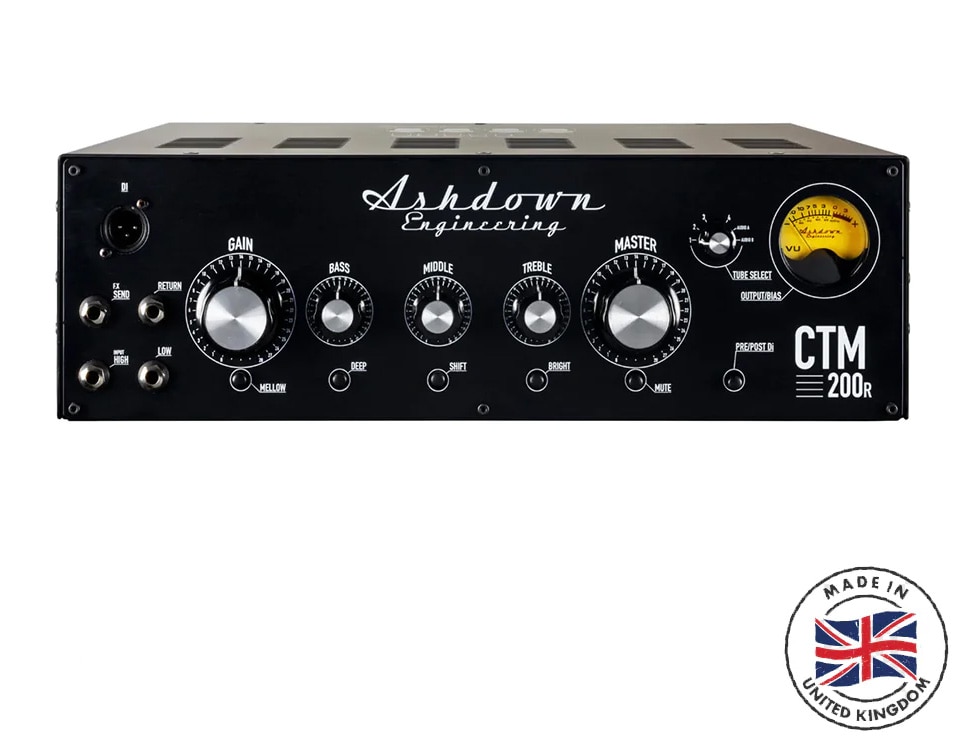

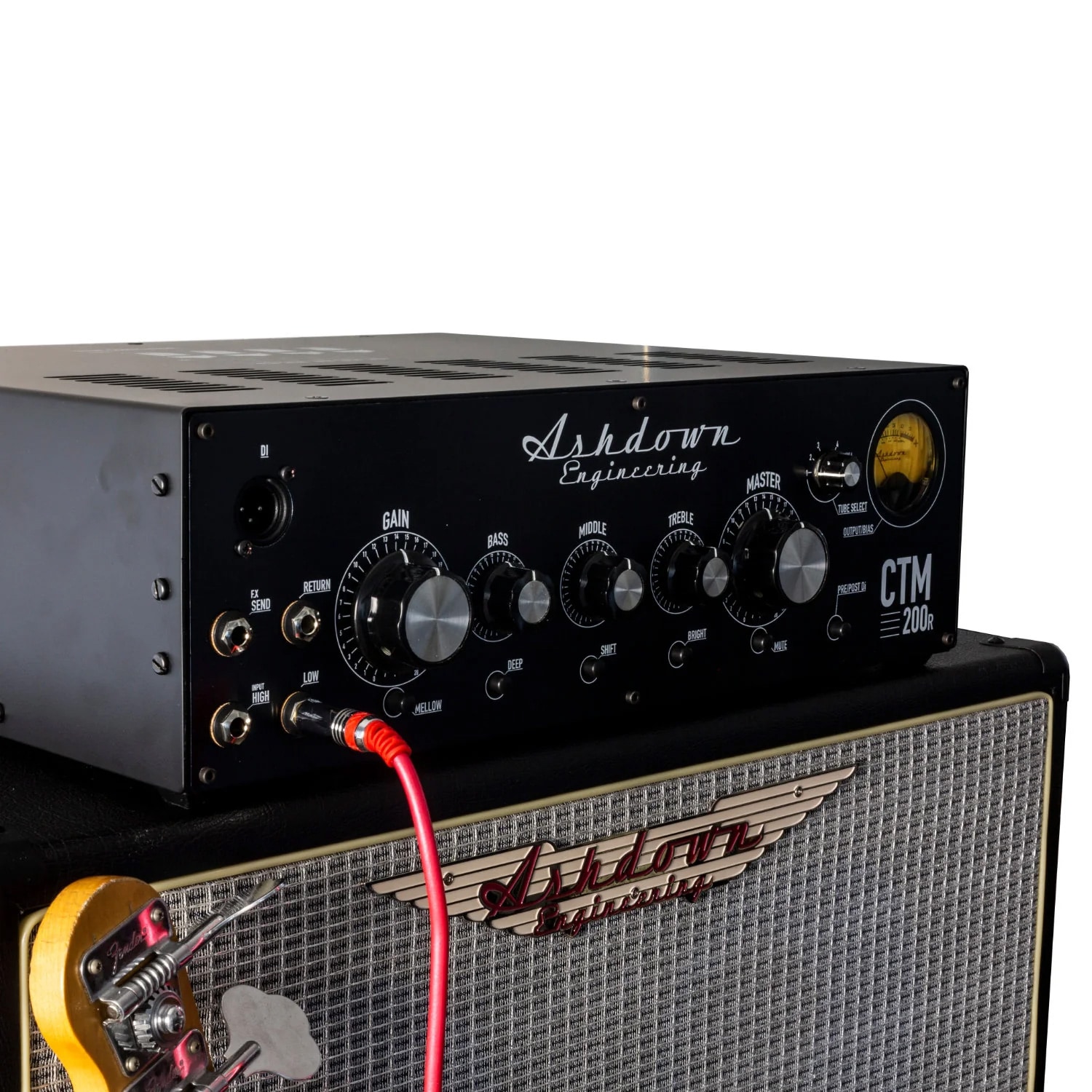

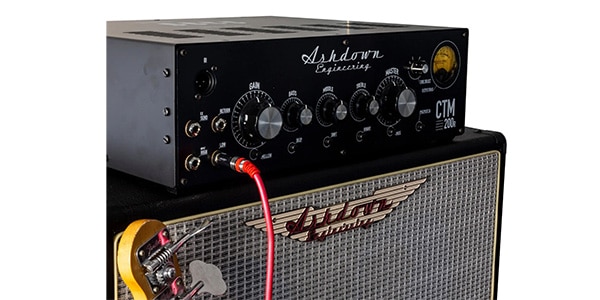

ASHDOWN / CTM-200-R

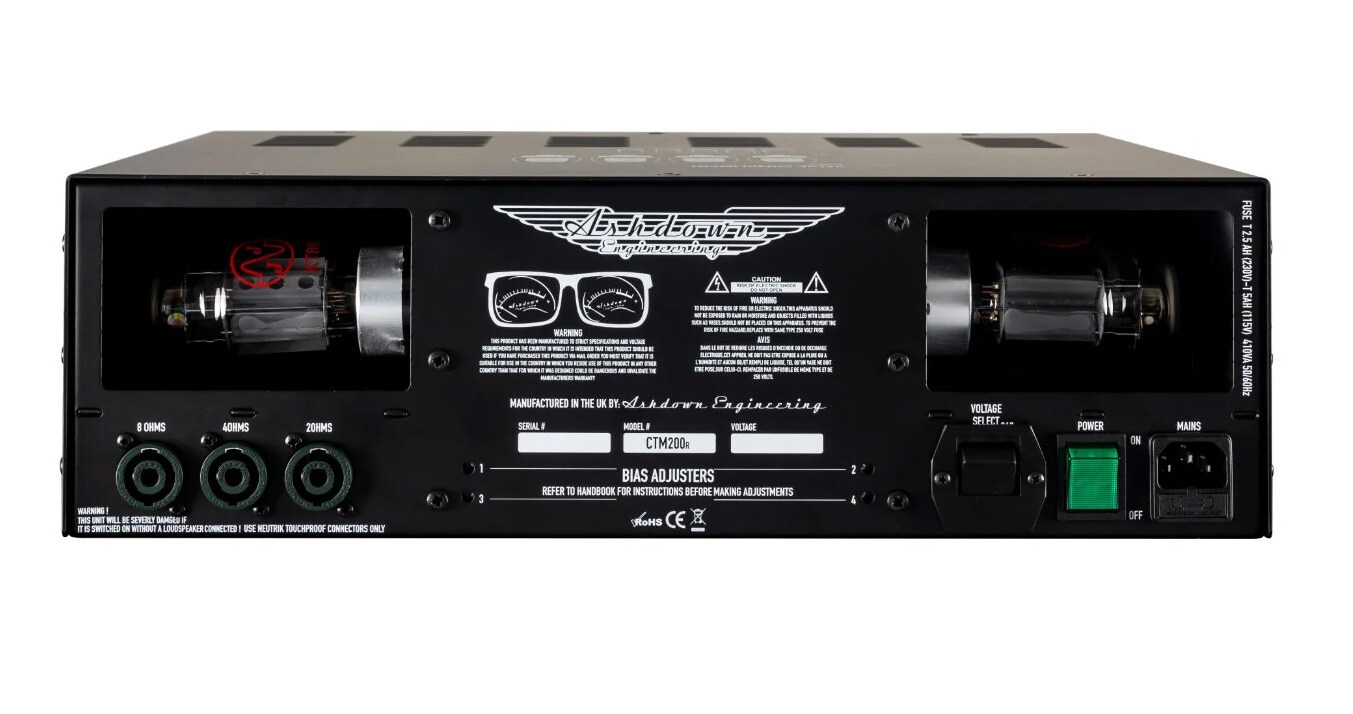

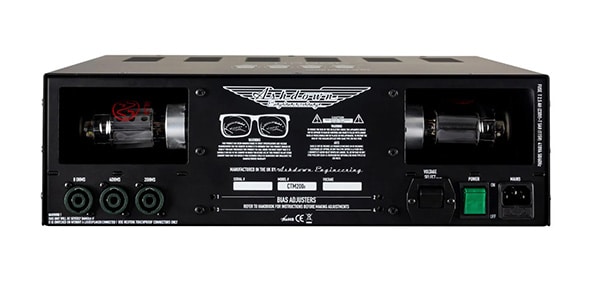

This all-black bass amp head is the sibling of the CTM-300 and CTM-100, with a full-featured power section consisting of four output tubes and five pre-amp tubes. Each output valve is individually fused and can be replaced without removing the unit from the case.

Output: 200 Watts / 4Ω
Input: 2 terminals (HI/LOW)
Outputs: 3 Speakon terminals (8/4/2 Ohm)
DI output
Send/Return jacks

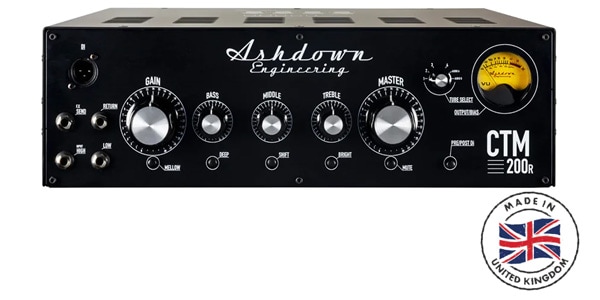

Controls
GAIN
BASS (100Hz)
MIDDLE (660Hz)
TREBLE (7kHz)
MASTER
MASTER switch
MELLOW (clean/drive switch)
Deep, Mid Shift, Bright
MUTE
PRE/POST DI

Vacuum tubes (pre-tube): ECC832 x2, ECC82 x2, ECC-99 x1
Power tubes: KT88 x4
Dimensions: H x W x D (mm) / 432 x 352 x 130
Weight: approx. 23 kg
