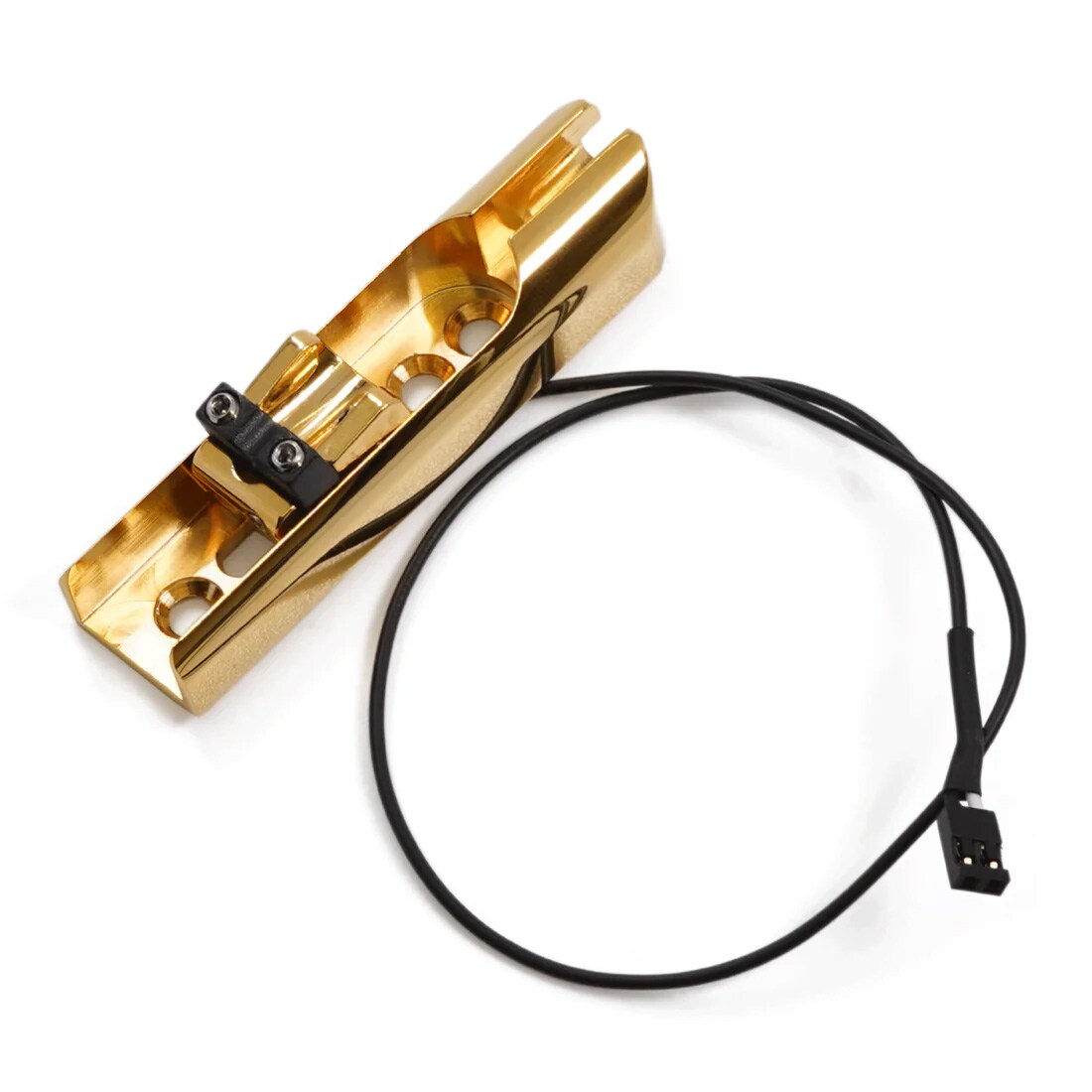

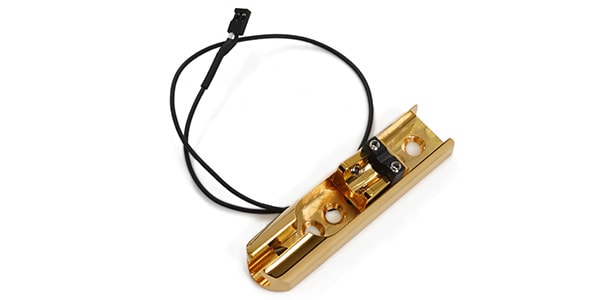

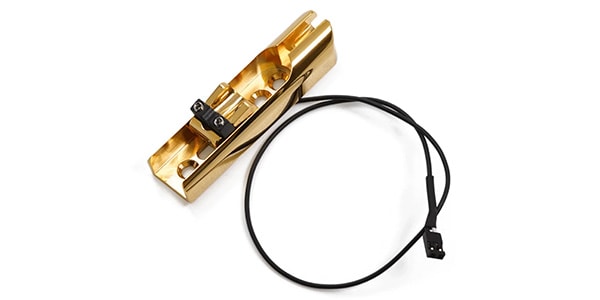

ABM / 3710GP

The ABM 3710G-P is a single bridge bass guitar. It has a built-in Graphtech piezo pickup. Since you can freely decide the number of strings and the spacing, it is recommended for use in making and modifying original instruments.

The single bridge is manufactured by machining bell brass. It firmly transmits the vibrations of the strings to the instrument, bringing out the instrument's original sound without sacrificing any of it.

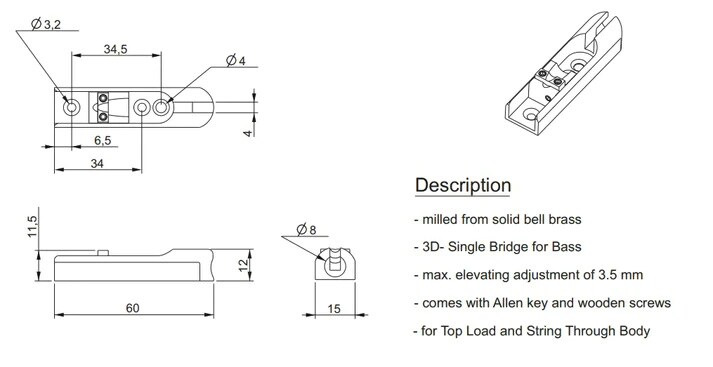

・Minimum spacing (string pitch): 15mm

■Product overview
Single bridge (for bass)
Minimum spacing (string pitch): 15mm
Surface treatment: chrome plating

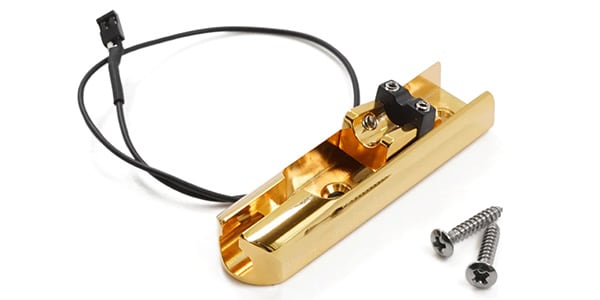

■Accessories
Single bridge x 1
Mounting screw x 2
Hex wrench for saddle adjustment x 1

■Material
Machined bell brass

■Country of manufacture: Germany

Piezo pickup specifications
・Output: 0.2V RMS
・Impedance of one piezo pickup: 200pF

*This piezo pickup is compatible with Graphtech's Acousti-Phonic system.
We strongly recommend using this preamp system when using this product.
