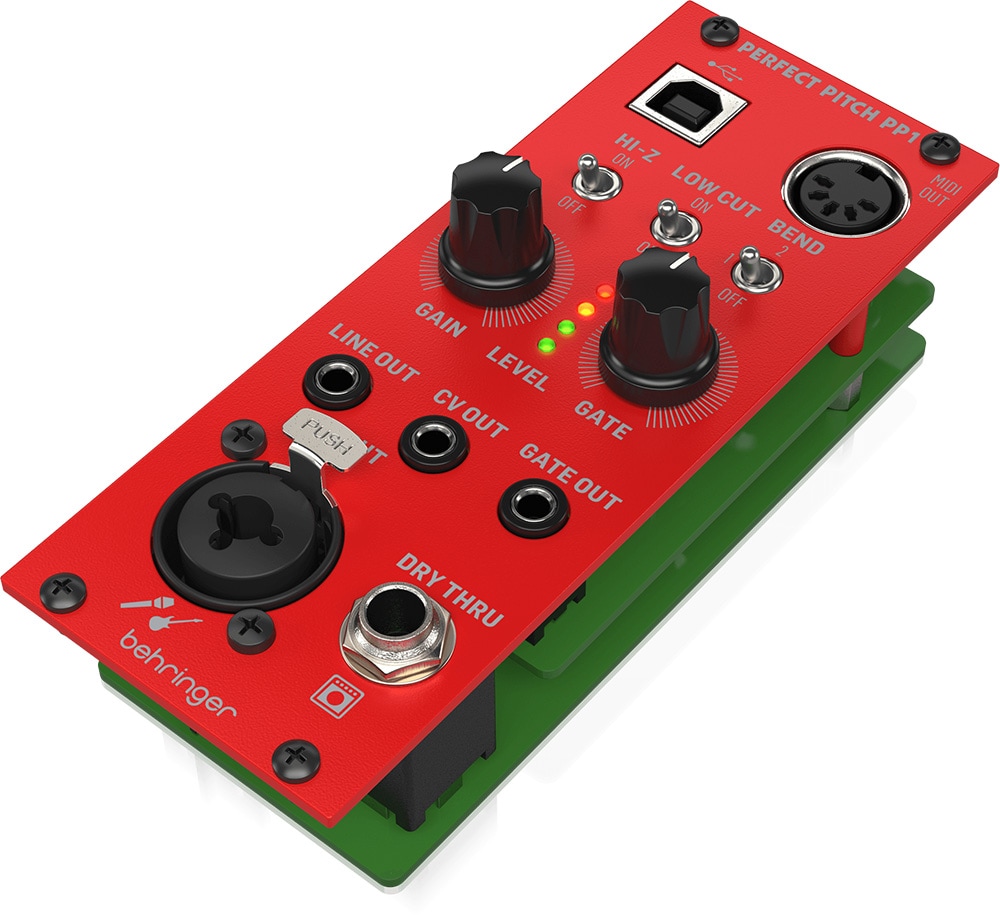

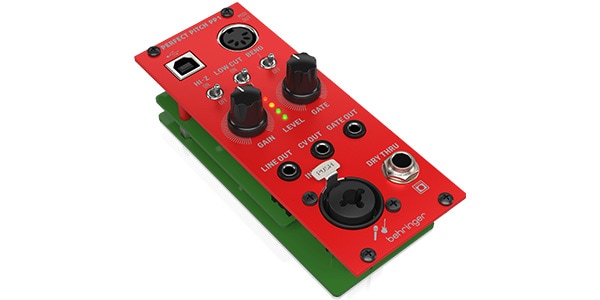

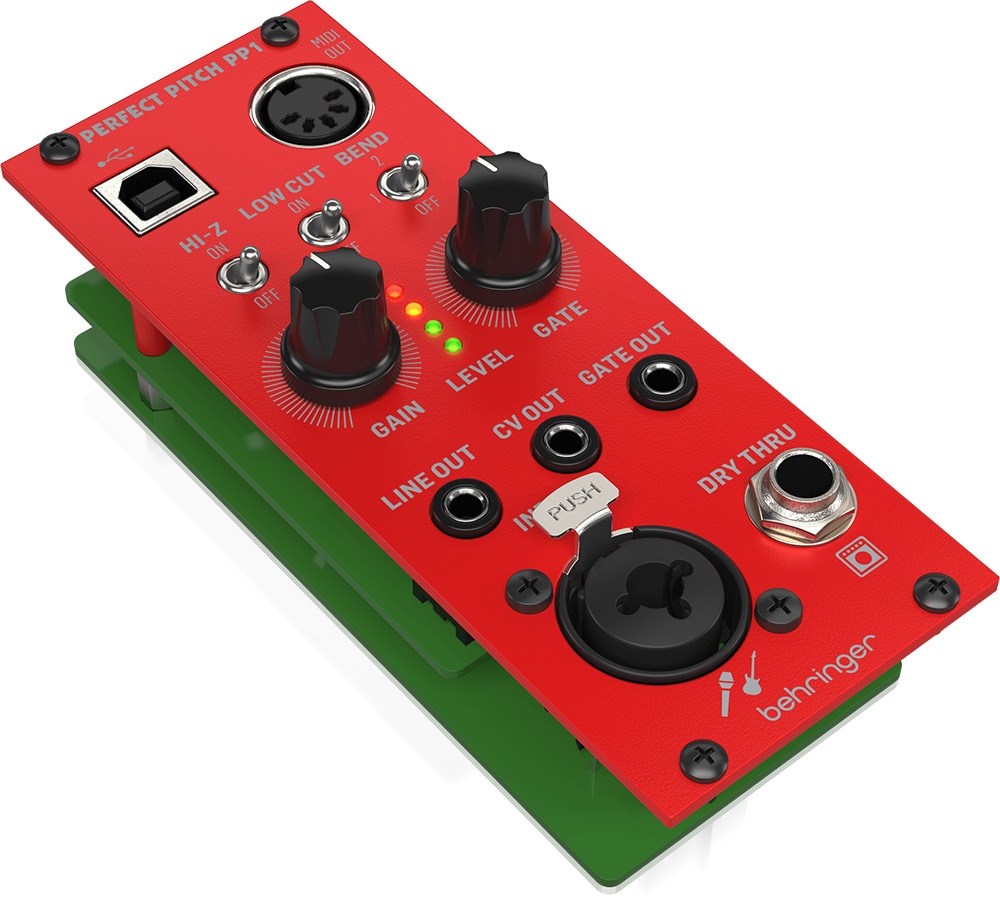

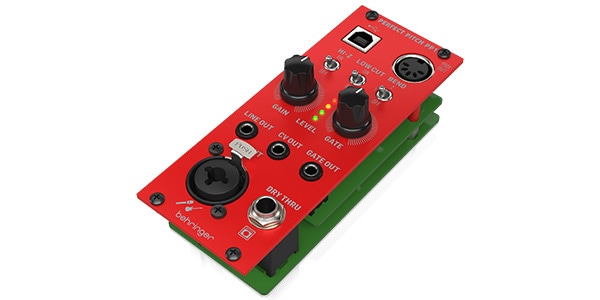

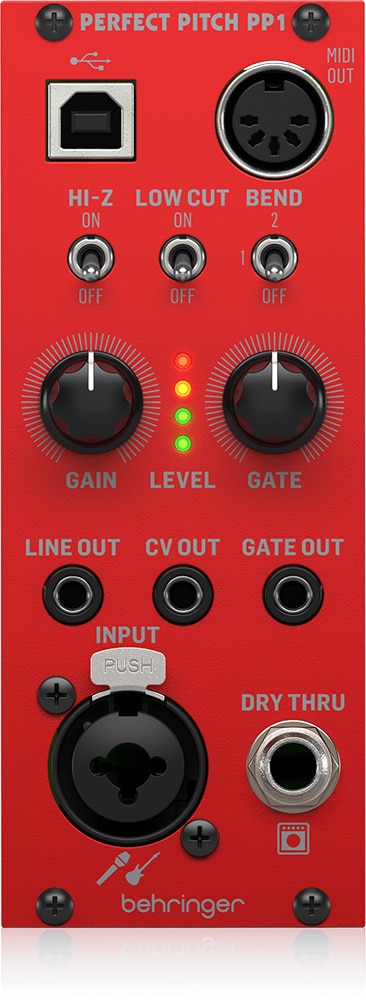

BEHRINGER / PERFECT PITCH PP1

BEHRINGER / PERFECT PITCH PP1

  • BEHRINGER / PERFECT PITCH PP1画像1
  • BEHRINGER / PERFECT PITCH PP1画像2
  • BEHRINGER / PERFECT PITCH PP1画像3
10
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual

Variations

▼ もっと見る

BEHRINGER/PP1 is a compact Eurorack module that converts guitar or any audio signal to MIDI, USB, or CV for use with your favorite synthesizer.
■Output
Maximum +19 dBu
Line, CV, Gate:3.5 mm jack
Dry Thru:6.35 mm jack (balanced)
MIDI:5 pin DIN socket
USB:USB 2 Type B socket
■Input
Combined Female XLR / 6.35 mm jack (balanced)
■Controls
Gain, Gate knobs
Hi-Z, Low Cut, Bend switches
■Gain
Line:-10 db to +40 dB
Mic:+10 dB to +60 dB
■Response
Standard operating temperature range5°C to 40°C (41°F to 104°F)
■THD
<0.005% (20 Hz to 20 kHz @ 20 dB gain)
■Input Impedance
Instrument:1 MΩ
Line:22.6 Ω balanced / 11.3 Ω unbalanced
Mic:2.6 kΩ balanced / 1.3 kΩ unbalanced
■Output Impedance
Audio:100 Ω
Gate:1 kΩ
CV:100 Ω
■CV Out Accuracy
Approximately 0.1%
■Physical Size
10 hp
12.9 x 5.1 x 5.6 cm (5.1 x 2 x 2.2")
■Weight
Unpacked Weight: 0.15 kg (0.33 lbs)
■Consumption
60 mA +12 V / 50 mA -12 V
