KORG / NTS-2 oscilloscope kit

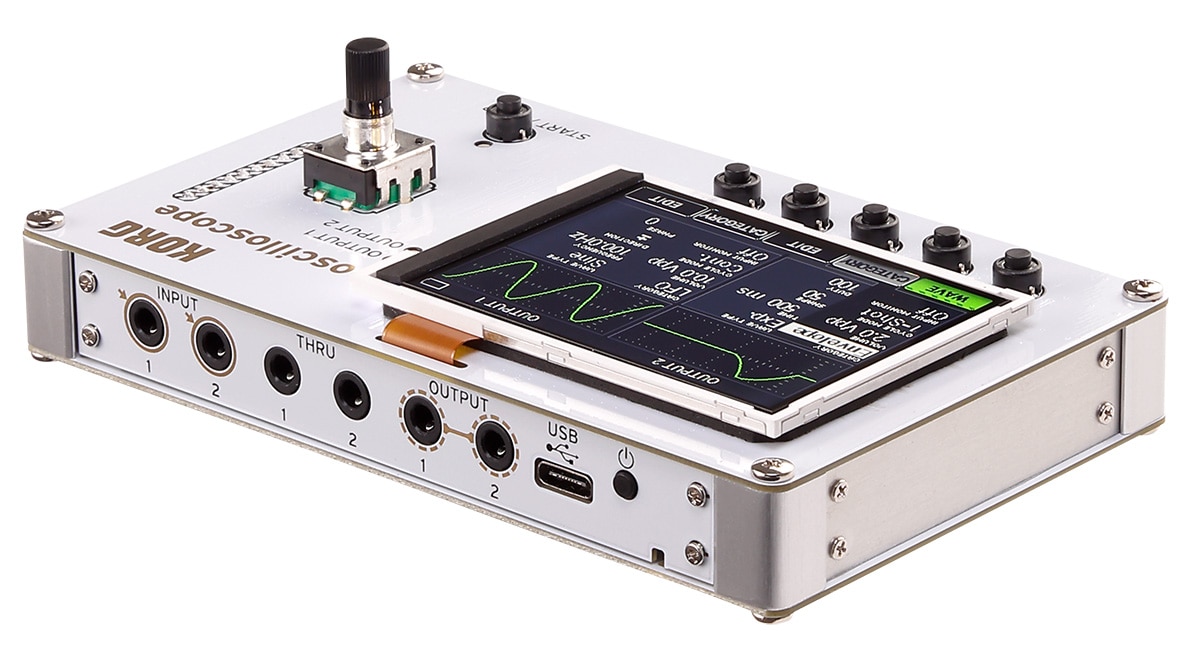

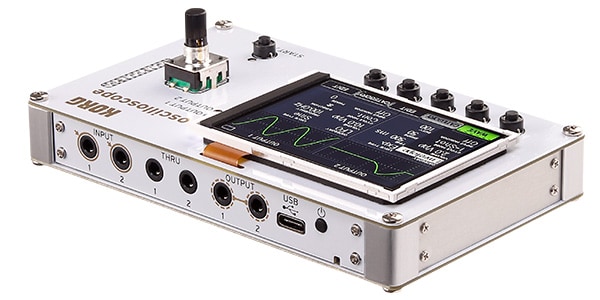

The KORG/Nu:Tekt NTS-2 Oscilloscope Kit is a DIY multi-function tool for musicians that allows simultaneous monitoring of CV (control voltage) and audio signals based on a 4-channel oscilloscope.

Specifications
- Dimensions (W x D x H) 129 mm x 78 mm x 39 mm
- Weight 130 g (excluding batteries)
- Power supply
2 AAA batteries (2 x Alkaline 1.5V or 2 x NiMH 1.2), USB bus power supply (500mA or less)
- Input/Output
Input: 2 x 3.5 mm stereo, ± 10V max
Through output: 3.5mm stereo x2

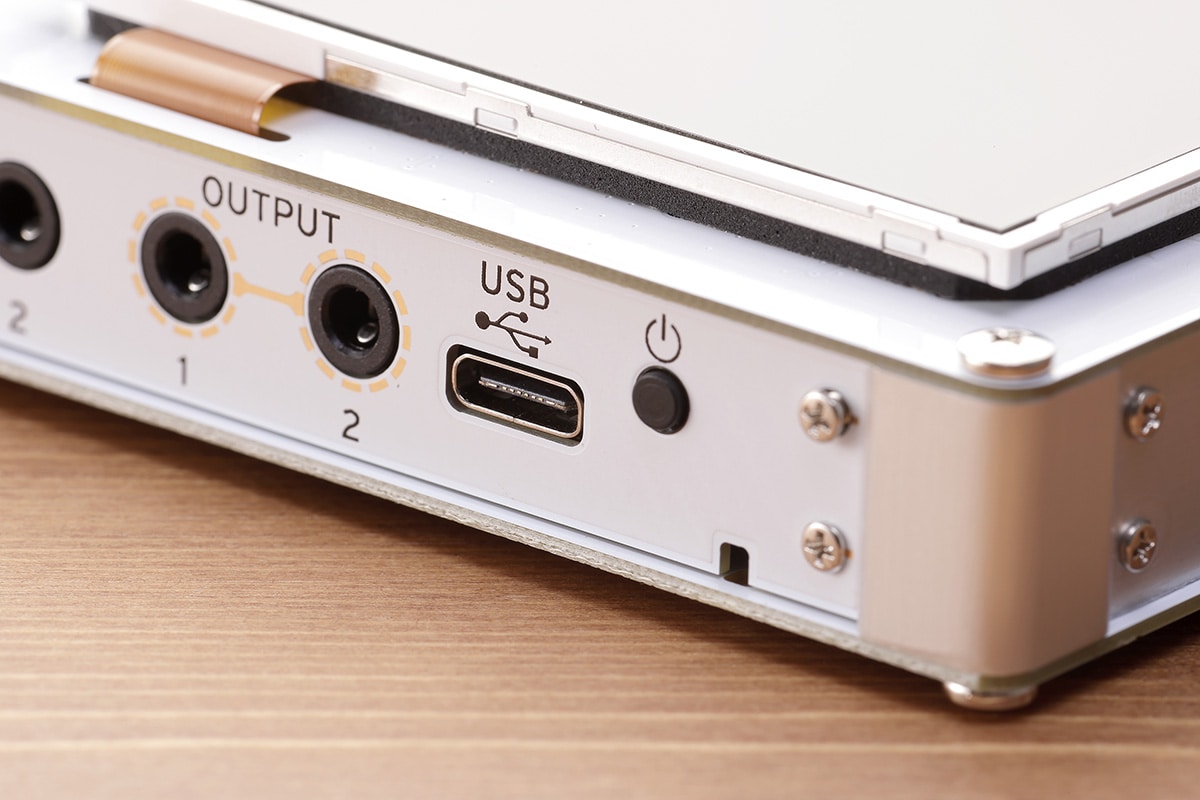

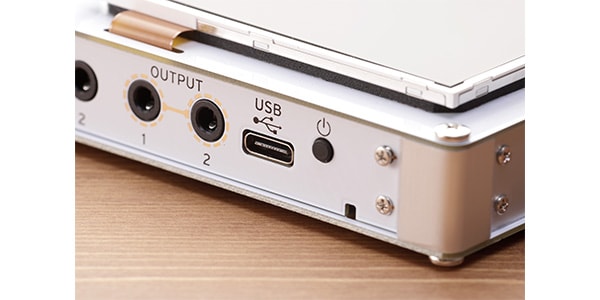

Output: 3.5mm mono x2, ±5V max
- Oscilloscope:

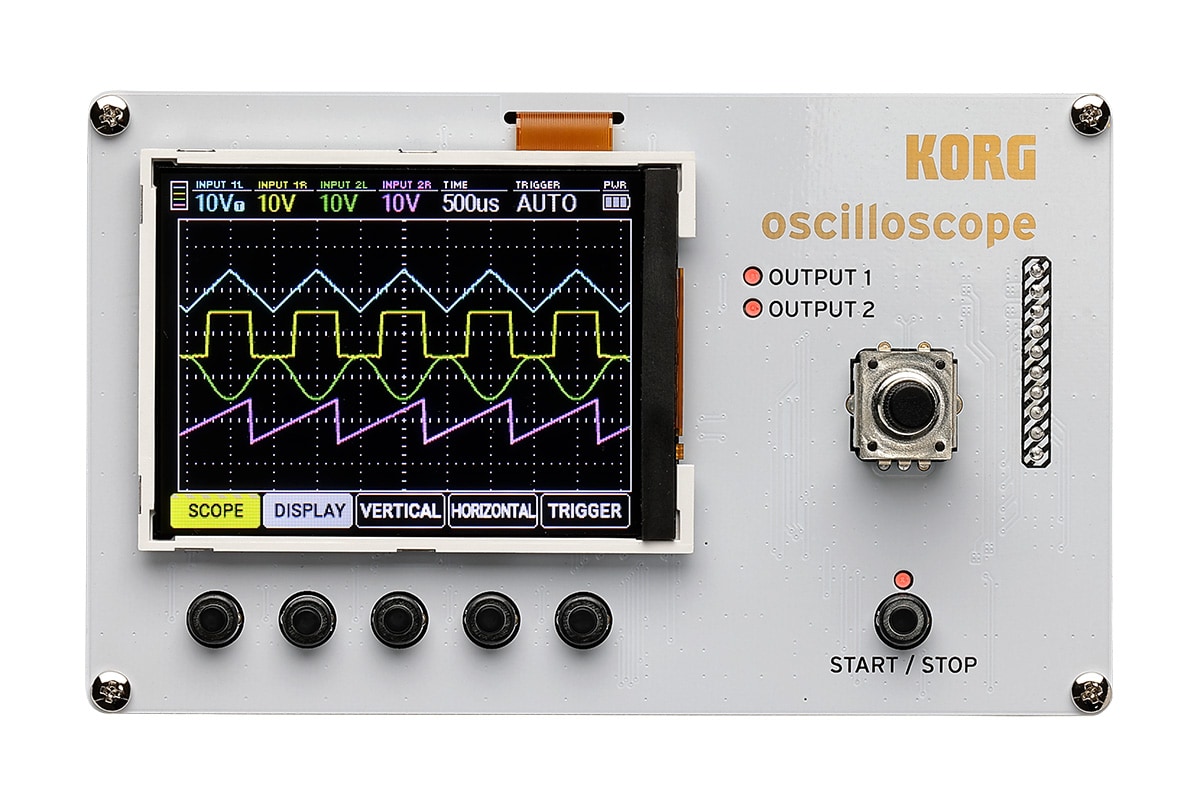

Display modes: single, stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch, XY
( Lissajous mode, 2ch)
Vertical : 10mV to 5V/div, AC/DC mode switchable
Horizontal : 50us to 1s/div
Trigger : Auto, Rise, Fall, Single(rise), Single(fall)
- FFT ( Spectrum analyzer)
Input : Mono (1L, 1R, 2L, 2R)
Frequency range 20Hz to 20kHz
- Function generator
Waveforms : sine, square, triangle, saw, noise, pulse, envelope
Frequency range : 1Hz to 10kHz, Hz/NOTE mode switchable, [1ms-10s, sec/BPM switchable (pulse,
envelope mode)]
Output level: 10Vpp max, V/dB mode switchable
- Tuner
Display mode: needle, meter
Input: mono, stereo (Input1L-Input1L-Stereo) Input1L-Input1R, Input1L-Input2L)
Calibration: 410-480Hz

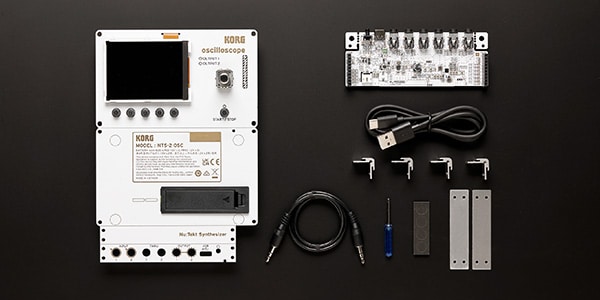

- Accessories: USB cable, assembly instructions
