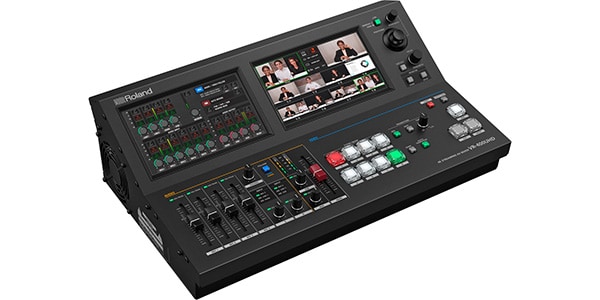

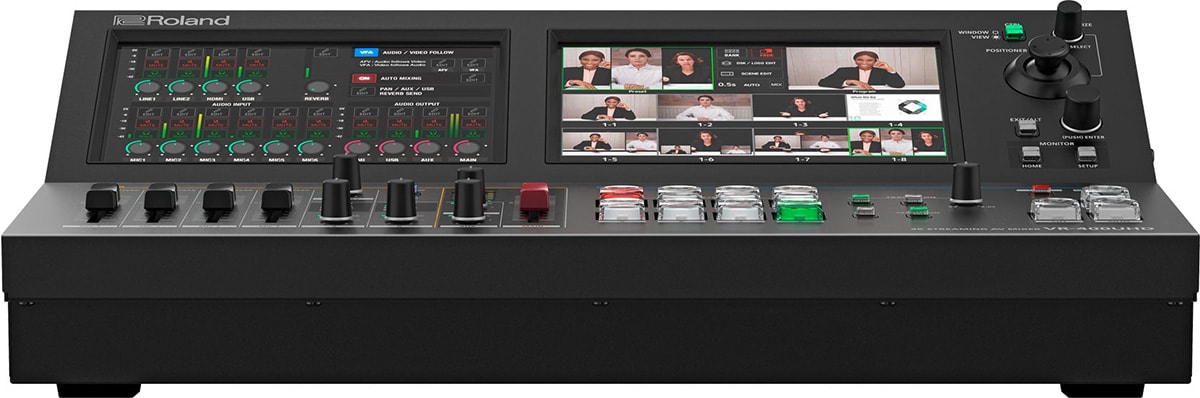

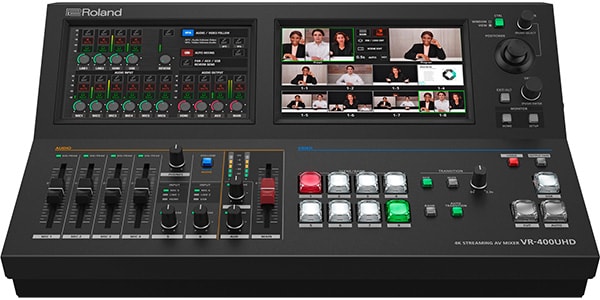

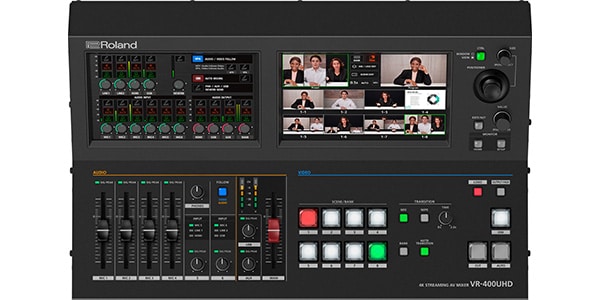

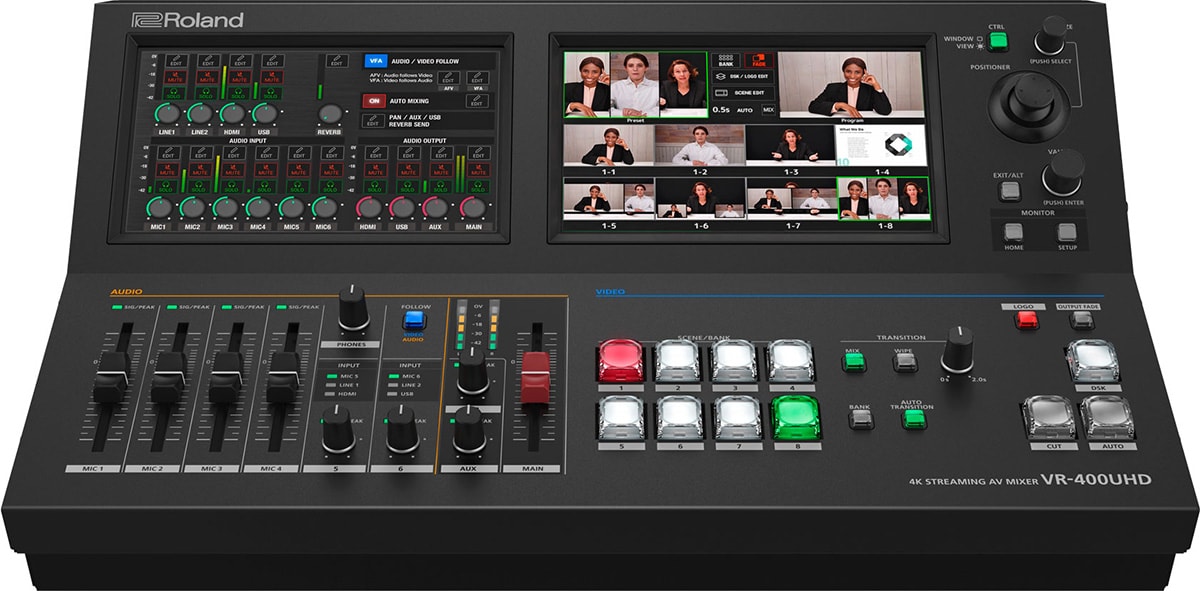

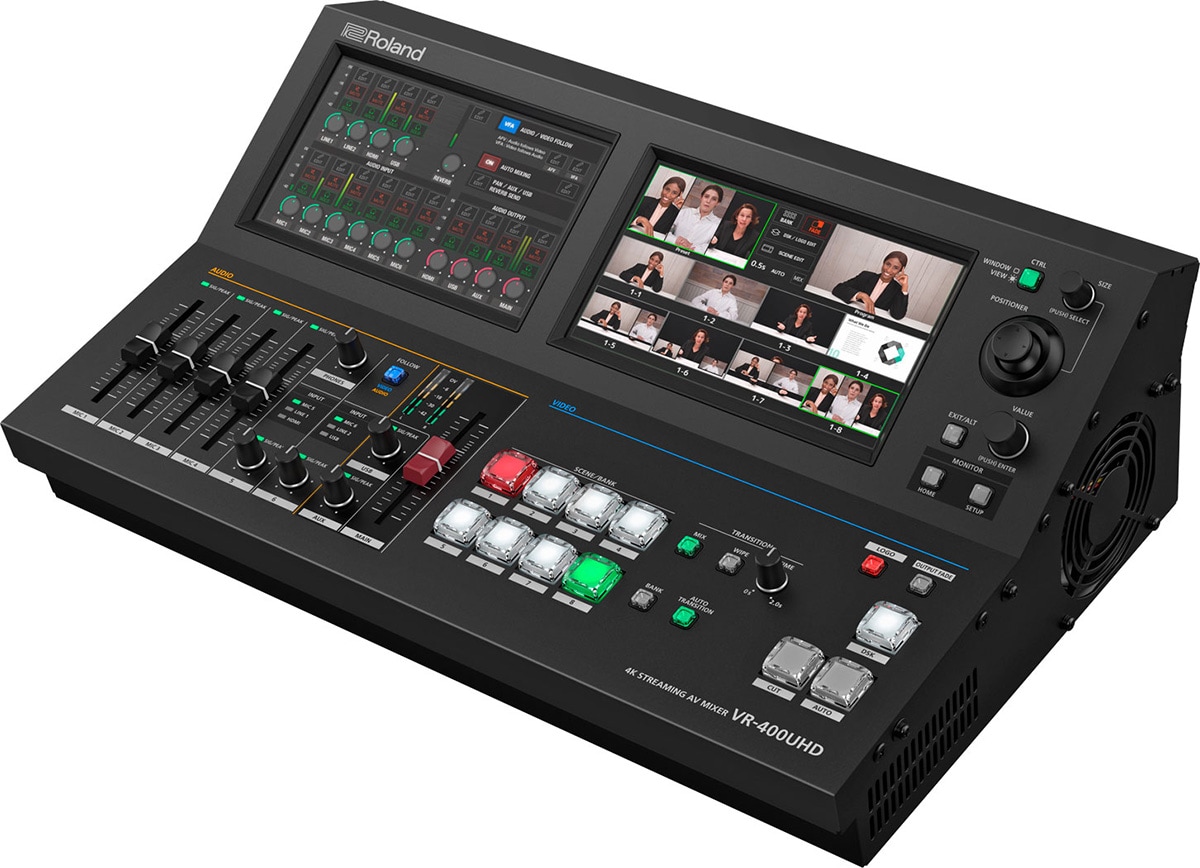

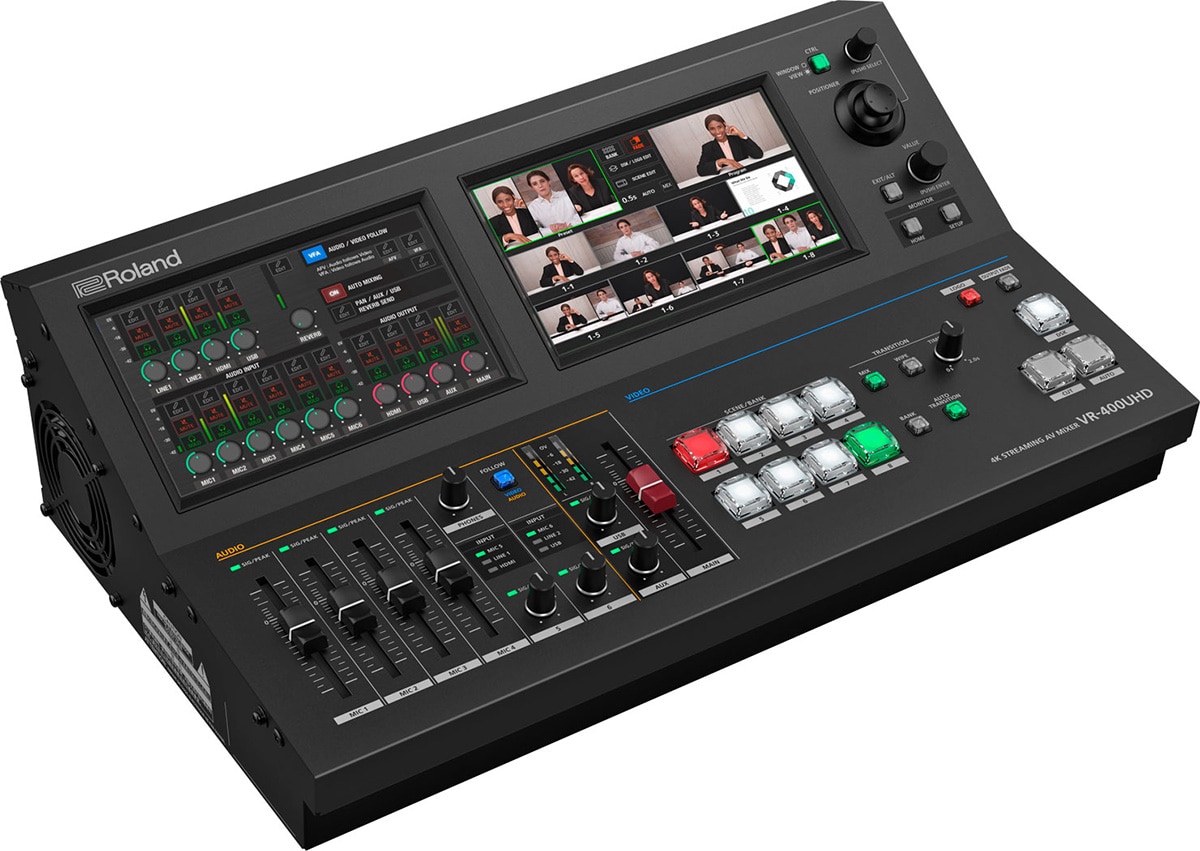

ROLAND / VR-400UHD

A solution that allows you to manage the workflow necessary for real and live streaming event production with intuitive operability! !

【picture】
■Video processing: 4:2:2 (Y/Pb/Pr), 10 bit
■Number of video channels: 4 channels
■Input video format:
HDMI 4K IN:
2160p/60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz, 24Hz, 23.98Hz
1080p/60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz
1080i/59.94Hz, 50Hz
720p/60Hz, 59.94Hz, 50Hz
*Compatible with HDCP 1.4 and 2.2
*CEA-861-F compliant
*Color gamut: Rec.709, Rec.2020
*Brightness: SDR, HDR PQ(HDR10), HDR HLG
■Output video format:
HDMI 4K OUT:
2160p/60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz, 24Hz, 23.98Hz
1080p/60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz
*Compatible with HDCP 1.4 and 2.2
*CEA-861-F compliant
*Color gamut: Rec.709, Rec.2020
*Brightness: SDR, HDR PQ(HDR10), HDR HLG
HDMI HD OUT: 1280×720/60Hz
*HDCP 1.4 compatible
*CEA-861-F compliant
*Color gamut: Rec.709
*Brightness: SDR
■4K STREAMING:
960x540, 1280x720, 1920x1080, 2560x1440, 3840x2160
*Frame rate (~2560x1440): 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
*Frame rate (3840x2160): 25Hz, 29.97Hz, 30Hz
*Color gamut: Rec.709
*Brightness: SDR
*USB Video Class compliant
■Still image” Bitmap File (.bmp) maximum 3840x2160, 24-bit color, uncompressed
JPEG File (.jpg, .jpeg) up to 3840x2160, 24-bit color
PNG File (.png) maximum 3840×2160, 24-bit color
*Up to 8 images can be stored
*Supports PNG alpha channel
■Video effects:
Switching: cut, mix, wipe (11 patterns)
Composition: Background, Layer 1 (Picture in Picture + Key)
(*1), Layer 2 (Picture in Picture + Key) (*1), DSK (*2), Logo (*3)
Others: Multiview, Output Fade, Output Freeze
Output capture, still image playback, test pattern output
*1 Luminance key, chroma key
*2 Luminance key, chroma key, still image α channel
*3 Only for luminance key, chroma key, still image alpha channel, and 4K streaming output. Maximum size is 1920x1080.

【audio】
■Audio processing:
Sample rate: 24 bit, 48kHz
Number of audio channels: 14 channels
*MIC×6, LINE×2, HDMI, USB
■Audio format:
HDMI 4K IN: Linear PCM, 24 bit, 48kHz, 2ch
HDMI 4K OUT: Linear PCM, 24 bit, 48kHz, 2ch
4K STREAMING (input/output): Linear PCM, 16 bit, 48kHz, 2ch
■Audio effects:
Channel effects: auto gain, high pass filter, anti-feedback
Noise gate, de-esser, compressor, 4-band PEQ, delay, auto mixing
Master effects: reverb, compressor/limiter, loudness auto gain control
15 band GEQ, delay
Others: Output fade, test tone output

[Common section]
■External recording media: USB memory (commercially available)
■Other functions: Scene memory (64 pieces)
Panel lock function
EDID emulator
Menu language (English, Japanese)

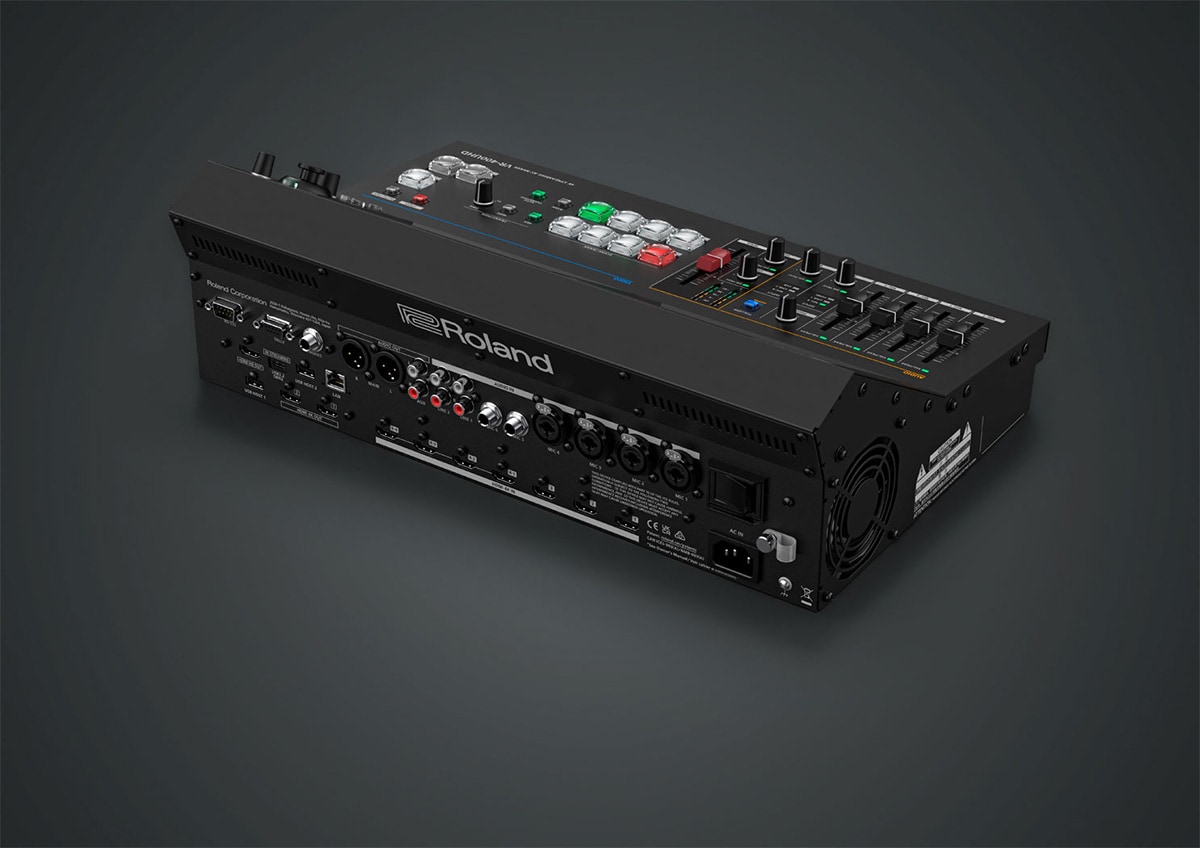

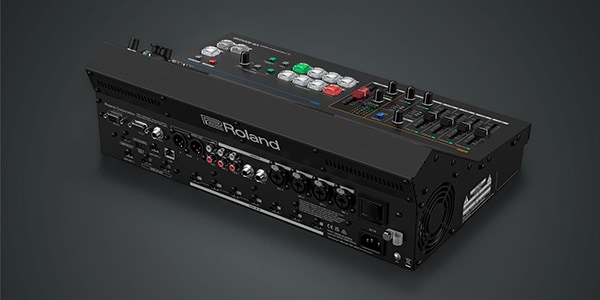

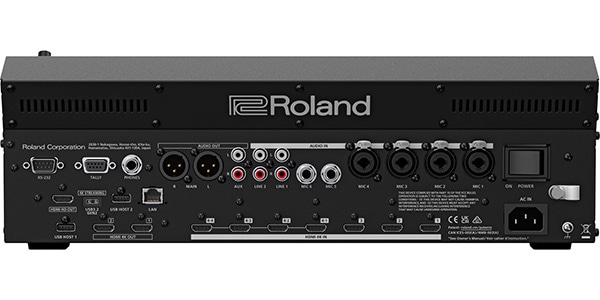

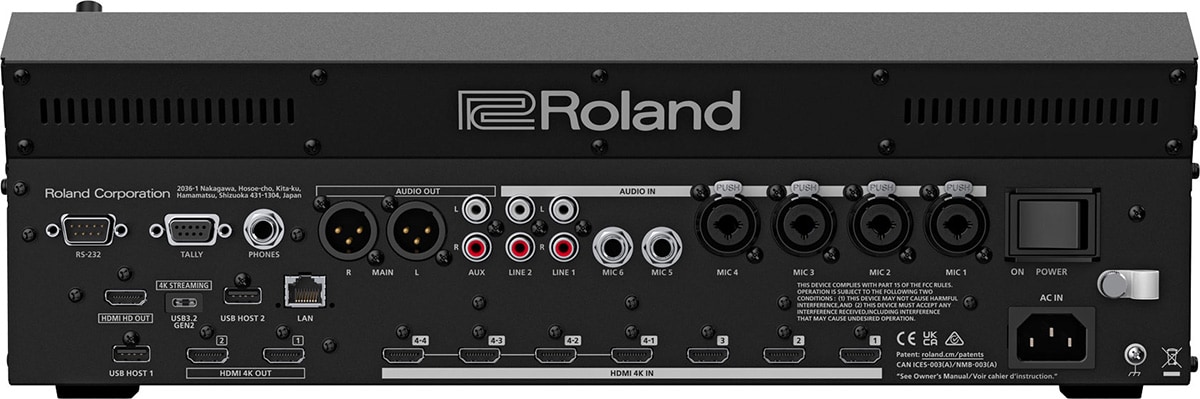

[Connection terminal]
■Video input terminal HDMI 4K IN 1 to 3, 4-1 to 4-4 terminal: HDMI type A (HDMI 2.0) x7
*Compatible with HDCP 1.4 and 2.2
*Multi-format compatible
■Video output terminal:
HDMI 4K OUT 1-2: HDMI type A (HDMI 2.0) x 2
*Compatible with HDCP 1.4 and 2.2
*Multi-format compatible
HDMI HD OUT: HDMI type A (HDMI 1.4) x 1
*HDCP 1.4 compatible

4K STREAMING: USB Type-C? (USB 3.2 GEN 2 10 Gbps)
■Audio input terminal
analog:
AUDIO MIC IN 1-4: Combo type (XLR, TRS standard), phantom power (DC48V, 10mA Max)
AUDIO MIC IN 5-6: TRS standard type
AUDIO LINE IN 1~2: RCA pin type
digital:
4K STREAMING: USB Type-C?
HDMI 4K IN 1~3, 4-1~4-4 terminal: HDMI type A (HDMI 2.0)x7
■Audio output terminal:
analog:
AUDIO OUT MAIN (L, R): XLR type
AUDIO OUT AUX (L, R): RCA pin type
PHONES: Stereo standard type
digital:
4K STREAMING: USB Type-C?
HDMI 4K OUT 1-2: HDMI type A (HDMI 2.0)x2
HDMI HD OUT: HDMI type A (HDMI 1.4)x1
■Other terminals USB HOST1~2: USB A type
RS-232: 9-pin D-sub type (male)
LAN: RJ45 type, 100BASE-TX
TALLY: 9-pin D-sub type (female)

[Audio input/output standards]
■Specified input level:
AUDIO MIC IN 1~6: -64~+4dBu (Maximum input level: +24dBu)
AUDIO LINE IN 1-2: -10dBu (Maximum input level: +10dBu)
■Input impedance:
AUDIO MIC IN 1-6: 16KΩ
(phantom power OFF), 8kΩ (phantom power ON)
AUDIO LINE IN 1~2: 2.7kΩ
■Specified output level:
AUDIO OUT MAIN (L, R): +4dBu (Maximum output level: +24dBu)
AUDIO OUT AUX (L, R): -10dBu (Maximum output level: +10dBu)
PHONES: 90mW + 90mW (at 32Ω load)
■Output impedance:
AUDIO OUT MAIN (L, R) terminals: 600Ω
AUDIO OUT AUX 1 (L, R): 1kΩ
PHONES: 10Ω residual noise level (IHF-A, typ.) -87dBu (all faders Min)
-85dBu ([MAIN] fader: unity, channel fader: INPUT 1 channel only, unity, PREAMP Gain: Min)
-57dBu ([MAIN] fader: unity, channel fader: INPUT 1 channel only, unity, PREAMP Gain: Max)
*Input 150Ω termination
*Output terminal: AUDIO OUT MAIN (L, R)

-100dBu (all faders Min)
-99dBu ([MAIN] fader: unity, channel fader: INPUT 1 channel only, unity, PREAMP Gain: Min)
-80dBu ([MAIN] fader: unity, channel fader: INPUT 1 channel only, unity, PREAMP Gain: Max)
*Input 150Ω termination
*Output terminal: AUDIO OUT AUX (L, R)

【others】
■Display:
7 inch graphic color LCD 800x480 dots (touch screen) x2
■Built-in speaker: monaural 1W
■Power supply: AC100V (50/60Hz)
■Power consumption: 115W
■Operating temperature +5~+40℃
■SIZE: 436(W)x137(H)x279(D)mm Weight 6.8kg
■Accessories:
Startup guide
Power cord (2P-3P converter)
Warranty
